Diamond Oil Hole Bronze Bushing Material CuSn8 Or CuSn6.5 Sheet Plate

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing
Product Details
Meterial Bronze CuSn8,Cusn6.5,copper,C95400,brass Type Split Bronze Bushings
Feature Self Lubricating Bronze Bushing Material Lubrication Oil Lubrication,self -lubricating
Quality OEM Quality Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip


self lubricating bearing strip

Leave a Message
Product Description

Bronze Bushing Material,As a manufacturer, we produce almost all possible dimensions self-lubricating bronze bushing.Wide range of self lube Bronze Bushing ready in stock. Able to satisfy any request and design need. discover the full Bronze Bushings Products.


CuSn8 is characterized by the purity of the alloy with only a very low level of impurities. Wrapped bronze bearings are produced from strips that are subsequently wrapped and calibrated.

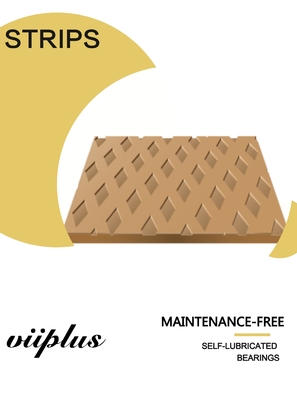

Bronze Material Plain Bearing Strips | CuSn8 or CuSn6.5 Metric Bronze Bushings Sheet Strip

Diamond Oil hole Copper sleeve flange sleeve in linear motion, VIIPLUS brand self-lubrication bearing with low noise, self-lubrication characteristics, is widely used in cylinder and automatic guide rail.

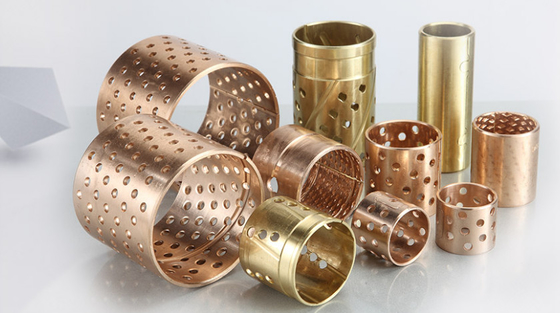

VIIPLUS Cylindrical bushing CuSn8 & CuSn6.5,flanged bearing and strip are available.Bronze bushing is a kind of wrapped self lubricating bearing. This type bearing including bronze bearing, bronze bearing with oil hole. We are leading export in china of Bimetal Bearing, Bronze Bearing, Sliding Bearing,Bush Bearing, Linear Bearing.
wrapped bronze bushing is made of tin-bronze CuSn8P with its surface punched with diamond oil sockets which are preserved for oil saving. It has good anti-fatigue, anti-erosion anti-abrasion and load capacity. The products are widely applied in conditions of heavy load but low running velocity, such as on agricultural, buiding and engineering machines.


FB092 bronze material is made of bronze material as the base. Before the thin-walled bearing is rolled into a thin-walled bearing, the oil-filled hole is evenly and orderly processed on the surface of the material. After the assembly, the grease is injected and the end face is sealed. At present, the material has been applied to medium and low speed applications such as conveyors, elevators, reeling machines, and leveling machines.
Material: CuSn8P0.3 or CuSn6.5P0. 1


Hardness: HB90~120
Applicable temperature range: -100 ° C ~ 200 ° C
Maximum load pressure: 60N/mm2
Maximum sliding speed: 2.5m/s
VSB-22 Bronze CuSn8 with Lubrication 090 Strips, Slide paths
Bronze (090 Strips Material )

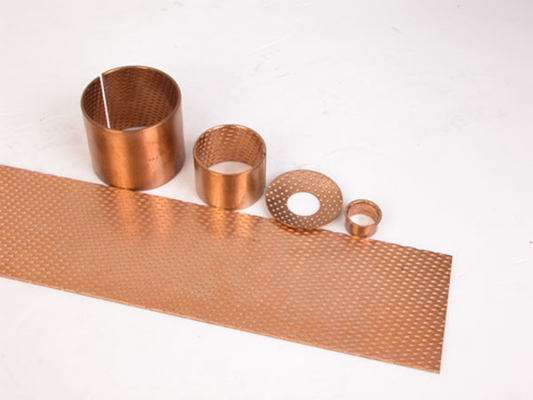

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip


· Bearing material made of solid bronze strip with indents for lubrication
· Good wear resistance, suitable for rough conditions
· Optimum performance under relatively high loads and low speeds
· 1.Easy for fitting and lubricating
· 2.High load capacity
· 3.Inner Diameter machineable parts are available against order
· 4.High level thermal conductivity
· 5.Minimum overall dimensions
· 6.Chemical resistance.
· Initial pre-lubrication at assembly required...

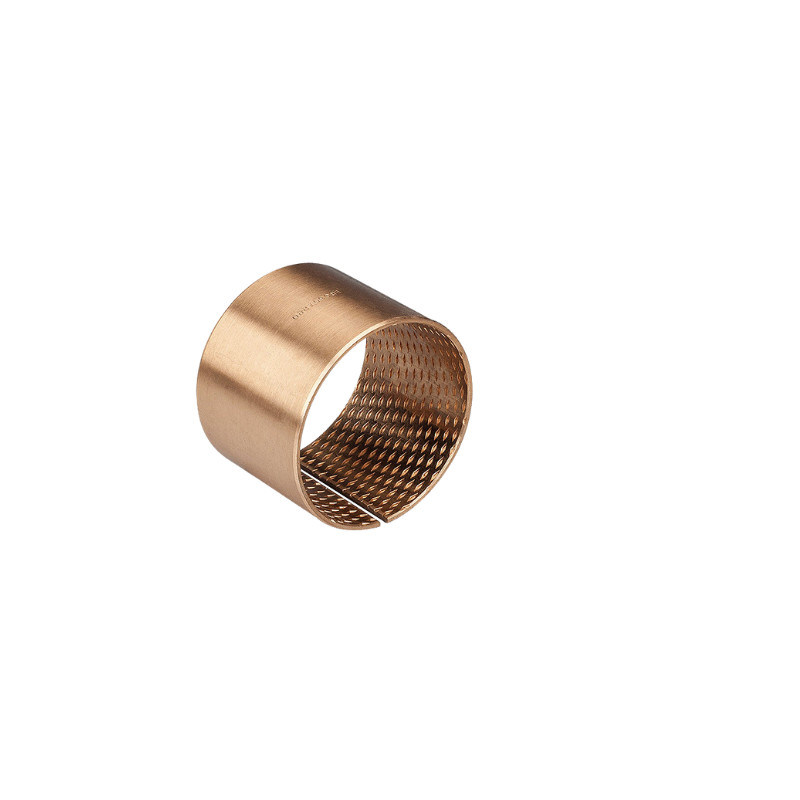

The bearings are wrapped from a cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.


Technical Data


Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents


Diamond Oil Hole Bronze Bushing Material CuSn8 Or CuSn6.5 Sheet Plate 0

CuSn8 with
Sn 8 %
P < 0.05 %
Cu Rest





Oil lubricated


Grease lubricated


Water lubricated


Process fluid lubricated



Bearing Properties











Coefficient of friction





Thermal conductivity





Coef. of thermal expansion


Tensile strength

Tensile strength






HB 100-150

 Bronze Bushing Material

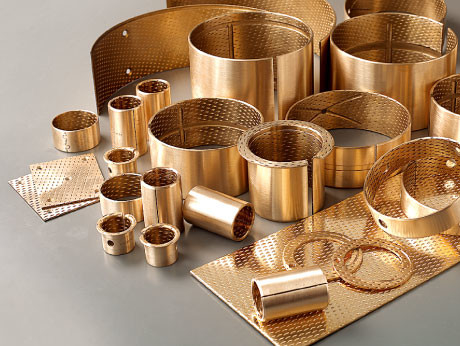

Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs


Typical Applications

This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.
