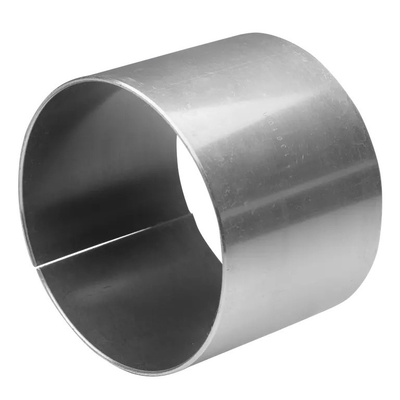

SS316 + Bronze + Bronze Bushing Material Sliding Bearings Corrosion Resistance

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Low-maintenance, Lubricated Applications Meterial Stainless Steel 316+Bronze+ Strips
Plating Tin Or Copper Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Special Use Corrosion Resistance Stainless Steel Plate Code Self-lubricating Bearings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip

,

plain sleeve bearing strips

Leave a Message
Product Description

SS316 + Bronze + Bronze Bushing Material Sliding Bearings with Corrosion Resistance refer to sliding bearings that are constructed using a combination of stainless steel 316 (SS316), bronze, and (Polytetrafluoroethylene) as the bushing material. This material combination provides excellent corrosion resistance due to the inherent properties of SS316 and bronze, as well as the chemical inertness of .

SS316 is a highly corrosion-resistant alloy that offers excellent strength and durability in harsh environments. Bronze, on the other hand, is a metal alloy that possesses good wear resistance and corrosion resistance, particularly in seawater and other marine environments. , also known as ptfe, is a synthetic fluoropolymer with outstanding chemical resistance, low friction, and high-temperature stability.

The combination of these materials in sliding bearings results in a product that is not only corrosion-resistant but also has low friction and good wear characteristics. This makes it suitable for use in applications where corrosion resistance and smooth sliding motion are critical, such as in marine, chemical, and food processing industries.



Metal-polymer-composite material composite – strips



VIIPLUS PLAIN BEARINGS made in China brand of boundary lubrication bearing, grease lubrication bearing because of its own structural features, have very good foreign body embedded sex, can be used in the occasion of dust, maintenance more difficult.All kinds of products are widely used in tractor, combine harvester, bundling machine, cotton picker, etc.



SS316 + Bronze +  Bronze Bushing Material Sliding Bearings Corrosion Resistance



Stainless Steel 316+ Bronze+ Strips

Bushings, thrust washers and strips



Extend service life with composite plain bearings



A wide assortment for virtually every application, VIIPLUS composite plain bearings Long, maintenance-free service life due to low friction.

Select the right bushing forthe application,rolling bearing manufacturer.
We are renowned for the plain bearing field: spherical plain bearings, rod ends, and a much expanded range of bushings.


Advantages of VIIPLUS composite Stainless Steel 316
plain bearings include:

  • corrosion resistance
  • maintenance-free operation
  • very good frictional properties
  •  high load carrying capacity

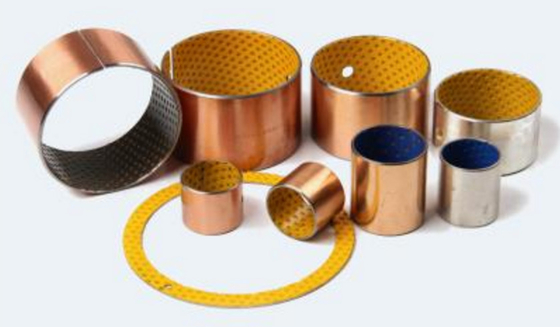

Cylindrical bushes Flanged bushes Thrust washers Flanged washers Strips



composite plain bearings are available, both as straight and flanged bushings, washers and strips.



Maintenance-free, self lubricating Maintenance-free, self lubricating bearings



Bearing materials and products



self lubricating bronze bushing

















































Size
Customized
Material
Steel + Bronze powder +
Color
Natural
Certification
ISO9001, TS16949
Outside surface Plating
copper/tin/zinc
Max load capacity P
Static Load 250N/mm²,Dynamic Load 140N/mm²,Oscoillation Load 60N/mm²
Max line speed V
Dry Lubrication 2.5m/s,Oil Lubrication >5m/s
PV value limit
Dry Lubrication 1.8N/mm²· m/s,Oil Lubrication 3.6N/mm²· m/s
Friction coef u
Dry Lubrication 0.08~0.20,Oil Lubrication 0.02~0.12
Max Working temperature
-200~280℃
Mating Axis
Hardness >220 HB,Roughness Ra=0.4~1.25
Thermal conductivity
40W/(m·k)
Coefficient of linear expansion
11×10-6/K
Application
printing, woven, tobacco and gymnastic machinery



Stainless Steel 316 Flat Strips, Slide paths



For all the global industry Provide high-quality self-lubricating products



Application



Industrial: Lifting equipment, hydraulic pumps and motors, pneumatic equipment, medical equipment, textile machinery, agricultural equipment, scientific equipment, drying ovens, office equipment, etc.



Wrapped Steel Self Lubricating Bearings Oilless Sliding Series


Availability Ex Stock


To order: Standard cylindrical bushes, roll-formed bushes, flanged bushes, thrust washers, flanged washers, strip Non-standard parts



Application

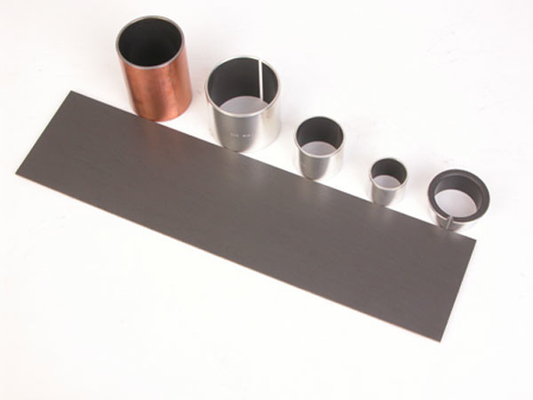

VSB-33 Flat Strips Stainless Steel 316


Strips Flat Strips Stainless Steel 316 are available as an even material section. This material section can be used to make sliding elements in a variety
of shapes.


SELF LUBRICATING BRONZE BUSHINGS

  • Table of Contents
  • Material information
  • Plain bearing production
  • Characteristics : maintenance-free and robust
  • Material composition
  • Models and tables of dimensions
  • More information



Plain bearing

Availability




Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs


Typical Applications



This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.



Main applications:


composite dry sliding bearings
are suitable for applications where there are
heavy loads and where a sliding material
with self lubricating properties is a
prerequisite.

Applications include:

• automotive
• material handling equipment
• home appliances and consumer goods
• textile machinery





WRAPPED BRONZR BUSHING
