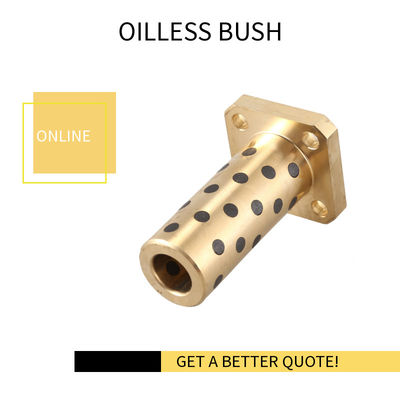

Oil-Free Bushing Square Flange Graphite Bronze Bushing

Place of Origin oilless bushing
Brand Name VIIPLUS
Certification ISO9001
Model Number Graphite Bronze Bearings
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 7-25 work days
Payment Terms T/T
Supply Ability plug graphite bearings, China, manufacturers, suppliers, factory, wholesale, Metal Journal Bearing, DU Self Lubricating Bearing, Composite Thrust Bearing, Composite Self Lubricating Bushings, Graphite Alloy Bearing, Flange Cast Iron Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Brand VIIPLUS Type Square Flanged
Material Graphite,Bronze Advantages High Quality, Factory Price
Place Of Origin Zhejiang,China Product Custom Design
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

Graphite Bronze Bushing

,

Flange Bronze Bushing

,

Square Oil Free Bushing

Leave a Message
Product Description

Oil-Free Bushing Square Flange Graphite Bronze Bushing is a high-performance component designed for use in various industrial applications where lubrication-free operation is required. The square flange design provides a stable and secure mounting base, ensuring reliable performance even under extreme conditions.

The bushing is made from graphite bronze, a material that offers excellent wear resistance, corrosion resistance, and thermal conductivity. This material choice ensures that the bushing can withstand high temperatures and pressures without the need for lubrication, reducing maintenance costs and extending the operational lifespan of the equipment.

The Oil-Free Bushing Square Flange Graphite Bronze Bushing is suitable for use in a wide range of applications, including pumps, compressors, gearboxes, and other rotating machinery. It helps reduce friction and wear, ensuring smooth and efficient operation of the equipment.

Our bushings are precision-manufactured to meet strict quality standards, ensuring a perfect fit and optimal performance in your specific application. We offer a comprehensive range of sizes and specifications to meet your unique requirements.

Contact us today to learn more about our Oil-Free Bushing Square Flange Graphite Bronze Bushing and how it can enhance the performance and reliability of your industrial equipment. We look forward to working with you to find the perfect solution for your lubrication-free operation needs.



Viiplus specializes in the production and sales of copper sleeves: self-lubricating copper sleeves, powder metallurgy copper sleeves, oil-containing copper sleeves, oil-free self-lubricating copper sleeves, JDB inlaid graphite copper sleeves, JF-800 bimetallic copper sleeves, FB090 bronze-based copper sleeves, British copper Sleeve, self-lubricating gasket.



Aluminium Bronze/Graphite Oiless Bushing



Large Oiless Bushing Size



graphite bronze parts, graphite sleeve, CNC bronze bushing, graphite sleeve flange, manganese sliding bearings



OILLESS BUSHES





high tensile CuZn25Al5 oiless brass sleeve bushing ,WGB-650 Bronze Bearings,Graphite bronze bushings





Wholesale products oil hole sealing groove counterbore high-quality copper bushing brass bronze oil groove



Wholesale products oil hole sealing groove counterbore high quality copper bushing brass bronze oil groove


Square Flange Copper Bush Solid Lubricant Embedded Bushes Graphite Sleeve



Material: Brass & Graphite
Inner Diameter: mm
Outer Diameter: 8mm
Length: 5mm
Flange Dimension: 8x8x5mm
Package Includes:
pcs Flange Graphite Bushing Sleeve



Self-Lubricating Graphite Plugged Bronze Sleeve Bushings Now Available Online



Graphite Impregnated Brass Bearings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating

surface should always be seperated by a film of lubricant. With Graphite Impregnated Brass Bearings no form of supplementary lubrication is required.

A film of solid lubricant is transferred unto the shaft as it starts to run. The self-lubricating features allow the Graphite Impregnated Brass Bearings to be used where oiling is difficult, expensive to implement and where grease/oil cannot be used. Excellent lubricaiton is achieved even under high loads at low speeds.



Oil-free and self-lubricating, simple and durable



oilless bush graphite plugged bronze bushing



Square Flange Copper Bush Graphite Impregnated Brass Bearings Material


The sturdy bronze bushing and plate are completely made of tin bronze CuSn10P, which has good processing ability. All surfaces of the solid bronze bushing are machined.
The solid iron bushing and plate are made of the same bronze material, but if you do not have high requirements for high performance, the cost will be greatly reduced.



Material Bronze CuZn25Al6Fe3Mn3 + Graphite
Iron Cast-iron + Graphite
Density   8.2g/cm3
Tensile Strength   >=755N/mm2
Anti-compact Tenacity   >=400~500KJ/m3
Hardness   >=200HB
Max Load Pressure   100N/mm2
Speed Limit   0.5m/s
PV value limit   1.65N/mm2.m/s
Friction coef Oil Lubrication 0.03
Dry Friction 0.16
Working temperature

-40~+300°C





Graphite Impregnated Brass Bearings Features and advantages



1.Insensitive to dirty environment

2.Resistant to shock loads and vibrations at slow speeds

3.Enable operation with a poor shaft surface finish

4.Good resistance to corrosive conditions



Graphite Impregnated Brass Bearings Application



  • Construction machinery
  • Transport equipment
  • Pulp and papermaking machinery
  • Off-shore equipment



The application range of Graphite Impregnated Brass Bearings is almost limitless. From rigidity to maintenance applications, to high temperature environments to heavy-duty applications, graphite plug bronze bushings have excellent service life and wear resistance. These applications include:

Steel plant, slag, drying equipment, roasting furnace, heat exchanger, die, assembly line, machine tool, chain conveyor, offshore structure, bridge crane, winch, hatch cover, rudder arm, lifting equipment, tire and paper mill, Toggle the connecting rod bearings of injection molding machines, mixers, grinders, crushers, construction machinery, mining machinery, connecting rod bearings, electric shovel, etc.
