| Brand Name: | VIIPLUS |
| Model Number: | Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547 |
| MOQ: | MATE-TO-ORDER CUSTOM BUSHINGS |
| Price: | Sliding Bronze Bearing Dimensions Tolerance,Stock Price |
| Payment Terms: | T/T |

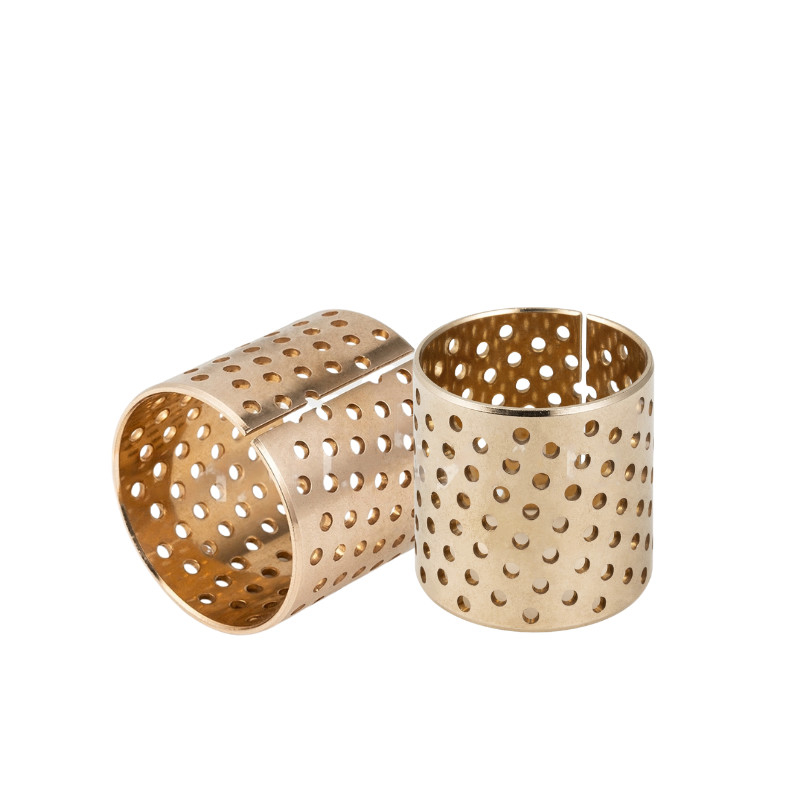

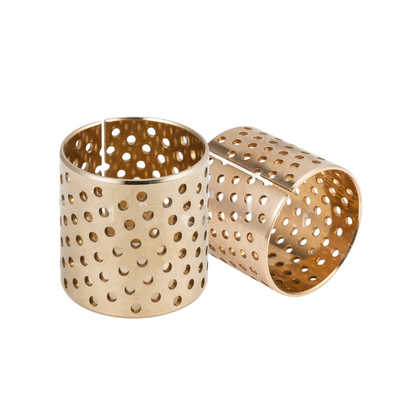

| Supply Ability: | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
The PRMF909550 bronze sleeve bushing, with its metric flange size, is a high-performance bearing solution designed for applications requiring durability, precision, and reliability. Bronze, a copper-based alloy, is chosen for its superior strength, wear resistance, and corrosion resistance, making it ideal for use in a wide range of industrial and mechanical applications.
The metric flange size ensures compatibility with metric-based equipment and systems, simplifying installation and replacement. The sleeve bushing design provides a smooth and precise bearing surface, minimizing friction and wear while maximizing the life of the bearing.
The PRMF909550 bronze sleeve bushing is suitable for a variety of applications, including but not limited to, pumps, motors, compressors, and other rotating machinery. Its durability and reliability make it a trusted choice for maintaining smooth and efficient operation in demanding environments.
In addition to its superior material properties and design, the PRMF909550 bronze sleeve bushing also offers ease of installation and maintenance. Its flange design allows for secure mounting, while its sleeve construction provides easy removal and replacement when necessary.
Overall, the PRMF909550 bronze sleeve bushing with metric flange size is an excellent choice for any application requiring a high-performance, durable, and reliable bearing solution.
BRONZE MESH BUSHING
Robust CuSn8P bronze sheet
Large Inventory of Bronze Bushings, Bronze Bearing and Self-lubricating Wear Plates. Gleitlager. Bushing Sleeve bearing. Bushes Catalogs and Brochures Available.

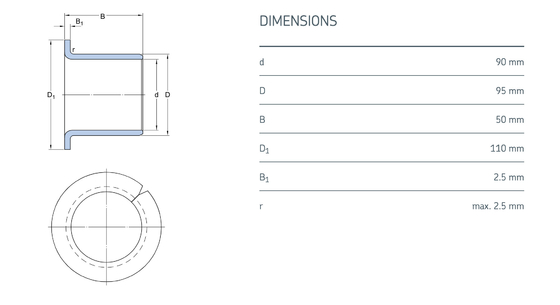

Component: Flanged bushings PRMF, FB090F 9050F 90x95/110x50 PRMF 909550. FB090F 9060F 90x95/110x60 PRMF 909560. FB090F 9070F 90x95/110x70 PRMF 909570. FB090F 9080F
Other bearings. Plain bearings, excl. spherical plain bearings. Outer rings and washers
Description
SKF PRMF 909550
Bronze Wrapped Bushes, Bronze Bushing Bearing, Wrapped Bronze Bearing
Self-lubricating bearings feature precision tolerances, proprietary internal geometries and quality self-lubricating materials. our bronze, cylindrical bushes, flanged bushes, thrust washers, sliding bearings, precision and housed unit bearings deliver strong performance, consistently and reliably.
To this day, VIIPLUS’s founding vision of making the world move more efficiently and reliably remains at the core of our business.
As the china supplier of self-lubricating bearings, The VIIIPLUS Company applies its deep knowledge of metallurgy, tribology and cast systems to improve the reliability and efficiency of equipment, machinery and energy worldwide.

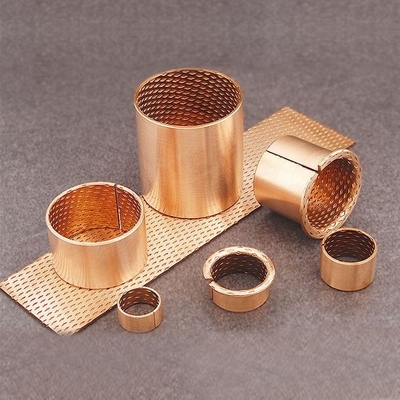

FB090 gleitlagerbuchsen is made of high quality alloy, hot rolled phosphor tin bronze. The sliding bearings are specially designed to withstand heavy loads and are shock resistant. The entire bearing sliding surface is composed of lubrication cavities. These lubrication cavities form a lubricating film that can reduce friction during start-up and operation. FB090 is suitable for radial, oscillating and axial movement, especially suitable for medium and high loads.
Rolled bronze bearings with lubrication pockets.
| material | Cu | Sn | P |
| CuSn8P0.3 | 91.3 | 8.5 | 0.3 |
| Value | Unit | |
| Density | 8.9g | cm3 |
| Operating Temperature | -80~+200 | C |
| Hardness | 90-120 | HB |
| Load capacity | 75 | N/mm2 |
| Maximum Speed | 2.5 | m/s |
High load capacity
Works well in dirty environments
Wide temperature range
Easy to assemble
Grease pockets as lubrication reservoirs
Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.
Plain cylindrical bearings, flanged bearings, thrustwashers, slidingplates.
The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
To the H9 tolerance of the slide bearing we recommend shafts with tolerance e7 or f7. If h-shafts are used, the bearing inner diameter should be machined up to tolerance F7.
Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.
We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.
| Material: | Cu – 91.3% Sn – 8.5% P – 0.2% |
| Standard: | Cu Sn8. DIN 17662. CW453K |
| Sliding layer (thickness): | Homogeneous |
| Tensile strength Rm: | 450N/mm² |
| Yield strength Rp 0.2: | 250N/mm² |
| Elongation in % A10: | 0.4 |
| Hardness: | 90-120 HB |
| Friction coeff: | 0.08-0.25µ |
| Thermal conductivity: | 60W/m·K |
| Temperature range: | -100°C/200°C |
| Max. load static: | 120 N/mm² |
| Max. load, dynamic: | 40 N/mm² |
| Max. sliding speed (w.lubr.): | 2.5 m/s |
| Pv-value, Mpa x m/s, kont / int: | 2.8 |
| Counter material | |
| Recommended shaft hardness: | >210HB |
| Rec. shaft surface roughness (Ra) | 1.6 |
| Recommended tolerance: | e7-f7 |
| House: | H7 |
090 bronze bushing is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.
Are you looking for plain bearings and would you like to contact one of our plain bearing specialists directly? Call us, we're here to help.
