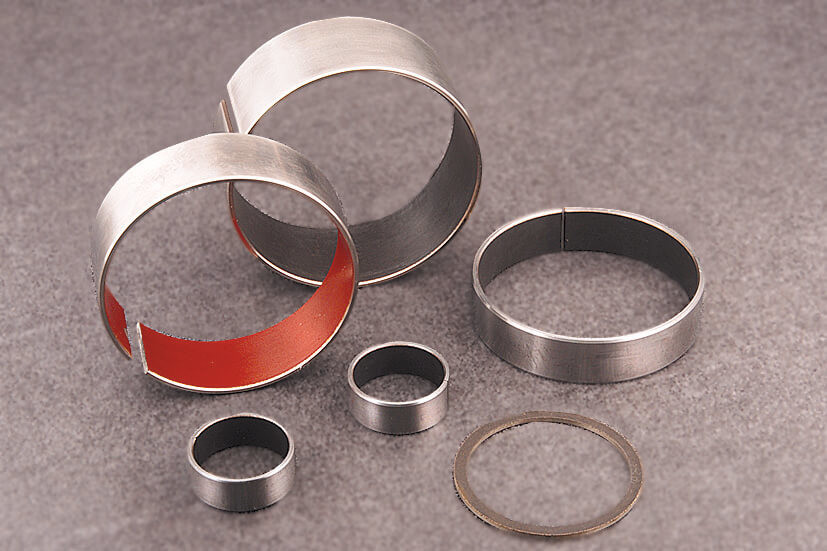

Stainless Steel Sheet 304+Bronze+PTFE Strips 1.5mm & 2.0mm Thickness
Place of Origin | Stainless Steel Backed Bushings |
---|---|
Brand Name | CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS |
Certification | WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE |
Model Number | CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS |
Minimum Order Quantity | >=500 Pieces |
Price | negotiate |
Packaging Details | CARTONS,wOODEN CASES |
Delivery Time | 3-4 WEEKS |
Payment Terms | TT IN ADVANCE |
Supply Ability | Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers |
Meterial | Stainless Steel 304, Or Steel Backed Onto Which A Porous Bronze Layer Is Sintered Subsequently A PTFE Lead Mixture Is Rolled Into The Bronze Layer | Characteristic | Excellent Moisture And Chemical Resistance. |
---|---|---|---|
Size | Metric & Inch Size Bush | Surface | Tin Or Copper Plated |
Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs | MAJOR APPLICATIONS | VALVE Bushing, Chemical Industry ,Oil Pumps Bushings |
Feature | Bushings | Bearing Bushing Factory Price | Tiffany@viiplus.com |
Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | High Light | Stainsteel Steel 316 Backed Bushings |
High Light | Stainless Steel Bushing Manufacturers | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
High Light | 304 Stainless Steel Bushings,Bronze PTFE Strips Stainless Steel Bushings |
Your One-Stop Shop for Premium Stainless Steel 304 bushing strips. Oilless and Self-Lubricating - Bronze Bushings/Bearings, Standard and custom size Bushes made for you. Maintenance-free thus lower your cost.
Stainless Steel 304 Sheet Dimension
1. SS304+Bronze+PTFE Strips Length 1000mm*width 200mm*Thickness 1.5mm
1. SS304+Bronze+PTFE Strips Length 1000mm*width 200mm*Thickness 2mm
Stainless Steel sheet strips of oil-resistant, acid-resistant,alkali-resistant, and seawater resistant. moreover, there is no lead in the PTEE surface layer, and so is particularly fit for bushings in foodstuff machines, alkali flowmeters, pumps motion elements in pharmaceutical machines, printing machines chemical engineering machines, and other ocean industry. This is a triple layers composites bush, the base material being a bronze plate and a film of heat resistant power-filled PTEE being calendered onto the sintered spherical bronze interlayer.
Stainless Steel 304 Bushings Applications
Bushes are suitable for Chemical valve, chemical pump, flow meter, food industry, medicine industry in the corrosion environment.transmission, rotational and oscillating movements. Rod guide for pneumatic and hydraulic cylinders.Attachment lugs of pneumatic and hydraulic cylinders.Conveyor-belt systems, textile machinery, automobiles.
Availability
- Standard cylindrical bushings, flanged bushings, thrust washers, and strips are available
- Special designs are produced at short notice
- Lead-free type is also available
Why Is Stainless Steel Bushings Corrosion Resistant? – Industrial Steel Bushes 304 Vs 316 Stainless Steel Bushings
Low friction and high wear resistance with no lubrication.
Stainless steel bearing uses the PTFE or PTFE fibers fabric and aramid fiber overlay on metal backings, the fabric has very high load capacity and high accuracy good run with low speed and heavy friction superior performance, widely used in heavy equipment like construction machinery, agriculture machinery.
Metallographic image
Note: the products in the figure can also choose different matrix materials according to different working conditions, such as a bronze substrate (VSB-1b), stainless steel substrate (VSB-1s), and lead-free (VSB-1w) formula products
Technical data
Performance indicators | Date | |
Maximum load P | Static load | 250N/mm² |
Dynamic load | 140N/mm² | |
Maximum linear velocity V | Dry friction | 2.5m/s |
Oil lubrication | 5.0m/s | |
High PV value | Dry friction | 3.8N/mm²・m/s |
Oil lubrication | 50N/mm²・m/s | |
Coefficient of frictionμ | 0.04~0.20 | |
The use of temperature | -195℃~+280℃ |
|
Coefficient of thermal conductivity | 50W/m・K |
Stainless Steel Backing Sleeve Bushing
Wrapped composite sliding bearing Stainless steel 316 / PTFE fibers fabric
Stainless Steel 316 Bearings +PTFE Fabric stainless steel-based non-oil lubricated
Viiplus Is A Professional Production Of Stainless Steel Bushing Manufacturers. Bearings and shafts made of stainless steel and are maintenance-free.
Stainless Steel Bushings That Can Withstand Moisture And A Number Of Corrosion Caused By Other Media. We produce bearing made of stainless steel 304&316. Characteristics of high strength, wear resistance, corrosion resistance, and corrosion resistance, etc. Stainless steel backing sintered with bronze powder overlaid with PTFE fibers fabric Suitable for dry running, low coefficient of friction, lower wear.
Industrial Steel Bushes 304 Vs 316 Stainless Steel Bushings
304 and 316 stainless steel bearing material is different: corrosion resistance: 316 stainless steel bearing Mo, then 304 stainless steel bearing in the high-temperature environment corrosion resistance is better, so in the high-temperature environment, engineers will generally choose 316 material parts.316 mainly reduced Cr content, increased Ni content, and increased Mo2%~3%. Therefore, its corrosion resistance is stronger than 304, suitable for use in the chemical industry, seawater, and other environments
Typical Applications
This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
- Automotive: tractors, combines, crop sprayers, earthmovers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
- Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
- Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
- Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
What Is Composite Bearing?
Composite dry sliding bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow.
Where To Use Composite Bearing?
Because of their good sliding properties and compact design, these plain bearings are particularly suitable for bearing arrangements where:
Maintenance-free operation is a prerequisite
There is a risk of lubricant starvation Lubricants cannot be used or are forbidden Space is limited.
Why Choose Composite Bearing?
Maintenance-free operation
No lubrication required (PTFE composite)
Initial lubrication required (POM composite)
Minimum wall thickness, minimum space requirements
Accommodation of heavy loads
Wide range of temperatures
Good sliding properties
Virtually no stick-slip
High wear resistance
Less sensitive to edge loading (POM composite)
No machining required.
Which Sizes Bearings We Can Offer You?
The standard range of composite plain bearings is very comprehensive and covers almost every standard size. This range comprises straight and flanged bushings, thrust washers, and strips.
Sleeve Bearings:
I.D. = inner diameter O.D. = Outer diameter
Model No. | Min. I.D. | Min.O.D. | Max.I.D. | Max.O.D. | Max. Length |
VSB-10,DU,SF-1 | 6mm | 8mm | 300mm | 305mm | 100mm |
VSB-20,DX,SF-2 | 10mm | 12mm | 300mm | 305mm | 100mm |
VSB-80,JF800 | 10mm | 12mm | 173mm | 180mm | 100mm |
VSB-22,FB090 | 10mm | 12mm | 300mm | 305mm | 100mm |
VSB-22,FB092 | 10mm | 12mm | 300mm | 305mm | 100mm |
VSB-50,JDB | 8mm | 12mm | 160mm | 180mm |
150mm |
VIIPLUS Sliding bearing solutions for your applications
Technische Daten
-
Wrapped composite sliding bearing
-
Carbon-steel / PTFE fibres fabric
-
Maintentance-free
-
Available on request
Properties
-
Excellent sliding and wear behavior, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption
Materials
-
Support material carbon steel bushings
-
Sliding layer PTFE fibers fabric bushing
-
Support material: Stainless steel and bronze on request
Material Properties
-
Specific load capacity static≤ 350 [N/mm2]
-
Specific load capacity dynamic≤ 180 [N/mm2]
-
Sliding speed< 0.5 [m/s] 1 [m/s] lubricated
-
Friction value ***0.03 [µ] to 0.20 [µ]
-
Temperature strain– 50 [°C] to + 250 [°C]
-
Max. PV-value1.8 [N/mm² x m/s]
Mounting Advice
-
The application of an adequate force-fitting mandrel is advisable
Mounting Advice
-
Housing ØH7
-
Bushing inner-Ø after mountingH9
-
Shaft tolerancef7 to h8
Tech.Data |
|||||
Max.Load |
Static |
350N/mm2 |
|
Temp. |
-50°C~+250°C |
Dynamic |
180N/mm2 |
||||
Friction coefficient |
0.03~0.20 |
||||
Max.speed |
Dry |
0.5m/s |
|||
Thermal conductivity |
42W(m x K) 1 |
||||
Grease |
1m/s~3m/s |
||||
Max.PV(Dry) |
Short-term |
3.6N/mm2 m/s |
Coefficient of thermal |
11 x 10- 6 x K-1 |
|
Continuous |
1.8N/mm2 m/s
|
Maintenance
-
is a dry sliding bearing with glued PTFE fibers fabric overlay? Lubrication is therefore not necessary and not allowed.
Range Of Application
-
Machine and crane construction, apparatus engineering, agricultural machines, fittings, water pumps, chemical industry
CAPTION:
This sliding bearing type and special dimensions are only available on request
