| Brand Name: | Bushing Inch Size |
| Model Number: | INCH SIZE BUSHING |
| MOQ: | negotiable |
| Price: | 1.00usd-100.00usd，negotiable |
| Payment Terms: | T/T IN ADVANCE, Western Union |
| Supply Ability: | Bushing Inch Size Dry Bushes Boccole Equivalent Manufacturers Self Lubricating Plain Bearings Suppliers |
The bushing, measuring 25mm in inner diameter (ID), 28mm in outer diameter (OD), and 24mm in length, is a precision-crafted component designed for optimal performance in various industrial applications. Constructed from high-quality material, this bushing exhibits excellent wear resistance, corrosion resistance, and mechanical strength.
The bushing's dimensions are carefully chosen to ensure a snug and secure fit within the designated space, minimizing friction and maximizing efficiency. Wh used in machinery, automotive components, or other industrial equipment, this bushing will provide reliable and long-lasting service.
Our commitment to quality is unwavering, and we adhere to strict manufacturing standards to ensure that every bushing meets or exceeds industry performance standards. With our bushings, you can rest assured that you're getting a top-notch product that will stand up to the demands of your application.
If you're in need of bushings with these specific dimensions or any other custom size, we're here to help. Contact us today to learn more about our products and how we can support your industrial needs
The structure of the bearings consists of a rigid steel or corrosion-resistant bronze backing , which provides mechanical strength, while a porous sintered bronze interlayer impregnated with a homogeneous mixture of and lead provides low friction and high wear resistance.
The low friction of the bearings reduces power losses for improved energy efficiency, while the wear-resistant bronze layer provides extended service life. Being self-lubricating, the bearings require little to no maintenance. However they can also be used with lubricant to prevent potential shaft/bearing seizure under boundary conditions.
The compact, lightweight design and thin-wall construction of the bearings provide space and weight savings, and because there are no moving parts or metal-to-metal contact the bearings are quieter. In addition, assembly can be done quickly and easily without costly mounting tools.
| BUSH 06*08*06 |
| BUSH 06*08*10 |
| BUSH 10*12*20 |
| BUSH 12*14*20 |
| BUSH 14*16*20 |
| BUSH 14*16*25 |
| BUSH 15*17*25 |
| BUSH 16*18*20 |
| BUSH 16*18*25 |
| BUSH 18*20*15 |
| BUSH 18*20*20 |
| BUSH 18*20*25 |
| BUSH 20*23*25 |
| BUSH 22*25*20 |
| BUSH 22*25*25 |
| BUSH 24*27*10 |
| BUSH 28*32*25 |
| BUSH 28*32*30 |
| BUSH 30*34*40 |
| BUSH 32*36*30 |
| BUSH 35*39*30 |
| BUSH 35*39*40 |
| BUSH 36*40*30 |
| BUSH 36*40*40 |
| BUSH 38*42*30 |
| BUSH 40*44*20 |
| BUSH 40*44*30 |
| BUSH 40*44*40 |
| BUSH 40*44*60 |
| BUSH 50*55*40 |
| BUSH 50*55*50 |
| BUSH 60*65*20 |
| BUSH 65*70*40 |
| BUSH 65*70*50 |
| BUSH 70*75*50 |
| BUSH 80*85*40 |
| BUSH 90*95*60 |
| BUSH 100*105*60 |
| BUSH 110*115*60 |
| BUSH F10090 |
| BUSH F10170 |
| BUSH F12120 |
| BUSH F14120 |
| BUSH F16120 |
| BUSH F25215 |
| POM BUSH 16*18*25 |
| POM BUSH 20*23*15 |
| POM BUSH 20*23*20 |
| POM BUSH 30*34*25 |
| POM BUSH 30*34*40 |
| POM BUSH 35*39*30 |
| POM BUSH 35*39*40 |
| POM BUSH 40*44*30 |
| POM BUSH 50*55*60 |
| POM BUSH 60*65*60 |
| POM BUSH 100*105*60 |
| POM BUSH 120*125*110 |
| POM BUSH 125*130*100 |
Shock absorbers bushing, gear pumps bushings, and pumps sleeve bush
This is an environmentally friendly, lead-free bushing bearing, the material structure of which consists of multiple layers of , porous intermediate layer, and steel-backed bushes
Material: Steel-Bronze/
resin + porous intermediate layer + steel lining

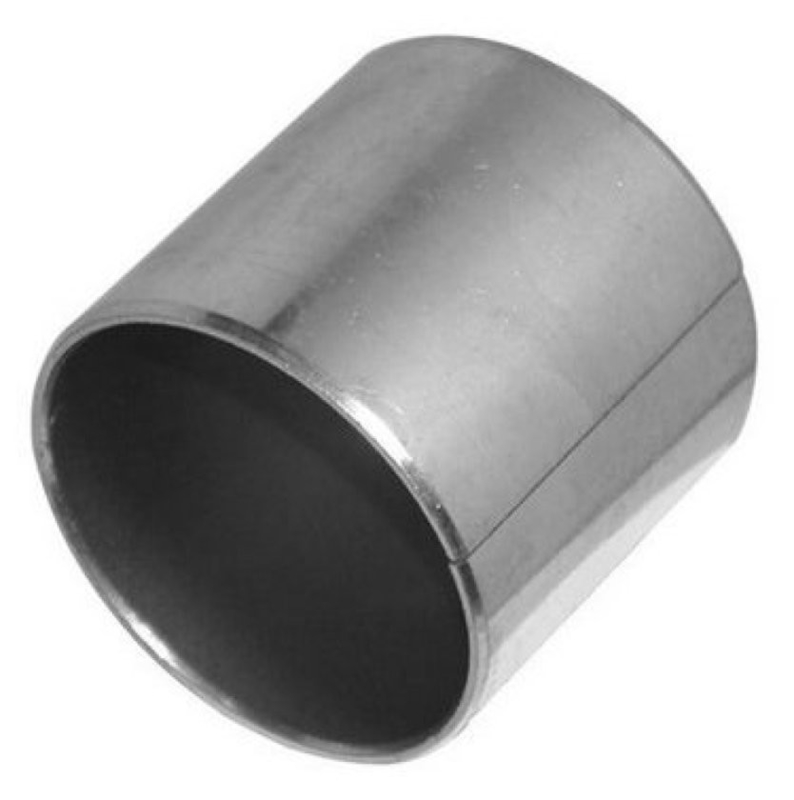

bushing 25mm dia shaft bushes
ID25*OD28*24MM
Viiplus is always focusing on Metal-Polymer Bearings bearings, by satisfying the ever-increasing demands of modernization of customers. Viiplus is a professional bush manufacturers, We could provide bushing replacement according to the international standards, and could also provide as per the customers' requests. With stable bushing replacement quality and the best level of services, our products have been exported to dozens of countries and regions from Europe, the United States, and Southeast Asia, etc.
| Max. load | Static | 250N/mm² | Friction coefficient | 0.03~0.20 | ||
| Very low speed | 140N/mm² | Max.speed | Dry running | 2m/s | ||
| Rotating oscillating | 60N/mm² | Hydrodynamic operation | >2m/s | |||
| Max. PV Dry running | Short-term operation | 3.6N/mm²*m/s | Thermal conductivity | 42W(m*K)-1 | ||
| Continuous operation | 1.8N/mm²*m/s | Coefficient of thermal expansion | 11*10-6*K-1 | |||
| Operation Temperature range | -195℃～+280℃ | |||||

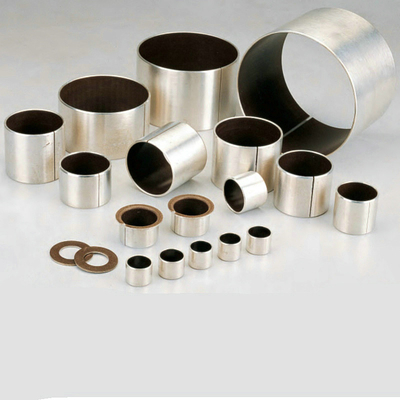

Cylindrical bushes Flanged bushes
Thrust washers Flanged washers
Sliding plates
Automotive applications include steering system, shock absorbers, door hinges, seat recliners, seat frames and magnetic valves; It is widely used in the general industry like gear pumps, vane pumps, piston pumps, air cylinders and hydraulic cylinders; The other applications include material handling machinery, packing machines, textile machines, forest machines and the home appliances such as the air conditioners, body fit machines, washing machine and refrigerators, etc.
