4550 CuSn8P Slide Bearing Bushing
| Place of Origin | China |
|---|---|
| Brand Name | Bronze Gleitlager |
| Certification | ISO 9001/ISO 3547 |
| Model Number | FB092-5050 |
| Minimum Order Quantity | Consultations communication |
| Price | 2.96USD/PSC |
| Packaging Details | Communication consultation |
| Delivery Time | Confirm the time according to the order |
| Payment Terms | L/C, T/T |
| Supply Ability | Perforated Bronze Bearing，Plain Bronze Wrapped Bearings |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | CUSn8P Bronze | Type | Bronze Wrapped Bushing Sliding Bush |
|---|---|---|---|
| Bushing | Made In China | Size | 4550 Bronze Bushings |
| Design | Lubricating Holes | Lubricant | (wall Thickness 2.5mm) |
| Get A Better Quote | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bronze Bushing Manufacturers & Suppliers | Https://www.viiplus.com/ | High Light | CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing |
| Feature | BRO-MET, FB090, BRM10, WB800 | Specialty | Бронзовые втулки |
| Bushing Type | The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease . | Bushing Manufacturer | Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | CuSn8P Bearing Bushing,4550 Slide Bearing Bushing |
||
Product Description
The 4550 CuSn8P Slide Bearing Bushing is a precision-engineered component crafted from the renowned CuSn8P alloy, also known as tin-phosphorus bronze. This alloy is highly prized for its remarkable wear resistance, corrosion resistance, and overall strength.
The Slide Bearing Bushing is specifically designed for sliding or rotating applications, where a smooth and dependable interface is paramount. The CuSn8P alloy ensures a low-friction surface, promoting smooth and effortless movement while minimizing wear and tear. This results in extended operational life and reduced maintenance requirements.
The "4550" designation likely refers to the specific dimensions or configuration of this bushing, although exact measurements may vary depending on the manufacturer. However, regardless of the precise dimensions, the use of CuSn8P alloy guarantees consistent and reliable performance.
In conclusion, the 4550 CuSn8P Slide Bearing Bushing is a high-quality component crafted from CuSn8P alloy, offering superior wear and corrosion resistance. It is ideally suited for sliding or rotating applications requiring a smooth and reliable interface.
4550 CuSn8P Slide Bearing Bushing
Quality bronze bushings (wall thickness 2.5mm) made by bronzegleitlager.com Order Today, discount price! 4550 CuSn8P Slide Bearing Bushing ID45xOD50xLength 50mm, Split Wrapped Bronze Bush sleeve plain bearing made to order from china.
WB802 FB092 4550 CuSn8P Slide Bearing Bushing 45x50x50mm
Bronze Sleeve & Flanged Bearings. bronze bushing & Custom size. leading bronze bushing Manufacturer. In Stock. bronze wrapped bushing sliding bush bronze bushing cheap price.

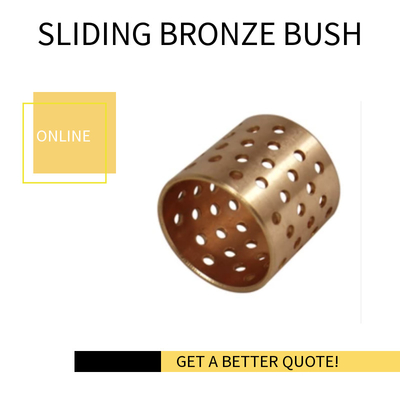

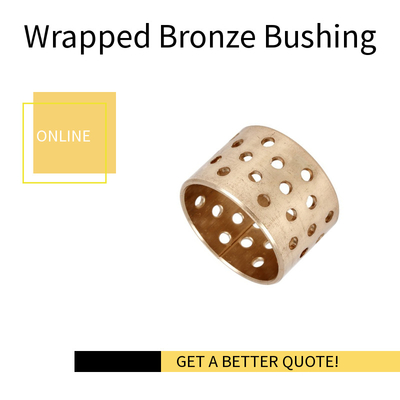

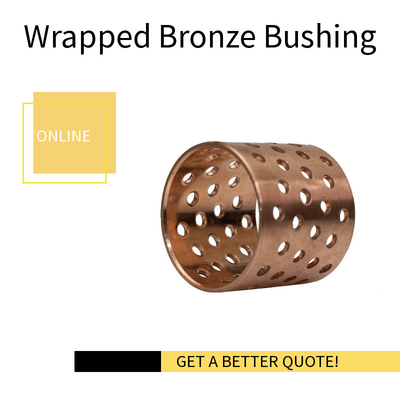

Wrapped bronze bushing slide bearing
Bronze Bushing Tyoe: WF-WB802, FB092
Specificaiton: 4550 , 45x50x50mm
Inner diameter: 45mm
Outer diameter: 50mm (wall thickness 2.5mm)
Straight Type: Sleeve Bronze Bushings, cylindrical wrapped bronze bearings
Totally Height: 50mm
Standard: DIN1494 / ISO3547
Material: CUSn8P Bronze
Hardness: HB110- HB125
Wrapped Bronze Bearing is made of bronze material with lubricating holes. It is a kind of wrapped greased (also sometimes graphite) lubricating bushing bearing. Bronze material normally in CuSn6.5 or CuSn8, the bronze is made as the particular formulation with high specific and gravity, and on its surface may be incorporated with spherical or diamond shaped indentations or/and oil grooves as required by customers.
Lubricating
Lubrication should be achieved through the shaft or radially through the bearing housing. All commonly used grease types or oils can be used.
Application field
The wrapped bronze bushings are widely used in construction machinery, agricultural machinery and so on.
Bronze Bushings Types
Ordinary cylindrical bearings, flanged bearings, thrust washers, sliding plates.
Wrapped Bronze Bushing Material
- CUSn8P Bronze
Characteristics
– Extra high load capacity
– Good lubrication properties
– Wide temperature range
– Easy to assemble
Wrapped Bronze Bushing Composition
| Product NO. | Chemical Compositions | ||
| Wrapped bronze bushing 092 | Cu | Sn | P |
| 91.3 | 8.3 | 0.2 | |
Wrapped Bronze Bushing Features
- Easy of fitting and lubrication
- High load capacity
- Excellent wear resistance with lower friction
- High level thermal conductivity
- Minimum overall dimensions
- Chemical resistance
- Extended service life and lubrication intervals than normal CSB-090 type bushings
- Free selection of lubricants
- Collection of dust and rub off particles in the holes
Wrapped Bronze Bushing Properties
| Bearing Properties | Unit | Value |
|---|---|---|
| Bearing Properties | Unit | Value |
| Maximum specific load Static | N/mm² Psi | 150 |
| Maximum specific load dynamic | N/mm² Psi | 60 |
| Maximum sliding speed | m/s fpm | 2 |
| Maximum PxV factor | N/mm² · m/s | 3 |
| Maximum PxV factor (short periods) |
N/mm² · m/s | 4 |
| Dry coefficient of friction | µm | 0.06 – 0.15 |
| Maximum temperature | °C °F | +150°C |
| Minimum temperature | °C °F | -40°C |
| Shaft finish Ra (recommended) | µm | 0.4 Ra |
| Shaft hardness (recommended) | HB | >200 |
| Operating Conditions | |
|---|---|
| Dry | Fair |
| Oil | good |
| Grease | Very good |
| Water | Fair |
Wrapped Bronze Bushing Typical Applications
This type of bronze bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines.
Assembly For Bronze Sleeve Bushings
The bearings are intended to be pressed into housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.
