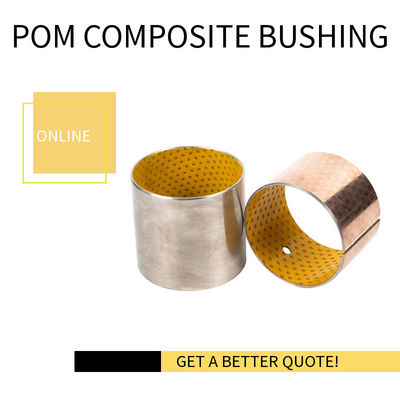

Cylindrical POM Composite DX Self Lubricating Bearing

  • Cylindrical POM Composite DX Self Lubricating Bearing
  • Cylindrical POM Composite DX Self Lubricating Bearing
  • Cylindrical POM Composite DX Self Lubricating Bearing
  • Cylindrical POM Composite DX Self Lubricating Bearing
  • Cylindrical POM Composite DX Self Lubricating Bearing
Place of Origin CHINA
Brand Name viiplus Self-lubricating composite bearing
Certification RHOS
Model Number High performance pom oil-free self-lubricating bearings
Minimum Order Quantity negotiate
Price negotiate
Packaging Details Export Carton Wood Pallet Wooden Case
Delivery Time 5-25 works day
Payment Terms L/C, T/T, Western Union
Supply Ability L/C, T/T, Western Union
Product Details
MATERIAL Steel + Bronze Powder + POM FEATURE No Oil, Self-lubricating
Style DX The Same Style Country Of Origin China
Type Sleeve Lubrication POM Self-lubricating,oil,grease
Finishing Copper-plating/tin-plating Size Customized
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze POM Bushing, Metal Polymer Bushings POM DX BUSH Marginally Lubricated Bushings For Grease Or Oil Lubricated Applications · Standard Split Bushings Contain Grease Indents In The Sliding Layer; Plain Sliding ...
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

POM Composite Self Lubricating Bearing

,

ROHS Cylindrical Self Lubricating Bearing

,

DX style composite bushing
Leave a Message
Product Description

The professional manufacture & sale of oilless lubrication bearings.

Composite Material  CM1 CM2

Cylindrical Dx Pom Composite Self-Lubricating Bearing mos2 bushing, Oil-Free Bearing Bushings(Embedded lubricant:MoS2)

Copper Bearing Manufacturer | DX bush, Polymer bushings

Select high quality Dx Bushing products in best price from viiplus. POM coated bush based steel backing with POM inner layer, oilless bushing, DX bushing and POM lined plain dry bush.

dx bushing Copper Bearing Manufacturer DX bush
Dx bushing size chart

METRIC BEARING POM BUSHES WITH OIL HOLES.pdf

View DX style composite bushing and self-lubricating bearings from bronzegleitlager.com

All sizes are in stock & ready for reliable shipment.



Cylindrical Dx Pom Composite Self-Lubricating Bearing


The POM-based sleeve bearing, also called DX bushing, boundary lubricated bearing, oil-free bearing, dry bearing, DX bearing and POM coated dry sleeve. It has a similar material structure with dowels. The difference lies in the POM coated layer.
Yellow POM composite bushing is a standard item of our company. This type self-lubricating bearing has same material structure with other dx bushing.

1. POM 0.3~0.5mm.
2. Porous bronze 0.2~0.3mm.
3. Steel backing 0.4~2.2mm.
4. Copper plating 0.008mm.


SELF-LUBRICATING BEARING DX BUSH



  • Environmental protection composite bushing multi-layer material without lead

  • Custom 14*12*15 Composite DX Oilless POM Steel Split Bearing Bush

  • Composite Steel Backed Bronze Self Lubricating DU Bushing Bearing with PTFE



DX SPLIT BUSH BEARING - DX TYPE



Specifications for DX Split Bush Bearing - DX Type
ReferenceDX bush
BrandViiplus
Inside Diameter20mm
Outside Diameter23mm
Width15mm
TypeBearing
Weight (KG)0.0001



DX marginally lubricated bushings Characteristics


· Good load-bearing capacity and wear resistance
· Suitable for linear, oscillating and rotating movements
· Optimal performance at relatively high loads and low speeds
· Lead-free sockets can meet environmental protection requirements

Yellow pom composite self-lubricating bearing is widely used in the machine where lead-free is unacceptable, such as textile machinery, self-acting parts, car chassis, forging machine, metallurgy and so on.
 dx bushing pom

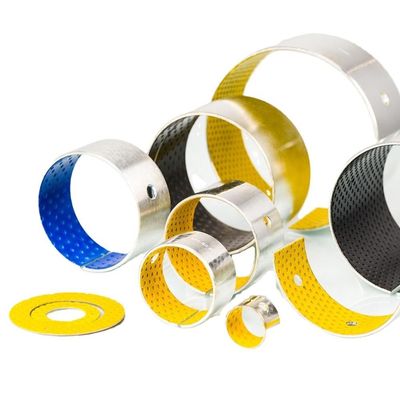

RELATED DX SELF-LUBRICATING BEARING BUSHES

red pom composite bushing dx bushingblack pom composite bushing dx bushing blue pom composite bushing dx bushing



Yellow Pom composite self-lubricating Bearing Technical Date



Load capacity70N/mm2
Friction value0.05 to 0.25 µ
Temperature-40 to +130 [ °C ]
Max. Pv (oil condition)22N/mm2 .m/s
Max. speed2.5m/s



Metal-Polymer Plain Bearings Grease Lubricated Dx Bush



Dx bush - Oil or grease lubricated bearings - Metric Size



  • Marginally lubricated DX bushings for grease or oil lubricated applications
  • Standard parts contain grease notches on the sliding layer; flat sliding layer available upon request
  • Optimal performance under relatively high loads and low speeds
  • Suitable for linear, oscillating and rotating movements
  • Wide range of parts available from stock



Structure & Composition



  • Metal-Polymer Composite Bushing Material
  • Steel Back + Porous Bronze Sinter +
    POM with Lubrication Indents



Microsection



  1. Sliding layer POM with or without lubricant indents for machining
  2. Porous Bronze Sinter
  3. Steel Back



OPERATING PERFORMANCE
DryPoor
Oil lubricatedGood
Grease lubricatedVery Good
Water lubricatedPoor
Process fluid lubricatedPoor



Self-lubricating bearing dx bush Properties



GENERAL UnitValue
Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140

140

Operating temperature

Min
Max

°C
°C

- 40

130

Coefficient of linear thermal expansionParallel to the surface10-6/K11
Normal to the surface10-6/K29



GREASE LUBRICATED
Maximum sliding speed, Um/s2.5
Maximum pU factorN/mm2 x m/s2.8
Coefficient of friction 0.06 – 0.12




RECOMMENDATIONS
Shaft surface roughness, Ra µm≤ 0.4
Shaft surface hardness

Normal
For longer service life

HB
HB

> 200

> 350



Availability

Bearing forms available in standard dimensions


  • Standard cylindrical dx bushing
  • Dx thrust washers
  • Dx strips are availabe
  • Customzied dx bushing


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs


Dx bushing Typical applications

  • Agricultural equipment
  • Off-highway, truck, and automotive
  • Handling and lifting equipment
  • Machine tool building industry
  • Hydraulics
  • Engineering and general applications


dx bushing application-excavator
