Product Details
Material L-Gibs - Oil Free Copper Gibs - Oil Free Copper Alloy Parts Self-Lubricating Plate
Size Customized Graphite Plate Lead Time Fast Delivery
Service Customized OEM Shaping Mode Punching Mold
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Oilless Bearing Manufacturer Https://www.bronzelube.com/ Manufacturer Bucha De Bronze Grafitado
High Light Solid Bronze Plain Bearings, Graphite Flange Bronze Plain Bearings, Mining Machinery Oilless Bushes Oilless Bush. Copper Alloy. Straight Type. SOB. Material Base Copper Alloy (SO-2). Solid Lubricant
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ Oilless Bush Supplier Www.VIIPLUS.com Offers Oilless Bushings On Their Website [1]. You Can Visit Their Website To Explore Their Product Range And Make Inquiries.
High Light

Self Lubricating Gib Slide

,

Solid Bronze Gib Slide

,

Punching Mold l gibs

Leave a Message
Product Description

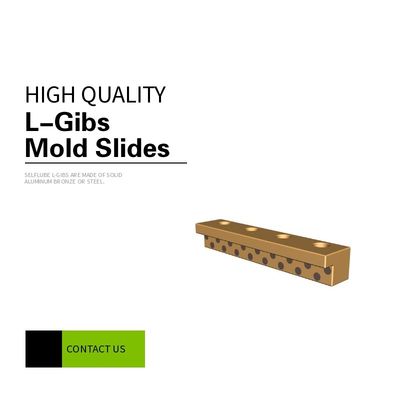

The Punching Mold Solid Bronze Self-Lubricating Gib Slide is a precision-manufactured component designed to provide smooth and reliable operation in punching mold applications. Constructed from solid bronze, it offers exceptional durability and wear resistance, ensuring long-lasting performance even under high loads and frequent use.

The self-lubricating feature of the Gib Slide is a key advantage that reduces the need for regular lubrication and maintenance. This innovative design ensures a constant supply of lubricant to the contact surfaces, minimizing friction and wear, resulting in smoother and more efficient operation.

The solid bronze material chosen for the Gib Slide is renowned for its high mechanical properties, including strength and stiffness. This material is also corrosion-resistant, making it suitable for use in various industrial environments.

The Punching Mold Solid Bronze Self-Lubricating Gib Slide is easy to install and integrate into existing punching mold systems. Its compact design and precision manufacturing ensure a secure and reliable fit, minimizing any potential for misalignment or slippage.

Overall, the Punching Mold Solid Bronze Self-Lubricating Gib Slide is a robust and reliable solution for punching mold applications that require smooth and efficient operation. Its precision manufacturing, self-lubricating design, and high-quality materials make it a trusted choice for industrial use.



L-Gibs - Solid Bronze - Self-Lubricating - Gib Slide, gib

bronze wear strips





Gib slide plate, graphite plate,The specifications and dimensions of some parts may not be fully covered.

Custom products

Gibs - Oil-Free Copper Alloy

Detailed info about Self Lubricating Bearing, Oilless, Oiless, Guide Bushing, Wear Plate, Washer, L Gibbs, V Blocks. Contact

Standard Parts for Stamping and Punching Dies > Guide elements > Oilless guide elements





SelfLube manufactures L-gibs, square gibs and V-gibs, which are used to guide and control linear movement in applications where heavy loads are encountered: metal stamping dies, molds, special machines and heavy equipment of all types.

Made of solid aluminum bronze either with or without self-lubricating graphite, SelfLube’s gibs are available in a broad range of standard inch and metric sizes. And, if a standard gib won’t do the job, SelfLube can economically make custom gibs in just about any size.

Also, additional types of gibs, mainly related to metal stamping dies, may be found in the Guide Components section.



SelfLube L-gibs are made of solid aluminum bronze or steel. Our aluminum bronze can be ordered either with or without self-lubricating graphite or pre-drilled mounting holes. Our steel is available with or without holes. We do not make any steel L-gibs with graphite. Used to guide and control linear movement, these components come in a variety of standard sizes. If a standard size won't work for your application, SelfLube can easily make a custom size.



Available in the following configurations:



Bronze no Holes

Bronze

Bronze w/Graphite no Holes

Bronze w/Graphite



graphite Slide Plate



Description



Material CuZn25Al5 CuSn5Pb5Zn5 CuAl10Ni5Fe5 CuSn12 CuZn32Al5Ni3
Density 8 8.9 7.8 8.9 8
HB hardness >210 >70 >150 >95 >280
Tensile strength N/mm2 >750 >200 >600 >260 >540
Yeild strength N/mm2 >450 >90 >260 >150 >450
Elongation % >12 >15 >10 >8 >0.3
Coefficient of
linear expansion
1.9x10-5/°C 1.8x10-5/°C 1.6x10-5/°C 1.8x10-5/°C 1.8x10-5/°C
Max. temp. -40~+300 -40~+400 -40~+400 -40~+400 -40~+150
Max. load N/mm2 100 60 50 70 150
Max. speed (Dry) m/min 15 10 20 10 15
Max. PV
N/mm2*m/min (Lubrication)
200 60 60 80 200
Compression deformation
300N/mm2
<0.01mm <0.05mm <0.04mm <0.05mm <0.005mm


Properties:


Sliding speed v: 30 m/min
Base Material: Special Brass (SO#50SP2)
Self-lubricating: Yes
Lubricant: Graphite
Surface Pressure P: 100 N/mm²
P*v-value: 200 N/mm² x m/min
Operating temperature: -50°C / +200°C (max. 300°C)
Friction coefficient: 0,07





L-Gibs mold slides High hardness impregnated brass solid lubrication bearing is improved upon L-Gibs mold slides by further enhance the hardness of high hardness brass, giving rise to higher load bearing capacity and better wear-resistant property. The products are widely used in continuous casting rolling machine, mining equipment, engineering equipment, injection-molding machines, etc. Because of its high hardness, it's difficult to machining and finish, it's recommended only for really high load applications.



Basic material CuZn25A16Fe3Mn3 Dynanic load 120N/mm²
Base hardness HB210~275 Friction Coef <0.16
Temperature Max 300℃ Speed limit dry 0.4m/s oil 5m/s





L-Gibs mold slides





Self-Lubricating L-Gibs provide a long-lasting wear surface for high-production molds using slides and cams. L-Gibs are easy to machine and can be shaped to any configuration, requiring no special tools.

They are supplied with no pre-drilled holes, providing flexibility with mounting patterns. This allows the ability to work around water lines and other components in the mold.

Low coefficient of friction provides long-lasting wear surface
No pre-drilled holes equals mounting pattern flexibility
Close tolerance



 L-Gibs mold slides



Part Number A
Selectable
S
Selectable
W T X Y d1 d2 h
Type B
(Lubrication-Free Copper Alloy)

15 40 5 5 10 5 5 8 4.5 4.5
60 5 10 5 5 8 4.5 4.5
80 5 10 5 5 8 4.5 4.5
100 5 10 5 5 8 4.5 4.5
120* 5 10 5 5 8 4.5 4.5
150 5 10 5 5 8 4.5 4.5
20 60 8 10 5 15 7 7 9.5 5.5 5.5
80 5 15 7 7 9.5 5.5 5.5
100 5 15 7 7 9.5 5.5 5.5
120 5 15 7 7 9.5 5.5 5.5
150 5 15 7 7 9.5 5.5 5.5
200 5 15 7 7 9.5 5.5 5.5
25 80 10 12 15 5 20 10 10 11 6.5 6.5
100 5 20 10 10 11 6.5 6.5
120 5 20 10 10 11 6.5 6.5
150 5 20 10 10 11 6.5 6.5
200 5 20 10 10 11 6.5 6.5
250 5 20 10 10 11 6.5 6.5
30 80 12 15 20 8 25 10 10 14 9 9
100 8 25 10 10 14 9 9
120 8 25 10 10 14 9 9
150 8 25 10 10 14 9 9
200 8 25 10 10 14 9 9
300 8 25 10 10 14 9 9
