D100mm CuSn8 Bronze Thrust Washers For Construction Machinery

Place of Origin Bronze Bearing Manufacturers
Brand Name https://viiplus.com
Certification DIN 1494, ISO 3547,CuSn8P (DIN 17662)

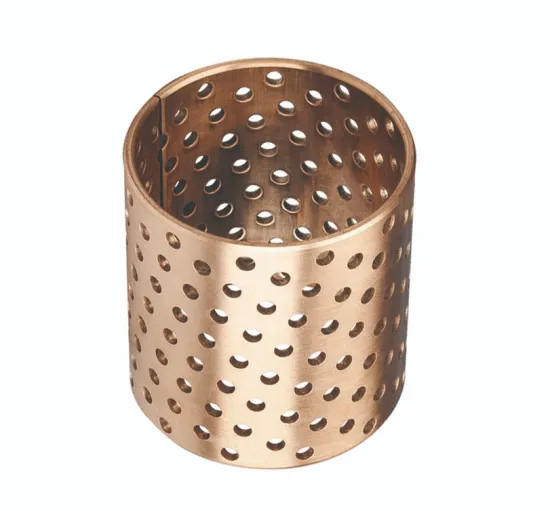

Model Number Wrapped bronze sliding bearing, with perforations Punched,Low-maintenance DIN 1494 / ISO 3547,Pre-Lubricated Bearings Bronze Bushings
Minimum Order Quantity Standard Size Bushing No Minimum Order Quantity
Price Bushings High Quality Price Ratio B2B
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 2-3 Weeks
Payment Terms TT IN ADVANCE
Supply Ability Perforated Bronze Bearing,Plain Bronze Wrapped Bearings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Slide Bearings Bronze CuSn8 Type Bronze Thrust Washers
Internal Surface Bronze Bearings Made Of CuSn8 With Diamond Lubrication Indents, With Grease Reservoirs Bearings Size Metric Sizes, Inch Size Dimensions And Materials
Get A Better Quote Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bronze Bushing Manufacturers & Suppliers Https://www.viiplus.com/ High Light CuSn8 Bronze Bushings, Bronze Sleeve Plain Bush Bearing, CuSn8P Plain Bush Bearing, Plain Bush Bearing, Self-Lubricating Sintered Bronze
Feature BRO-MET, FB090, BRM10, WB800 Specialty Бронзовые втулки
High Light CuSn8P (DIN 17662) Bronze Bushing Sliding Bearing Bushing Type The Sliding Surface Of Cusn8 Wrapped Bronze Bushing Contains Diamond Shaped Pockets That Must Initially Be Filled With Grease .
Bushing Manufacturer Wrapped Bronze Bushings Are Particu- Larly Well Suited For Applications Where High Levels Of Contamination Make Relubrication Necessary . Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

CuSn8 Bronze Thrust Washers

,

D100mm Bronze Thrust Washers

,

DIN 17662 bronze thrust bearing

Leave a Message
Product Description

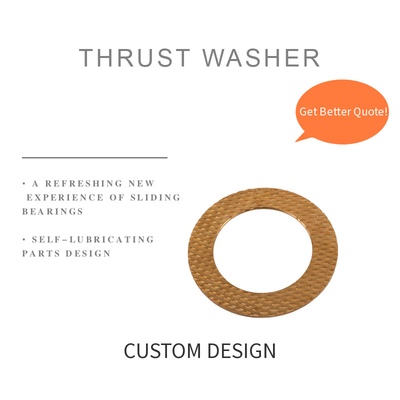

Bronze Wrapped Washers | CuSn8

CUSN8/CUSN6 Bronze Bushing & Bearings Inquire,

wrapped bronze – straight bushings METRIC SIZE d 12 – 100 mm

Wrapped bronze bearing online, flanged bronze bushings

Choose from our selection of bronze thrust washers, including oil-embedded thrust bearings, multipurpose thrust bearings, and more. In stock and ready to ship.



Bronze thrust washers are made from tape, tube and bar. In particular, strip cut washers are very economical in large quantities. You can order strip bronze thrust washers as well as tubes and rods in almost any size and material. The design can be customized.



wrapped bronze bearing bushing, bronze thrust washer



Bronze thrust Washer Featureslide bearing bronze thrust washer





The bronze thrust washer is wrapped with a bronze strip. The material consists of a specific formulation with a high specific weight and can be provided with spherical or diamond-shaped depressions or oil grooves on its surface, depending on the customer's requirements. Bronze thrust washer has high load capacity and is long. Bronze thrust washer can serve as a replacement for traditional bronze bushings for low cost and performance of anti-high compact bushings. Bronze thrust washer is widely used in hoists, construction machinery, automobiles, tractors, trucks, machine tools, and some mining companies.



Bronze thrust washers are made completely of bronze. They are particularly suitable for applications, which must be re-lubricated due to dirty environments.

The sliding surface is provided with lubrication pockets, which contribute to the enhanced lubrication performance.





Bronze thrust washer material & basic properties



Bronze thrust washer technical data

Base marerial

CuSn8P0.3 or CuSn6.5P0.1

Hardness

HB90~120

Temperature limit

-80℃~200℃

Load capacity

75N/mm²

Speed limit

2.5m/s





FB090 wrapped bronze bearing, 090 bronze thrust washer (CuSn6.5P,CuSn8P)



090 Oil Indentations Holes

FB090 wrapped bronze bearing, flanged bushings, thrust washers, this product uses a specially formulated high-density copper alloy strip as the base body, which is rolled (can be made into bearing bushes, flanged bushings, thrust washers) Gaskets and bowls, etc.), the surface can be rolled with diamond-shaped or hemispherical oil pockets and grooves according to user requirements. The product has X points such as high density, high bearing pressure, good wear resistance, and long service life. It can replace the traditional cast copper sleeve, which can reduce the mechanical volume and reduce the cost. Products are widely used in lifting machinery, construction machinery, automobiles, tractor industries, machine tool industry and mining machinery.



Wrapped Bronze Bearing 09 Series Basic Information

Data Grade Wrapped bronze bearing 090 Wrapped bronze bearing 092 Wrapped bronze bearing 09G

Material
CuSn8P CuSn8P CuSn8P+Graphite
Typicai applicaton Products are suitable for lifting machinery, construction machinery, mining machinery, agricultural machinery, forest machinery and so on Products are widely used in agricultural machinery, construction machinery, construction machinery and so on. It has the advantages of low friction coefficient, good wear resistance and so on, and can work under the condition of no oil or little oil. The products are widely used in starting motors and hoist, construction machinery, cars, trucks, tractors and so on.
Densityg/cm3 8.8 8.8 8.8
Max. dynamic loadN/mm2 100 120 100
Max. linear speed (grease lubrication) m/s 2 2.5 2.5
Max. PV value (grease lubrication)N/mm2·m/s 2.8 2.8 2.8
Tensile strength N/mm2 >460 >460 >460



Yield Strength N/mm2

>280 >280 >280
HB 90~150 90~150 90~150
Matching shaft HRC ≥50 ≥50 ≥50
Roughness 0.4~1.0 0.4~1.0 0.4~1.0
proper temperature ℃ -40~150 -40~150 -40~150
Friction coefficient 0.06~0.15 0.06~0.15 0.03~0.1
Heat conductivity coefficient W/m·K 58 58 58
Coefficient of linear expansion (axial) 18.5×10-6/K 18.5×10-6/K 18.5×10-6/K


Bronze thrust washers from strip



Bronze Thrust washers can be made from Wieland strips. In particular, washers punched out of strip material are very economical in large quantities.



Dimension range:

  • With plain running surface up to 155 mm diameter
  • With lubrication indents up to 110 mm diameter
  • In standard thicknesses of 1.0 / 1.5 / 2.0 / 2.5 and 3.0 mm



Other sizes upon request Further designs:

  • With grooves
  • With safety dogs
  • As a segment
  • Curved / Convex



Bronze thrust washers from tube



Bronze Thrust washers can also be made from Wieland tubes and rods. It is possible to use almost all Wieland materials for the production of thrust washers.



Bronze Thrust Washer Designs:

  • With both-sided plain surfaces
  • With one or both-sided lubrication grooves
  • With fixation grooves / holes
  • Maximum washer diameter as a function of the maximum manufacturable tube and rod dimension



Bronze thrust washers application



  • Agricultural machinery
  • Hoisting equipment
  • Construction machinery
  • Forest machinery
