Automotive High Rigidity Single Row Cylindrical Roller Bearing, china supply, lower friction and longer service

Place of Origin CHINESE
Brand Name VIIPLUS
Certification ISO9001
Model Number DEEP GROOVE BALL BEARING
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Wear Plate Parts Factory Price
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms T/T, Western Union
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers
Product Details
Structure Cylindrical Seals Type No
Number Of Row Single Row Application Automotive.tractor.construction Machinery.rolling Mill
Material Bearing Steel Type Roller
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light PTFE Coated Self Lubricating Plain Bearing, Teflon Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

axial cylindrical roller bearing

,

30x62x20mm cylindrical bearing

Leave a Message
Product Description

Cylindrical & Single Row Roller Bearings | Bronze Gleitlager Bearings

Experienced supplier of Cylindrical Roller Bearing and ball bearings, has rich experience in the worldwide markets.

Cylindrical Roller Bearings | Roller Bearings | Products |  Bearings Global Exporter

Cylindrical roller bearings price Price and delivery time on request.

Cylindrical Roller Bearing high-speed bearings

Double row cylindrical roller bearings



VIIPLUS cylindrical roller bearings are available in a wide range of models, series, variants, and sizes. The main design differences are the number of rows of rollers and the inner/outer ring flanges as well as the designs and materials of the cages.
Bearings can meet the challenges of applications facing high radial loads and high speeds. Adapted to axial displacement (with the exception of bearings with flanges on the inner and outer rings), they offer high rigidity, low friction, and long service life.

Cylindrical roller bearings are also available in sealed or split designs. In sealed bearings, the rollers are protected from contaminants, water and dust, while providing lubricant retention and contaminant exclusion. This provides lower friction and longer service life. Split bearings are intended primarily for bearing arrangements which are difficult to access, such as crankshafts, where they simplify maintenance and replacements.

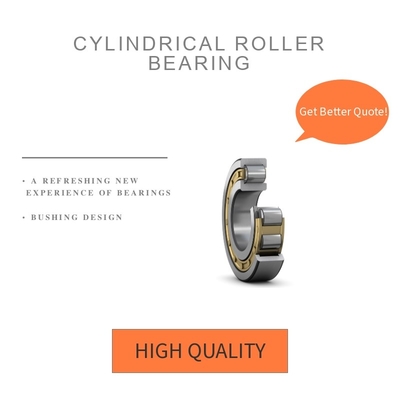

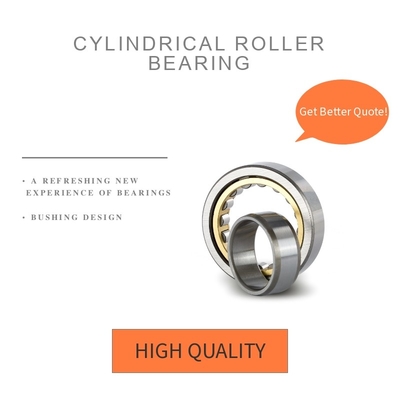

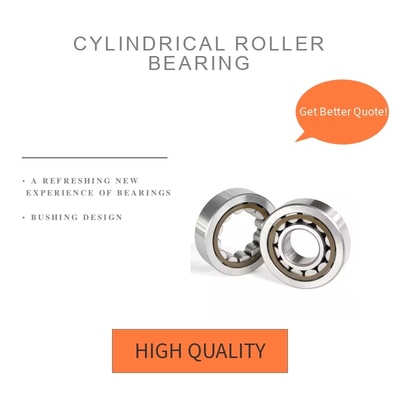

CYLINDRICAL ROLLER BEARING



Roller & Cylindrical Bearings are a type of rolling-element bearing that uses cylinders (rollers) to maintain the separation between the moving parts of the bearing (as opposed to using balls as the rolling element). The purpose of cylindrical bearings is to reduce rotational friction and support radial and axial loads. Compared to ball bearings, roller bearings can support heavy radial loads and limited axial loads (parallel to the shaft). They can operate at moderate to high speeds (although maximum speeds are typically below the highest speeds of ball bearings). The lubrication method must carefully be considered during the design phase when using roller bearings.



Product name Roller bearing , cylindrical roller bearing
Dimension 30x62x20mm
Material bearing steel
Cage Nylon Cage
Application Generator, Electric motor, Construction Machinery
Lubrication oil
Package A plastic tube or Single box
Service OEM Service.Design Service



Product Description


Cylindrical Roller Bearings probably have the simplest construction in the roller bearings category. These bearings are suitable for carrying relatively higher loads, at high-speed applications.
The rollers of VIIPLUS cylindrical roller bearings are key components. Their geometry, the so-called logarithmic profile, provides an optimum stress distribution in the contact zones in the bearing. Their surface finish maximizes lubricant film formation and optimizes rolling motion of the rollers. The benefits derived from this compared with traditional designs include enhanced operational reliability and a greater insensitivity to misalignment.
These bearings are suitable for applications involving light axial loads, specifically where accurate alignment of shaft is difficult. Cylindrical Roller Bearings available with two bore types, i.e. cylindrical and taper. Their cages are made of either pressed steel or brass material.




Features


VIIPLUS cylindrical roll bearings have the following design features:
1. Optimized design in ribs and rollers to enhance the axial load capacity
2. Optimized design in the geometric surface between rollers and raceway to balance the radial load distribution
3. Limit the width of raceway undercut, increase the contact area between raceway and rollers and enhance the radial load capacity
4. High standard material, strictly control the element content, e.g. Ti<30ppm
5. Low noise design, reaches to V1 grade noise level, contributes to the quieter running of automobile engine and gearbox.




VIIPLUS  can offer the following variants:

types of cylindrical roller bearings:

Sealed cylindrical roller bearings

inch cylindrical roller bearings
Cylindrical Roller Bearings (Pressed Steel Cages)
Single Row type – N, NF, NJ, NU, and NUP series
Double Row type – NN and NNU Series (details available on request)
Four-row for rolling mill -FC, FCD and FCP series
Higher load capacity design – E type
Single row full complement - NCF and NJG type
Double row full complement – NNF
Four-row full complement
With snap ring groove
With snap ring groove and snap ring
With C2, CN and C3 radial clearance
Standard precision grade P0 and higher precision grade P5, P4, UP, P2
Pressed steel, machined brass, riveted steel cage, Polyamide cage
Cylindrical and taper bore




Application


Wide application in general and precision required reliable, durability and high performance such as
Steel industry
Mining & Construction
Papermaking Machinery
Wind Turbines
Machine Tools
Gear Boxes & Reducers
Electric Motors
Pumps & Compressors
Injection Molding Machines
Automobile and Motorcycles
Railways
