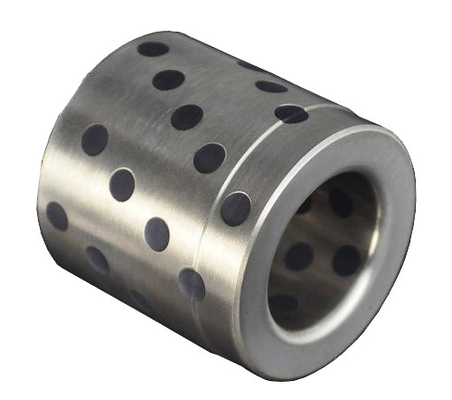

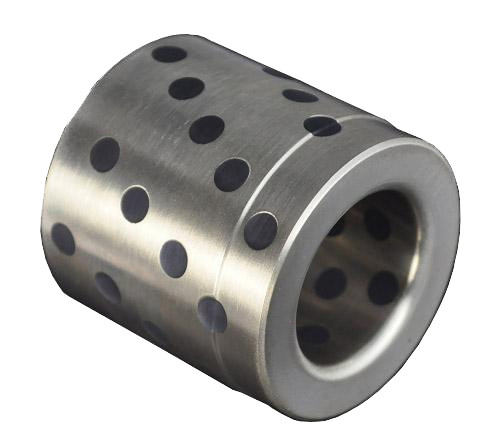

High Load Cast Iron Graphite Self Lubricating Bearing

Place of Origin China
Brand Name viiplus self lubricating bushing
Certification iso 9001
Model Number graphite self lubricating bushing
Minimum Order Quantity According to the size of the product
Price According to the size of the product
Packaging Details Wooden cases
Delivery Time 5-25 works day
Payment Terms L/C, T/T
Supply Ability Sufficient supply capacity

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Cast Iron Based Metal With Spacial Lubricants Embedded Size Custom Size
Country Of Origin China Transoprtation By Sea By Air
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Item Bronze Grafitado
Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite self lube bearings

,

self lubricating mould bearing

Leave a Message
Product Description

Cast iron graphite self-lubricating bearing material is made of cast iron based metal with spacial lubricants embedded.



The Base metal withstands high load and the solid lubricants provide for selflubrication.
The Bearing shows excellent performance without pre-lubrication under conditions of extreme high or lower temperature with lower speed.



Material composition diagram                                            High Load Cast Iron Graphite Self Lubricating Bearing 1





This material provides a maintenance-free bearing solution,especially at high loads and intermittent oscillating motion.


Solid cast iron greases combine high loadscast iron characteristics with wear resistance and low graphite friction. Applications are covered by the automotive industry production line equipment, plastic molds and dies
machine industry etc.



Tech Date
max.load Static 70/N mm2 Tensile strength 150/mm2
Dynamic 10/N mm2 Temp. -4℃~400℃
max.speed Dry 0.15m/s Friction coefficient 0.08-0.20
Hydrodynamic 1m/s Hardness HB>160
max.PV 0.8N/mm2*m/s





Typical Applications

This type of product can be widely used under high temperature and high load with low speed conditions like the mould, machinery assembly line, automotive assembly line, automotive mold, steel mill, plastic industries and so





High Load Cast Iron Graphite Self Lubricating Bearing 2





L Back bore tolerance Apply the gasket ID
30 35 40 50 60 70 80 SPW d
              +0.019
+0.007
0603 6
              +0.025
+0.010
0803 8
              " 1003 10
121830             +0.031
+0.013
1203 12
131930             +0.030
+0.012
1303 13
142030             " 1403 14
152130 152135 152140         " 1503 15
162230 162235 162240         " 1603 16
              " 1803* 17
182430 182435 182440         " 1803 18
              +0.037
+0.016
2005* 19
202830 202835 202840 202850       " 2005 20
203030 203035 203040 203050       " 2505* "
              " " 22
253330 253335 253340 253350 253360     " 2505 25
253530 253535 253540 253550 253560     " 3005* "
283830   283840         " " 28
303830 303835 303840 303850 303860     " 3005 30
304030 304035 304040 304050 304060     " 3505* "
314030   314040         +0.046
+0.021
" 31.5
324230   324240         " " 32
354430 354435 354440 354450 354460     " 3505 35
354530 354535 354540 354550 354560     " 4007* "
    384840         " " 38
405030 405035 405040 405050 405060 405070 405080 " 4007 40
405530 405535 405540 405550 405560     +0.045
+0.020
4507* "
455530 455535 455540 455550 455560     " 4507 45
455630 455635 455640 455650 455660     " " "
456030 456035 456040 456050 456060 456070 456080 " " "



ID OD L
d D 20 30 35 40 50 60 70 80
50 +0.050
+0.025
60 +0.030
+0.011
506020 506030 506035 506040 506050 506060 506070 506080
" " 62 "   506230 506235 506240 506250 506260 506270 506280
" " 65 "   506530   506540 506550 506560 506570 506580
55 +0.060
+0.030
70 "   557030 557035 557040 557050 557060 557070
60 " 74 "   607430 607435 607440 607450 607460 607470 607480
" " 75 "   607530 607535 607540 607550 607560 607570 607580
63 " " "           637560 637570 637580
65 " 80 "       658040 658050 658060 658070 658080
70 " 85 +0.035
+0.013
  708530 708535 708540 708550 708560 708570 708580
" " 90 "         709050 709060 709070 709080
75 " " "         759050 759060 759070 759080
" " 95 "           759560 759570 759580
80 " 96 "       809640 809650 809660 809670 809680
" " 100 "       8010040 8010050 8010060 8010070 8010080
85 +0.071
+0.036
" "           8510060   8510080
90 " 110 "         9011050 9011060   9011080
100 " 120 "         10012050 10012060 10012070 10012080
110 " 130 +0.040
+0.015
        11013050   11013070 11013080
120 " 140 "             12014070 12014080
125 +0.083
+0.043
145 "
130 " 150 "               13015080
140 " 160 "
150 " 170 "               15017080
160 " 180 "               16018080
170 " 190 +0.046
+0.017

180 " 200 "
190 +0.096
+0.050
210 "
200 " 230 "





Choose your best transportation for your self-lubricating bearings shipment?



1.Ship the self-lubricating bearings By Sea

2.Ship the self-lubricating bearings By Air Air Freight from China

3. Door to Door Shipping from China

4.Courier Shipping from China

Graphite self - lubricating bearings used in the field





Self - lubricating bearings in automotive fieldGraphite self - lubricating bearings for construction equipmentIndustrial graphite self - lubricating bearings
