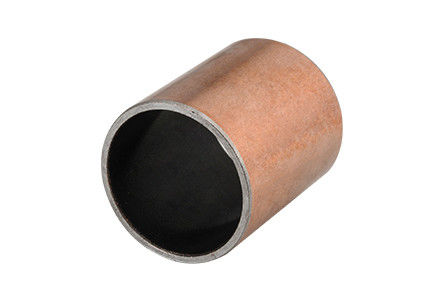

Sintered PTFE CuPb10Sn Polymer Plain Bearings In Agriculture And Construction Industry

Product Details:
Place of Origin: China
Brand Name: viiplus Composite self-lubricating oil-free bearing
Certification: GB/T 1176-1987
Model Number: Composite self-lubricating oil-free bearing
Payment & Shipping Terms:
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: Export Carton Wood Pallet Wooden Case
Delivery Time: 5-25 work day
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: 1000000 Piece/Pieces One week
Contact Now

Detail Information

Material: Steel+CuPb10Sn+PTFE Features: Self - Lubrication, Maintenance - Free, Cost - Saving
Optional Product Features: Flange, Straight Tube Position And So On Copper Or Tin Plating Is An Option Type: Composite Bushing
Service: High Quality Sample: Available / Free
High Light:

oil impregnated brass sleeve bearing

,

flanged plain bearing

Product Description

Self-lubricating, oil-free, low cost, self-lubricating composite oil-free bearings that you have to choose from



The oil-free bearing is a sliding bearing made of steel plate, sintered spherical bronze powder in the middle, and a mixture of PTFE and lead rolled on the surface.It has the characteristics of small friction coefficient, wear resistance, corrosion resistance, no oil lubrication.The use of this product can reduce the cost, reduce the size of the machine, avoid the phenomenon of biting the shaft and reduce the mechanical noise and other advantages.Composite self-lubricating bearings also have some disadvantages, such as poor wear resistance and poor thermal conductivity compared with traditional bronze self-lubricating bearings.



CuPb10Sn+Steel Principle of compound oil-free self-lubricating bearing





Principle of compound oil-free self-lubricating bearingComposite oil-free self-lubricating bearing metallography







CuPb10Sn
Pb(%) Fe(%) Ni(%) Zn(%) Cu(%)
8.0-11.0 ≦0.25 ≦1.5 ≦2.0 78.0-87.0





Poly tetra fluoroethylene(PTFE)



It is a polymer made of tetrafluoroethylene as monomer.White waxy, translucent, good heat and cold resistance, can be used in -180 ~ 260 C for a long time.This material has the characteristics of anti - acid, anti - alkali, anti - various organic solvents, almost insoluble in all solvents.At the same time, ptfe has the characteristics of high temperature resistance, its coefficient of friction is very low, so it can be used for lubrication, but also become easy to clean the ideal coating of the inner layer of the water pipe;Toxic, human carcinogen.



CuPb10Sn+Steel+PTFE self-lubricating oil-free bearing performance parameters



performance index  date
maximum bearing capacityP Static load 250N/mm²
Dynamic load 140N/mm²
highest line speedV Dry friction 2.5m/s
Oil lubrication 5m/s
High PV value Dry friction 3.6N/mm²・m/s
Oil lubrication 50N/mm²・m/s
The coefficient of frictionμ Dry friction 0.04~0.20
Oil lubrication 0.02~0.07
The use of temperature -195℃~+280℃
Coefficient of thermal conductivity 42W/m・K
Coefficient of thermal expansion 11×10-6/K



Let's look at CuPb10Sn PTFE + Steel + self - lubricating oil - free bearing bearing of the molding process



Sintered PTFE CuPb10Sn Polymer Plain Bearings In Agriculture And Construction Industry 2





CuPb10Sn PTFE + Steel + self - lubricating oil - free bearing bearing of the molding processIs to take the rolling process, the disadvantage of the rolling process is the general accuracy, rolling process of production process efficiency is high and stable.The steel base was sintered to a layer of CuPb10Sn, then cooled and pressed onto a layer of PTFE material, and finally shaped, and then rolled into shape.



Learn more about the styles you can choose from with self-lubricating composite oil-free bearings

You can choose, and choose the galvanized steel base outside, or copper plating, in order to achieve better surface salt fog test requirements, you can choose special PTFE material to reach to the requirement of the friction in the part of the parts, you can also customize the thickness of the copper powder, improve performance of shaft oilless bearing strength, so contact us, we can help you to design the bearing.



Composite oil - free self - lubricating bearings can be customized to CAD drawings



The following table shows the sizes you can choose. For more sizes, please refer to the PDF file.





 shaft housing ID OD Thickness  L
H7 d D T 4 5 6 8 10
5 -0.010
-0.022
7 +0.015
0
5 7 +0.055
+0.025
1.0 +0.005
-0.020
  0505
6 -0.013
-0.028
8 " 6 8 " " " 0604   0606 0608 0610
7 " 9 " 7 9 " " "
8 " 10 " 8 10 " " "     0806 0808 0810
10 " 12 +0.018
0
10 12 +0.065
+0.030
" "       1008 1010
12 -0.016
-0.034
14 " 12 14 " " "       1208 1210
13 " 15 " 13 15 " " "         1310
14 " 16 " 14 16 +0.065
+0.035
" "   1405     1410
15 " 17 " 15 17 " " "         1510
16 " 18 " 16 18 " " "         1610
17 " 19 +0.021
0
17 19 +0.075
+0.035
" "         1710
18 " 20 " 18 20 " " "         1810
20 -0.020
-0.041
23 " 20 23 " 1.5 +0.005
-0.025
        2010
22 " 25 " 22 25 " " "         2210
24 " 27 " 24 27 " " "
25 " 28 " 25 28 " " "         2510
28 " 32 +0.025
0
28 32 +0.085
+0.045
2.0 +0.005
-0.030

30 " 34 " 30 34 " " "
32 -0.025
-0.050
36 " 32 36 " " "





For more information click here Wrapped Composite Sliding Bearing .pdf



Printing machines, lifts, textile machines, tobacco machines, fitness machines, hydraulic trucks, micromotors, solenoid valves, automobiles, motorcycles and agricultural and forestry machinery.
