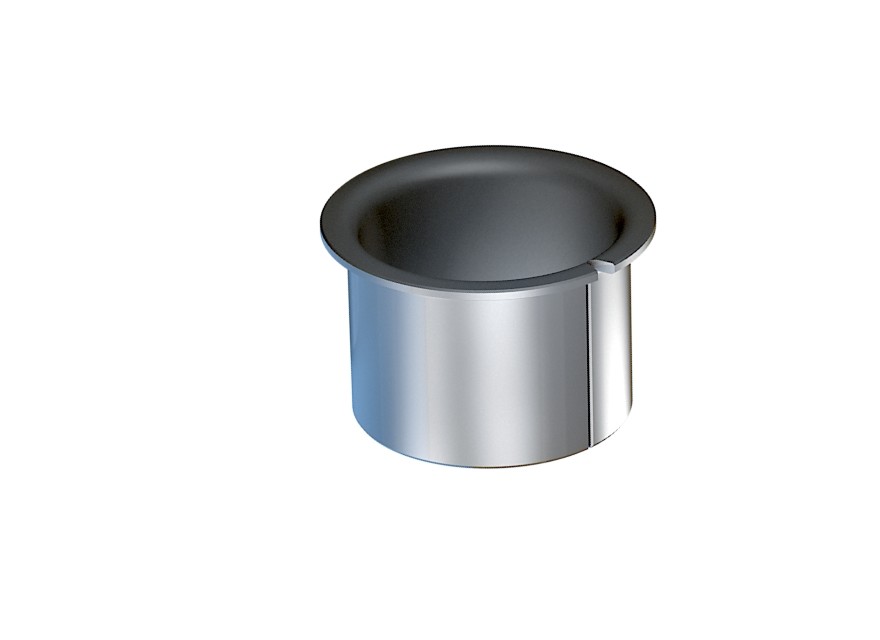

Dry Sliding Bushing Butt Joint Flange Size PTFE Bushes
Place of Origin | DRY SLIDE BUSHING MANUFACTURER |
---|---|
Brand Name | Straight Sleeve Bore Bushings |
Certification | wrapped bushing, Bronze Steel self-lubricatging bushing, DIN 1494 / ISO 3547, Low-maintenance |
Model Number | Plain bushing of PTFE composite POM composite |
Minimum Order Quantity | 100 Piece/Pieces (Min. Order) |
Price | Negotiable |
Packaging Details | Export standard packing |
Delivery Time | 1~2 WEEKS |
Payment Terms | TT IN ADVANCE |
Supply Ability | Valve Split Steel Bushings Shaft Bearings Suppliers |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMeterial | Carton Steel , Bronze , PTFE,POM | Plating | Tin Or Copper |
---|---|---|---|
Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
Size | Standard Size, Inch Sizeavailable | Quality | DRY SLIDE BUSHING |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Self Lubricating Bronze Bushings, Dry Bearing | Dry Slide Bushings Bearing | The Dry Slide Bushings Trademark Identifies A Whole Range Of Self-lubricated Dry Sliding Bushings And Bearings. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | plain bearing bush,bronze flanged sleeve bearings |
Dry Sliding Bearings,Inch composite plain bushings,get a free quote.Cheap price from china.PCZ-BUSHING,Butt joint.
Dry Flange Bushing Price and delivery time on request
Plain bushing of PTFE composite POM composite
LBMF dry liner (accessory BMF liner) material: reinforced steel (PTFE) bearing with better self-lubricity LBMF bearing has wear resistance due to the addition of PTFE with low friction coefficient.Advantages: lead-free bearing, no lubrication can be used;Excellent wear resistance;Long service life;Suitable for sliding;Quiet operation during the journey;A large number of available dimensions.Tuleje suche LBMF SANKYO
Instructions: do not grind the inside or outside of the sleeve to adjust its size;Move the sleeve connection away from the maximum load point as far as possible;To install the sleeve, slide it vertically into the housing;No special locks required;Prelubrication can extend product life.
Flanged Bushes Steel Backed Bronze Dimensions
Type | Spec. | Dimensions | Type | Spec. | Dimensions |
PTFE FLANGE BUSHES | 303 | 7/4.6~3~3.8 | PTFE FLANGE BUSHES | 2415 | 35/27~24~16.5 |
PTFE FLANGE BUSHES | 404 | 9/5.6~4~4.8 | PTFE FLANGE BUSHES | 2420 | 35/27~24~21.5 |
PTFE FLANGE BUSHES | 504 | 10/7~5~5 | PTFE FLANGE BUSHES | 2425 | 35/27~24~26.5 |
PTFE FLANGE BUSHES | 505 | 10/7~5~6 | PTFE FLANGE BUSHES | 2510 | 36/28~25~11.5 |
PTFE FLANGE BUSHES | 605 | 12/8~6~6 | PTFE FLANGE BUSHES | 2512 | 36/28~25~13.5 |
PTFE FLANGE BUSHES | 606 | 12/8~6~7 | PTFE FLANGE BUSHES | 2515 | 36/28~25~16.5 |
PTFE FLANGE BUSHES | 607 | 12/8~6~8 | PTFE FLANGE BUSHES | 2520 | 36/28~25~21.5 |
PTFE FLANGE BUSHES | 705 | 13/9~7~6 | PTFE FLANGE BUSHES | 2525 | 36/28~25~26.5 |
PTFE FLANGE BUSHES | 707 | 13/9~7~8 | PTFE FLANGE BUSHES | 2615 | 38/30~26~17 |
PTFE FLANGE BUSHES | 806 | 15/10~8~7 | PTFE FLANGE BUSHES | 2620 | 38/30~26~22 |
PTFE FLANGE BUSHES | 808 | 15/10~8~9 | PTFE FLANGE BUSHES | 2812 | 40/32~28~14 |
PTFE FLANGE BUSHES | 1006 | 18/12~10~7 | PTFE FLANGE BUSHES | 2815 | 40/32~28~17 |
PTFE FLANGE BUSHES | 1007 | 18/12~10~8 | PTFE FLANGE BUSHES | 2820 | 40/32~28~22 |
PTFE FLANGE BUSHES | 1008 | 18/12~10~9 | PTFE FLANGE BUSHES | 3012 | 42/34~30~14 |
PTFE FLANGE BUSHES | 1010 | 18/12~10~11 | PTFE FLANGE BUSHES | 3015 | 42/34~30~17 |
PTFE FLANGE BUSHES | 1012 | 18/12~10~13 | PTFE FLANGE BUSHES | 3020 | 42/34~30~22 |
PTFE FLANGE BUSHES | 1015 | 18/12~10~16 | PTFE FLANGE BUSHES | 3025 | 42/34~30~27 |
PTFE FLANGE BUSHES | 1206 | 20/14~12~7 | PTFE FLANGE BUSHES | 3030 | 42/34~30~32 |
PTFE FLANGE BUSHES | 1208 | 20/14~12~9 | PTFE FLANGE BUSHES | 3125 | 45/35~31~27 |
PTFE FLANGE BUSHES | 1210 | 20/14~12~11 | PTFE FLANGE BUSHES | 3220 | 46/36~32~22 |
PTFE FLANGE BUSHES | 1212 | 20/14~12~13 | PTFE FLANGE BUSHES | 3225 | 46/36~32~27 |
PTFE FLANGE BUSHES | 1215 | 20/14~12~16 | PTFE FLANGE BUSHES | 3230 | 46/36~32~32 |
PTFE FLANGE BUSHES | 1410 | 22/16~14~11 | PTFE FLANGE BUSHES | 3512 | 49/39~35~14 |
PTFE FLANGE BUSHES | 1412 | 22/16~14~13 | PTFE FLANGE BUSHES | 3520 | 49/39~35~22 |
PTFE FLANGE BUSHES | 1415 | 22/16~14~16 | PTFE FLANGE BUSHES | 3525 | 49/39~35~27 |
PTFE FLANGE BUSHES | 1510 | 23/17~15~11 | PTFE FLANGE BUSHES | 3530 | 49/39~35~32 |
PTFE FLANGE BUSHES | 1512 | 23/17~15~13 | PTFE FLANGE BUSHES | 3540 | 49/39~35~42 |
PTFE FLANGE BUSHES | 1515 | 23/17~15~16 | PTFE FLANGE BUSHES | 3820 | 52/42~38~22 |
PTFE FLANGE BUSHES | 1520 | 23/17~15~21 | PTFE FLANGE BUSHES | 4012 | 54/44~40~14 |
PTFE FLANGE BUSHES | 1615 | 24/18~16~16 | PTFE FLANGE BUSHES | 4020 | 54/44~40~22 |
PTFE FLANGE BUSHES | 1620 | 24/18~16~21 | PTFE FLANGE BUSHES | 4025 | 54/44~40~27 |
PTFE FLANGE BUSHES | 1810 | 26/20~18~11 | PTFE FLANGE BUSHES | 4030 | 54/44~40~32 |
PTFE FLANGE BUSHES | 1812 | 26/20~18~13 | PTFE FLANGE BUSHES | 4040 | 54/44~40~42 |
PTFE FLANGE BUSHES | 1815 | 26/20~18~16 | PTFE FLANGE BUSHES | 4520 | 60/50~45~22.5 |
PTFE FLANGE BUSHES | 1820 | 26/20~18~21 | PTFE FLANGE BUSHES | 4525 | 60/50~45~27.5 |
PTFE FLANGE BUSHES | 2010 | 31/23~20~11.5 | PTFE FLANGE BUSHES | 4530 | 60/50~45~32.5 |
PTFE FLANGE BUSHES | 2012 | 31/23~20~13.5 | PTFE FLANGE BUSHES | 4540 | 60/50~45~42.5 |
PTFE FLANGE BUSHES | 2015 | 31/23~20~16.5 | PTFE FLANGE BUSHES | 5020 | 65/55~50~22.5 |
PTFE FLANGE BUSHES | 2020 | 31/23~20~21.5 | PTFE FLANGE BUSHES | 5030 | 65/55~50~32.5 |
PTFE FLANGE BUSHES | 2025 | 31/23~20~26.5 | PTFE FLANGE BUSHES | 5040 | 65/55~50~42.5 |
PTFE FLANGE BUSHES | 2210 | 33/25~22~11.5 | PTFE FLANGE BUSHES | 5530 | 70/60~55~32.5 |
PTFE FLANGE BUSHES | 2212 | 33/25~22~13.5 | PTFE FLANGE BUSHES | 5540 | 70/60~55~42.5 |
PTFE FLANGE BUSHES | 2215 | 33/25~22~16.5 | PTFE FLANGE BUSHES | 6030 | 75/65~60~32.5 |
PTFE FLANGE BUSHES | 2220 | 33/25~22~21.5 | PTFE FLANGE BUSHES | 6040 | 75/65~60~42.5 |
Application
Self-lubricating bearings are typically used in high load applications, including valves, hydro power equipment, lifting equipment, hydraulic pumps and have a long proven history of providing outstanding performance in extreme applications from Ariane rockets to deep sea valves.
Boundary Lubricating Bushings Sleeve Bushes
VIIPLUS Self-Lubricating Bearings Material provides high-end casting to our valve divisions including materials like (low temperature) carbon steel/ stainless steel/ PTFE Bushing POM Bushes and high bronze alloy steels bearings.All analyses regarding the mold and pattern designs are being performed in our own premises in order to guarantee a constant casting level and quality.
The structural characteristics
VIIPLUS metal composite self-lubricating materials for high quality low carbon steel substrate, sintering porous spherical copper powder layer, the surface of copper is given priority to with PTFE wear-resistant lubricating materials as bearing layer, the material has excellent mechanical bearing capacity, the middle copper powder layer can not only transfer the heat generated by the bearing during operation in time, but also increased the strength of the combination of the plastic layer and substrate.PTFE is designed for complete dry friction and a variety of materials are developed for lubrication, friction coefficient and durability.VIIPLUS's PTFE metal composite delivers the best performance over the widest range of loads, speeds and temperatures with or without external lubrication.
The product application
Agricultural machinery: tractors, combine harvesters, crop sprayers, bulldozers, grader, etc.
Automobile industry: power steering pump, steering gear thrust gasket, disc brake, shock absorber, door hinge, wiper, chair horn, air valve and solenoid valve;
Office and business machines: copier, fax machine, printer, mail processor, etc.
Hydraulic components and valves: gear pump, plunger pump, vane pump, ball valve, butterfly valve, cylinder, cylinder and other hydraulic components;
Home appliances: refrigerators, air conditioners, vacuum cleaners, sewing machines, cleaning machines, microwave ovens and fitness equipment, etc.
And other logistics machinery, packaging machinery, textile machinery, port machinery, mining machinery and forest machinery and so on.
In actual use, according to the different environment, working conditions and environmental protection requirements, low-carbon steel plate can be changed into copper plate or stainless steel plate, the inner surface of the plastic layer can choose PTFE lead or lead-free materials and other polymer filler, the appearance can be tin or copper plating.
Du Sf-1 Boccole Bushes & Bushes | Viiplus Bearing Stainless Steel Bushing With PTFE
Description
VIIPLUS bushes are produced in a lightweight, compact material with minimum bulk, simplifying shaft assembly. Featuring high-level chemical resistance, shafts can be covered or plated with materials resistant against chemically aggressive liquids, gas or solids, through the application of an additional galvanic layer. This type of bush does not require lubrication and its operating temperature is between -195°C and +280°C.
ROLLED DRY SLIDING BEARINGS (PTFE)
Steel + Bronze Powder + PTFE/Fibre(DU)
Characteristics
VSB-10 Self-Lubricating Multilayer Composite Bushing
-
Bushing material suitable for lubricated applications
-
self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
-
Anti-friction bearing suitable for linear, oscillating and rotating movements
-
As they do not absorb oil and water, bushes have a low expansion and high conductivity rate, as well as good thermal stability. Furthermore, by using this type of bush, vibrations, noise and pollution are significantly reduced.
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.
Strusture
1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Technical Data
Carbon Steel + Copper Powder + (PTFE + Pb + Filler)
Structure And Composition
-
Metal-Polymer Composite Self-lubricating Bushing Material
-
Steel Back + Porous Bronze Sinter +
-
PTFE + Lead
Microsection
|
Sliding layer |
OPERATING PERFORMANCE |
|
Dry |
Very Good |
Oil lubricated |
Good |
Grease lubricated |
Fair |
Water lubricated |
Fair |
Process fluid lubricated |
Fair |
* Depending on Operating Conditions
Max. load |
Static |
250N/mm2 |
Dynamic |
140N/mm2 |
|
Max. speed |
Dry |
2m/s |
Lubrication |
>2m/s |
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
Continuous |
1.8N/mm2*·m/s |
|
Temp. |
-195℃~+280℃ |
|
Friction coefficient |
0.03~0.20 |
|
Thermal conductivity |
42W (m·k)-1 |
|
Coefficient of thermal expansion |
11*10-6k-1 |
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
TYPICAL APPLICATIONS
viiplus 10 bushes are used in various applications, for example:
* hydraulic vehicles;
* automobiles;
* motorcycles;
* agricultural machinery;
* textile machinery;
* printing machinery;
* gymnastics equipment and more; etc.
