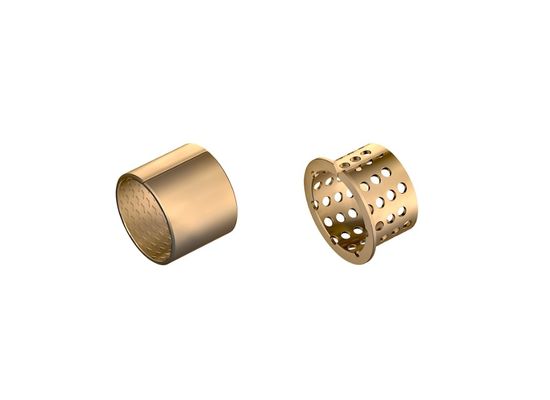

Wrapped Split Type Bronze Bushing CuSn8P DIN 1494 / ISO 3547 For Containers

  • Wrapped Split Type Bronze Bushing CuSn8P DIN 1494 / ISO 3547 For Containers
  • Wrapped Split Type Bronze Bushing CuSn8P DIN 1494 / ISO 3547 For Containers
  • Wrapped Split Type Bronze Bushing CuSn8P DIN 1494 / ISO 3547 For Containers
  • Wrapped Split Type Bronze Bushing CuSn8P DIN 1494 / ISO 3547 For Containers
Place of Origin Tin Bronze Bushing Manufacturer
Brand Name REPLACEMENT PLAIN BEARINGS
Certification DIN 1494 / ISO 3547
Model Number Bronze Bushings CuSn8P (DIN 17662) DIN 1494 / ISO 3547
Minimum Order Quantity MATE-TO-ORDER CUSTOM BUSHINGS
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Delivery Time 3 - 15 BUSINESS DAYS
Payment Terms T/T
Supply Ability STANDARD TOLERANCE BUSHINGS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material TIN BRONZE CUSN8 CUSN6 Feature High Temperature Resistance,Wear Resistance,corrosion Resistance
Performance High Load Capacity And Long Life Type Sleeve,Flange,Thrust Washer
Bushings Thinkness Bushing Max. Thickness Of 2.5mm. Self-lubricating Bushings With Diamond Pockets
Application Agricultural Machinery, Brakes And Certain Construction Machinery. Bushing Size Special Dimensions And Imperial Sizes Are Available On Request
Model Number E90F E92F E90 E92 BUSHINGS Material Bronze
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self Lubricating Bronze Bushings, Dry Bearing Dry Slide Bushings Bearing The Dry Slide Bushings Trademark Identifies A Whole Range Of Self-lubricated Dry Sliding Bushings And Bearings.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oilite bronze bushings

,

plain bearing bush
Leave a Message
Product Description

Sliding material and bushing type selection guides

Self Lubricating Bearings

Your Reliable Sliding Bearing Manufacturer. Latest Sale Info. Latest Purchase Info. From china, there are bronze bushing types of for you to choose. ie. Free trial now. Quick excellent. supplier index. China bearing.

Sliding bearings are especially suitable for high loads and sliding speeds. Thanks to their geometric shape and lubricating film, they withstand the impact force, suppress vibration and are quiet. The bearings come in any shape and size for easy installation and maintenance. With the correct lubrication, slide the bearings almost without wear.

dry sliding bearing tuleja z brązu typ E92F lub E90F

We have a large selection of plain and flanged bearings for various applications. With the collaboration of specialized subcontractors, we are one of the most reliable suppliers available. With us you can order your products according to your drawings and your specifications or you can choose from our vast and wide standard selection. Furthermore, our short delivery times and good logistics make us an efficient and reliable partner.



Dry Sliding Bearing, tuleja z brązu typ E92F lub E90F

Components for containers,roll off containers,rollers accessories for rollers bronze bushing,Wrapped Bushing, E90F E92F E90 E92F5050 Bronze Split Bushing,CuSn8P, DIN 1494 / ISO 3547 Diamond Pockets,diamond shaped pockets,Gerolltes Bronzegleitlager - mit Schmierstoffdepots.wrapped bronze bushing. Our standard material is CuSn8, alternatively we also can supply a CuSn6 bronze grade. The hardness of CuSn6 will slightly be lesser.Bronze bushings have diamond-shaped lubrication pockets on the ID, covering about 25% of the surface. Therefore, grease intervals can be stretched to the maximum.

Bronze Bushing was initially invented as an economic solution to solid bronze bushings, which have been used for centuries. The advantage being that they are produced from bronze sheet materials with a max. thickness of 2.5mm.



Feature

1. Easy of fitting and lubrication

2. High load capacity

3. Excellent wear resistance with lower friction

4. High level thermal conductivity

5. Minimum overall dimensions

6. Chemical resistance

7. Can work under dry/marginal lubrication for short period, lower friction factor at initial moving



Wrapped bushing, Bronze CuSn8, DIN 1494 / ISO 3547, Low-maintenance Wrapped Bushing Size

Download bush bearing, FB092-200100pdf.pdf.

The bearings are wrapped from a cold formed homogeneous bronze(CuSn8 or CuSn6.5),which can achieve exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents on the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery.

06 08 0608 0610 08 10 0808 0810 0812 10 12 1006 1010 1012 1015 1020 12 14 1208 1210 1212 1215 1220 13 15 1315 1320 14 16 1410 1412 1415 1420 1425 15 17 1508 1510 1512 1515 1520 1525 16 18 1610 1612 1615 1620 1625 17 19 1715 1720 18 20 1810A 1815A 1820A 1825A 1830A 18 21 1815B 1820B 1830B 20 22 2020A 2025A 2030A 20 23 2020B 2025B 2030B 2040B 22 25 2215 2220 2225 2230 2240 24 27 2415A 2420A 2425A 2430A 2440A 24 28 2415B 2420B 2425B 2430B 25 28 2515 2520 2525 2530 2540 2550 28 31 2815A 2820A 2825A 2830A 28 32 2815B 2820B 2825B 2830B 2840B 30 34 3010 3012 3015 3020 3025 3030 3040 3050 32 36 3215 3220 3225 3230 3240 3250 35 39 3510 3515 3520 3525 3530 3540 3550 38 42 3825 3830 3840 3850 3860 40 44 4015 4020 4025 4030 4035 4040 4050 4060 4070 42 46 4220 4230 45 50 4520 4530 4540 4550 4560 50 55 5010 5015 5020 5025 5030 5035 5040 5050 5060 5070 55 60 5515 5520 5525 5530 5535 5540 5550 5560 5570



Mateialdry sliding bearing

  • CuSn8P (DIN 17662)
  • DIN 1494 / ISO 3547



Specially Manufacturing Bushings

The manufacturing process starts with cutting the sheet to the correct rectangular shape. Then the plate will be rolled and calibrated to the final size and finished with chamfering the edges.



Range Of Application

Agriculture machinery, truck cranes & construction machinery, suitable for impact loads



bronze bushing size chart
[mm] d D L
BRONZE BUSHING-FB092-1010 10 12 10
BRONZE BUSHING-FB092-1012 10 12 12
BRONZE BUSHING-FB092-1015 10 12 15
BRONZE BUSHING-FB092-1020 10 12 20
BRONZE BUSHING-FB092-1108 11 13 8
BRONZE BUSHING-FB092-1109 11 13 9
BRONZE BUSHING-FB092-1110 11 13 10
BRONZE BUSHING-FB092-1112 11 13 12
BRONZE BUSHING-FB092-1206 12 14 6
BRONZE BUSHING-FB092-1208 12 14 8
BRONZE BUSHING-FB092-1210 12 14 10
BRONZE BUSHING-FB092-1212 12 14 12
BRONZE BUSHING-FB092-1214 12 14 14
BRONZE BUSHING-FB092-1215 12 14 15
BRONZE BUSHING-FB092-1216 12 14 16
BRONZE BUSHING-FB092-1220 12 14 20
BRONZE BUSHING-FB092-1225 12 14 25
BRONZE BUSHING-FB092-1308 13 15 8
BRONZE BUSHING-FB092-1309 13 15 9
BRONZE BUSHING-FB092-1310 13 15 10
BRONZE BUSHING-FB092-1312 13 15 12
BRONZE BUSHING-FB092-1315 13 15 15
BRONZE BUSHING-FB092-1410 14 16 10
BRONZE BUSHING-FB092-1412 14 16 12
BRONZE BUSHING-FB092-1415 14 16 15
BRONZE BUSHING-FB092-1420 14 16 20
BRONZE BUSHING-FB092-1422 14 16 22
BRONZE BUSHING-FB092-1425 14 16 25
BRONZE BUSHING-FB092-1508 15 17 8
BRONZE BUSHING-FB092-1510 15 17 10
BRONZE BUSHING-FB092-1512 15 17 12
BRONZE BUSHING-FB092-1515 15 17 15
BRONZE BUSHING-FB092-1518 15 17 18
BRONZE BUSHING-FB092-1520 15 17 20
BRONZE BUSHING-FB092-1525 15 17 25
BRONZE BUSHING-FB092-1608 16 18 8
BRONZE BUSHING-FB092-1610 16 18 10
BRONZE BUSHING-FB092-1612 16 18 12
BRONZE BUSHING-FB092-1615 16 18 15
BRONZE BUSHING-FB092-1618 16 18 18
BRONZE BUSHING-FB092-1620 16 18 20
BRONZE BUSHING-FB092-1625 16 18 25
BRONZE BUSHING-FB092-1708 17 19 8
BRONZE BUSHING-FB092-1710 17 19 10
BRONZE BUSHING-FB092-1712 17 19 12
BRONZE BUSHING-FB092-1715 17 19 15
BRONZE BUSHING-FB092-1718 17 19 18
BRONZE BUSHING-FB092-1720 17 19 20
BRONZE BUSHING-FB092-1725 17 19 25
BRONZE BUSHING-FB092-1808 18 20 8
BRONZE BUSHING-FB092-1810 18 20 10
BRONZE BUSHING-FB092-1812 18 20 12
BRONZE BUSHING-FB092-1815 18 20 15
BRONZE BUSHING-FB092-1820 18 20 20
BRONZE BUSHING-FB092-1825 18 20 25
BRONZE BUSHING-FB092-1830 18 20 30
BRONZE BUSHING-FB092-2008 20 23 8
BRONZE BUSHING-FB092-2010 20 23 10
BRONZE BUSHING-FB092-2012 20 23 12
BRONZE BUSHING-FB092-2015 20 23 15
BRONZE BUSHING-FB092-2020 20 23 20
BRONZE BUSHING-FB092-2025 20 23 25
BRONZE BUSHING-FB092-2030 20 23 30
BRONZE BUSHING-FB092-2035 20 23 35
BRONZE BUSHING-FB092-2040 20 23 40
BRONZE BUSHING-FB092-2210 22 25 10
BRONZE BUSHING-FB092-2212 22 25 12
BRONZE BUSHING-FB092-2215 22 25 15
BRONZE BUSHING-FB092-2220 22 25 20
BRONZE BUSHING-FB092-2225 22 25 25
BRONZE BUSHING-FB092-2230 22 25 30
BRONZE BUSHING-FB092-2235 22 25 35
BRONZE BUSHING-FB092-2238 22 25 38
BRONZE BUSHING-FB092-2240 22 25 40
BRONZE BUSHING-FB092-2245 22 25 45
BRONZE BUSHING-FB092-2250 22 25 50
BRONZE BUSHING-FB092-2410 24 27 10
BRONZE BUSHING-FB092-2412 24 27 12
BRONZE BUSHING-FB092-2415 24 27 15
BRONZE BUSHING-FB092-2420 24 27 20
BRONZE BUSHING-FB092-2425 24 27 25
BRONZE BUSHING-FB092-2428 24 27 28
BRONZE BUSHING-FB092-2430 24 27 30
BRONZE BUSHING-FB092-2432 24 27 32
BRONZE BUSHING-FB092-2435 24 27 35
BRONZE BUSHING-FB092-2438 24 27 38
BRONZE BUSHING-FB092-2440 24 27 40
BRONZE BUSHING-FB092-2450 24 27 50
BRONZE BUSHING-FB092-2510 25 28 10
BRONZE BUSHING-FB092-2512 25 28 12
BRONZE BUSHING-FB092-2515 25 28 15
BRONZE BUSHING-FB092-2520 25 28 20
BRONZE BUSHING-FB092-2525 25 28 25
BRONZE BUSHING-FB092-2528 25 28 28
BRONZE BUSHING-FB092-2530 25 28 30
BRONZE BUSHING-FB092-2532 25 28 32
BRONZE BUSHING-FB092-2535 25 28 35
BRONZE BUSHING-FB092-2540 25 28 40
BRONZE BUSHING-FB092-2550 25 28 50
BRONZE BUSHING-FB092-2560 25 28 60
BRONZE BUSHING-FB092-2610 26 30 10
BRONZE BUSHING-FB092-2612 26 30 12
BRONZE BUSHING-FB092-2615 26 30 15
BRONZE BUSHING-FB092-2620 26 30 20
BRONZE BUSHING-FB092-2625 26 30 25
BRONZE BUSHING-FB092-2630 26 30 30
BRONZE BUSHING-FB092-2635 26 30 35
BRONZE BUSHING-FB092-2640 26 30 40
BRONZE BUSHING-FB092-2650 26 30 50
BRONZE BUSHING-FB092-2810 28 32 10
BRONZE BUSHING-FB092-2812 28 32 12
BRONZE BUSHING-FB092-2815 28 32 15
BRONZE BUSHING-FB092-2820 28 32 20
BRONZE BUSHING-FB092-2825 28 32 25
BRONZE BUSHING-FB092-2830 28 32 30
BRONZE BUSHING-FB092-2832 28 32 32
BRONZE BUSHING-FB092-2835 28 32 35
BRONZE BUSHING-FB092-2840 28 32 40
BRONZE BUSHING-FB092-3010 30 34 10
BRONZE BUSHING-FB092-3012 30 34 12
BRONZE BUSHING-FB092-3015 30 34 15
BRONZE BUSHING-FB092-3020 30 34 20
BRONZE BUSHING-FB092-3025 30 34 25
BRONZE BUSHING-FB092-3028 30 34 28
BRONZE BUSHING-FB092-3030 30 34 30
BRONZE BUSHING-FB092-3032 30 34 32
BRONZE BUSHING-FB092-3035 30 34 35
BRONZE BUSHING-FB092-3038 30 34 38
BRONZE BUSHING-FB092-3040 30 34 40
BRONZE BUSHING-FB092-3045 30 34 45
BRONZE BUSHING-FB092-3050 30 34 50
BRONZE BUSHING-FB092-3210 32 36 10
BRONZE BUSHING-FB092-3212 32 36 12
BRONZE BUSHING-FB092-3215 32 36 15
BRONZE BUSHING-FB092-3218 32 36 18
BRONZE BUSHING-FB092-3220 32 36 20
BRONZE BUSHING-FB092-3225 32 36 25
BRONZE BUSHING-FB092-3230 32 36 30
BRONZE BUSHING-FB092-3235 32 36 35
BRONZE BUSHING-FB092-3240 32 36 40
BRONZE BUSHING-FB092-3245 32 36 45
BRONZE BUSHING-FB092-3250 32 36 50
BRONZE BUSHING-FB092-3410 34 38 10
BRONZE BUSHING-FB092-3412 34 38 12
BRONZE BUSHING-FB092-3415 34 38 15
BRONZE BUSHING-FB092-3420 34 38 20
BRONZE BUSHING-FB092-3425 34 38 25
BRONZE BUSHING-FB092-3430 34 38 30
BRONZE BUSHING-FB092-3435 34 38 35
BRONZE BUSHING-FB092-3440 34 38 40
BRONZE BUSHING-FB092-3445 34 38 45
BRONZE BUSHING-FB092-3510 35 39 10
BRONZE BUSHING-FB092-3512 35 39 12
BRONZE BUSHING-FB092-3515 35 39 15
BRONZE BUSHING-FB092-3520 35 39 20
BRONZE BUSHING-FB092-3525 35 39 25
BRONZE BUSHING-FB092-3530 35 39 30
BRONZE BUSHING-FB092-3535 35 39 35
BRONZE BUSHING-FB092-3540 35 39 40
BRONZE BUSHING-FB092-3545 35 39 45
BRONZE BUSHING-FB092-3550 35 39 50
BRONZE BUSHING-FB092-3610 36 40 10
BRONZE BUSHING-FB092-3612 36 40 12
BRONZE BUSHING-FB092-3615 36 40 15
BRONZE BUSHING-FB092-3620 36 40 20
BRONZE BUSHING-FB092-3625 36 40 25
BRONZE BUSHING-FB092-3630 36 40 30
BRONZE BUSHING-FB092-3635 36 40 35
BRONZE BUSHING-FB092-3640 36 40 40
BRONZE BUSHING-FB092-3645 36 40 45
BRONZE BUSHING-FB092-3650 36 40 50
BRONZE BUSHING-FB092-3812 38 42 12
BRONZE BUSHING-FB092-3815 38 42 15
BRONZE BUSHING-FB092-3820 38 42 20
BRONZE BUSHING-FB092-3825 38 42 25
BRONZE BUSHING-FB092-3830 38 42 30
BRONZE BUSHING-FB092-3835 38 42 35
BRONZE BUSHING-FB092-3840 38 42 40
BRONZE BUSHING-FB092-3845 38 42 45
BRONZE BUSHING-FB092-3850 38 42 50
BRONZE BUSHING-FB092-3855 38 42 55
BRONZE BUSHING-FB092-3860 38 42 60
BRONZE BUSHING-FB092-4012 40 44 12
BRONZE BUSHING-FB092-4015 40 44 15
BRONZE BUSHING-FB092-4020 40 44 20
BRONZE BUSHING-FB092-4025 40 44 25
BRONZE BUSHING-FB092-4030 40 44 30
BRONZE BUSHING-FB092-4035 40 44 35
BRONZE BUSHING-FB092-4040 40 44 40
BRONZE BUSHING-FB092-4045 40 44 45
BRONZE BUSHING-FB092-4050 40 44 50
BRONZE BUSHING-FB092-4055 40 44 55
BRONZE BUSHING-FB092-4060 40 44 60
BRONZE BUSHING-FB092-4212 42 46 12
BRONZE BUSHING-FB092-4215 42 46 15
BRONZE BUSHING-FB092-4220 42 46 20
BRONZE BUSHING-FB092-4225 42 46 25
BRONZE BUSHING-FB092-4230 42 46 30
BRONZE BUSHING-FB092-4235 42 46 35
BRONZE BUSHING-FB092-4240 42 46 40
BRONZE BUSHING-FB092-4245 42 46 45
BRONZE BUSHING-FB092-4250 42 46 50
BRONZE BUSHING-FB092-4255 42 46 55
BRONZE BUSHING-FB092-4260 42 46 60
BRONZE BUSHING-FB092-4412 44 48 12
BRONZE BUSHING-FB092-4415 44 48 15
BRONZE BUSHING-FB092-4420 44 48 20
BRONZE BUSHING-FB092-4425 44 48 25
BRONZE BUSHING-FB092-4430 44 48 30
BRONZE BUSHING-FB092-4435 44 48 35
BRONZE BUSHING-FB092-4440 44 48 40
BRONZE BUSHING-FB092-4445 44 48 45
BRONZE BUSHING-FB092-4450 44 48 50
BRONZE BUSHING-FB092-4455 44 48 55
BRONZE BUSHING-FB092-4460 44 48 60
BRONZE BUSHING-FB092-4518 45 50 18
BRONZE BUSHING-FB092-4520 45 50 20
BRONZE BUSHING-FB092-4525 45 50 25
BRONZE BUSHING-FB092-4530 45 50 30
BRONZE BUSHING-FB092-4535 45 50 35
BRONZE BUSHING-FB092-4540 45 50 40
BRONZE BUSHING-FB092-4545 45 50 45
BRONZE BUSHING-FB092-4550 45 50 50
BRONZE BUSHING-FB092-4555 45 50 55
BRONZE BUSHING-FB092-4560 45 50 60
BRONZE BUSHING-FB092-5015 50 55 15
BRONZE BUSHING-FB092-5020 50 55 20
BRONZE BUSHING-FB092-5025 50 55 25
BRONZE BUSHING-FB092-5030 50 55 30
BRONZE BUSHING-FB092-5035 50 55 35
BRONZE BUSHING-FB092-5040 50 55 40
BRONZE BUSHING-FB092-5045 50 55 45
BRONZE BUSHING-FB092-5050 50 55 50
BRONZE BUSHING-FB092-5055 50 55 55
BRONZE BUSHING-FB092-5060 50 55 60
BRONZE BUSHING-FB092-5065 50 55 65
BRONZE BUSHING-FB092-5070 50 55 70
BRONZE BUSHING-FB092-5515 55 60 15
BRONZE BUSHING-FB092-5520 55 60 20
BRONZE BUSHING-FB092-5525 55 60 25
BRONZE BUSHING-FB092-5530 55 60 30
BRONZE BUSHING-FB092-5535 55 60 35
BRONZE BUSHING-FB092-5540 55 60 40
BRONZE BUSHING-FB092-5545 55 60 45
BRONZE BUSHING-FB092-5550 55 60 50
BRONZE BUSHING-FB092-5555 55 60 55
BRONZE BUSHING-FB092-5560 55 60 60
BRONZE BUSHING-FB092-5565 55 60 65
BRONZE BUSHING-FB092-5570 55 60 70
BRONZE BUSHING-FB092-6015 60 65 15
BRONZE BUSHING-FB092-6020 60 65 20
BRONZE BUSHING-FB092-6025 60 65 25
BRONZE BUSHING-FB092-6030 60 65 30
BRONZE BUSHING-FB092-6035 60 65 35
BRONZE BUSHING-FB092-6040 60 65 40
BRONZE BUSHING-FB092-6045 60 65 45
BRONZE BUSHING-FB092-6050 60 65 50
BRONZE BUSHING-FB092-6055 60 65 55
BRONZE BUSHING-FB092-6060 60 65 60
BRONZE BUSHING-FB092-6065 60 65 65
BRONZE BUSHING-FB092-6070 60 65 70
BRONZE BUSHING-FB092-6075 60 65 75
BRONZE BUSHING-FB092-6080 60 65 80
BRONZE BUSHING-FB092-6085 60 65 85
BRONZE BUSHING-FB092-6090 60 65 90
BRONZE BUSHING-FB092-6515 65 70 15
BRONZE BUSHING-FB092-6520 65 70 20
BRONZE BUSHING-FB092-6530 65 70 30
BRONZE BUSHING-FB092-6540 65 70 40
BRONZE BUSHING-FB092-6550 65 70 50
BRONZE BUSHING-FB092-6560 65 70 60
BRONZE BUSHING-FB092-6570 65 70 70
BRONZE BUSHING-FB092-6580 65 70 80
BRONZE BUSHING-FB092-6590 65 70 90
BRONZE BUSHING-FB092-7020 70 75 20
BRONZE BUSHING-FB092-7030 70 75 30
BRONZE BUSHING-FB092-7040 70 75 40
BRONZE BUSHING-FB092-7045 70 75 45
BRONZE BUSHING-FB092-7050 70 75 50
BRONZE BUSHING-FB092-7060 70 75 60
BRONZE BUSHING-FB092-7070 70 75 70
BRONZE BUSHING-FB092-7080 70 75 80
BRONZE BUSHING-FB092-7090 70 75 90
BRONZE BUSHING-FB092-7530 75 80 30
BRONZE BUSHING-FB092-7540 75 80 40
BRONZE BUSHING-FB092-7550 75 80 50
BRONZE BUSHING-FB092-7560 75 80 60
BRONZE BUSHING-FB092-7570 75 80 70
BRONZE BUSHING-FB092-7580 75 80 80
BRONZE BUSHING-FB092-7590 75 80 90
BRONZE BUSHING-FB092-8030 80 85 30
BRONZE BUSHING-FB092-8040 80 85 40
BRONZE BUSHING-FB092-8050 80 85 50
BRONZE BUSHING-FB092-8060 80 85 60
BRONZE BUSHING-FB092-8070 80 85 70
BRONZE BUSHING-FB092-8080 80 85 80
BRONZE BUSHING-FB092-8090 80 85 90
BRONZE BUSHING-FB092-80100 80 85 100
BRONZE BUSHING-FB092-8530 85 90 30
BRONZE BUSHING-FB092-8540 85 90 40
BRONZE BUSHING-FB092-8550 85 90 50
BRONZE BUSHING-FB092-8560 85 90 60
BRONZE BUSHING-FB092-8570 85 90 70
BRONZE BUSHING-FB092-8580 85 90 80
BRONZE BUSHING-FB092-8590 85 90 90
BRONZE BUSHING-FB092-85100 85 90 100
BRONZE BUSHING-FB092-9030 90 95 30
BRONZE BUSHING-FB092-9040 90 95 40
BRONZE BUSHING-FB092-9050 90 95 50
BRONZE BUSHING-FB092-9060 90 95 60
BRONZE BUSHING-FB092-9070 90 95 70
BRONZE BUSHING-FB092-9080 90 95 80
BRONZE BUSHING-FB092-9090 90 95 90
BRONZE BUSHING-FB092-90100 90 95 100
BRONZE BUSHING-FB092-9530 95 100 30
BRONZE BUSHING-FB092-9540 95 100 40
BRONZE BUSHING-FB092-9550 95 100 50
BRONZE BUSHING-FB092-9560 95 100 60
BRONZE BUSHING-FB092-9570 95 100 70
BRONZE BUSHING-FB092-9580 95 100 80
BRONZE BUSHING-FB092-9590 95 100 90
BRONZE BUSHING-FB092-95100 95 100 100
BRONZE BUSHING-FB092-10030 100 105 30
BRONZE BUSHING-FB092-10040 100 105 40
BRONZE BUSHING-FB092-10050 100 105 50
BRONZE BUSHING-FB092-10060 100 105 60
BRONZE BUSHING-FB092-10070 100 105 70
BRONZE BUSHING-FB092-10080 100 105 80
BRONZE BUSHING-FB092-10090 100 105 90
BRONZE BUSHING-FB092-10095 100 105 95
BRONZE BUSHING-FB092-100100 100 105 100
BRONZE BUSHING-FB092-100115 100 105 115
BRONZE BUSHING-FB092-10550 105 110 50
BRONZE BUSHING-FB092-10560 105 110 60
BRONZE BUSHING-FB092-10570 105 110 70
BRONZE BUSHING-FB092-10580 105 110 80
BRONZE BUSHING-FB092-10590 105 110 90
BRONZE BUSHING-FB092-105100 105 110 100
BRONZE BUSHING-FB092-105115 105 110 115
BRONZE BUSHING-FB092-11050 110 115 50
BRONZE BUSHING-FB092-11060 110 115 60
BRONZE BUSHING-FB092-11070 110 115 70
BRONZE BUSHING-FB092-11080 110 115 80
BRONZE BUSHING-FB092-11090 110 115 90
BRONZE BUSHING-FB092-110100 110 115 100
BRONZE BUSHING-FB092-110115 110 115 115
BRONZE BUSHING-FB092-11550 115 120 50
BRONZE BUSHING-FB092-11560 115 120 60
BRONZE BUSHING-FB092-11570 115 120 70
BRONZE BUSHING-FB092-11580 115 120 80
BRONZE BUSHING-FB092-11590 115 120 90
BRONZE BUSHING-FB092-115100 115 120 100
BRONZE BUSHING-FB092-115115 115 120 115
BRONZE BUSHING-FB092-12050 120 125 50
BRONZE BUSHING-FB092-12060 120 125 60
BRONZE BUSHING-FB092-12070 120 125 70
BRONZE BUSHING-FB092-12080 120 125 80
BRONZE BUSHING-FB092-12090 120 125 90
BRONZE BUSHING-FB092-120100 120 125 100
BRONZE BUSHING-FB092-120120 120 125 120
BRONZE BUSHING-FB092-12550 125 130 50
BRONZE BUSHING-FB092-12560 125 130 60
BRONZE BUSHING-FB092-12570 125 130 70
BRONZE BUSHING-FB092-12580 125 130 80
BRONZE BUSHING-FB092-12590 125 130 90
BRONZE BUSHING-FB092-125100 125 130 100
BRONZE BUSHING-FB092-125115 125 130 115
BRONZE BUSHING-FB092-13060 130 135 60
BRONZE BUSHING-FB092-13070 130 135 70
BRONZE BUSHING-FB092-13080 130 135 80
BRONZE BUSHING-FB092-13090 130 135 90
BRONZE BUSHING-FB092-130100 130 135 100
BRONZE BUSHING-FB092-130120 130 135 120
BRONZE BUSHING-FB092-13560 135 140 60
BRONZE BUSHING-FB092-13570 135 140 70
BRONZE BUSHING-FB092-13580 135 140 80
BRONZE BUSHING-FB092-13590 135 140 90
BRONZE BUSHING-FB092-135100 135 140 100
BRONZE BUSHING-FB092-135120 135 140 120
BRONZE BUSHING-FB092-14060 140 145 60
BRONZE BUSHING-FB092-14070 140 145 70
BRONZE BUSHING-FB092-14080 140 145 80
BRONZE BUSHING-FB092-14090 140 145 90
BRONZE BUSHING-FB092-140100 140 145 100
BRONZE BUSHING-FB092-14560 145 150 60
BRONZE BUSHING-FB092-14570 145 150 70
BRONZE BUSHING-FB092-14580 145 150 80
BRONZE BUSHING-FB092-14590 145 150 90
BRONZE BUSHING-FB092-145110 145 150 100
BRONZE BUSHING-FB092-145120 145 150 120
BRONZE BUSHING-FB092-15060 150 155 60
BRONZE BUSHING-FB092-15070 150 155 70
BRONZE BUSHING-FB092-15080 150 155 80
BRONZE BUSHING-FB092-15090 150 155 90
BRONZE BUSHING-FB092-150100 150 155 100
BRONZE BUSHING-FB092-15550 155 160 50
BRONZE BUSHING-FB092-15560 155 160 60
BRONZE BUSHING-FB092-15570 155 160 70
BRONZE BUSHING-FB092-15580 155 160 80
BRONZE BUSHING-FB092-15590 155 160 90
BRONZE BUSHING-FB092-155100 155 160 100
BRONZE BUSHING-FB092-16060 160 165 60
BRONZE BUSHING-FB092-16070 160 165 70
BRONZE BUSHING-FB092-16080 160 165 80
BRONZE BUSHING-FB092-16090 160 165 90
BRONZE BUSHING-FB092-160100 160 165 100
BRONZE BUSHING-FB092-160110 160 165 110
BRONZE BUSHING-FB092-160120 160 165 120
BRONZE BUSHING-FB092-160130 160 165 130
BRONZE BUSHING-FB092-160140 160 165 140
BRONZE BUSHING-FB092-160150 160 165 150
BRONZE BUSHING-FB092-16560 165 170 60
BRONZE BUSHING-FB092-16570 165 170 70
BRONZE BUSHING-FB092-16580 165 170 80
BRONZE BUSHING-FB092-16590 165 170 90
BRONZE BUSHING-FB092-165100 165 170 100
BRONZE BUSHING-FB092-165110 165 170 110
BRONZE BUSHING-FB092-165120 165 170 120
BRONZE BUSHING-FB092-165130 165 170 130
BRONZE BUSHING-FB092-165140 165 170 140
BRONZE BUSHING-FB092-165150 165 170 150
BRONZE BUSHING-FB092-17060 170 175 60
BRONZE BUSHING-FB092-17070 170 175 70
BRONZE BUSHING-FB092-17080 170 175 80
BRONZE BUSHING-FB092-17090 170 175 90
BRONZE BUSHING-FB092-170100 170 175 100
BRONZE BUSHING-FB092-170110 170 175 110
BRONZE BUSHING-FB092-170120 170 175 120
BRONZE BUSHING-FB092-170430 170 175 130
BRONZE BUSHING-FB092-170140 170 175 140
BRONZE BUSHING-FB092-170150 170 175 150
BRONZE BUSHING-FB092-17560 175 180 60
BRONZE BUSHING-FB092-17570 175 180 70
BRONZE BUSHING-FB092-17580 175 180 80
BRONZE BUSHING-FB092-17590 175 180 90
BRONZE BUSHING-FB092-175100 175 180 100
BRONZE BUSHING-FB092-175110 175 180 110
BRONZE BUSHING-FB092-175120 175 180 120
BRONZE BUSHING-FB092-175130 175 180 130
BRONZE BUSHING-FB092-175140 175 180 140
BRONZE BUSHING-FB092-175150 175 180 150
BRONZE BUSHING-FB092-18060 180 185 60
BRONZE BUSHING-FB092-18070 180 185 70
BRONZE BUSHING-FB092-18080 180 185 80
BRONZE BUSHING-FB092-18090 180 185 90
BRONZE BUSHING-FB092-180100 180 185 100
BRONZE BUSHING-FB092-180110 180 185 110
BRONZE BUSHING-FB092-180120 180 185 120
BRONZE BUSHING-FB092-180130 180 185 130
BRONZE BUSHING-FB092-180140 180 185 140
BRONZE BUSHING-FB092-180150 180 185 150
BRONZE BUSHING-FB092-18560 185 190 60
BRONZE BUSHING-FB092-18570 185 190 70
BRONZE BUSHING-FB092-18580 185 190 80
BRONZE BUSHING-FB092-18590 185 190 90
BRONZE BUSHING-FB092-185100 185 190 100
BRONZE BUSHING-FB092-185110 185 190 110
BRONZE BUSHING-FB092-185120 185 190 120
BRONZE BUSHING-FB092-185130 185 190 130
BRONZE BUSHING-FB092-185140 185 190 140
BRONZE BUSHING-FB092-185150 185 190 150
BRONZE BUSHING-FB092-19060 190 195 60
BRONZE BUSHING-FB092-19070 190 195 70
BRONZE BUSHING-FB092-19080 190 195 80
BRONZE BUSHING-FB092-19090 190 195 90
BRONZE BUSHING-FB092-190100 190 195 100
BRONZE BUSHING-FB092-190110 190 195 110
BRONZE BUSHING-FB092-190120 190 195 120
BRONZE BUSHING-FB092-190130 190 195 130
BRONZE BUSHING-FB092-190140 190 195 140
BRONZE BUSHING-FB092-190150 190 195 150
BRONZE BUSHING-FB092-19560 195 200 60
BRONZE BUSHING-FB092-19570 195 200 70
BRONZE BUSHING-FB092-19580 195 200 80
BRONZE BUSHING-FB092-19590 195 200 90
BRONZE BUSHING-FB092-195100 195 200 100
BRONZE BUSHING-FB092-195110 195 200 110
BRONZE BUSHING-FB092-195120 195 200 120
BRONZE BUSHING-FB092-195130 195 200 130
BRONZE BUSHING-FB092-195140 195 200 140
BRONZE BUSHING-FB092-195150 195 200 150
BRONZE BUSHING-FB092-20060 200 205 60
BRONZE BUSHING-FB092-20070 200 205 70
BRONZE BUSHING-FB092-20080 200 205 80
BRONZE BUSHING-FB092-20090 200 205 90
BRONZE BUSHING-FB092-200100 200 205 100
BRONZE BUSHING-FB092-200110 200 205 110
BRONZE BUSHING-FB092-200120 200 205 120
BRONZE BUSHING-FB092-200130 200 205 130
BRONZE BUSHING-FB092-200140 200 205 140
BRONZE BUSHING-FB092-200150 200 205 150
BRONZE BUSHING-FB092-20560 205 210 60
BRONZE BUSHING-FB092-20570 205 210 70
BRONZE BUSHING-FB092-20580 205 210 80
BRONZE BUSHING-FB092-20590 205 210 90
BRONZE BUSHING-FB092-205100 205 210 100
BRONZE BUSHING-FB092-205110 205 210 110
BRONZE BUSHING-FB092-205120 205 210 120
BRONZE BUSHING-FB092-205130 205 210 130
BRONZE BUSHING-FB092-205140 205 210 140
BRONZE BUSHING-FB092-205150 205 210 150
BRONZE BUSHING-FB092-21060 210 215 60
BRONZE BUSHING-FB092-21070 210 215 70
BRONZE BUSHING-FB092-21080 210 215 80
BRONZE BUSHING-FB092-21090 210 215 90
BRONZE BUSHING-FB092-210100 210 215 100
BRONZE BUSHING-FB092-210110 210 215 110
BRONZE BUSHING-FB092-210120 210 215 120
BRONZE BUSHING-FB092-210130 210 215 130
BRONZE BUSHING-FB092-210140 210 215 140
BRONZE BUSHING-FB092-210150 210 215 150
BRONZE BUSHING-FB092-21560 215 220 60
BRONZE BUSHING-FB092-21570 215 220 70
BRONZE BUSHING-FB092-21580 215 220 80
BRONZE BUSHING-FB092-21590 215 220 90
BRONZE BUSHING-FB092-215100 215 220 100
BRONZE BUSHING-FB092-215110 215 220 110
BRONZE BUSHING-FB092-215120 215 220 120
BRONZE BUSHING-FB092-215130 215 220 130
BRONZE BUSHING-FB092-215140 215 220 140
BRONZE BUSHING-FB092-215150 215 220 150
BRONZE BUSHING-FB092-22060 220 225 60
BRONZE BUSHING-FB092-22070 220 225 70
BRONZE BUSHING-FB092-22080 220 225 80
BRONZE BUSHING-FB092-22090 220 225 90
BRONZE BUSHING-FB092-220100 220 225 100
BRONZE BUSHING-FB092-220110 220 225 110
BRONZE BUSHING-FB092-220120 220 225 120
BRONZE BUSHING-FB092-220130 220 225 130
BRONZE BUSHING-FB092-220140 220 225 140
BRONZE BUSHING-FB092-220150 220 225 150
BRONZE BUSHING-FB092-22560 225 230 60
BRONZE BUSHING-FB092-22570 225 230 70
BRONZE BUSHING-FB092-22580 225 230 80
BRONZE BUSHING-FB092-22590 225 230 90
BRONZE BUSHING-FB092-225100 225 230 100
BRONZE BUSHING-FB092-225110 225 230 110
BRONZE BUSHING-FB092-225120 225 230 120
BRONZE BUSHING-FB092-225130 225 230 130
BRONZE BUSHING-FB092-225140 225 230 140
BRONZE BUSHING-FB092-225150 225 230 150
BRONZE BUSHING-FB092-23060 230 235 60
BRONZE BUSHING-FB092-23070 230 235 70
BRONZE BUSHING-FB092-23080 230 235 80
BRONZE BUSHING-FB092-23090 230 235 90
BRONZE BUSHING-FB092-230100 230 235 100
BRONZE BUSHING-FB092-230110 230 235 110
BRONZE BUSHING-FB092-230120 230 235 120
BRONZE BUSHING-FB092-230130 230 235 130
BRONZE BUSHING-FB092-230140 230 235 140
BRONZE BUSHING-FB092-230150 230 235 150
BRONZE BUSHING-FB092-24060 240 245 60
BRONZE BUSHING-FB092-24070 240 245 70
BRONZE BUSHING-FB092-24080 240 245 80
BRONZE BUSHING-FB092-24090 240 245 90
BRONZE BUSHING-FB092-240100 240 245 100
BRONZE BUSHING-FB092-240110 240 245 110
BRONZE BUSHING-FB092-240120 240 245 120
BRONZE BUSHING-FB092-240130 240 245 130
BRONZE BUSHING-FB092-240140 240 245 140
BRONZE BUSHING-FB092-240150 240 245 150
BRONZE BUSHING-FB092-25060 250 255 60
BRONZE BUSHING-FB092-25070 250 255 70
BRONZE BUSHING-FB092-25080 250 255 80
BRONZE BUSHING-FB092-25090 250 255 90
BRONZE BUSHING-FB092-250110 250 255 100
BRONZE BUSHING-FB092-250110 250 255 110
BRONZE BUSHING-FB092-250120 250 255 120
BRONZE BUSHING-FB092-250130 250 255 130
BRONZE BUSHING-FB092-250140 250 255 140
BRONZE BUSHING-FB092-250150 250 255 150
BRONZE BUSHING-FB092-26060 260 265 60
BRONZE BUSHING-FB092-26070 260 265 70
BRONZE BUSHING-FB092-26080 260 265 80
BRONZE BUSHING-FB092-26090 260 265 90
BRONZE BUSHING-FB092-260100 260 265 100
BRONZE BUSHING-FB092-260110 260 265 110
BRONZE BUSHING-FB092-260120 260 265 120
BRONZE BUSHING-FB092-260130 260 265 130
BRONZE BUSHING-FB092-260140 260 265 140
BRONZE BUSHING-FB092-260150 260 265 150
BRONZE BUSHING-FB092-27060 270 275 60
BRONZE BUSHING-FB092-27070 270 275 70
BRONZE BUSHING-FB092-27080 270 275 80
BRONZE BUSHING-FB092-27090 270 275 90
BRONZE BUSHING-FB092-270100 270 275 100
BRONZE BUSHING-FB092-270110 270 275 110
BRONZE BUSHING-FB092-270120 270 275 120
BRONZE BUSHING-FB092-270130 270 275 130
BRONZE BUSHING-FB092-270140 270 275 140
BRONZE BUSHING-FB092-270150 270 275 150
BRONZE BUSHING-FB092-28060 280 285 60
BRONZE BUSHING-FB092-28070 280 285 70
BRONZE BUSHING-FB092-28080 280 285 80
BRONZE BUSHING-FB092-280100 280 285 90
BRONZE BUSHING-FB092-280110 280 285 100
BRONZE BUSHING-FB092-280120 280 285 110
BRONZE BUSHING-FB092-280130 280 285 120
BRONZE BUSHING-FB092-280140 280 285 130
BRONZE BUSHING-FB092-280150 280 285 140
BRONZE BUSHING-FB092-280150 280 285 150
BRONZE BUSHING-FB092-29060 290 295 60
BRONZE BUSHING-FB092-29070 290 295 70
BRONZE BUSHING-FB092-29080 290 295 80
BRONZE BUSHING-FB092-29090 290 295 90
BRONZE BUSHING-FB092-290100 290 295 100
BRONZE BUSHING-FB092-290110 290 295 110
BRONZE BUSHING-FB092-290120 290 295 120
BRONZE BUSHING-FB092-290130 290 295 130
BRONZE BUSHING-FB092-290140 290 295 140
BRONZE BUSHING-FB092-290150 290 295 150
BRONZE BUSHING-FB092-30060 300 305 60
BRONZE BUSHING-FB092-30070 300 305 70
BRONZE BUSHING-FB092-30080 300 305 80
BRONZE BUSHING-FB092-30090 300 305 90
BRONZE BUSHING-FB092-300100 300 305 100
BRONZE BUSHING-FB092-300110 300 305 110
BRONZE BUSHING-FB092-300120 300 305 120



Tolerances

Bushings are manufactured according to DIN 1494/ ISO 3574 with standard sizes for H7 housing tolerances and f7 or h8 shaft tolerances.

Request:
It is used in conditions of increased load, but low speed, for example, on agricultural, construction and engineering vehicles.
It is widely used in hoisting machines, construction machines, automobiles, tractors, trucks, machine tools and some mineral engines.

BUSHING TYPES FOR SALE

Cusn8p bronze bushing fb090 copper bushes groove bushing fb090 brass bushing cusn8 bushing fb090 bearings bearings oil-free bronze bushing self-lubricating bronze bushing oilite bronze bushing, rolled bearings cusn8p graphite bushing high quality sintered brass bearing fb bronze fb090 oilless bushing

Please contact our technical sales for more information.



Technical Detailsapplication



Specific load capacity static(N/mm2)

< 120

Specific load capacity dynamic(N/mm2)

< 40

Sliding speed(m/s)

≤ 2.5

Friction value depending on lubrication(µ)

0.05~0.12

Temperature strain(°C)

- 40~ 250

Max. PV(N/mm² x m/s)

2.8

The percentage of contact area on the ID(%)

> 75















FOLLOW US ON

High temperature resistance C86300 Bronze Bushing & Wear Plate flanged bronze bushings



https://www.viiplus.com

Tags:

plain bearing bush

oilite bronze bushings

bronze flanged sleeve bearings
