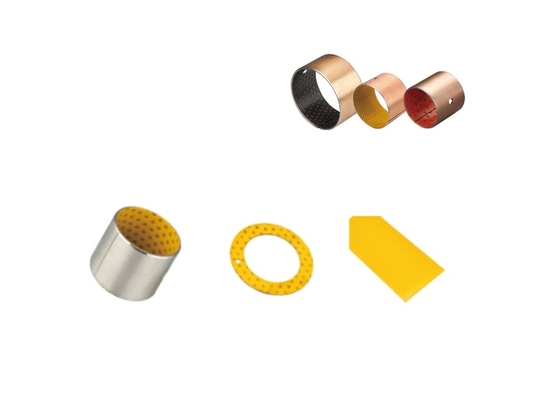

Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM, POM

  • Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM, POM
  • Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM, POM
  • Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM, POM
  • Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM, POM
Place of Origin Self Lubricating Bearings Manufacturers
Brand Name Self-Lubricating Bearings, Prelubricated Bearings
Certification DIN 1494, ISO 3547
Model Number pom high performance self-lubricating bearings
Minimum Order Quantity Pom Layer Sleeve Bushing
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Payment Terms T/T
Supply Ability Pom Layer Sleeve Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Acetal Resin ,Pom Layer Sleeve Bushing POM Yellow
Self-lubricating Sleeve Bushing Type Bushing Flange Thrust Washer
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

sintered self lubricating bushes

,

self lubricating bronze bushings
Leave a Message
Product Description

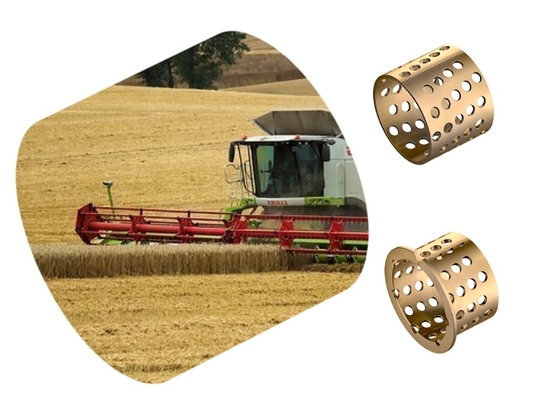

Our self-lubricating plain bearing, specifically designed for combine harvesters, is a robust and reliable solution that offers exceptional performance in demanding agricultural applications. Constructed from POM (polyoxymethylene) material, this bearing exhibits excellent wear resistance, stiffness, and lubrication properties.

POM is a thermoplastic material known for its high mechanical strength and dimensional stability. It is well-suited for bearings that require both durability and self-lubricating capabilities. The self-lubricating design of our bearing reduces friction and heat generation during operation, ensuring smooth and efficient performance even under heavy loads.

We offer this bearing with customized dimensions in millimeters to fit the specific requirements of your combine harvester. Wh you need a standard size or a unique dimension, we can tailor our bearing to meet your needs. This flexibility ensures that our bearing will integrate seamlessly into your machinery, maximizing performance and reliability.

In addition to its superior material properties and customizable dimensions, our self-lubricating plain bearing for combine harvesters is also easy to install and maintain. It requires minimal lubrication, reducing maintenance costs and downtime.

Overall, our POM-based self-lubricating plain bearing is an ideal choice for combine harvesters and other agricultural machinery that require a robust and long-lasting bearing solution. With its excellent performance characteristics and customizable dimensions, it is sure to exceed your expectations.



Header Self Lubricating Plain Bearing For Combine Harvesters Dimention In MM



Bronze bushing for combine harvesters. Dimention in MM.Aftermarket spare parts.tri-layer low maintanence plain bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. Acetalcopolyer (POM) is impregnated into the intersice of this bronze layer after rolling process completed. Lubrication indents are stamped into this layer.POM BUSHES has good physical & mechanical properties, also has certainly chemical properties. This material has good machining performance if required.

Manufacturer: BRONZE BUSHINGS
Country of origin: CHINA

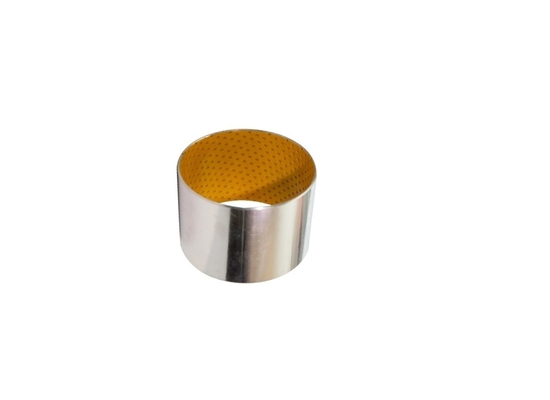

Structure



Self Lubricating Plain Bearing

1. Self-lub. Layer POM 0.3-0.5mm. After rolling process completed, POM are filled in intersice of bronze layer, lubrication indents are stamped, which are full of oil grease, which will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coe. and protect the mating shaft.
2. Porous bronze layer; The layer provides bonded strength of self-lub. Layer.
3. Steel Backing The layer provides load & thermal conductivity
4. Copper / Tin layer.

Destination
Ensuring the optimal level of friction between the elements of the node during its operation.
This spare part is used for replacing worn out or damaged parts during repairs.

Properties
Bronze product in the form of a piece of a hollow cylinder with internal perforation and a slot on the side surface.



Dx bushing size chart



  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07





Bushing Manufacturer



  1. Straight bushings

  2. Flange bushings

  3. Thrust washer

  4. strip

  5. Non-standard products are also avalidable





customizable

Bushing Type

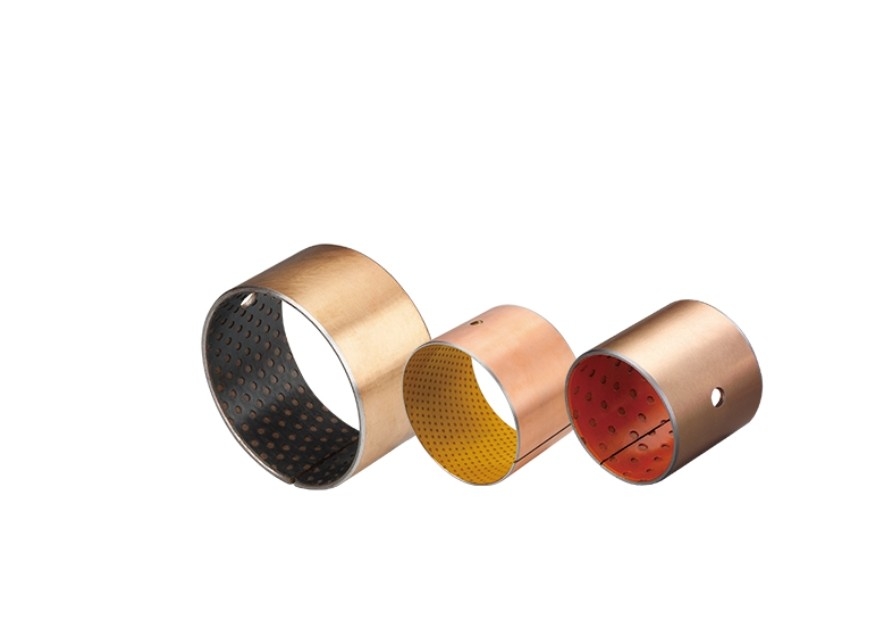

POM SLEEVE Bearings

Processing methods

Cold-extrusion

Surface treatment

Tin plating /Copper plating

Operating temperature

-40~120

Application field

automobile chassis, Forging Machine, Metallurgical machinery, Mining machinery, Water conservancy machinery, Steel rolling industry.etc

Material

Steel base+ Bronze powder+ POM





Application


The product can be used under high load with low speed, rotation, oscillation and can also be applied in an environment without liquid lubricant which frequently switches with the load.
The part can operate without oil and will have a long service life if it gives oil.
The POM layer can be machined during installation, which benefits the coupling.
BM-2 bushing products are now mainly used in metallurgy machinery, mining industry, irrigation machinery, agricultural machinery, etc.



Material
Steel Base+Bronze Powder +POM(Yellow)
Typical Application
the vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.
Max Static Load
140N/mm²
Max Dynamic Load
70N/mm²
Max Line Speed (Grease)
2.5m/s
PV Value Limit (Grease)
2.8N/mm².m/s
Friction Coefficient (Grease)
0.06~0.12
Mating Axis
Hardness >270, Roughness 0.4~1.25
Working Temperature
-40~+120℃
Thermal Conductivity
52W/mk
Coefficient Of Linear Expansion
11×10-6/K

Need Help Contact Our Support Team Now

Self Lubricating Plain Bearing

FOLLOW US ON

High temperature resistance C86300 Bronze Bushing & Wear Plate flanged bronze bushings

https://www.viiplus.com



Tags:

sintered self lubricating bushes

self lubricating bearing

self lubricating bronze bushings
