| Brand Name: | REPLACE BRAND Metal-Polymer Bearings BEARINGS () |
| Model Number: | BUSHING TYPE FLANGED PLAIN SLEEVE |
| MOQ: | NEGOTIABLE |
| Price: | Competitively Priced vs , Provides Lubricating Bush |
| Payment Terms: | TT IN ADVANCE WESTERN UNION |
| Supply Ability: | Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings |
Our stainless steel 316 wrapped bushing, compliant with DIN 1494 and ISO 3547 standards, is a maintenance-free solution designed for exceptional performance in a wide range of applications. Constructed from corrosion-resistant stainless steel 316, this bushing offers superior durability and longevity, even in harsh environments.
The (polytetrafluoroethylene) wrapping enhances the bushing's lubrication properties, reducing friction and wear during operation. This self-lubricating design ensures smooth performance and extended service life, eliminating the need for regular lubrication or maintenance.
Compliant with DIN 1494 and ISO 3547 standards, our bushing meets industry-recognized quality and performance criteria. This ensures that it will integrate seamlessly into your machinery and provide reliable performance in various settings.
Wh you need a bushing for heavy-duty industrial equipment, marine applications, or any other high-performance scenario, our stainless steel 316 wrapped bushing is an ideal choice. Its maintenance-free design reduces downtime and operational costs, making it a cost-effective solution for your business.
In conclusion, our stainless steel 316 wrapped bushing, compliant with DIN 1494 and ISO 3547 standards, offers a maintenance-free, high-performance solution for a wide range of applications. Its superior durability, lubrication properties, and industry-recognized compliance ensure reliable and cost-effective operation for your machinery.
Bushes EGB..-E40, bushes, maintenance-free, with steel backing

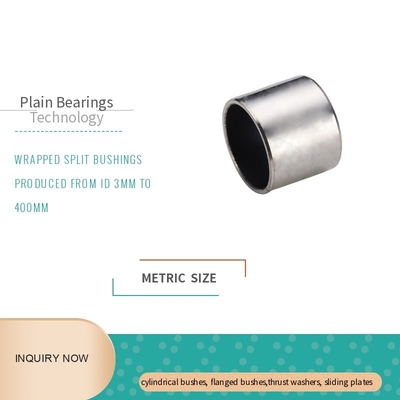

Wrapped split bushings produced from an ID of 3mm to 400mm, wrapped bushing, split joint type,stainless steel 316 or 304 backed bushing bearings/, DIN 1494/ISO 3547, Maintenance-free.
Corrosion-free and maintenance-free material due to stainless steel and . Outstanding sliding and wear performance.
The recommended application conditions are the high load, high temperature and high polluted environment with grease or oil lubrication. It has excellent wear resistance. This material is widely used in the kingpin bushing, piston pump, agricultural machinery. It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
The superior performance of metal polymer plain bushings lies in their unique composite structure:
1.Stainless Steel 316 or 304 backing for high mechanical strength
2.Impregnated anti-friction overlay enriched with and fillers or extruded thermoplastic tape
3.Porous sintered bronze interlayer for high wear resistance
| Product Name | Steel Bushing |
| Max Load Capacity | Static load 250N/mm2 ; Dynamic load 140N/mm2 |
| Max Load Speed | Dry friction 2.5m/s ; Oil lubrication 5.0m/s |
| Max PV Value Limit | Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s |
| Friction Coefficient | Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07 |
| Work Temperature | -195℃~+280℃ |
| Thermal Conductivity | 42w/m k |
| Production Process | Material cutting~Bronze sintering~ sintering~Sizing~Coiling~Surface finish~Packing |
| Application Feature | Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free |
