SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal

SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal

Brand Name: VIIPLUS
Model Number: Bimetal Bushing
MOQ: negotiable
Price: Negotiable
Payment Terms: MoneyGram, Western Union, T/T
Supply Ability: casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Detail Information
Place of Origin:
Bimetal Bearing Manufacturers
Certification:
SAE-797 | SAE-799 | SAE-48 | SAE-783
BiMetal Bushings Material:
Bimetallic Strips & Plates
Application:
Bimetal Bushing Bearings
Bushing Feature:
High Hardness,Split Type
Bronze Layer:
SAE-797 | SAE-799 | SAE-48 | SAE-783
Type:
Bi-Metallic Composite Bearings
Feature:
Maintenance-free ,Tin Bronze Lead
Bearing Bushing Factory Price:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Steel Backed Bronze Bushing, Bimetallic Bushes
Bimetallic Bearing Bushing:
Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing
Highlight:

bimetal bush

,

bimetal bearings

Product Description



Our SAE standard layer bimetallic strips and plates are designed with a split type construction, incorporating lubricated metal for enhanced performance. This unique combination offers superior wear resistance, durability, and operational efficiency, making them ideal for a wide range of industrial applications.

The bimetallic construction features a combination of two or more metals, each chosen for their specific properties. This allows us to create a material that offers the best of both worlds - the strength and rigidity of one metal, combined with the wear resistance and lubricating properties of another.

The split type design allows for easy installation and replacement, reducing downtime and maintenance costs. The lubricated metal layer provides a smooth and friction-free surface, reducing wear and extending the life of the bimetallic strips and plates.

Our SAE standard layer bimetallic strips and plates are precision-manufactured to meet strict quality standards. They are suitable for use in high-temperature, high-pressure, and high-speed applications, making them a reliable choice for a variety of engineering and manufacturing needs.

Wh you're looking to upgrade existing equipment or develop new products, our SAE standard layer bimetallic strips and plates are a great solution. Contact us today to learn more about our products and how they can enhance the performance and reliability of your industrial applications.



Bimetall-Gleitlager,SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal



Bimetal Bearing Bushing Material,Bimetal Strips / Bimetal Plates | SAE-797 | SAE-799 | SAE-48 | SAE-783



SAE-48 bimetal bearings,SAE-799 bimetal bearings,SAE-797 bimetal bearings



This is a bimetal bearing material in which bronze alloy comprise a two layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.



Sintered SAE797 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb10Sn10)
Sintered SAE799 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb24Sn4)
Sintered SAE48 Layer + Steel Backed + Copper Plating / Tin-Plating    (CuPb30)
Sintered SAE783 Layer + Steel Backed+ Copper Plating / Tin-Plating   (AlSn20Cu)



Metal Bushing  (Lubricated Metal)



Alloy grade Name Main chemical composition% Alloy hardness HB Steel layer hardness HB Main use occasion
    cu pb sn zn ni Bi
CuPb10Sn10 JF800 margin 9.0~11.0 9.0~11.0 60~90 90~120 Bushing, side plate, washer
CuPb3Zn6Sn6 JF850 margin 2.0~4.0 5.0~7.0 5.0~7.0 40~80 90~120
CuPb7Sn7Zn3 JF830 margin 6.0~8.0 6.0~8.0 2.0~4.0 60~90 80~130






 Bimetal series materials, also known as bimetallic materials or steel backed strips, are made of low carbon steel or steel coil as the base material, and the surface is sintered with bronze alloy steel and bronze alloy products. Different bronze alloy materials are suitable for different working conditions. The surface copper alloy grades can be divided into high lead series, lead series and lead-free series.

Our self-lubricating bearing products have been supplied in chassis walking mechanism, body parts, hydraulic components and other parts.Including bimetal boundary lubricated rolling bearing our self-lubricated bearing products have been supplied in chassis walking mechanism, body parts, hydraulic components and other components.



VIIPLUS Provides the high quality for all the world's industrial self lubricating products of eternity to the global industry to provide high-quality self lubricating products of eternity to the global industry to provide high-quality self lubricating products of eternity to the global industry to provide high-quality self lubricating products of eternity to the global industry to provide high-quality self lubricating products of eternity provides the high quality for all the world's industrial self lubricating products

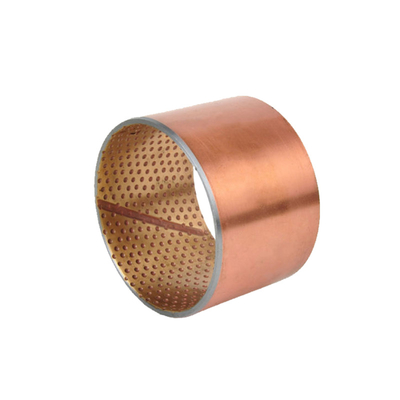

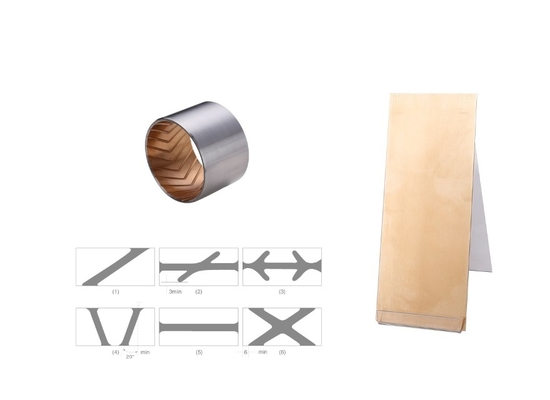

SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal 0                  SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal 1                 SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal 2

Nominal thickness

he Norminal Thiickness bore is not machined for thickness tolerances
Tolerances of Series B (non-machinable) inner bore machined thickness Tolerances
Tolerances of Series C (non-machinable)

1.0 0.025 + 0.25 + 0.15
1.5 0.030 + 0.25 + 0.15
2.0 0.035 + 0.25 + 0.15
2.5 0.040 + 0.30 + 0.15
3.0 0.045 + 0.30 + 0.15
3.5 0.050 + 0.30 + 0.15





Application


Construction machinery: chassis walking mechanism supporting heavy wheel shaft sleeve, towing wheel shaft sleeve, tensioning wheel shaft sleeve;
Automobile industry: balance shaft bushing, steel plate pin bushing, steering shaft bushing, connecting rod bushing, valve rocker arm bushing, camshaft bushing, differential bushing, gearbox bushing, internal combustion engine spindle bushing, thrust gasket;
And plunger pump side piece, gear pump side piece and so on.



Marketing network


Marketing network refers to the network formed by enterprises and other enterprises with which they have established strong business relations of mutual trust.In the marketing network, enterprises can find strategic partners and associate with them to obtain a wider and more effective geographical possession.Such networks go beyond the mere concept of a "marketing channel".With the aid of the network, the enterprise may be on the market with new products at the same time around the world, and to reduce due to the time lag of products into the market by aggressive imitator take market risk, marketing management is also increasingly by the pursuit of individual trading profit maximization in the past, to pursue the optimal mutually beneficial relationship with each other.



Choose your buckle form

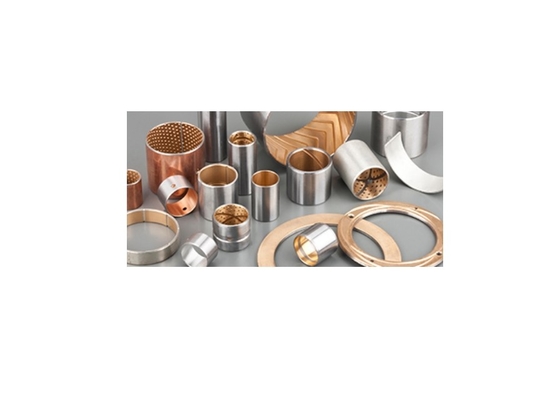

SAE Standard Layer Bimetallic Strips & Plates Split Type Lubricated Metal 3
