China Bronze Gleitlager manufacturer

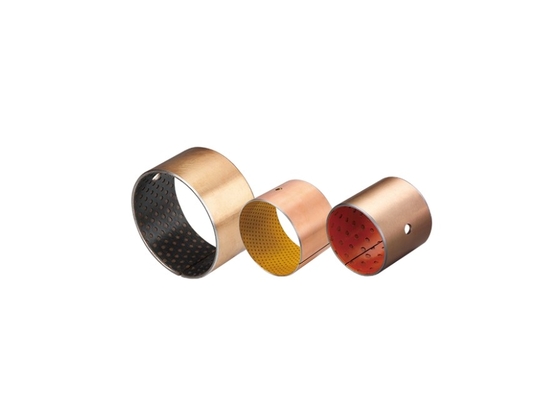

POM Bushes Self Lubricating Plain Bearing Split Type Standard Size

Product Details:
Place of Origin: Self Lubricating Bearings Manufacturers
Brand Name: Self-Lubricating Bearings, Prelubricated Bearings
Certification: DIN 1494, ISO 3547
Model Number: pom high performance self-lubricating bearings
Payment & Shipping Terms:
Minimum Order Quantity: Pom Layer Sleeve Bushing
Price: Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details: EXPORT CARTON WOOD PALLET WOODEN CASE
Payment Terms: T/T
Supply Ability: Pom Layer Sleeve Bushing
Contact Now

Detail Information

Material: Acetal Resin ,Pom Layer Sleeve Bushing POM: Yellow
Self-lubricating: Sleeve Bushing Type: Bushing Flange Thrust Washer

Product Description

Self Lubricating Plain Bearing



VIIPLUS bearings utilize special polymer liners for self-lubrication and improved wear properties. Each material has a specific wear rate dependent on the speed, load, temperature, lubrication and hardware of the application. The metal backingsupports liner materials made to withstand high loads, speeds and adverse environments. The advantage of the VIIPLIUS design is that even if wear-thru occurs in the liner,

the supporting interlayer is a self-lubricating material as well.



sintered porous bronze on metal substrate with POM calendared into the dynamic wear surface.Requires boundary lubrication for optimum performance . High PV rating,Low speeds. Commonly used in mining equipment, rolling mills, skilifts and other applications where bronze bushings are utilized.



International supply of technical industrial goods, in particular wrapped sleeves (self lubricating or for lubrication), personalized POM bushes,

POM bushings Suitable for rotational and vibrational movements, less maintenance requirements due to longer relubrication intervals, shorter wear,lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.Pom Layer Sleeve Bushing, Ring maker, Mfg Bushes, The Pom Layer Sleev Bushing is based on a composite material with 3 firmly bonded layers: steel as a base, spherical sintered bronze powder as an intermediate layer and modified POM as a coating layer. It is well suited to low speeds, difficult operating conditions and normal temperatures, it saves costs and extends its service life with the normal replacement of all copper rings.

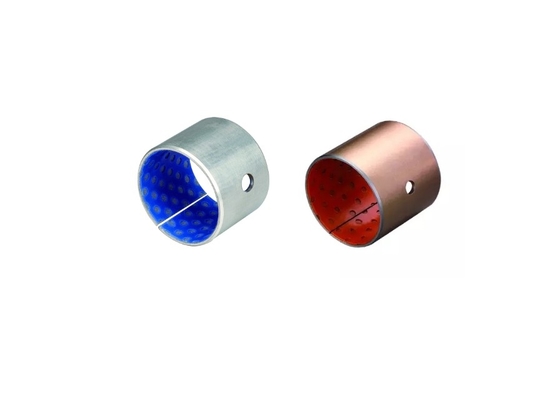

plain bearing pom bushings split type



Structure

1. The mixture of modified POM and lead is 0.3-0.5mm, which has high wear resistance and low friction coefficient even in the case of instantaneous oil shortage.Bearing surface is arranged regularly with spiral Angle of oil storage pit, assembly, must be covered with grease.
2. Copper powder layer 0.2mm ~0.3mm, with good bearing capacity and wear resistance, good thermal conductivity can timely transfer the heat generated in the process of bearing operation.The composite material can infiltrate into the gap of the copper powder ball and improve the bonding strength.
3. Low carbon steel 0.4~2.2mm, improve bearing capacity and heat transfer.
4. Copper/tin plating, copper plating 0.008mm, tin plating 0.005mm, so that the bearing has a good corrosion resistance.

Bushing Manufacturer

  1. Straight bushings

  2. Flange bushings

  3. Thrust washer

  4. strip

  5. Non-standard products are also avalidable

D

SHAFTH7
T
h
f1
f2
L0-0.40
MIN
MAX
10
15
20
25
30
35
40
45
50
60
10
12
10-0.022
12+0.018
0.955
0.980
4
0.6
0.3
1010
1015
1020

12
14
12-0.027
14+0.018
1210
1215
1220

14
16
14-0.027
16+0.018

1415
1420

15
17
15-0.027
17+0.018

1515
1520
1525

16
18
16-0.027
18+0.018

1615
1620
1625

18
20
18-0.027
20+0.021
1815
1820
1825

20
23
20-0.033
23+0.021
1.445
1.475
0.6
0.4

2015
2020
2025
2030

22
25
22-0.033
25+0.021

2215

2225

25
28
25-0.033
28+0.021
6

2515
2520
2525
2530

28
32
28-0.033
32+0.025
1.935
1.970
1.2
0.4

2820

2830

30
34
30-0.033
34+0.025

3020
3025
3030
3035
3040

35
39
35-0.039
39+0.025

3520

3530
3535
3540

40
44
40-0.039
44+0.025
8

4020

4030
4035
4040

4050

45
50
45-0.039
50+0.025
2.415
2.460
1.8
0.6

4520

4530

4540
4545
4550

50
55
50-0.046
55+0.030

5030

5040

5050
5060
55
60
55-0.046
60+0.030

5530

5540

5550
5560
60
65
60-0.046
65+0.030

6030

6040

6050
6060
Unit:mm
d
D
SHAFT
HOUSING H7
T
h
f1
f2
L0-0.40
MIN
MAX
40
50
60
80
90
95
100
110
120
65 70
65-0.046
70+0.030
2.415
2.460
8
1.8
0.6
6540   6560
70 75
70-0.046
75+0.030 7040 7050   7080
75 80 75-0.046 80+0.030 7540   7560 7580
80 85 80-0.046 85+0.035
2.385
2.450
9.5
1.8
1.8
8040   8060 8080
85 90 85-0.054 90+0.035 8540   8560 8580
90 95 90-0.054 95+0.035 9040   9060 9080 9090
100 105 100-0.054 105+0.035   10050   10080   10095
105 110 105-0.054 110+0.035     10560 10580   10595   105110
110 115 110-0.054 115+0.035     11060 11080       110110
120 125 120-0.054 125+0.035
1.8
      12060 12080       120110
125 130 125-0.063 130+0.040     12560
130 135 130-0.063 135+0.040   13050 13060 13080     130100
140 145 140-0.063 145+0.040   14050 14060 14080     140100
150 155 150-0.063 155+0.040   15050 15060 15080     150100
160 165 160-0.063 165+0.040 9.5   16050 16060 16080     160100
170 175 170-0.063 175+0.040   17050   17080     170100
180 185 180-0.063
185+0.040
  18050 18060 18080     180100
190 195 190-0.072 195+0.046   19050 19060 19080     190100   190120
200 205 200-0.072 205+0.046   20050 20060 20080     200100   200120
220 225 220-0.072 225+0.046 9.5   22050 22060 22080     220100   220120
240 245 240-0.072 245+0.046   24050 24060 24080     240100   240120
250 255 250-0.081 255+0.052   25050 25060 25080     250100   250120
260 265 260-0.081 265+0.052   26050 26060 26080     260100   260120
280 285 280-0.081 285+0.052   28050 28060 28080     280100   280120
300 305 300-0.081 305+0.052   30050 30060 30080     300100   300120





Application

It is especially suitable for rotating and swaying motion under heavy load and low speed, as well as opening and closing under load, which is not easy to form fluid lubrication.Under the condition of boundary lubrication, it can be used for a long time without refueling and maintenance.The plastic layer on its surface can leave a certain amount of margin in the shaft sleeve forming process, and can be processed by itself after pressing into the hole, so as to achieve a better assembly size.
At present, it is mainly used in metallurgical machinery, mining machinery, water conservancy machinery, automobile chassis, construction machinery, agricultural machinery, steel rolling machinery and so on.
