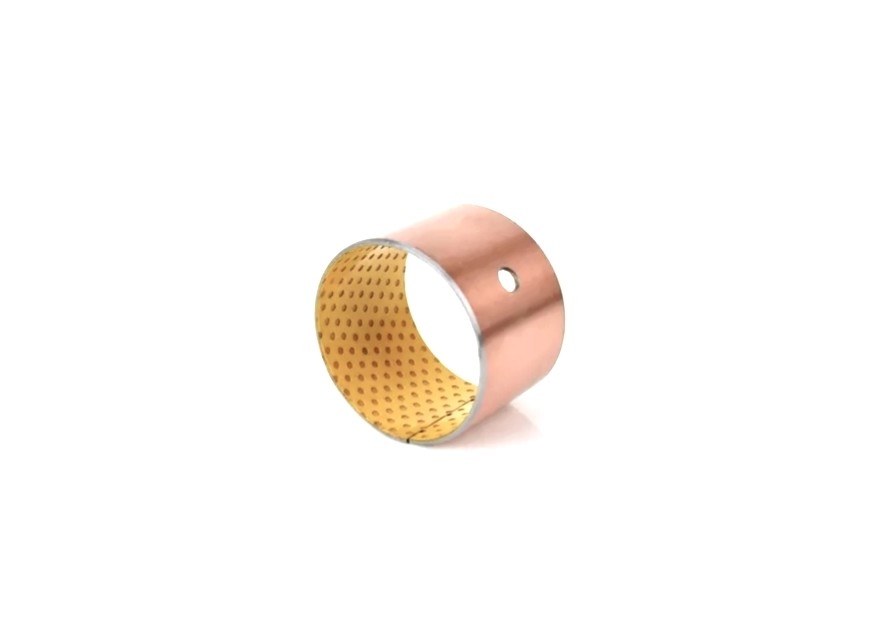

POM Cylindrical Bushing

  • POM Cylindrical Bushing
  • POM Cylindrical Bushing
  • POM Cylindrical Bushing
Place of Origin Self Lubricating Bearings Manufacturers
Brand Name Self-Lubricating Bearings, Prelubricated Bearings
Certification DIN 1494, ISO 3547
Model Number pom high performance self-lubricating bearings
Minimum Order Quantity Pom Layer Sleeve Bushing
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details EXPORT CARTON WOOD PALLET WOODEN CASE
Payment Terms T/T
Supply Ability Pom Layer Sleeve Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Acetal Resin ,Pom Layer Sleeve Bushing POM Yellow
Self-lubricating Sleeve Bushing Type Bushing Flange Thrust Washer
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing Characteristic Втулки скольжения (биметаллические подшипники скольжения)
Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running. Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

self lubricating bearing

,

self lubricating bronze bushings
Leave a Message
Product Description

The POM cylindrical bushing is a precision-manufactured component designed for use in a variety of mechanical systems. POM, or Polyoxymethylene, is a thermoplastic material known for its excellent mechanical properties, such as high stiffness, low friction, and good wear resistance.

The cylindrical shape of this bushing allows for easy installation and integration into existing machinery. Its smooth surface ensures a low-friction interface with mating components, reducing wear and enhancing operational efficiency.

The POM material's inherent durability and stability make this bushing suitable for use in high-load and high-speed applications. It can withstand significant forces and maintain its performance over extended periods of time.

Furthermore, the POM cylindrical bushing is resistant to chemicals and solvents, ensuring reliable performance even in harsh environments. This bushing is also easy to clean and maintain, reducing the overall maintenance costs associated with the machinery.

In conclusion, the POM cylindrical bushing is an ideal choice for applications that require a durable, low-friction, and easy-to-install bushing solution. Its excellent mechanical properties and chemical resistance make it suitable for a wide range of industrial and mechanical applications.

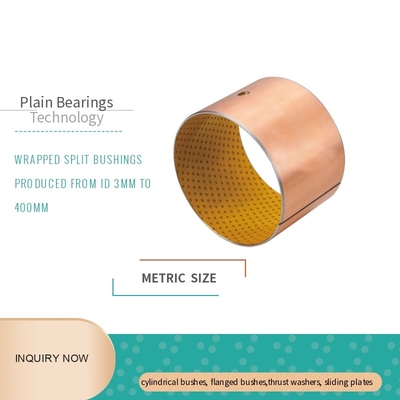

Cylindrical bushing,Wrapped composite sliding bearing, tin-plated steel/POM, DIN 1494/ISO 3547, Maintenance-free

Produced from an ID of 3mm to 400mm

Metric Sizes – Pre-Lubricating Bearings



Pom Layer Sleeve Bushing, Bushing Manufacturer, Bushes Mfg, The Pom Layer Sleeve Bushing is based on a composite material with 3 firmly bonded layers: steel as a base, spherical sintered bronze powder as an intermediate layer, and modified POM as a lining layer. It is well suited for low speeds, harsh operating conditions, and normal temperatures, it saves costs and extends its service life with the normal replacement of all copper bushes. POM bushings Suitable for rotational and vibrational movements, fewer maintenance requirements due to longer relubrication intervals, shorter wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviors, good resistance to shock loads.



Structure



POM 0.03-0.50mm, anti abrasion, low friction coefficient even no oil
given. The inside of the bearing are full of indentions, which need to be
filled with grease before installing.

Bronze powder layer, 0.2-0.35mm, high load capacity, and anti-abrasion,
good thermal conductivity, which also further strengthen the combination
of the POM layer and steel plate.

Low carbon steel, which improved, load capacity&thermal conductivity.

Copper/tin plating layer, 0.002mm, anti-corrosion.



No Lead No Oil Self Lubricating Bushing POM Polymer Plain Bearings RoHS Certification Bushes



Dx bushing size chart

Dx bushing size chart
  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07



Bushing Manufacturer

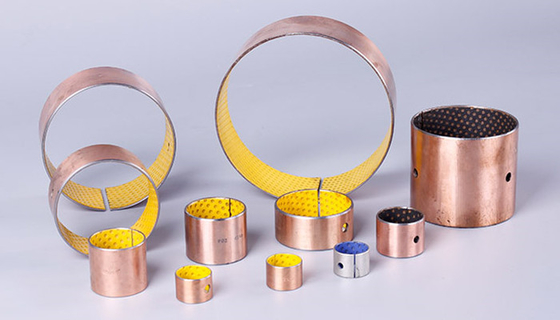

  1. Straight bushings

  2. Flange bushings

  3. Thrust washer

  4. strip

  5. Non-standard products are also avalidable



customizable

Bushing Type

POM SLEEVE Bearings

Processing methods

Cold-extrusion

Surface treatment

Tin plating /Copper plating

Operating temperature

-40~120

Application field

automobile chassis, Forging Machine, Metallurgical machinery, Mining machinery, Water conservancy machinery, Steel rolling industry.etc

Material

Steel base+ Bronze powder+ POM



Application


The product can be used under high load with low speed, rotation, oscillation and can also be applied in an environment without liquid lubricant which frequently switches with the load.
The part can operate without oil and will have a long service life if it gives oil.
The POM layer can be machined during installation, which benefits the coupling.
BM-2 bushing products are now mainly used in metallurgy machinery, mining industry, irrigation machinery, agricultural machinery, etc.

sliding bushings













































Need Help Contact Our Support Team Now



FOLLOW US ON





https://www.viiplus.com



Tags:

sintered self lubricating bushes

self lubricating bearing

self lubricating bronze bushings
