POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance

POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance
POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance

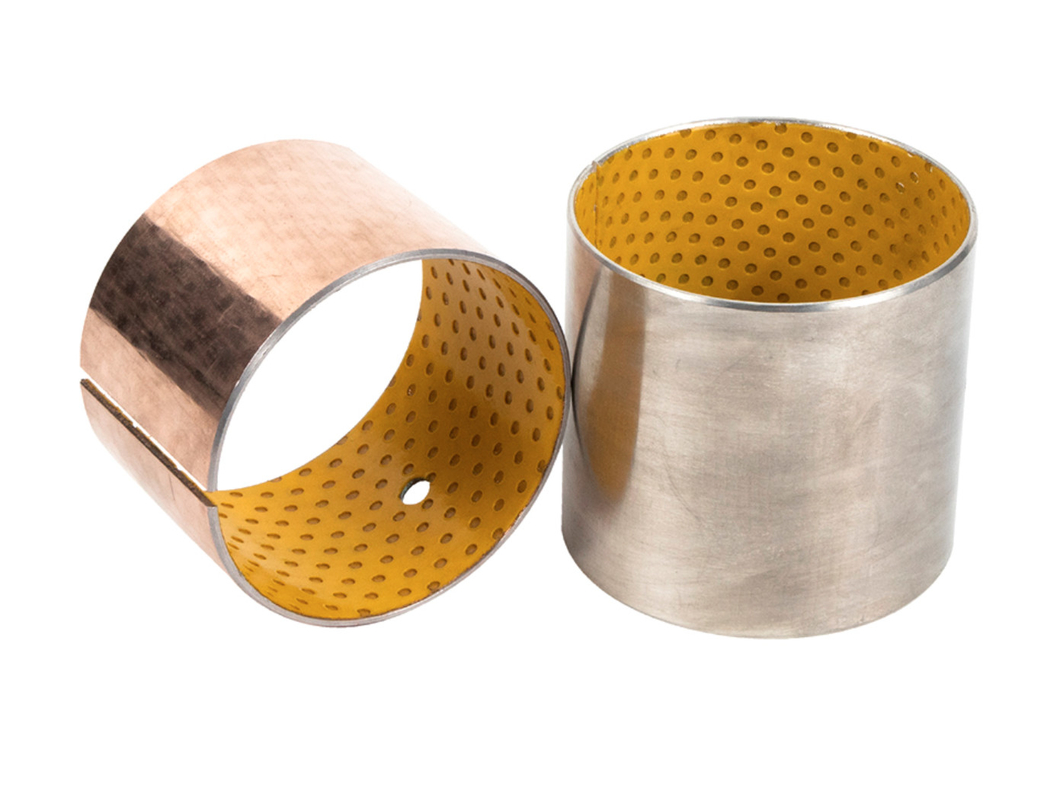

Large Image :  POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance

Product Details:
Place of Origin: Self Lubricating Bearings Manufacturers
Brand Name: China Plain-Bearing
Certification: DIN 1494/ISO 3547
Model Number: Wrapped composite sliding bearing
Payment & Shipping Terms:
Minimum Order Quantity: 500 Piece/Pieces
Price: flat strip material inch sizes Manufacturers,Factory Price
Packaging Details: Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time: 15~20 Days
Payment Terms: TT IN ADVANCE
Supply Ability: 1000000 Piece/Pieces per Month Plain-Bearing Bushing

POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance

Description
Features: Lubricating,Wear,Dry,Low Resistance,Maintenance Free Meterial: Low-Carbon Steel + Porous Bronze + Yellow POM Strips
Finishing Plating: Tin Plated, Brass Plated Type: ,Wrapped Bushes, Thrust Washer,dry Bearing,Plate, Strip, Flange
Lubricating: PTFE, Oilless, POM, Grease Samples: Charged Or Free Samples, Free Of Standard Size Slide Bushing, Small Order Acceptable, Apply To Seller, Charged Of Non-standard
Application: Vehicle Chassis, Forming Machine Tools, Metallurgical Machinery, Mining Machinery, Hydraulic Industry And Rolling Steel Industry, Etc. Because Of Without Lead, The Product Is Accord With Environmental Requirement. Stock Size: Standard Size,Customized,Available As Per Drawing
High Light:

self lubricating bearing

,

self lubricating bronze bushings



POM Sleeve Self Lubricating Plain Bearing Bushing ISO 3547 Low Resistance



Self Lubricating POM Sleeve Bushing is made of high quality low-carbon steel with sintering porous bronze as its interlayer, and the compound of POM as its surface. And has good load capacity and wear-resistant. It's applied to vehicle chassis, forming machine tools, metallurgical machinery, mining machinery, hydraulic industry and rolling steel industry, etc. Because of without lead, the product is accord with environmental requirement.



pom sleeve bushings

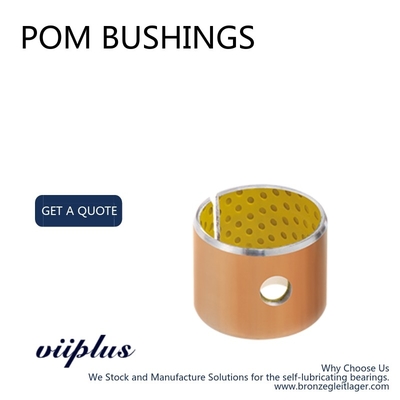

Self Lubricating POM Sleeve Bushing size made to order



Type Spec Type Spec
POM BUSHINGS 805 10×8×5 POM BUSHINGS 1615 18×16×15
POM BUSHINGS 806 10×8×6 POM BUSHINGS 1618 18×16×18
POM BUSHINGS 808 10×8×8 POM BUSHINGS 1620 18×16×20
POM BUSHINGS 810 10×8×10 POM BUSHINGS 1625 18×16×25
POM BUSHINGS 812 10×8×12 POM BUSHINGS 1708 19×17×8
POM BUSHINGS 815 10×8×15 POM BUSHINGS 1710 19×17×10
POM BUSHINGS 820 10×8×20 POM BUSHINGS 1712 19×17×12
POM BUSHINGS 908 11×9×8 POM BUSHINGS 1715 19×17×15
POM BUSHINGS 909 11×9×9 POM BUSHINGS 1718 19×17×18
POM BUSHINGS 910 11×9×10 POM BUSHINGS 1720 19×17×20
POM BUSHINGS 1005 12×10×5 POM BUSHINGS 1725 19×17×25
POM BUSHINGS 1006 12×10×6 POM BUSHINGS 1808 20×18×8
POM BUSHINGS 1008 12×10×8 POM BUSHINGS 1810 20×18×10
POM BUSHINGS 1009 12×10×9 POM BUSHINGS 1812 20×18×12
POM BUSHINGS 1010 12×10×10 POM BUSHINGS 1815 20×18×15
POM BUSHINGS 1012 12×10×12 POM BUSHINGS 1820 20×18×20
POM BUSHINGS 1015 12×10×15 POM BUSHINGS 1825 20×18×25
POM BUSHINGS 1020 12×10×20 POM BUSHINGS 1830 20×18×30





Technical Data:



Max.Load Static 140 N/mm2
Dynamic 70 N/mm2
Max line speed V(m/s) Grease lubrication 2.5 m/s
PV value limit (N/mm2.m/s) 2.8 N/mm2.m/s
Operating Temperature -60°C~+120°C
Friction Coeff. 0.06~0.12μ
Hardness (HB) > 270HB
Roughness(Ra) 0.4~1.25
Coeff. Of linear expansion 11x10-6/K

Characteristics:



  1. Lead-Free Boundary Bush Self Lubricating DX Bushing POM Coated Plain Bearing for grease or oil lubricated applications.

  2. Standard parts contain grease indents in the sliding layer, plain sliding layer available by request.

  3. Optimum performance under relatively high loads and low speeds.

  4. Suitable for linear, oscillating and rotating movements.

  5. Wide range of parts available from stock.
