Lead-Free Bimetal Bearing Bushes CuSn6.5 with Flange and Sleeve are a crucial component in automobile engines, designed to provide a smooth and durable interface between rotating shafts and stationary parts.
The bimetallic construction of these bushings combines the benefits of two different metals, typically copper and tin alloys. The CuSn6.5 material, specifically, is a tin-based bronze alloy that offers excellent corrosion resistance and mechanical properties. The addition of tin enhances the alloy's machinability and wear resistance, making it suitable for high-friction applications like engine bearings.
The flanged design of these bushings provides added stability and support, ensuring they remain securely in place during engine operation. The sleeve, which surrounds the bushing and provides additional structural integrity, is also crucial in maintaining the bushing's position and preventing any misalignment.
The lead-free nature of these bushings is an important environmental consideration, as it helps reduce the use of harmful materials in automobile manufacturing. This not only benefits the environment but also ensures compliance with strict environmental regulations.
Overall, Lead-Free Bimetal Bearing Bushes CuSn6.5 with Flange and Sleeve are a reliable and durable solution for automobile engines, ensuring smooth operation and extended service life.
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.

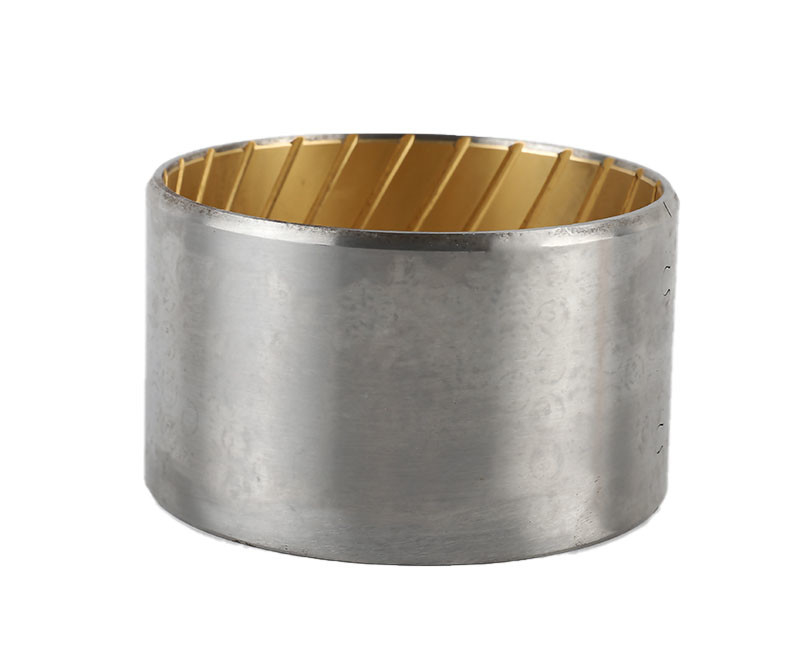

We Manufacture and Design lead free Bimetallic Bearing.Bimetallic bearing bimetallic bearing is one of the bearing lubrication system, the product is high quality low carbon steel back as substrate, the bronze alloy on the surface, through several high temperature sintering and density and rolled copper and steel bimetallic strip coiling, suitable for medium and high impact load under bush and thrust washer and so on many kinds of USES.
Steel backing can be copper plated
Steel+CuSn6.5P0.1
| Maximum dynamic load | 100P N/mm² | Maximum temperature °C | Grease lubrication | 150°C | |
| Maximum linear velocity | Grease lubrication | —— | Fluid lubrication | 250°C | |
| High PV value | —— | Match the diameter of axle | Hardness HRC | ≥270 | |
| Coefficient of friction | —— | Roughness Ra | 0.16~0.63 | ||
| Maximum linear velocity | Fluid lubrication | 15 | Alloy layer hardness | 30~45 | |
| High PV value | 8 | Coefficient of thermal conductivity | 60W/mk | ||
| Coefficient of friction | 0.04~0.12 | Linear expansion coefficient (axial) | 19×10-6/K | ||
Norminal Thiickness |
Tolerances of Series B (non-machinable) |
Tolerances of Series C (non-machinable) |
| 1.0 | -0.025 | +0.25 +0.15 |
| 2.0 | -0.030 | +0.25 +0.15 |
| 2.5 | -0.035 | +0.25 +0.15 |
| 3.0 | -0.040 | +0.30 +0.15 |
| 3.5 | -0.045 | +0.30 +0.15 |
| 3.5 | -0.050 | +0.30 +0.15 |
lead-free bimetallic bearings is a kind of environmentally friendly bimetallic bearings, it is a low carbon steel plate as the substrate, the surface of sintered CuSn6.5P0.1 material steel copper alloy products.
products with high fatigue strength and bearing capacity, good sliding performance, in many occasions, can replace the lead double metal bearing or copper sleeve.Bimetallic bearing steel material
Because the matrix is stable to low carbon steel material, so the outer diameter of the shaft sleeve processing accuracy has been guaranteed, and after the product into the hole does not need screw fixation, relying on interference fit can prevent the phenomenon of the outer circle.The change of chemical composition of the inner surface alloy layer can meet the requirements of different bearing pressure, different operating temperature and different sliding speed. The oil groove and hole with different structure can meet the requirements of different refueling methods and prevent the phenomenon of shaft biting when the friction surface is designed in production.
The product has the advantages of good abrasion resistance.It is especially suitable for medium speed, low speed and high load.By means of special technology, various oil grooves, holes and holes can be made on the friction surface, so as to adapt to different lubrication conditions.Products have been widely used in automobile engine, chassis, motorcycle clutch, gear pump wipe plate and lifting equipment and other fields.
