Strips & Plates Bimetal Bearing Bushes , Steel backed bronze, china supplier, CuPb10Sn10
| Place of Origin | Bimetal Bearing Manufacturers |
|---|---|
| Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
| Certification | Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
| Model Number | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
| Minimum Order Quantity | negotiable |
| Price | Negotiable |
| Packaging Details | export & import bimetal bushings International carton standard |
| Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
| Payment Terms | T/T |
| Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bimetal Bushings | CUPB10SN10 CUPB24SN4 CUPB6SN6ZN3 CUSN10 CUSN6.5P ALSN20CU | Type | Strips & Plate |
|---|---|---|---|
| Material | CuPb10Sn10 | Size | Customized Accepted |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | bimetal bush,bimetal bearings |
||
Product Description

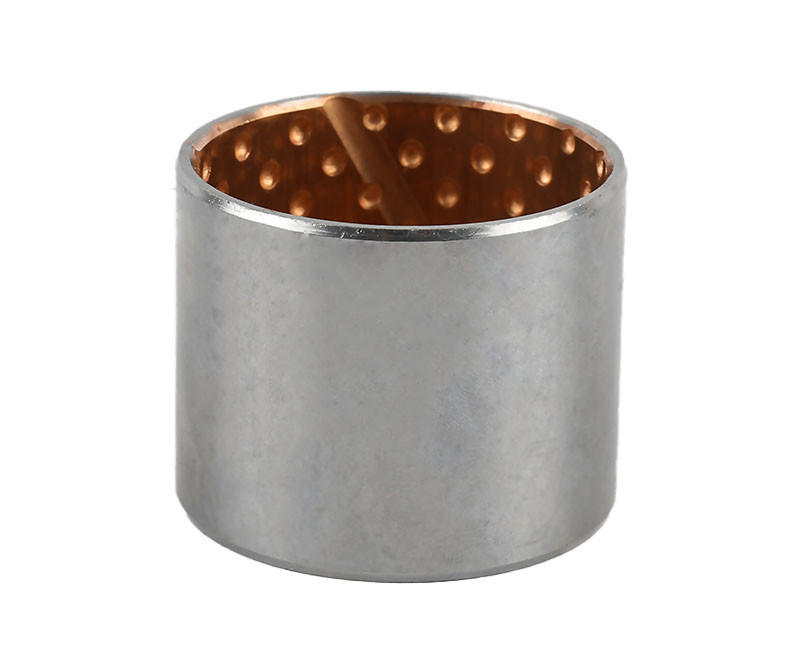

We are a leading supplier of strips and plates of bimetal bearing bushes made from steel-backed bronze material, specifically CuPb10Sn10 alloy. This unique combination of steel and bronze offers exceptional properties for various industrial applications.
The steel backing provides superior strength and rigidity, while the CuPb10Sn10 bronze lining ensures excellent wear resistance, corrosion resistance, and self-lubricating properties. This combination makes our bimetal bearing bushes highly suitable for demanding applications that require high durability and reliability.
As a trusted China supplier, we are committed to providing high-quality bimetal bearing bushes that meet the strict standards of our customers. We use advanced manufacturing techniques and rigorous quality control procedures to ensure the consistent performance and durability of our products.
Wh you need strips or plates of bimetal bearing bushes, we have a wide range of sizes and specifications available to meet your specific requirements. Our team of experts is always available to provide technical support and advice to help you choose the right product for your application.
Contact us today to learn more about our steel-backed bronze bimetal bearing bushes and how they can improve the performance of your equipment. We look forward to serving your needs and building a long-term partnership with you.
Balance Shaft Bushing, Bimetal Knuckle Bushing
Types for Bi-Metallic Bushing's Grooves and Indents,Lock Types for Bi-Metallic Bushings MADE IN CHINA.Copper-based Alloys
Steel backed bronze sintered Bi Metal bushings.
Composition Analysis of Bronze Alloy SAE797,SAE799, SAE48, SAE783,Bronze Alloys Available CUPB10SN10 CUPB24SN4 CUPB6SN6ZN3 CUSN10 CUSN6.5P ALSN20CU Bimetallic Strips & Plates
Chemical Composition Material Alloy composition International standard Alloy hardness CuPb10Sn10 JIS‐LBC3/SAE‐797 HB70‐100 CuPb24Sn4 JIS‐LBC6/SAE‐799 HB45‐70 CuPb30 JIS‐KJ3/SAE‐48 HB30‐45 AlSn20Cu JIS‐AJL/SAE‐783 HB30‐40
Bimetal Strips / Bimetal Plates | SAE-797 | SAE-799 | SAE-48 | SAE-783 | BIMETAL BUSHING SUPPLIER
Sintered SAE797 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE799 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE48 Layer + Steel Backing + Copper Plating / Tin-Plating
Sintered SAE783 Layer + Steel Backing + Copper Plating / Tin-Plating
| Composition analysis of alloy | ||||||
| Chemicals | BIMETAL BUSHINGS | |||||
| (Inner sintered layer) | SAE-797 | SAE-799 | DIN17670 | BS PB1 | CuSn6 (2.1020) | SAE783 |
| CuPb10Sn10 | CuPb24Sn4 | CuPb6Sn6Zn3 | CuSn10 | CuSn6.5P | AlSn20Cu | |
| Cu | Balance | Balance | Balance | Balance | Balance | 0.7~1.3 |
| Pb | 9.0~11.0 | 21.0~27.0 | 2.0~4.0 | 0.1 | 0.1 | - |
| Sn | 9.0~11.0 | 3.0~4.5 | 5.0~7.0 | 9.0~10.0 | 6.0~6.8 | 17.5~22.5 |
| Zn | 0.5 | 0.5 | 5.0~7.0 | 0.3 | 0.3 | - |
| P | 0.1 | 0.1 | 0.1 | 0.1 | 0.1~0.3 | - |
| Fe | 0.5 | 0.7 | 0.6 | 0.5 | 0.6 | 0.7 |
| Ni | 0.5 | 0.3 | 0.3 | 0.5 | 0.5 | 0.1 |
| Al | - | - | - | - | - | Balance |
| Other | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Alloy layer material: CuPb10Sn10
Maximum applicable temperature: 260℃
Friction coefficient: ≤0.12
Alloy layer hardness :(60~90)HB
Alloy layer material: CuPb24Sn4
Maximum applicable temperature: 200℃
Friction coefficient: ≤0.10
Alloy layer hardness :(45~70)HB
Alloy layer material: cusn 6.5p0.1
Maximum applicable temperature: 260℃
Friction coefficient: ≤0.13
Alloy layer hardness :(60~90)HB
Matrix material: CuSn10P10 + graphite
Hardness: HB80-110
Temperature range: -100° c-260 °C
Friction coefficient: ≤0.12
|
OE code
|
Customized
|
Item name
|
Copper Bush, Bimetal Bush
|
|
Car make
|
Customized
|
Unit price
|
Please contact us
|
|
MOQ Quantity
|
500 pieces
|
Certification
|
IATF 16949:2016
|
|
Packing details
|
Neutral package
|
Warranty
|
1 years
|
|
Payment terms
|
TT 30% as deposit
|
Delivery time
|
According to production
|
