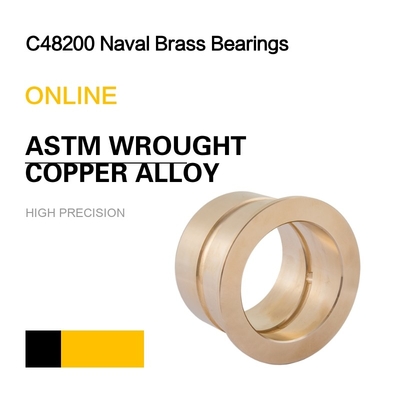

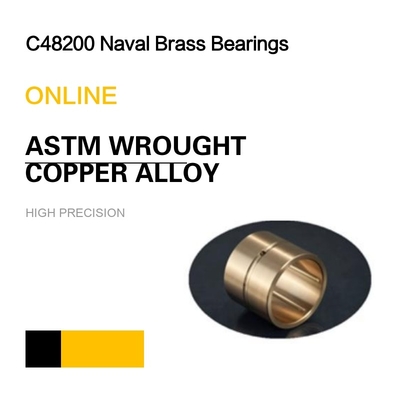

C48200 Naval Brass Bearings | ASTM Wrought Copper Alloy Bushing & Plate

C48200 Naval Brass Bearings | ASTM Wrought Copper Alloy Bushing & Plate

Brand Name: VIIPLUS
Model Number: ASTM Wrought Copper Alloy bearings
MOQ: Standard Size Bushing No Minimum Order Quantity
Price: Bushings High Quality Price Ratio B2B
Payment Terms: T/T
Supply Ability: bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Detail Information
Place of Origin:
gleitlagerbuchsen china
Certification:
ISO 9001
Material:
C48200 Naval Brass
Alloy:
ASTM Wrought Copper Alloy
Lubricating:
High Purity Graphite, Addictive
Feature:
High Tensile, Oil Free,OEM Production
Type:
Brass
Size:
Custom Size
Get A Better Quote:
Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer:
Https://www.viiplus.com/
High Light::
Slit Oilless Bronze Bushing, Anti Fatigue Oilless Bronze Bushing, Maintenance Free Oilless Bronze Bushing
Gleitalger:
A Plain Bearing, Or More Commonly Sliding Contact Bearing And Slide Bearing, Is The Simplest Type Of Bearing, Comprising Just A Bearing Surface And No Rolling Elements. Therefore, The Journal Slides Over The Bearing Surface. The Simplest Example Of A Plain
Bush Bearings Manufacturers Suppliers Exporters:
Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Packaging Details:
EXPORT CARTON WOOD PALLET WOODEN CASE
Supply Ability:
bronze sleeve bushings, China, manufacturers, suppliers, factory, wholesale, Metallic Self Lubricating Bushings, Cast Iron Bearing, Sleeve Bushing, POM Bearing, Cast Iron Plain Bearing, Lubrication Bronze Bushing
Highlight:

bronze plain bearing

,

graphite plugged bronze bushings

Product Description

C48200 naval brass bearings, also known as ASTM wrought copper alloy bushings and plates, are precision-engineered components designed for use in marine and other demanding environments. This alloy, composed primarily of copper, zinc, and tin, offers excellent corrosion resistance, mechanical properties, and wear resistance.

The C48200 naval brass alloy is specifically formulated for use in applications where high strength, ductility, and corrosion resistance are crucial. The addition of tin further enhances the alloy's corrosion resistance, making it ideal for marine environments where exposure to saltwater and other corrosive elements is common.

ASTM wrought copper alloy bushings and plates made from C48200 naval brass are precision-machined to ensure dimensional accuracy and consistent performance. These components are commonly used as bearings in rotating machinery, pumps, valves, and other equipment where smooth and reliable operation is essential.

The corrosion resistance of C48200 naval brass makes it an excellent choice for applications where exposure to seawater, chemicals, and other corrosive media is a concern. Its high strength and ductility also allow it to withstand the rigors of heavy-duty operation and frequent use.

In summary, C48200 naval brass bearings, ASTM wrought copper alloy bushings, and plates are high-performance components that offer excellent corrosion resistance, mechanical properties, and wear resistance. They are suitable for use in marine and other demanding environments where reliability and durability are paramount.



Mining Equipment Brass Bushing Parts for your heavy equipment. We are a supplier of replacement bronze bushing parts for mining machinery including: self-lubricating bearings, oilless bushing, brass bushing, etc.



C48200 Naval Brass Bearings | ASTM Wrought Copper Alloy Bushing & Plate,Send the bronze bushings sizes from our catalogue for delivery,stock levels and pricing.



Bronze Bearings & Bushing Made to order from china

Brass & Bronze Alloys Bearings



VIIPLUS can not only manufacture copper alloy Bronze Bushing & Bearings material according to China's national standard, but also can produce it as the related standards of the DIN,BS,EN,UNS,SAE, etc.What's more,we can also develop the copper alloy Bronze Sliding Bearings material according to the special requirements and drawings of customers.



Specification:



Machining Copper Alloy Bronze Bushing Parts
VIIPLUS's bronze bushing products can be used in many fields, especially for high strength and high wear resistance.

A wide range of industrial and civil applications, such as hydraulic pumps bushing, automobiles bearings, engineering machinery plain bearings, aerospace, marine vessels self-lubricating bearings and more.

We will widely promote the positive sliding bearings product in different industries and willing to provide some solutions.



C48200 Naval Brass Bearings | ASTM Wrought Copper Alloy Bushing & Plate 0

Chemical Composition (%max., unless shown as range or min.)



Chemical Composition mass/%

Cu

Sn

Al

Fe

Mn

Ni

Pb

Si

P

Zn

59-62

0.5-1.0

_

0.1

_

_

0.4-1.0

_

_

Rem



Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)

386-600

172-400

Jun-40

95-180



Note:

1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference



  • Specifications:





Material Bronze CuZn25Al6Fe3Mn3 + Graphite
Iron Cast-iron + Graphite
Density   8.2g/cm3
Tensile Strength   >=755N/mm2
Anti-compact Tenacity   >=400~500KJ/m3
Hardness   >=200HB
Max Load Pressure   100N/mm2
Speed Limit   0.5m/s
PV value limit   1.65N/mm2.m/s
Friction coef Oil Lubrication 0.03
Dry Friction 0.16
Working temperature   -40~+300°C



Typical Uses



Fasteners: Nuts Industrial: Shafts, Machinery, Valve Bodies, Propeller Hub, Worm Wheels, Propeller Blades, Pickling Equipment, Worms, Wear Plates, Gears, Bushings Marine: Marine Hardware, Valves in contact with sea water, Covers for Marine Hardware.



C48200 Naval Brass Bearings



C48200 Naval Brass Bearings | ASTM Wrought Copper Alloy Bushing & Plate 1







ASTM Casting Copper Alloy Bearings

Type

Symbol

BRONZE BUSHING

Tin Bronze

C83600



Lead Free Brass

C86200



Lead Free Brass

C86300



Lead Free Brass

C86400





C93200



Aluminum Bronze

C95200



Aluminum Bronze

C95400



Aluminum Bronze

C95800





C48200 Naval Brass "Medium Lead"

C482 Applications:


Marine hardware, screw machine products, valve stems.
Common Fabrication Processes
Hot forging, pressing and machining.



Typical Applications:



  • Propeller Shafts
  • Marine Hardware
  • Valve Stems
  • Heat Exchanger Tubes
  • Bearings
  • Turn Buckles
