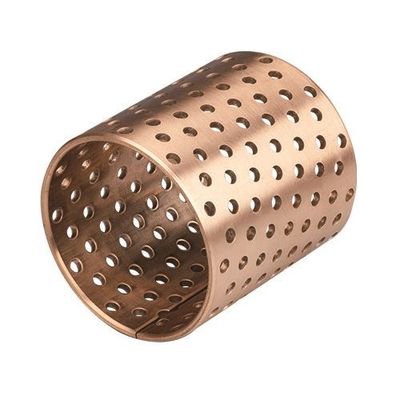

Large Size Split Bushing Sleeve | CuSn8 & CuSn6

Place of Origin Bushing Manufacturer
Certification Bronze CCuSn8P, DIN 1494 / ISO 3547, Low-maintenance
Model Number Large Lubricating Depots Wrapped Bronze Bushing
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details EXPORT CARTONS
Delivery Time 2-3 Weeks
Payment Terms TT IN ADVANCE

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Bronze Alloy CuSn8 Sleeve Type Plain Cylindrical Bearing, Flanged Bearing, Thrust Washer, Slide Plate
Feature High Load,Low-maintenance,Low-maintenance Lubrication Large Lubricating Depots,oil Holes
Bushing Quality OEM Quality Application Forestry, Construction And Agricultural Machinery, Cranes, Forklifts And Lifting Equipment, Etc.
Tolerance H7 H9 Alloy Standard DIN 1494 / ISO 3547
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings


oil embedded sleeve bearing

Leave a Message
Product Description

Bronze Sleeve Bushings



The CuSn6/CuSn8 Tin bronze sleeve bushing & sliding bearings can be offered with pockets, grooves or thru-holes for heavier applications.Wrapped bushing, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance made to order from china company factory.Bushings belonging to TIN BRONZE WRAPPED SLEEVE BUSHES series are available in metrical and inches dimensions, in agreement with DIN 1494 and ISO 3547.


SAE 660 SLIDING BEARINGS,Inner diameter,mm,Length,Load F,Speed,CALCULATE,Sliding speed,Pressure PV value & Load,If you need assistance, please send inquiry to us:tiffany@viiplus.com

Technical Details

  • Bronze Sleeve Bushings


  • Specific load capacity static≤ 120 [N/mm2]

  • Specific load capacity dynamic≤ 40 [N/mm2]

  • Sliding speed≤ 2.5 [m/s] depending on lubrication

  • Friction value0.05 [µ] to 0.12 [µ]

  • Temperature strain- 40 [°C] to + 250 [°C]

  • Max. PV-value2.8 [N/mm² x m/s]

Standard-Stocked Tin Bronze Bushings Material

The lead content in high leaded tin bronze alloys is between 7.00% and 15.00% strips,Alloy C93200, also termed C932, bearing bronze, SAE 660, SAE 660 bronze, and SAE 660 bearing bronze

Similar or Equivalent Specification Bushing Alloy Material














QQ-C-390, E7;
QQ-B-1005, COMP 12

MIL-B-11553, COMP 12

Bearing Bronze


Bronze Bushings Assembly

The bearings are intended to be pressed into a housing with H7 tolerance. The inner diameter of the slide bearing will then hold tolerance H9.

Rolled flange bronze bearings bushings with lubrication pockets.

Bushing Customize Manufacturing
We can offer special sizes, shapes, forms or lengths upon request. Please contact us for a quotation or more information.


Self-Lubrication Bearing

Lubrication should be done through the shafts or radial through the housings. All common grease-types or oil can be used.
If, however, you cannot find what you are looking for please do not hesitate to contact our sales team who will be happy to hear from you and address your requirements accordingly.

Rolled flanged bearing with oil pockets collar Wrapped Bronze Bush Bronze wrapped bearing with Diamond-shaped holes CuSn8. DIN 17662: FB090 FB092 FB092H WF WB700 WB702 WB800 WB802

Bearing Selection VIIPLUS CHINA ONLINE WEBSITE:WWW.BRONZEGLEITLAGER.COM BEARING have developed kinds of bearing material.

According to difference work condition. The user can select the material the material base on bearing work environment, load speed, wear resistance resistance request, moving method, etc.

Bearing Load:

Cylidrncal bushes, flange bushes


As the factor of clearance, bushes chamfer, oil groove etc, The actually load(P)is higher than theory of calculation(P)

Bearing Load
Rotating motion
Oscillating motion
Rotating motion

PV is the product of the specific bearing load P and the sliding speed V which is very important design date. We recommend
designlower PV value will leads to longer service life. Also don't exceed the max of material load, speed, temp. and lower if possible.

Self-Lubrication Bearing
The bearing, housing and fitting tools must be kept clean during fitting. Please give special notice to us if you adopt the soft material for housing produce. To make fitting easy. the shaft ends should be chamfered.



Bronze Sleeve Bushings















CuSn8 tin bronze turn over axle sleeve copper sleeve
Belong to the high strength heat-resistant bronze, stable mechanical properties under high temperature (400 ℃), has good anti-friction, in the atmosphere, freshwater and seawater corrosion resistance is very good, hot processing good under pressure, strengthening heat treatment, welding, is not easy to fine welding, machinability is good


We have a large selection of 090 & 092 Cu Sn8. DIN 17662 plain and flanged bearings for various applications. With standard stock and inch dimensions in our warehouse and with the co-operation of skilled subcontractors, we are one of the most reliable suppliers available. With us you can order your bushings products according to your own drawings and specifications or you can choose from our large and wide standard selection. In addition, our short lead times and good logistics makes us an efficient and reliable partner.

The raw material of FB090 is hot - rolled high - grade phosphor - containing tin - green alloy.This type of sliding bearing is mainly designed to withstand heavy loads and impact.The whole bearing sliding surface contains lubricating oil holes, which form a lubricating film during operation and start-up to reduce friction.FB090 for radial, swinging and axial motion, especially for medium to high loads.

Metal Bronze raw materials are the most important technical and material basis of modern industry

Main bronze bushing products: copper alloy, brass, lead brass, tin brass, tin bronze, phosphorus bronze, aluminum bronze,aluminum brass, tin brass, tin bronze, special specifications can be customized!

Structure Characteristics

  • Easy installation

  • Oil pockets store lubricating oil

  • High load capacity

  • Operating well in harsh working conditions

  • The operating temperature of a wide fan

Main Applications

Bronze bushing with oil pockets application for Forestry, construction and agricultural machinery, cranes, forklifts and lifting equipment, etc.

Sleeve Shape and Type

Non-standard Bronze Bushings size custom

We can recommend the corresponding size, shape, and shape or length according to the requirements.Please contact us for quotation or more information.
