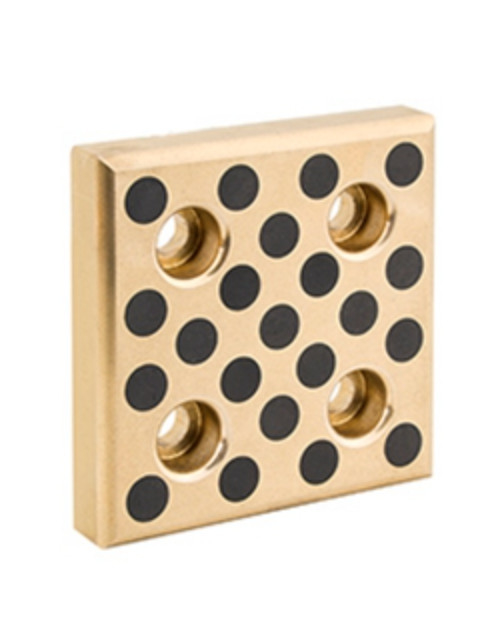

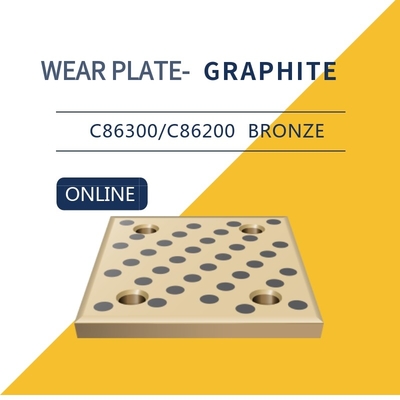

Wear Plate Strip , Graphite Plugs, China Supply, Bronze C86300, Metal Bronze
| Place of Origin | Plain Bearing Material |
|---|---|
| Brand Name | VIIPLUS |
| Certification | MET ISO, NAAMS, JIS and many automotive and appliance manufacturers' standards |
| Model Number | Wear Strip Graphite |
| Minimum Order Quantity | 100 Piece/Pieces (Min. Order) |
| Price | flat strip material inch sizes Manufacturers,Factory Price |
| Packaging Details | EXPORT CARTON WOOD PALLET WOODEN CASE |
| Delivery Time | 4 - 12 BUSINESS DAYS |
| Payment Terms | T/T, Western Union |
| Supply Ability | 5000000 Piece/Pieces One week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Bronze C86300,Self Lubricating Products | Wear Plate | Self Lubricating |
|---|---|---|---|
| Size | Metric & Inch | Bushing & Wear Plate Application | Die And Mold Components |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | du strip,plain sleeve bearing strips |
||
Product Description
When discussing wear plate strip, graphite plugs, and metal bronze (specifically Bronze C86300), China has become a major supplier in these areas. Bronze C86300, also known as tin bronze, is a type of metal bronze alloy that is highly resistant to corrosion and wear. It is commonly used in applications where durability and strength are crucial, such as in bearings, bushings, and other mechanical components.
Wear plate strip is a type of material that is specifically designed to resist wear and abrasion. It is often used in industrial applications where components are subjected to friction and wear, such as in mining equipment, construction machinery, and other heavy-duty applications.
Graphite plugs, on the other hand, are components that are made from graphite, a natural mineral that is known for its excellent thermal and electrical conductivity. Graphite plugs are commonly used in high-temperature applications, such as in furnaces and kilns, where they help to maintain the temperature and provide protection against corrosion.
China has become a leading supplier of these materials due to its advanced manufacturing capabilities and competitive pricing. Many Chinese manufacturers have specialized in the production of wear plate strip, graphite plugs, and metal bronze, including Bronze C86300, and are able to provide high-quality products that meet the demands of customers worldwide.
In summary, wear plate strip, graphite plugs, and metal bronze (especially Bronze C86300) are essential materials in various industrial applications. China's supply of these materials, thanks to its manufacturing prowess, has made it a reliable source for customers around the world.
Wear Strip Ways – Plain Bearing Solid Bronze – Graphite Plugs Drilled & Counterbored Holes
L-Gibs & V-Gibs Bronze-Plated, Inch, L-Gibs Solid-Bronze, Self-Lubricating, Inch,Solid-Bronze, Self-Lubricating, Metric,Square Gibs,Gib Assemblies,Wear Strip Ways, Self-Lubricating,Guide Blocks,U & V Blocks dimensions.Included in our full line offering are both inch and metric size die components that are designed to die standards.Advanced in design, each product is measured to precise standards and is distortion-free for reliable performance and excellent wearability.
including ISO, NAAMS, JIS and many automotive and appliance manufacturers' standards. The complete bushing & wear plate offering includes:
Check our website www.bronzegleitlager.com for the latest technical information.
Bronze-Plated SteelWith and without graphite plugs
Standard L-Gibs with and without mounting holes
High quality Self-Lubricating L-Gibs with and without mounting holes
Bronze with Self-Lubricating Graphite Plugs
Contact VIIPLUS Customer Service for hole pattern,made to order wear plate
■Plastics Injection Molds
■Special Machines
■Press Gibbing
■Special Slide Applications
Standard wear strips are plated
on one side only.Up to four sides can be plated.Please call for quotation.

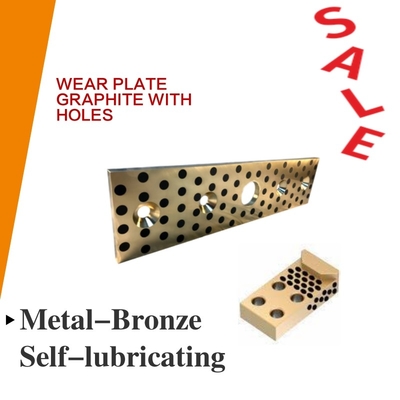

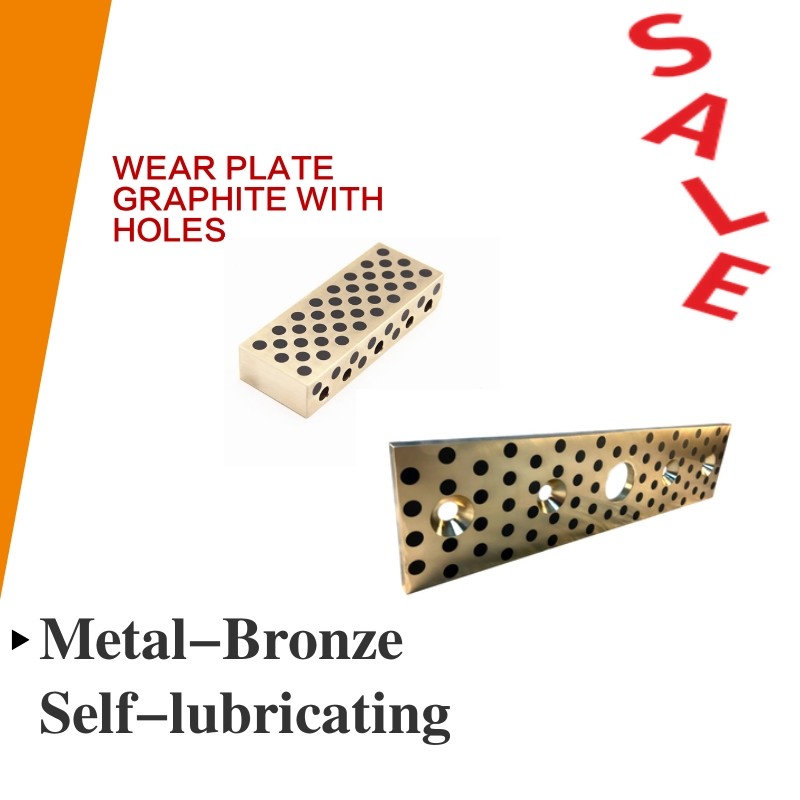

Wear Strips – Inch – Fixed-Length,in a wide variety of applications, including lifter slides in molds,Mounting hole patterns for Wear Strips
■ Bronze with self-lubricating graphite
plugs for bilateral wear
■ Ready to use
■ Solid Bronze available upon request
| Chemical Requirements | ||||||||||||
| Copper Alloy UNS No. |
Composition, % max, except as indicated | |||||||||||
| Nickel | ||||||||||||
| Copper | Tin | Lead | Zinc | Iron | Including | Aluminum | Manganese | Antimony | Sulfur | Phosphorus | Silicon | |
| Cobalt | ||||||||||||
| C86300 | 60.0–66.0 | 0.20 | 0.20 | 22.0–28.0 | 2.0–4.0 | 1.0A | 5.0–7.5 | 2.5–5.0 | ... | ... | ... | ... |
| C90500 | 86.0–89.0 | 9.0–11.0 | 0.30 | 1.0–3.0 | 0.20 | 1.0A | 0.005 | ... | 0.20 | 0.05 | 0.05B | 0.005 |
| C91100 | 82.0–85.0 | 15.0–17.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C91300 | 79.0–82.0 | 18.0–20.0 | 0.25 | 0.25 | 0.25 | 0.50A | 0.005 | ... | 0.20 | 0.05 | 1.0B | 0.005 |
| C93700 | 78.0–82.0 | 9.0–11.0 | 8.0–11.0 | 0.8 | 0.7C | 0.50A | 0.005 | ... | 0.50 | 0.08 | 0.10B | 0.005 |
| A In determining copper minimum, copper may be calculated as copper plus nickel. | ||||||||||||
| B For continuous castings, phosphorus shall be 1.5 % max. | ||||||||||||
| C Iron shall be 0.35 % max. when used for steel-backed. | ||||||||||||
| NO. | DIN | Material No. | Designation | ASTM Standard | Proportional | Density (g/cm³) | 0.2% Strain (MPa) | Tensile Strength (MPa) | Strain (%) | E-modulus (MPa) | Hardness (HB) | Applications |
| 1 | 1705 | 2.1090.01 | CuSn7ZnPb | B 584 | Cu 81 - 85, Sn 6 - 8, Zn 3 - 5, Pb 5 - 7 | 8.8 | 120 | 240 | 15 | 106,000 | 65 | Widely utilized in automotive, aerospace, and marine engineering for components requiring good strength and corrosion resistance. Recognized internationally for versatility and performance. |
| 2.1090.03 | CuSn7ZnPb | B 271 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 130 | 270 | 13 | 106,000 | 75 | |||
| 2.1090.04 | CuSn7ZnPb | B 505 | Cu 81 - 85, Sn 6.3 - 7.5, Zn 2 - 4, Pb 6 - 8 | 8.8 | 120 | 270 | 16 | 106,000 | 70 | |||
| 2 | 1705 | 2.1061.01 | CuSn12Pb | Not yet standardized | Cu 84 - 87, Sn 11 - 13, Pb 1 - 2 | 8.7 | 140 | 260 | 10 | 112,000 | 80 | Commonly used in manufacturing bearings, bushings, and components that require high load capacity and wear resistance, especially in marine and industrial applications. |
| 2.1061.03 | CuSn12Pb | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 150 | 280 | 5 | 112,000 | 90 | |||
| 2.1061.04 | CuSn12Pb | B 505 | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 7 | 112,000 | 85 | |||
| 3 | 1714 | 2.0975.01 | CuAl10Ni | B 584 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 270 | 600 | 12 | 122,000 | 140 | Used in marine, aerospace, and heavy machinery for manufacturing bearings and components requiring high strength and durability. Known for extreme loads and high corrosive environments. |
| 2.0975.02 | CuAl10Ni | B 30 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 600 | 14 | 122,000 | 150 | |||
| 2.0975.03 | CuAl10Ni | B 271 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 2.0975.04 | CuAl10Ni | B 505 | Cu min. 75, Al 8.5 - 11.0, Ni 4.0 - 6.5, Fe 3.5 - 5.5 | 7.6 | 300 | 700 | 13 | 122,000 | 160 | |||
| 4 | 1709 | 2.0598.01 | CuZn25Al5 | B 584 | Cu 60 - 67, Al 3 - 7, Fe 1.5 - 4, Mn 2.5 - 5, Zn rest | 8.2 | 450 | 750 | 8 | 115,000 | 180 | Used in heavy-duty bearings, hydraulic components, and marine hardware. Designed for high loads and resistance to corrosive attack. |
| 2.0598.02 | CuZn25Al5 | B 30 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 8 | 115,000 | 180 | |||
| 2.0598.03 | CuZn25Al5 | B 271 | Cu 60 - 66, Al 5 - 7.5, Fe 2 - 4, Mn 2.5 - 5, Zn 22 - 28 | 8.2 | 480 | 750 | 5 | 115,000 | 190 | |||
| 5 | 1705 | 2.1052.01 | CuSn12 | Not yet standardized | Cu 84 - 88, Sn 11 - 13, Pb 1, Ni 2.0, Sb 0.2, P 0.2 | 8.6 | 140 | 260 | 12 | 110,000 | 80 | Commonly used in manufacturing bearings, gears, and components requiring high wear resistance. Known for good machinability and corrosion resistance, particularly in seawater environments. All rights to the listed content are reserved by https://www.viiplus.com/ |
| 2.1052.03 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.6 | 150 | 280 | 8 | 110,000 | 90 | |||
| 2.1052.04 | CuSn12 | Not yet standardized | Cu 85 - 88, Sn 10 - 12, Pb 1 - 1.5 | 8.7 | 140 | 280 | 8 | 110,000 | 95 | |||
| Note: Delivery form codes: .01 = sand casting, .02 = gravity casting, .03 = centrifugal casting, .04 = continuous casting. | ||||||||||||
NOTE:
♦ Width and length of wearstrip determines hole
pattern, regardless of thickness.
Materials:
♦ Self-lubricating wear plates are manufactured from bronze or steel with graphite plugs. The plugs cover 20-25% of the wear surface.
♦ Wear plates are also available in plain steel.
Solutions To Fit Your Special Applications
In addition to “made to order” specials, a wide range of catalog components can be modified to
meet customer specific applications. Round, flat, simple or complex, we want to make those
one-of-a-kind parts for you.
VIIPLUS is a SUPPLIER of tool, die and mold components for the metal-working and plastics industries. Asa customer-focused, world-class supplier of choice, we provide
the brands, product breadth, distribution network and technical support for all your metal forming needs.Our goal is to give our customers the most innovative and valueadded
products and services.
