Our customized half self-lube bushings are precision-engineered components that combine the advantages of graphite bronze with innovative lubrication and grooved design features. These bushings are specifically tailored to meet the unique requirements of various industrial and mechanical applications.
The graphite bronze material provides excellent wear resistance, strength, and corrosion resistance, ensuring the bushings' durability and long-term performance. The self-lubricating properties of the material help reduce friction and heat generation, resulting in smoother and more efficient operation.
The bushings feature plugged oil holes that allow for the controlled introduction of lubricating oil, further enhancing the lubrication process and extending the bushings' lifespan. The grooved design adds to the bushings' functionality, providing additional channels for oil distribution and heat dissipation.
The customized nature of these bushings means that they can be tailored to fit specific applications and mechanical systems. Wh you need bushings for high-load, high-speed, or high-temperature applications, we can provide a solution that meets your exact requirements.
In summary, our customized half self-lube bushings with plugged graphite bronze, oil holes, and grooved design offer a robust and efficient solution for various industrial and mechanical applications. They are designed to reduce friction, extend lifespan, and enhance overall performance.

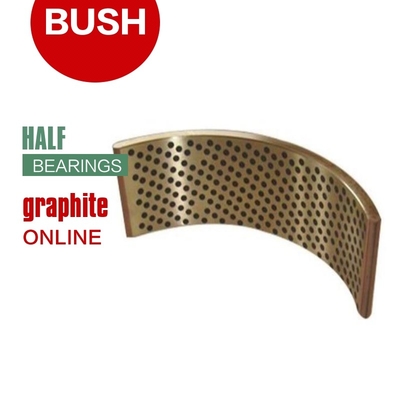

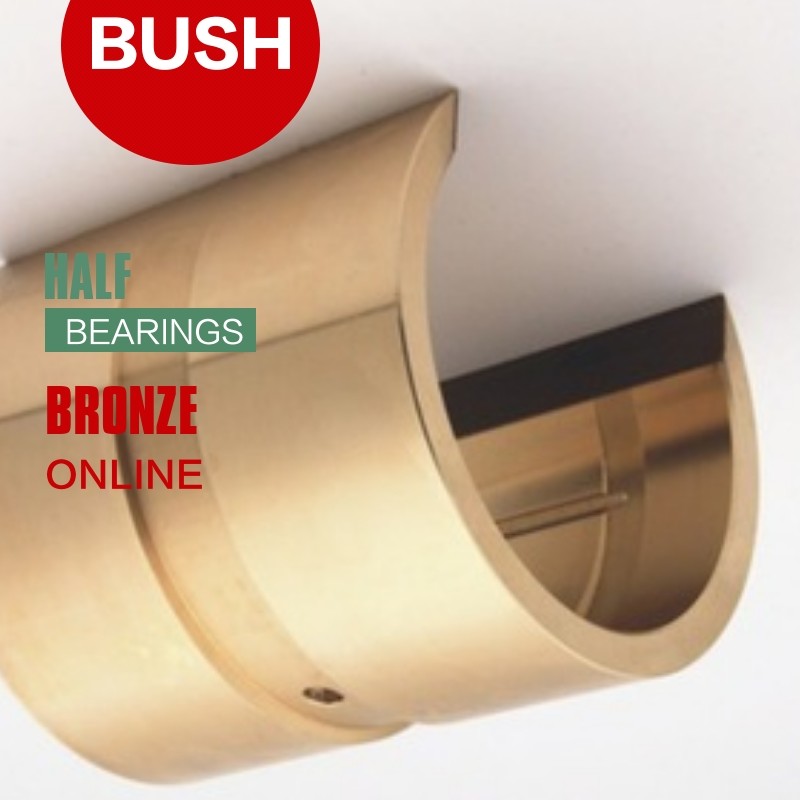

SELF-LUBRICATING OIL-LESS Oil & Grooved TYPE BUSHINGS IN STOCK: Inch - Metric C863 Manganese bronze Half Bearings Plugged Graphite Bronze made to order from china,The split type inlaid bearings produced by our company are double flanges at both ends, side flange type, middle flange type and straight sleeve type, which are divided into two semicircle solid inlaid self-lubricating bearings.Its size standard after subdivision is not standard, medium length size can be determined according to user requirements.
Structure is copper alloy brass :ZCuZn25Al6Fe3Mn4 (main chemical components Cu Al Mn Fe Ni Zn percentages are: 60 ~ 66% 5.0 ~ 7.5% 2.5 ~ 5.0% 2.0 ~ 4.0% 0.2 ~ 0.5% 22 ~ 28% respectively.It is based on brass of special techniques. The solid lubricant is inlayed by certain angle, density and special formula, and then is processed exactly.
The solid lubricant is embedded in the matrix, which is divided into two semicircles through multiple machining processes.Because of its two ends have flange, so can not be installed from the end face of the seat hole, can only be divided into two semicircles, in the installation of a whole.
It is characterized by limiting the axial two-way transmission, and has the characteristics of self-lubricating bearing such as no refueling in general working conditions, high temperature resistance, maintenance-free, high bearing capacity and long life.We can customize different materials, different sizes and different types of inlaid bearings according to customer requirements.Technical advice and product requirements, please contact us.
Bearing shell material is characterized by low friction coefficient, sufficient fatigue strength, good running-in and good corrosion resistance.Common bearing bush materials include self-lubricating bearing materials (), copper alloy, wear-resistant composite bearing materials, etc.
Non-lubricated bearing bush materials mainly include polymer, carbon graphite and special ceramics.
Polymer also known as organic polymer materials, engineering plastics.Common materials are phenolic resin, nylon, and so on.Non-lubricated bearings made of plastics (such as ) are resistant to strong acids and weak alkalis, with good insert, abrasion reduction and abrasion resistance.The sheet is pressed into lip sealing ring, bearing bush, piston ring and gasket, which are used in belt conveyor, typewriter, sewing machine, electric phonograph disc, water pump, textile machinery and agricultural machinery.
Polymer has the characteristics of light weight, insulation, friction reduction, wear resistance, self-lubrication, corrosion resistance, simple molding process, high production efficiency.Compared with metal materials, their tribological properties are sensitive to ambient temperature and humidity, and have significant viscoelastic properties, so the gap between bearing bush and journal is large.Because of its low mechanical strength, small elastic modulus, poor absorption of lubricating oil, and limit the working speed and pressure value of bearing bush.
The sliding bearing thurst washer & plate - graphite material can be used in harsh environment.The more graphite, the softer the material, the smaller the friction coefficient.
|
