Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10

Place of Origin Bimetal Bearing Manufacturers
Brand Name bimetal SAE-797 SAE 48 SAE-799 bushings
Certification Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4...
Model Number JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings
Minimum Order Quantity 800 Piece/Pieces
Price $0.05 - $1.00 / Pieces
Packaging Details export & import bimetal bushings International carton standard
Delivery Time Manufacture Bimetal Bushing In Stock, Delivered Within Days.
Payment Terms TT in advance,Western Union
Supply Ability casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Meterial Copper Plated Steel Shell With Sinered Bronze Liner Characteristic Oil Grooves And Oil Indentation
Size Standard Size Available Type Bushes, Flanged Bushes, Special Designs
Bushing Sample Available Application Truck Trunnon Shaft, King Pin Kit, Connection Rod, Rocker Arm, Leaf Spring, Cam Shaft, Crankshaft, Bulldozer And Excavator Track Roller, Carrier Roller, Idler Etc.
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Steel Backed Bronze Bushing, Bimetallic Bushes Bimetallic Bearing Bushing Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

bimetal bush


bimetal bearings

Leave a Message
Product Description

Bimetal bearing bushes with shaft oil grooves and lock flanges, crafted from CuSn10Pb10 material, offer exceptional performance in a wide range of industrial applications. The CuSn10Pb10 alloy, composed of copper, tin, and lead, provides excellent wear resistance, self-lubricating properties, and corrosion resistance.

The shaft oil grooves are strategically positioned to allow for the effective distribution of lubricant, ensuring smooth and reliable operation of the bearing. This design reduces friction and wear, resulting in longer service life and improved efficiency.

The lock flanges on the bimetal bearing bushes provide secure fixation to the shaft, preventing unwanted movement or displacement during operation. This ensures precise alignment and fit, crucial for maintaining optimal performance in high-precision equipment.

The precision machining process ensures that the bearing bushes meet strict dimensional tolerances and surface finish requirements. The CuSn10Pb10 material is carefully selected for its superior mechanical properties and ability to withstand extreme conditions.

In summary, shaft oil grooves and lock flange bimetal bearing bushes with oil indentation CuSn10Pb10 offer a reliable and efficient solution for precision bearing assemblies. Their superior wear resistance, self-lubricating properties, and secure fixation make them an ideal choice for various industrial applications.

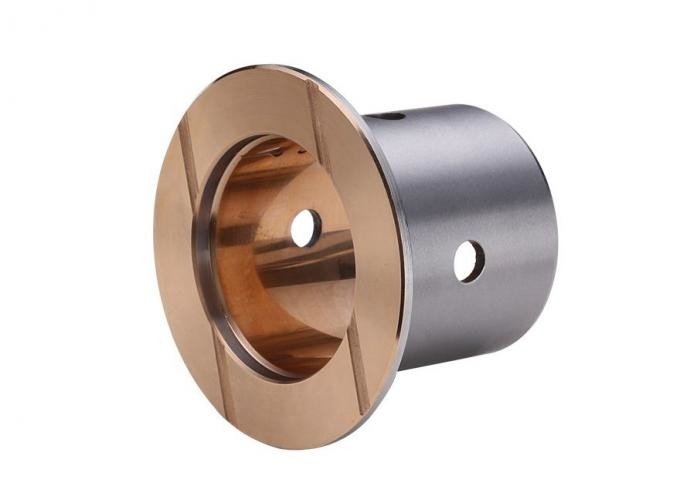

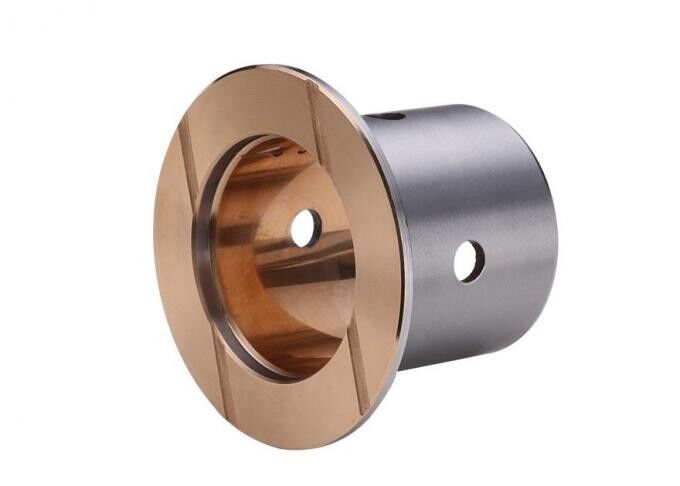

Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10


For track roller assembly,manufacturer of rollers Bimetallic Bush.


We manufacturing and supplyinga wide range of bimetal steel bronze bushings with grooves and lock and sliding bearings.It is made of high quality low-carbon steel, and sintered and rolled copper alloy(CuSn10Pb10)as its surface. It has high fatigue strength, load capacity and impact strength. The bimtel bushings are use for con-rod of automobile engines,transmission gear box, engineering and agriculture machinery, etc.that exactly fit for various applications and operating environments.

If you need help in selecting the best bimetal bushing and flanged bearings products for your particular application,Click here to go to our online catalog product Bimetal Plain Bearingsstandard Sae 792 Indents specifier for the bimetal bearings Series Bushings with customized size including types downloads.Bimetal Bushings and Sliding Bearings Is Low Carbon Steel As Backing, Sintered Tin-Bronze Alloy As Inside Surface With Various Oil Grooves & Oil Indentation.


Bimetal Self-lubricating Bearings

Types for bushings grooves & indentations and clinch lock



   Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10 0             Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10 1           Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10 2             Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10 3


Shaft Oil Grooves & Lock Flange Bimetal Bearing Bushes With Oil Indentation CuSn10Pb10 4


Split Sleeve Bushings

Clinch Lock Bushings


I.D. after fixed,Wall Thinkness,Housing Bore(H7)

We can design the bimetal metric flange bushings of different sizes according customer requirment.


This is a bimetal bearing material in which bronze alloy comprise a two layer structure with a steel backing. This structure, whose mechanical strength is high, can be used under lubricated conditions and high-speed/high-load operation. It can be made from a variety of different materials, depending on the application, use conditions and lubrication.


Sintered SAE797 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb10Sn10)
Sintered SAE799 Layer + Steel Backed + Copper Plating / Tin-Plating(CuPb24Sn4)
Sintered SAE48 Layer + Steel Backed + Copper Plating / Tin-Plating (CuPb30)
Sintered SAE783 Layer + Steel Backed+ Copper Plating / Tin-Plating (AlSn20Cu)


Bimetal bearing supplier


Types of Oil Grooves for bimetal bushings


bimetal bushing oil tank oil holes


Types of Butt Jionts for bimetal bushings (Slit & Clinch)


Bimetal Bearings Bushings Buckle Form


Bushing Company, Sintered SAE-799 CuPb24Sn4 bimetal bushing Supplier.Working tog to create solutions for the most demanding BIMETAL applications.Need Help Finding the Right Bimetal Bushing Products?Our Plain Bearings Parts Experts Can Help. Call for immediate assistance.Ask for a qoute for material Steel+CuPb10Sn10,Steel+CuPb24Sn4,Steel+CuPb24Sn,Steel+CuPb30,Steel+CuPb10Sn10+GRAPHITE.

This Bi-metal Bushing can be manufactured in various type or customized.


-Thrust or Bearing Plates Type of bearing structure
-Flanged Bushing
-Welded Joint Bushing
-Split Joint Bushing
-Clench Lock Bushing
-Specialized machined features





bimetal bushing buckle



  It Is Typically Used In Truck Trunnon Shaft, King Pin Kit, Connection Rod, Rocker Arm, Leaf Spring, Cam Shaft, Crankshaft, Bulldozer And Excavator Track Roller, Carrier Roller, Idler Etc.


  Click here Bushings Material,Tolerances and Precision,Internal Clearance,Lubrication,Fitting and Mounting

Load and Life Calculation Information Shaft Dia.Shaft Size,Housing Bore Dia.

Bearing Outside Diameter,Bearing Bore after Mounting Clearance,Wall Thickness ,Bearing Length Tolerance

Bushings (also referred to as plain bearings, plane bearings, sleeve bearings or linear sleeve bushings) operate with sliding motion between the moving surfaces. Bushings are selected based on the velocity and the applied load. Maintenance-free bushings do not require additional lubrication to operate. VIIPLUS supplies more than 3,000 different high-quality self-lubricating bearings bushing models made from a variety materials including all metal, plastics, and composite materials.


BiMetal Bushing & Self-lubricating Bearings Precision Industrial Sliding Bearings


  VIIPLUS MADE IN CHINA Sliding Bearings is the complete, one-stop supplier to SME and OEM's and to wholesalers sourcing high-precision,self-lubricating bearings, bronze sleeve bushing washer and related products, and associated professional services including world-class engineering and design. Our bearing products and design solutions will enhance your product performance; make your company more competitive, and make your purchase easier. Discover which of our extensive products or services is just right for your application. Experience firsthand how plain Bearings provides easy install




BiMetal Series Bushings Series Structure are made of Steel backed lead bronze lined bushings and have the following layers:


  1. Sinter bronze powder: good wear resistance and excellent load carrying capacity.
  2. Steel backing: gives exceptionally high load carrying capacity, excellent heat dissipation.
  3. Copper plating 0.002mm, good corrosion resistance.


Dynamic load limit


Static Load


frictional coefficient


PV limit


Max Speed





Bushings & Plain Bearings APPLICATION

Oil groove bimetal bearing


Series Bushings feature steel backed lead bronze lined material specially developed for lubricated applications, high load capacity, excellent heat dissipation, and good fatigue properties. They have been widely used in automotive industry, and general industrial applications including steering gears, power steering, pedal bushes, king-pin bushes, tailgate pivots, mechanical handling, lifting equipment, hydraulic motors, agricultural machines etc.


Metallic Self-lubricating Maintenance-free Bearings,Flanged bushings gear pumps Bimetal Bushing & Self Lubricating Bearing

Specifications for Bi-Metal Bronze Alloys:
Material Type Specification of Bronze Alloy Hardness of Bronze Alloy HB Allowable Max Dynamic Load Max. Temperature °C
Bi-Metal-800 CuPb10Sn10 or CuSn6Zn6Pb3 70~100 65 260
Bi-Metal-720 CuPb24Sn4 45~70 38 200
Bi-Metal-700 CuPb30 30~45 25 170
Bi-Metal-20 AlSn20Cu 30~40 30 150
Bi-Metal-930 CuSn6.5P0.1 60-90 65 200




  • For high load capacity and oscillating movement, as well as for rough operation and temperature load. Long-run lubrication because of lubricant storage.




  • Support materialSteel copper-plated / tin-plated

  • Sliding layerCuPb10Sn10




  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8




  • is a low-maintenance composite sliding bearing, but primary lubrication is necessary. Oil or grease lubrication is possible. Due to solid lubricant storages, lubrication clearances are reduced to a minimum!




Special dimensions are available on request
