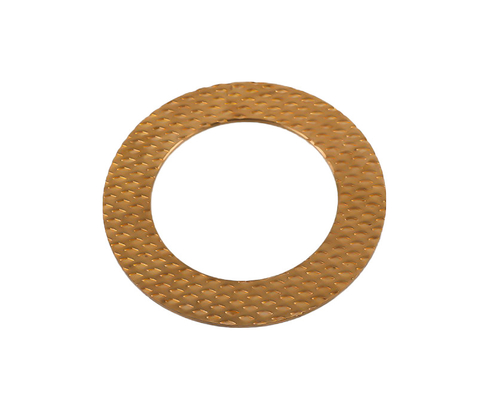

Steel Copper Alloy Cusn4pb24 Metallic Bearings Material Strips Trust Washer & Plate
Place of Origin | Bimetal Bearing Manufacturers |
---|---|
Brand Name | bimetal SAE-797 SAE 48 SAE-799 bushings |
Certification | Bimetal Bush Material CuPb10Sn10、CuPb6Sn6Zn3 CuPb24Sn4... |
Model Number | JF800 JF720 JF700 Bimetal Lead-Free Plain Bearings |
Minimum Order Quantity | 800 Piece/Pieces (Min. Order) |
Price | $0.20 - $2.00 / Pieces ,Negotiable |
Packaging Details | export & import bimetal bushings International carton standard |
Delivery Time | Manufacture Bimetal Bushing In Stock, Delivered Within Days. |
Payment Terms | TT IN ADVANCE Western Union |
Supply Ability | casting bimetal bushing, China, manufacturers, suppliers, factory, wholesale, Metric Self Lubricating Bushing, Self Lubricating Bushings, Journal Bronze Bearings, Bimetal With Graphite Bearing, Metallic Bearings, Flanged Bimetallic Plain Bearing |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Facilitate Oil Storage | Material | Bimetal Steel Copper Alloy (CuSn4Pb24) |
---|---|---|---|
Standard | DIN1494 | Bush Types | Trust Washer ,metal, Sliding Bearings |
Shaped | Oil Groove | Customized | Available As Per Drawing Or Sample, As Drawing, Welcome Customized Drawings |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Steel Backed Bronze Bushing, Bimetallic Bushes | Bimetallic Bearing Bushing | Bimetal Bearing With Steel Backing And Bronze Overlay • Particularly Suitable For High ... Bimetal Plain Bearings To Standard SAE 792 |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | bimetal bush,bimetal bearings |
The Steel Copper Alloy (Cusn4Pb24) Metallic Bearings Material is a unique blend of metals that offers exceptional properties for various bearing applications. This alloy, comprising primarily of copper, tin, and a small percentage of lead, is specifically designed to provide superior wear resistance, strength, and durability.
The Cusn4Pb24 alloy is often used in the manufacturing of bearing strips, trust washers, and plates due to its ability to maintain stable performance under high loads and temperatures. The alloy's self-lubricating properties further enhance its performance, reducing friction and wear, leading to longer bearing life.
The strips, trust washers, and plates made from this alloy are widely used in various industries, including automotive, aerospace, and heavy machinery. Their precision manufacturing ensures they fit perfectly into bearing assemblies, providing a smooth and reliable interface for rotational movements.
The combination of steel and copper alloy in this material offers the best of both worlds: the strength and rigidity of steel with the superior wear resistance and self-lubricating properties of the copper alloy. This makes it an ideal choice for applications that require high-performance bearings.
In conclusion, the Steel Copper Alloy (Cusn4Pb24) Metallic Bearings Material is a reliable and robust choice for bearing applications that demand durability, strength, and consistent performance. The strips, trust washers, and plates made from this alloy are precision-manufactured to meet the demanding requirements of various industries.
Bimetal Bearing Bushes
Viiplus is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
Bimetal Washer is made of steel sintered with CuPb10Sn10 or CuSn6Zn6Pb3 as a lining layer.This type of bushing show its best performance among bushings made of Cu-lead alloy material in this product range.It suits most for middle speed and high impact conditions.Its application including balance suspensions of heavy-duty trucks, track roller of bulldozers,auto chassis etc.
Lead bronze alloy |
CuPb10Sn10 or CuSn6Zn6Pb3
|
||
Load capacity | 65N/mm² | Harderness alloy | HB70~100 |
Temperature Max | 260℃ |
Bimetallic Bronze Bushings.Get Your Custom Quote Today. BronzeGleitlager.Com Design Bimetallic Bronze Bushings & Connecting Rod Bushing.Online Catalog Available. Precision Bimetal Bushing With Steel Backing & Bimetal Plain Bearings Supplier
Bimetal Plain Bearings Made in China

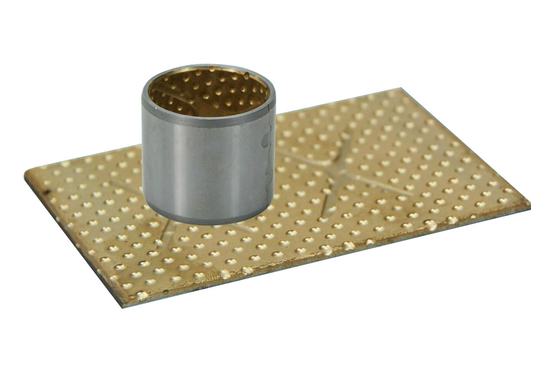

Steel copper alloy CuSn4Pb24 Bimetal Bushes Material Trust Washers & METAL BUSHING (LUBRICATED METAL)
Overview
VIIPLUS Bimetal Bushing Made in china ,German DIN standard, European EN standard and international ISO standard, etc can be produced and provided.Plain Bearings - Wrapped Bushes For Plain Bearings - Test Data For Outside And Inside Diameter On Dra.
Metallic Bearings
These high-performance metallic bearing materials solve a host of problems that plague sliding parts.
The bimetal bushings product is based on high quality low carbon steel, with sintered lead-tin bronze alloy CuSn4Pb24 on the surface. The alloy surface can be processed into oil groove, which is convenient for oil storage and effectively reduces wear.The steel back can be plated with anticorrosive coating as required.This series of products are often used in internal combustion engine spindle and connecting rod bearings, thrust pads, rolling bearings and so on
Standard
Bimetal Bushings German DIN standard, European EN standard and international ISO standard, etc can be produced and provided.
DIN1494 standard bimetal bushing supplied by VIIPLUS.Our main oil-free bearing related products sales and services.For DIN1494 bimetallic bushing inquiries welcome to contact or online message
Material: steel + copper alloy (CuSn4Pb24)
The product is based on high quality low carbon steel and sintered lead tin bronze alloy CuSn10Pb10.The diamond hole is rolled on the surface of the alloy and filled with special solid lubricant to effectively reduce wear.The steel back can be plated with anticorrosive coating as required.It is suitable for high temperature, water solution infiltration or other occasions where oil cannot be added or where oil is difficult.
Technical parameters
The highest PV value is 2.8 N/mm2·m/s for grease lubrication
Matching shaft hardness 48 HRC
Oil lubrication 10 N/mm2·m/s roughness Ra=0.16~0.63
Maximum linear velocity V dry grease lubrication 2.5 m/s highest use temperature 150 ℃
Grease lubrication 10 m/s lubrication 250 ℃
Tensile strength 150 N/mm 2 friction coefficient 0.05~0.15
Hard alloy degrees
HB 45~70 thermal conductivity 60 W/ (m·k)
Coefficient of thermal expansion
19· 10-6k-1 maximum bearing pressure P 130 n/was
Technical Date
|
|||
Available
as per drawing or sample, as drawing, Welcome Customized Drawings
Bimetal bushing VIIPLUS provides products with high compressive strength, small friction coefficient, good wear resistance, reduce the cost of machinery manufacturing, its performance has reached the level of similar products at home and abroad.The products are widely used in construction machinery, textile machinery, automobile industry, machinery industry and other fields, especially for the parts that are difficult to oil and can not oil have a good effect, free from oil pollution.
