Solenoid No Shaft Damage Self Lubricating Bearing , Metal Polymer Bearings

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name REPLACE BRAND GARLOCK BEARINGS (GGB)
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs DU DX, Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings
Product Details
Features Dry, Harden, Wear, Low Friction, Low Resistance Meterial Polytetrafluoroethylene (PTFE) Bearing,Carton Steel , Bronze
Plating Tin Or Copper Characteristic Low-friction
Type Cylindrical Bushes, Flanged Bushes, Thrust Washers, Flat Strip Material, Half Bearing, Wear Plate. Stock Size Standard Size Available,inch Size
Quality OEM,daido Metal Bushings,sankyo Oilless Bearing Bushings Application Solenoid
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light

self lubricating bearing

,

self lubricating bronze bushings

Leave a Message
Product Description

Solenoid No shaft damage bushing Minimal operating noise Low coefficient of friction | Metal-Polymer Bearings



choose from our selection of PTFE linear bushings in a wide range of styles and sizes. In stock and ready to ship.



Solenoid self-lubricating bearing It combines a low-friction polytetrafluoroethylene (PTFE) bearing surface with the strength and dimensional stability of a metal backing. Corresponding to the inch size.This environmentally friendly, lead-free, self-lubricating metal-polymer bearing requires no additional lubricant.Bearing in mind that start-up when the exchange value of the higher VA, in the capacity should be directed preferred solenoid valve indirectly.



VIIPLUS from china supply Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.

The U.S. 's GGB, sankyo oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation.VIIPLUS also established itself as an industry leader in self-lubricating bearings exported from China.



Lubrication Free with Excellent Wear Resistance

Characteristics


VSB-10 Self-Lubricating Multilayer Composite Bushing Bushing PTFE Composite Plain Bearings Dry Sliding Bushes



-200℃ to +280℃.

Minimal operating noise.

No shaft damage.

Extended service life.

Low coefficient of friction.
Greaseless operation.
Elimination of stick-slip.
Compatibility with oil lubrication.
Operating temperature range


Light weight, thin wall construction (max. 3 mm) for compact equipment design.



Resistance to most industrial chemicals and solvents such as petroleum and alcohol.

Accommodates high-loads, impact loads, intermittent operation and reciprocating motion.



VSB-10 Metal-Polymer Anti-Friction Plain Bearings



Rolled Dry Sliding Bearings (Ptfe) Steel + Bronze Powder + Ptfe/Fibre(Du)





Structure And Composition



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· PTFE + Lead







BEARING     BUSHING

Strusture


1. PTFE/Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the PTFE layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.

2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the PTFE layer and conducts the thermal build up away from the bearing surfaces.


3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



Technical Data



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1



Microsection



Solenoid No Shaft Damage Self Lubricating Bearing , Metal Polymer Bearings 1

  1. Sliding layer PTFE + Lead

  2. Porous Bronze Sinter

  3. Steel Backing



OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fair




Bearing Properties



Depending on operating conditions
steel-backed, sintered-bronze PTFE lined bearing.used in dry, semi lubricated environment.

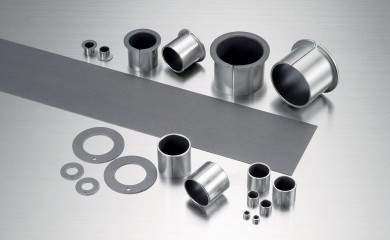

Availability



Bearing forms available in standard dimensions




· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates



Solenoid No Shaft Damage Self Lubricating Bearing , Metal Polymer Bearings 2





Plain bearings are available as bushes, collar bushes, washers, strips or special designs.


Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs

Outer Packaging: Hard carton; Wooden case ; Wood pallet.



Typical Applications
