CuSn8 Bronze Sleeve Flanged Bearings Diamond Indentations Or Stamped With Oil Grooves

Product Details:
Place of Origin: Flanged Bushings Manufacturer
Brand Name: Met Garlock Bearings (GGB) China Bushing
Certification: DIN1709
Model Number: Bushing type: Flanged Bearings, in Flange Width, PTFE Material
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: bearings metric sizes,thrust washers,flanged bearings Suppliers
Packaging Details: packing details for Stable perfomance Flanged bushing
Delivery Time: 7~20 Days
Payment Terms: TT IN ADVANCE
Supply Ability: 100000 Piece/Pieces per Day
Contact Now

Detail Information

Meterial: Tin Bronze Cusn8 Cusn6.5 Feature: The Bronze Bushings Are Produced From Bronze Alloy Rolled Strip Which Is Hard And Has An Excellent Finish.
Type: Bronze Wrapped Washers,gasket Bushings Washer,MBZ-B09 Lubrication:: Grease/Oil Lubricated
Specification: Bronze Wrapped Bushings Std.size In Stock Customized: Welcome Customized Drawing
High Light:

flanged sleeve bearing bronze

,

metric flanged sleeve bearing

Product Description

Flanged Sleeve Bearing

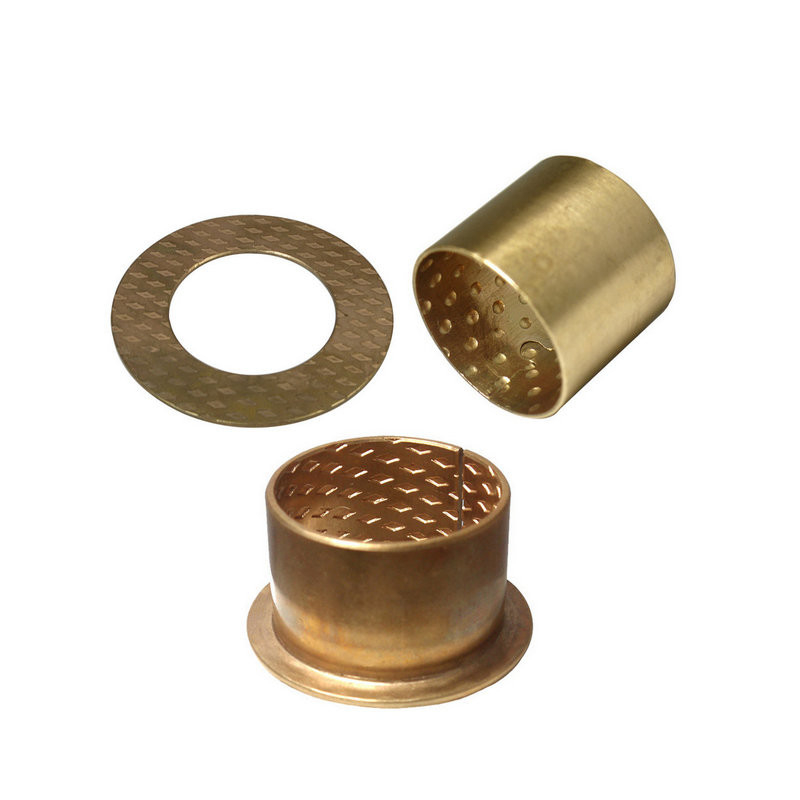

Cusn8 Bronze Wrapped Flanged Bearings Diamond Indentations Or Stamped With Oil Grooves.The bronze bushings are produced from bronze alloy rolled strip which is hard and has an excellent finish.Bronze Wrapped Flanged Bearings, Bronze CuSn8P, DIN 1494 / ISO 3547, Low-maintenance are solid lubricants embedded into the diamond shaped lubrication indents on the bushing surface,which provide good lubrication conditions at the start up stage, even with a lack of oil. It can be used in construction machinery, gear boxes,Automotive clutch parts etc.

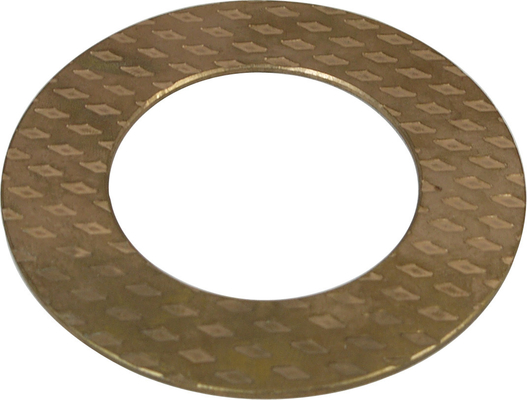

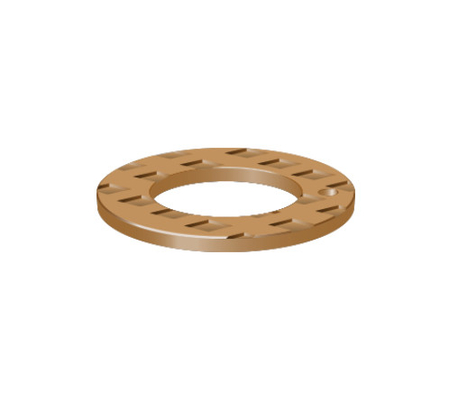

Bronze Truest Washer Bronze Wrapped Washers



High density wear-resisting (CuSn6.5P,CuSn8P) tin bronze washer



VIIPLUS Provide non-standardized products:Cylindrical bushes, thrust washers, strip and non-standard parts as the clients supplied drawing etc.


Our bronze wrapped washers have been developed for slow speed, high load applications, especially suited for oscillating motion and are perfect for the construction, mining/quarrying, agriculture and automotive industries.The surface can be rolled with diamond or hemispherical oil cavity or oil groove according to user's requirement.The product has the advantages of high density, large bearing pressure, good wear resistance, long service life, etc., to replace the traditional casting copper sleeve, can reduce the mechanical volume, reduce the cost.The products are widely used in lifting machinery, construction machinery, automobile, tractor industry, machine tool industry and mining machinery.



The trust washer product has the advantages of high density, large bearing pressure, good wear resistance, long service life, etc., to replace the traditional casting copper sleeve, can reduce the mechanical volume, reduce the cost.The products are widely used in lifting machinery, construction machinery, automobile, tractor industry, machine tool industry and mining machinery.



Thrust washers are an economical alternative to rolling thrust bearings whenever forces velocities are moderate. They are manufactured from a variety of Bronze Alloys, including: C95400 Aluminum Bronze, C93200 Bearing Bronze and C86300 Manganese Bronze. We provide your desired Thrust Washers according to the specifications you require.



Alloy 93200 Bearing Bronze (C93200 Bearing Bronze 660) thrust washers, pumps bushings, machine bushing parts, fittings, pump sliding bearings ...

Characterstics:

CuSn8/CuSn6.5P0.1

Bronze self-lubricating bearings used a kind of high density bronze alloy of special compositions as base, surface of alloy is rolled diamond type of the oil indents or half ball oil indents, this kind of bearing has higher density, load capacity, well wearing performance, longer lifetime. It has been widely used in many fields, such as hoist machines, building machinery, machine tool industry and mining machinery.

  • Good performance in lubricated applications

  • Very Good performance in greased applications

  • Suitable for linear, oscillating and rotating movements

Bronze Warpped Bearings offer good wear and low friction performance over a wide range of loads, speeds and temperatures



CUSN6 / CUSN8 Phosphor tin bronze bushings Sliding Bearing



Phosphor bronze is characterized as a very pure alloy with extremely low content of impurities. Phosphor blends well with copper making the material hardly reacting on oxygen (oxidation).
Phosphor tinbronze is an alloy with high wear resistance and good mechanical properties. There are tubes, bars and plates of different thicknesses available in phosphor tin bronze.

CuSn8 Bronze Sleeve Flanged Bearings Diamond Indentations Or Stamped With Oil Grooves



Areas of use


Heavy load bearings, gears and worm wheels, sliding plates, trapezoidal nuts and screws.
Shapes & forms
Solid round bar, hexagonal bar, tubes, flats & squares, plates

CuSn8 with Lubrication 090  FLANGE BUSHES Bronze Bearings made of CuSn8 with Lubrication Indents high precision oil less bronze bearings

Wrapped Bronze Bearings (low-maintenance), used for heavy load applications, offered with lubrication pockets, grooves or thru holes, plain or flanged bearings and strip

Description

Bronze Wrapped Bearing with Oil Pockets(090 CYLINDRICAL BUSHES)

Sliding Bearing 090 caused by chemical and environments. During the operation, the grease & oil will be released from the Indentations, which allow for long-term lubrication. Compare with Machined bronze bearings; 090 can offer some advantages including thin wall, lower weight, cheaper cost, high load etc. It is suitable for high load, lower speed application like construction, Transport, and agriculture machinery.



090 Chemical Composition

Part NO

Material

Cu

Sn

P

Pb

Zn

090

CuSn8

91.3%

8.5%

0.2%

/

/


 090 CYLINDRICAL BUSHES FLANGE BUSHES Bronze Bearing Factory,Bronze Bushing supplier,CuSn8 flange bronze bush

  • Bearing material made of solid bronze strip with indents for lubrication

  • Good wear resistance, suitable for rough conditions

  • Optimum performance under relatively high loads and low speeds

 1.Easy for fitting and lubricating
 2.High load capacity
 3.Inner Diameter machineable parts are available against order
 4.High level thermal conductivity
 5.Minimum overall dimensions
 6.Chemical resistance.
 7. Initial pre-lubrication at assembly required...




Strusture



The bearings are wrapped from a  cold formed homogenous bronze (CuSn8) with exceptional material properties. The standard sizes are fitted with diamond shaped lubrication indents in the bearing surface. These indents serve as lubricant reservoirs to rapidly build up a lubrication film at the start of movement and thereafter reduce the running friction. The material is suitable for construction and agricultural machinery applications.



Structure And Composition

Bronze Bearings and Bronze Sleeve Bushings made of CuSn8 with Lubrication Indents

We provide professional sliding bearing solution

Microsection

CuSn8 Bronze Sleeve Flanged Bearings Diamond Indentations Or Stamped With Oil Grooves

CuSn8 with
composition
Sn 8 %
P < 0.05 %
Cu Rest




OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Good

Water lubricated

Poor

Process fluid lubricated

Poor



Technical Data




Maximum load
Static load
N/mm²
120
Dynamic load
N/mm²
40

Operating temperature
Minimal
-40
Max greased
150

Max oil lubricated
250


Grease/Oil lubricated
Maximum sliding speed
m/s
2.5
Maximum PV factor
N/mm²·m/s
2.8
Coefficient of friction

0.06-0.15

Availability

 Bearing forms available in standard dimensions
· Cylindrical bushes
Bearing forms made to order: cylindrical bushes with non-standard dimensions, flanged bushes, sliding plates, customized bearing designs

Typical Applications


This type of bushing is widely applied in hoisting machines and other construction machines, automobiles, tractors, trucks, machines tools and some mineral engines. It can be fabricated into bushes, half bearings, flanged bushes, taist washers, spherical bearing andsoon.
