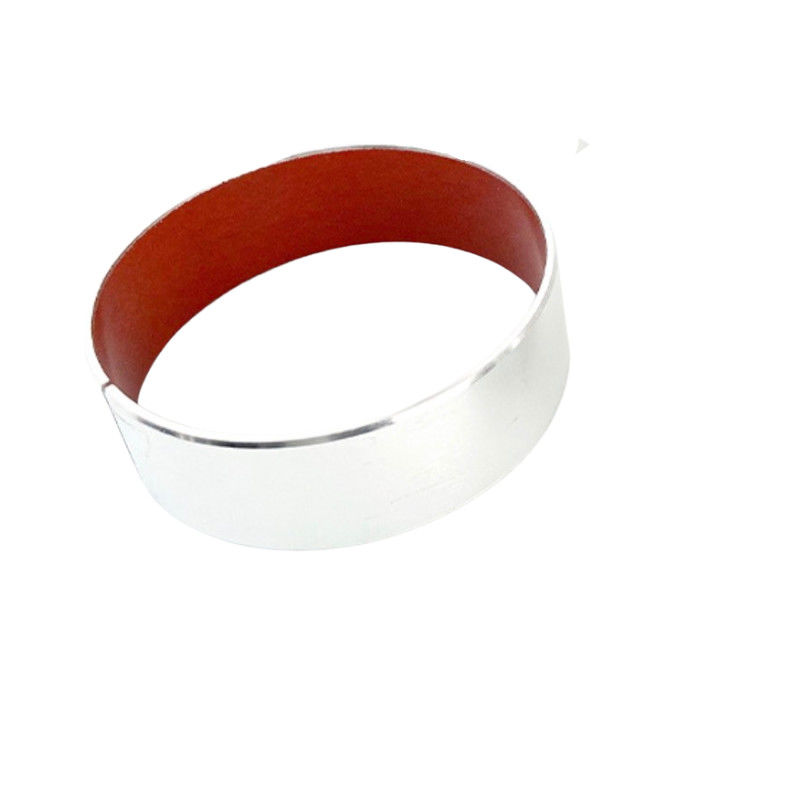

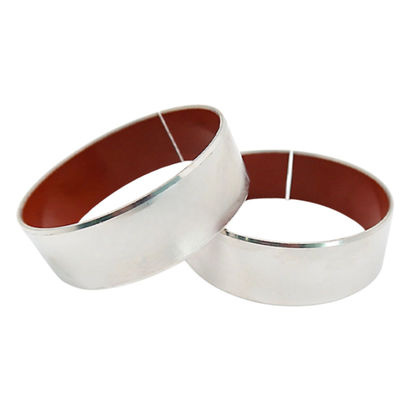

Bushing Flanged Size Metal-Polymer Bearings | Metric Size

Place of Origin Flanged Bushings Manufacturer
Brand Name VIIPLUS
Certification ISO 9001
Model Number metal-polymer-self-lubricating-lead-free-bearing
Minimum Order Quantity 1500 Piece/Pieces (Min. Order)
Price Negotiable
Packaging Details STANDARD EXPORT PACKING.CARTONS / PALLETS /WOODEN CASE
Delivery Time 2~4 Weeks
Payment Terms T/T PREPARD, T/T, L/C, D/A, D/P
Supply Ability 500000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low-Carbon Steel + Porous Bronze + /POM Plating Tin Or Copper
Bearing Forms Available In Standard Dimensions Cylindrical Bushes Flanged Bushes Sliding Plates Thrust Washers Flanged Washers Typical Applications Gearbox, Clutch, Bushings For Harvesters.
Manufacturing WASHERS WITH MACHINED OIL GROOVES FOR TRANSMISSIONS Size Bushings Inch And Metric
Featufe Metal-Polymer Low Friction Plain Bearings Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Item Bucha Sinterizada Flangeada
High Light Flanged Sleeve Bearing Bushing Manufacturers Flange Bearing Bushing Manufactures Flange Bearing Dry Slide Bushings In Various Designs And From Different Materials. ... And Flanged Bushings Can Accommodate Radial And Axial Loads In One Direction.
Flange Bushes Flanged Bushings (mounted), Depending On Bore Diameter D: Flange Diameter Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

flanged sleeve bearing bronze

,

ptfe flange bushing

,

Metric Bushing Flanged

Leave a Message
Product Description

Bushing Flanged Size Metal-Polymer Bearings, in metric sizes, refers to a specific type of bushing that features a flange design and is manufactured to metric dimensions. Metal-Polymer Bearings, often associated with sealing products, here could indicate a specific manufacturer or a generic term for a bushing that meets certain quality standards or specifications.

In this context, the bushing is a mechanical component designed to reduce friction and wear between two moving parts. The flanged design provides additional stability and support, ensuring a secure fit and preventing axial movement.

Metric sizes for these bushings refer to the dimensions of the bushing and its flange, measured in millimeters (mm) or other metric units. These dimensions may include the outer diameter (OD), inner diameter (ID), flange diameter, and flange thickness, among others.

When selecting a Bushing Flanged Size Metal-Polymer Bearings in metric sizes, it's important to consider the specific requirements of the application, including the dimensions of the mating parts, the operating environment, and the desired performance characteristics. Manufacturers typically provide detailed specifications and product catalogs to help customers choose the right bushing for their needs.

In summary, Bushing Flanged Size Metal-Polymer Bearings, in metric sizes, refers to a high-quality bushing with a flange design and metric dimensions, suitable for applications requiring reduced friction, wear resistance, and stable fitting.

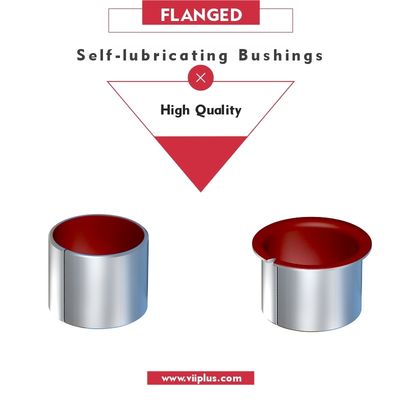

Flanged Sleeve Bushing, Bushing Flanged Size Metal-Polymer Bearings



Low Friction Bearings, Bushings - Metal Polymer Bearings.Steel Shell with POM/ Plastic Liner - Inch and Metric Size Made-to-order Online.WASHERS WITH MACHINED OIL GROOVES FOR TRANSMISSIONS. We supply main shaft guide bearings :

Bonded/mechanically fastened into the split or non-split bearing housings. If you need help in selecting the best bushings for your particular application, please remember that design engineering and application assistance are available from VIIPLUS as part of our value-added services designed to make your job easier.Custom-designed, if required.



Typical Applications



Automotive Braking systems, clutches, gearbox and transmissions, hinges - door bonnet and boot, convertible roof tops, pedal systems, pumps - axial, radial, gear and vane, seat mechanisms, steering systems, struts and shock absorbers, wiper systems. Industrial Aerospace, agricultural, construction equipment, food and beverage, marine, material handling, office equipment, packaging equipment, pneumatic and hydraulic cylinders, railroad and tramways, textile machinery, valves.
Plain Bearings sleeve bearings and Sleeve Bearings Metal-Polymer Low Friction Boccole  Cylindrical Red
Bushing Flanged Size Metal-Polymer Bearings | Metric Size


Red Self-Lubricating Bearings:


Bushing Blocks and Thrust Plates  bearing material is known by various names such as PTFE & POM
Excellent friction & low wear in medium temperature applications. Polymer bearings available as specials. Application for Shock absorber link bushing

Metal-Polymer Composite Bushing. Optimum performance under relatively high loads and low speeds. Marginally lubricated bushings for grease- or oil-lubricated applications. Contains grease indents in sliding layer; plain sliding layer available by request.



  • Metal/Polymer Composite
  • Plain Bearings
  • Maintenance-free
  • Low-maintenance
  • Special designs, special materials



Characteristics



Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + /Fibre
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + Red

low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements


Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.


Structure


1. /Polymer fibers mixture thickness 0.01~0.03mm. The lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm provides good corrosion resistance.



Structure & Composition



· Metal-Polymer Composite Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Fillers



Microsection



Flanged Sleeve Bearing

Sliding layer
+ Fillers
Porous Bronze Sinter
Steel Backing




* Depending on operating conditions


Technical data



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

PV

Hydrodynamic

30N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient

0.03~0.20

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1





OPERATING PERFORMANCE

Dry

Good

Oil-lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good



Availability



Bearing forms available in standard dimensions


· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers



Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
