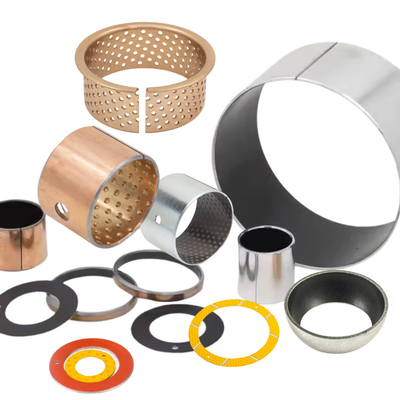

Flanged Plain Bushes Split Type
| Place of Origin | Flanged Bushings Manufacturer |
|---|---|
| Brand Name | Met Metal-Polymer Bearings Bearings () China Bushing |
| Certification | DIN1709 |
| Model Number | Bushing type: Flanged Bearings, in Flange Width, Material |
| Minimum Order Quantity | Negotiable |
| Price | bearings metric sizes,thrust washers,flanged bearings Suppliers |
| Packaging Details | packing details for Stable perfomance Flanged bushing |
| Delivery Time | 7~20 Days |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | 100000 Piece/Pieces per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Carton Steel , Bronze , | Plating | Tin Or Copper |
|---|---|---|---|
| Characteristic | Low-maintenance And Maintenance-free Plain Bearings | Type | Bushes, Collar Bushes, Washers, Strips Or Special Designs |
| Size | Standard Size Available | Quality | OEM |
| Port | Shanghai | Bearing Bushing Factory Price | Tiffany@viiplus.com |
| Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ | Item | Bucha Sinterizada Flangeada |
| High Light | Flanged Sleeve Bearing Bushing Manufacturers | Flange Bearing Bushing | Manufactures Flange Bearing Dry Slide Bushings In Various Designs And From Different Materials. ... And Flanged Bushings Can Accommodate Radial And Axial Loads In One Direction. |
| Flange Bushes | Flanged Bushings (mounted), Depending On Bore Diameter D: Flange Diameter | Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ |
| Highlight | flanged sleeve bearing bronze,metric flanged sleeve bearing |
||
Product Description
The flanged plain bushes of split type are designed to offer superior performance and durability in a range of industrial applications. Constructed from (Polytetrafluoroethylene), these bushes exhibit excellent wear resistance, low friction, and high chemical stability.
The split-type design allows for easy installation and removal, making maintenance and replacement a breeze. The flanged feature provides additional stability and support, ensuring a secure fit within the application.
These flanged plain bushes are suitable for use in high-temperature and corrosive environments, making them an ideal choice for demanding industrial settings. Wh you're looking to upgrade existing machinery or install new equipment, these bushes will provide reliable and long-lasting performance.
Contact us today to learn more about our flanged plain bushes and how they can enhance the efficiency and durability of your industrial operations.
Custom Flange Bushing steel backed inch size Metal-Polymer Anti-Friction Plain Bearings flanged bushings Sleeve tuleja Thermoplastic plain bearing Bushes
BUSHING WITH BRONZE BACKING
Self-lubricating flange bearing with sliding layer.
Rolled Dry Sliding Bearings ()
Steel + Bronze Powder + /Fibre
Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with
Characteristics
VSB-10 Self-Lubricating Multilayer Composite Bushing
- Bushing material suitable for lubricated applications
- Self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
- Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.
Strusture
1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.
Technical Data
Carbon Steel + Copper Powder + ( + Pb + Filler)
Structure And Composition
1.Metal-Polymer Composite Self-lubricating Bushing Material
2.Steel Back + Porous Bronze Sinter +
3. + Lead
Microsection
|
|
Sliding layer |
|
OPERATING PERFORMANCE |
|
|
Dry |
Very Good |
|
Oil lubricated |
Good |
|
Grease lubricated |
Fair |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Fair |
* Depending on operating conditions
Technical Data
|
Max. load |
Static |
250N/mm2 |
|
Dynamic |
140N/mm2 |
|
|
Max. speed |
Dry |
2m/s |
|
Lubrication |
>2m/s |
|
|
Max. PV (Dry) |
Short-time |
3.6N/mm2*·m/s |
|
Continuous |
1.8N/mm2*·m/s |
|
|
Temp. |
-195℃~+280℃ |
|
|
Friction coefficient |
0.03~0.20 |
|
|
Thermal conductivity |
42W (m·k)-1 |
|
|
Coefficient of thermal expansion |
11*10-6k-1 |
|
Technical Data

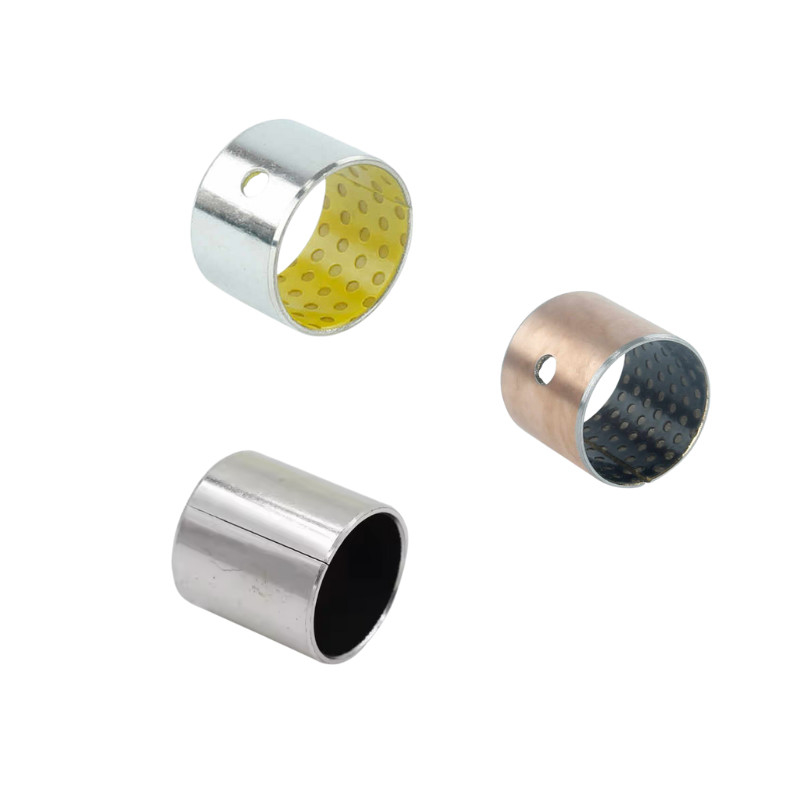

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates
Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs
Technical Data
This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers, graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
