Plastic mold graphite plugged bushings, along with cam components and standard retainers, are crucial components in the plastic molding industry. These bushings are specifically designed to provide smooth and reliable sliding motion within the mold, while also resisting wear and corrosion.

The graphite plugs incorporated into the bushings act as a self-lubricating mechanism, reducing friction and wear between the bushing and the mating surfaces. This self-lubricating feature eliminates the need for external lubricants, making the bushings more maintenance-friendly and reducing downtime.

The cam components, often paired with the bushings, are precision-machined to provide smooth and accurate motion control. They are typically used in mold-opening and closing mechanisms, ensuring that the mold halves align precisely and open/close smoothly.

The standard retainers are used to securely position and retain the bushings and cam components within the mold. They provide a robust and reliable mounting solution, ensuring that the bushings and cams remain in place and function properly during the molding process.

Overall, plastic mold graphite plugged bushings, cam components, and standard retainers work together to provide a smooth, reliable, and maintenance-friendly molding solution. Their precision design and construction ensure that the mold operates efficiently and produces high-quality plastic parts.

Plastic forming machine bronze bushing manufacturers made to order from china

Widely used in molding machinery injection molding machine, rubber machinery, die casting machine and other occasions.

VIIPLUS Made In China Bronze Bushing Widely used in molding machinery injection molding machine, rubber machinery, die casting machine and other occasions.

company has been committed to the research and development of new products and the improvement of material performance. The improved JDB series solid inlaid self-lubricating bushing has the characteristics of high strength, wear resistance and maintenance free, and has been successfully matched with many world-renowned injection molding and die casting machine manufacturers.

Plastic Molding Machines Assemblies Bushings

VIIPLUS Sliding Bearings mainly engages in the development, manufacture and sales of Precision Mold Bushes, Precision die casting bearings, Machining and Precision Plastic Ejection Material Bearings.

Main management project: , mold bearings development, manufacture as well as cast bronze bushings production and so on.

Familiar with plastic molding bearings process and molding and tooling issues solutions application.

Mould bushing manufacturing, plastic molding metal bearings.

Self-Lubricating Oil-Less Type Bushings Instructions

Improve injection molding efficiency Standard German alloy standards din Plastic mold bushings components,High precision processing bearings equipment is the guarantee of high quality.

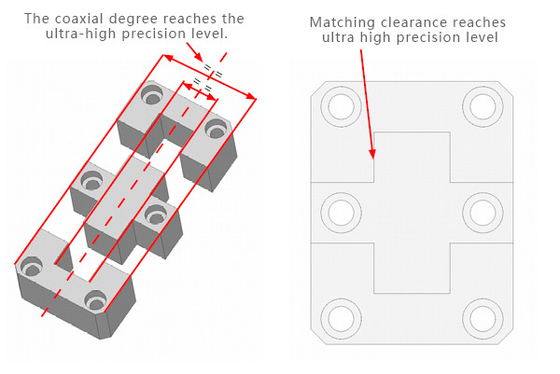

Our plastic mould components are made with reference to the quality requirements of Japan , the matching clearance between the parts is higher than the precision of the domestic market, the perpendicularity and position of the pin hole are controlled in a higher precision. Product repeat positioning accuracy is high, in line with the requirements of interchangeability, so as to improve the efficiency of injection molding.Productivity increases and cost reductions are the main benefits to be used by sliding bearings  application of injection molding processes.

C86300 Manganese Bronze with Graphite Plugs Metric Sleeves Size

Bushing for replacement of worn equipment

Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.

Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

• Inch Sleeves
• Metric Sleeves
• Metric Flanges
• Metric Washers

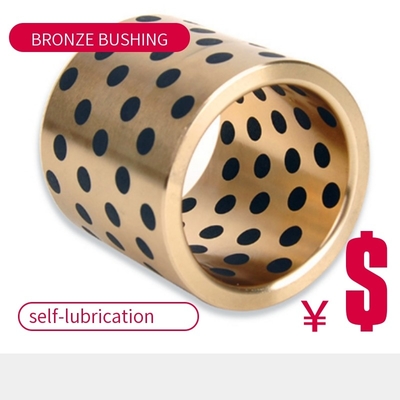

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings

Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.

• Wear Plates
• Wear Strips
• Bushings
• Slide Assemblies
• Guide Components

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

• Inch Sized Bushings
• Metric Sized Bushings

Material

C86300 Manganese Bronze

C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.

Bronze sleeve bearings flanged bronze bushings for sale

Performance

Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds

The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2

Applications

Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
