C86300 SAE 430B Casting Bronze Press Die Component Thrust Washer Manganese Bronze

Brand Name SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin China (Mainland) Marerial C86300 Manganese Bronze
Cu (Min) 60% Type Washer
Application Washer ,Bushing Industrial Szie Standard, Non-standard Customization
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite impregnated bronze bushings

,

graphite filled bronze bushes

Leave a Message
Product Description

Our company is proud to offer the C86300 SAE 430B casting bronze press die component, specifically the thrust washer, crafted from high-quality manganese bronze. This material choice ensures excellent wear resistance, corrosion resistance, and strength, making it ideal for demanding industrial applications.

The thrust washer is a crucial component of the press die system, responsible for withstanding significant thrust forces and ensuring smooth operation. Its precision casting and machining guarantee a perfect fit within the die assembly, minimizing friction and maximizing efficiency.

The use of C86300 SAE 430B bronze alloy ensures a uniform and dense microstructure, providing optimal mechanical properties and durability. The manganese content in the alloy further enhances its strength and wear resistance, making it particularly suitable for high-load applications.

Our thrust washers are designed to meet strict quality standards and are subjected to rigorous testing to ensure their reliability and performance. We understand the importance of precision and durability in industrial applications and strive to deliver components that exceed customer expectations.

Whether you're upgrading your existing press die system or building a new one, our C86300 SAE 430B casting bronze thrust washers are an excellent choice. Contact us today to learn more about our products and how we can help you achieve optimal performance in your industrial operations.



ASTM Casting Copper Alloy Lead Free Brass C86300 The BUSHING solid  bearing is on a high  brass c86300e.

Find Graphite Bronze Bushings related suppliers, manufacturers, products on bronzegleitlager.com - a trusted source of Graphite Bronze Bushings information. Oilless bearing, oiles bush, oiles guide bush , graphite plugged bronze bearing .

A high performance solid lubrication product inlaid with graphite or MoS2 solid lubricants.It breaks through the limitation of ordinary bearing depending on oil film lubrication.In the process of use, through friction heat to make solid lubrication and shaft friction, the formation of oil and powder co-lubrication excellent conditions, not only to protect the shaft from wear, but also to make solid lubrication characteristics eternal.Its hardness compares general copper to cover one times higher, wear-resisting property also is one times higher.At present, the product has been used in metallurgical continuous casting machine, train support, steel rolling equipment, mining machinery, ships, gas turbines and other high temperature, high load, low load and other occasions.

Metal Backed Bronze Powder and Graphite Series - Metric Bushing.The Graphite Bronze Bushing Series  are metal backed with bronze alloy graphite oil-less bushings. They are plug grapgihte material used as sliding surfaces and Bronze material as backing metal. China Manufacture of Plug Graphite Bronze Bushings Available. Strict Quality Control. Deliver on time. Reasonable Price. Superior quality. Professional service. Types: C86300 Bronze Graphite Bearing,Flanged Bushing,Plate,Washer.

Oil - Less C86300 Manganese Bronze Bushing SAE 430B Self Lube Bushings Plate Press die component Slide elements

Chinese in high performance Sliding bearing solutions,High quality Thrust slide washer  C86300 Bronze Washer , from VIIPLUS, premium brand.bronze based backing with solid graphite lubricant ,self lubricating Sintered bronze impregnated with oil, similar to SINT A 50



Engineered for a Longer More Reliable Service Life C86300 Manganese Bronze Washer Slide Bearings plate

Instructions


Introduction Our slide components include bronze wear plate ,bronze bushe,washer etc. We make according to DIN standard ,NAAMS standard ,Sankyoilless standard ,etc.and we also accept customs items , and obtains the good word of mouth in the market.



Casting Manganese Bronze C86300 hollow bar



Specification: ASTM B271, B505, B584, B22, SAE J461, 462, SAE-430B

Nominal Chemical Composition:

Cu: 63%

Fe: 3%

Al: 6.2%

Zn: 25%

Mn: 3.8%



Mechanical Properties:



Tensile Strength: min 110ksi

Yield Strength: min 62ksi

Elongation: min 14%

Application: slow-speed heavy load bearings



Self-Lubricating Oil-Less Type Washer



solid lubricant embedded bearing is made of casting bronze with graphite embedded evenly in it.It has superior performance than normal bearing whose lubrication depends on oil film.Under condition of heavy duty,high temperature,slow speed, anti-corrosion or where oil is hard to be introduced,Its performance doubles both in hardness and anti-friction.

It can be widely apied in continuous casting machines,mining machine,ships,air uwrbine,hydraulic turbinesandplasticinjection molding machines.



Basic material

CuZn25A16Fe3Mn3

(C86300)

Dynanic load

100N/mm²

Base hardness

HB210~245

Friction Coef

<0.16

Temperature Max

300℃

Speed limit

dry 0.4m/s oil 5m/s





Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

  • Inch Sleeves

  • Metric Sleeves

  • Metric Flanges

  • Metric Washers

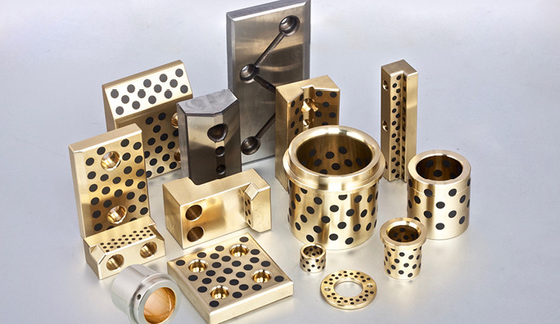

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings:Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.

  • Wear Plates

  • Wear Strips

  • Bushings

  • Slide Assemblies

  • Guide Components

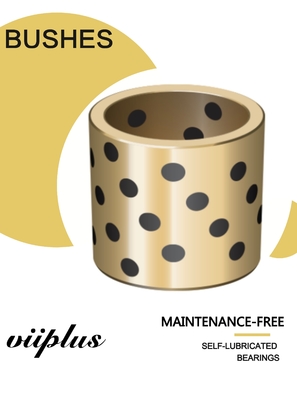

Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

  • Inch Sized Bushings

  • Metric Sized Bushings

Material:C86300 Manganese Bronze:C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.

Bronze sleeve bearings flanged bronze bushings for sale



C86300 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

5.0-7.50

Manganese, Mn

2.5-5.0

C86200 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance



Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds



The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2





Applications



Metal self-lubricating gasket washer sliding bearing can be used in dry friction, high temperature, high pressure, corrosive environment, wet and affected by chemicals occasions, is widely used in automobile production lines, hydraulic engineering, reservoir gate, injection molding machine, continuous casting machine, metallurgical machinery, mining machinery, turbine generator, hydraulic generator and other fields.





Solid Lubricants bronze bearing oilless
