Excellent Corrosion Resistance PTFE Stainless Steel Sleeve Bushing Fiberglass ​Valve Stems Bushes

Place of Origin Stainless Steel Backed Bushings
Brand Name CHINA CUSTOM THERMOPLASTIC BUSHING SELF-LUBRICATING BEARINGS
Certification WRAPPED SPILT SLEEVE BUSHING, STAINLESS STEEL 316, DIN 1494 / ISO 3547, LOW-MAINTENANCE
Model Number CUSTOM THERMOPLASTIC AND TEX FABRIC WEAVE PTFE/ GLASS FIBERS STAINLESS-STEEL 316 BEARINGS
Minimum Order Quantity >=100 Pieces
Price Negotiable
Packaging Details EXPORT CARTONS,WOODEN CASES
Delivery Time 2-4 WEEKS
Payment Terms TT IN ADVANCE, Western Union
Supply Ability Stainless Steel Bushing Manufacturers Self Lubricating Plain Bearings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Bushing Material WOVEN PTFE FABRIC,STAINLESS STEEL 316,CARBON STEEL MATERIAL,PTFE FIBRES FABRIC Characteristic Low-maintenance And Maintenance-free Plain Bearings
Size Slide Bearings Customized Standard Size Available Shapes & Forms Plain Cylindrical Bearings, Flanged Bearings, Thrustwashers, Sliding Plates.
Assembly No Bore Or Grinding Special Bushings Manufacturing Self Lubricating Plain Bearings With TEX FABRIC Sliding Layer.
Areas Of Use Die & Mold Plain Bearing,Turbines, Pumps,Valve And Pipeline Bushings Solutions Bushing Type Split Seam
Operating Temperature Range -50°C~+250°C Bushing Diameter Inch Size Available
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Stainsteel Steel 316 Backed Bushings High Light Stainless Steel Bushing Manufacturers
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

steel backed bronze bushing

,

stainless steel sleeve bearing

Leave a Message
Product Description

Stainless Steel Bushings



self-lubricating bearings, ptfe bearings, inch series, part interchange, part numbering system, technical data.

The VIIPLUS INTERNATIONAL MADE TO ORDER FROM CHINA Woven PTFE Fabric guide bearing works excellent in any pivot or linkage application.For construction and farm equipment, this product is typically used in kingpins, rock shafts, differentials, hinges, pedals and many other pivot points.

Maintenance-free plain bearings Easy to install, Highly durable.Special stainless steel bushings layer manufacturing.Valve stems Bushings & Bearings PTFE Flocked Kevlar Fabric incapsulated in Phenolic Resin.

Excellent corrosion resistance Stainless Steel Bearings:

PTFE Lined with Fiberglass backing | Valve Shaft Bushings

Manufacturer and supplier of bronze steel bushing and self-lubricating bearing, such as bronze sleeve bushings, steel ptfe bearings, stainless steel bushing products,and other industrial components. Specializing in bushings solutions for valve and pipelines. www.bronzegleitlager.com is the leading plain bearings sourcing and sliding bearing supplier discovery online order chinese for procurement professionals, engineers, plant & facility management and business.

VIIPLUS Sliding Bearing Stainless self lubricating plain bearings for coastal applications

The sliding bearing solution is designed to replace the lubricated bronze bearings found in key chassis components, including specially designed stainless steel fabric composite bearings and dual component axial thrust washers made of engineered plastic mate

The size of the sliding bearing solution is the same as that of the bronze bearings it replaces, eliminating costly modifications and facilitating the modification process.

Stainless Steel Bearings:PTFE Lined with Fiberglass backing series is a large diameter valve line designed for a wide variety of liquid and gaseous applications. With over many years of service in the field, the valve bushing & self-lubricating bearings is fully compliant with customerrequirements.It has high bearing capacity, good resistance to friction and wear, and good impact resistance.Bearings do not swell because they absorb water, and their inert nature makes them suitable for corrosive environments such as seawater.

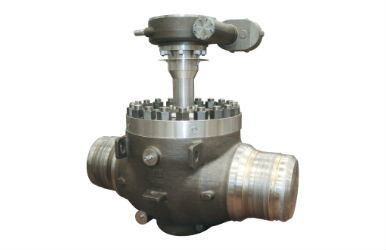

Air Valves Bearings | Check Valves Butterfly Valves Plug Valves Gate Valves Bushings



All bearings shall be of the self-lubricating, corrosion-resistant, sleeve
type. Bearings shall be designed for horizontal and/or vertical shaft loading.
The valve assembly shall be furnished with a factory set two-way thrust
bearing designed to center the valve disc in the valve seat at all times

Many bushings for Valves are available with special materials that may not be listed. Please contact the factory to inquire about custom orders.

Stainless Steel 316 Bearings +PTFE Fabric
Stainless Steel Bearing are the only bearings to offer a stainless steel substrate and are among the top performing composite bearings. Featuring a unique polymer liner that is sintered to a porous bronze interlayer, VIIPLUS bearings are self-lubricating and can withstand the most rigorous of working environments. It can easily manage high-loads and excessive speeds, and can protect your machinery in the rare instance of a liner wear-thru, since the supporting interlayer is also self-lubricating. VIIPLUS bearings offer exceptional performance over a wide range of load, speed and temperature conditions. The self-lubricating materials are resistant to wear, chemicals, cavitation, flow erosion and fatigue, making them ideal for a wide range of uses in oil and gas operations. From the top of the derrick to the ocean floor and from the pipeline to the pump, our bearing solutions provide longer service life, reduced maintenance and grease-free operation in the following applications: VIIPLUS is professional as one of the leading manufacturers and suppliers of VSB-36 stainless steel 316 bearings +ptfe fabric in China. We are equipped with a professional factory which covers a great deal of qualified workers. Please feel free to buy oob-36 stainless steel 316 bearings +ptfe fabric made in China with us.

VIIPLUS Sliding bearing solutions for your applications



du bushing size chart



du bushing size chart
  Di (mm) Do (mm) B (mm) bearing shaft The largest diameter (mm) Minimum diameter (mm) The maximum clearance (mm) The minimum clearance (mm)
0203DU 2 3.5 3 H6 h6 2.048 2 0.054 0
0205DU 2 3.5 5 H6 h6 2.048 2 0.054 0
0303DU 3 4.5 3 H6 h6 3.048 3 0.054 0
0305DU 3 4.5 5 H6 h6 3.048 3 0.054 0
0306DU 3 4.5 6 H6 h6 3.048 3 0.054 0
0403DU 4 5.5 3 H6 h6 4.048 4 0.056 0
0404DU 4 5.5 4 H6 h6 4.048 4 0.056 0
0406DU 4 5.5 6 H6 h6 4.048 4 0.056 0
0410DU 4 5.5 10 H6 h6 4.048 4 0.056 0
0505DU 5 7 5 H7 f7 5.055 4.99 0.077 0
0508DU 5 7 8 H7 f7 5.055 4.99 0.077 0
0510DU 5 7 10 H7 f7 5.055 4.99 0.077 0
0604DU 6 8 4 H7 f7 6.055 5.99 0.077 0
0606DU 6 8 6 H7 f7 6.055 5.99 0.077 0
0608DU 6 8 8 H7 f7 6.055 5.99 0.077 0
0610DU 6 8 10 H7 f7 6.055 5.99 0.077 0
0705DU 7 9 5 H7 f7 7.055 6.99 0.083 0.003
0710DU 7 9 10 H7 f7 7.055 6.99 0.083 0.003
0806DU 8 10 6 H7 f7 8.055 7.99 0.083 0.003
0808DU 8 10 8 H7 f7 8.055 7.99 0.083 0.003
0810DU 8 10 10 H7 f7 8.055 7.99 0.083 0.003
0812DU 8 10 12 H7 f7 8.055 7.99 0.083 0.003
1006DU 10 12 6 H7 f7 10.058 9.99 0.086 0.003
1008DU 10 12 8 H7 f7 10.058 9.99 0.086 0.003
1010DU 10 12 10 H7 f7 10.058 9.99 0.086 0.003
1012DU 10 12 12 H7 f7 10.058 9.99 0.086 0.003
1015DU 10 12 15 H7 f7 10.058 9.99 0.086 0.003
1020DU 10 12 20 H7 f7 10.058 9.99 0.086 0.003
1208DU 12 14 8 H7 f7 12.058 11.99 0.092 0.006
1210DU 12 14 10 H7 f7 12.058 11.99 0.092 0.006
1212DU 12 14 12 H7 f7 12.058 11.99 0.092 0.006
1215DU 12 14 15 H7 f7 12.058 11.99 0.092 0.006
1220DU 12 14 20 H7 f7 12.058 11.99 0.092 0.006
1225DU 12 14 25 H7 f7 12.058 11.99 0.092 0.006
1310DU 13 15 10 H7 f7 13.058 12.99 0.092 0.006
1320DU 13 15 20 H7 f7 13.058 12.99 0.092 0.006
1405DU 14 16 5 H7 f7 14.058 13.99 0.092 0.006
1410DU 14 16 10 H7 f7 14.058 13.99 0.092 0.006
1412DU 14 16 12 H7 f7 14.058 13.99 0.092 0.006
1415DU 14 16 15 H7 f7 14.058 13.99 0.092 0.006
1420DU 14 16 20 H7 f7 14.058 13.99 0.092 0.006
1425DU 14 16 25 H7 f7 14.058 13.99 0.092 0.006
1510DU 15 17 10 H7 f7 15.058 14.99 0.092 0.006
1512DU 15 17 12 H7 f7 15.058 14.99 0.092 0.006
1515DU 15 17 15 H7 f7 15.058 14.99 0.092 0.006
1520DU 15 17 20 H7 f7 15.058 14.99 0.092 0.006
1525DU 15 17 25 H7 f7 15.058 14.99 0.092 0.006
1610DU 16 18 10 H7 f7 16.058 15.99 0.092 0.006
1612DU 16 18 12 H7 f7 16.058 15.99 0.092 0.006
1615DU 16 18 15 H7 f7 16.058 15.99 0.092 0.006
1620DU 16 18 20 H7 f7 16.058 15.99 0.092 0.006
1625DU 16 18 25 H7 f7 16.058 15.99 0.092 0.006
1720DU 17 19 20 H7 f7 17.061 16.99 0.095 0.006
1810DU 18 20 10 H7 f7 18.061 17.99 0.095 0.006
1815DU 18 20 15 H7 f7 18.061 17.99 0.095 0.006
1820DU 18 20 20 H7 f7 18.061 17.99 0.095 0.006
1825DU 18 20 25 H7 f7 18.061 17.99 0.095 0.006
2010DU 20 23 10 H7 f7 20.071 19.99 0.112 0.01
2015DU 20 23 15 H7 f7 20.071 19.99 0.112 0.01
2020DU 20 23 20 H7 f7 20.071 19.99 0.112 0.01
2025DU 20 23 25 H7 f7 20.071 19.99 0.112 0.01
2030DU 20 23 30 H7 f7 20.071 19.99 0.112 0.01
2215DU 22 25 15 H7 f7 22.071 21.99 0.112 0.01
2220DU 22 25 20 H7 f7 22.071 21.99 0.112 0.01
2225DU 22 25 25 H7 f7 22.071 21.99 0.112 0.01
2230DU 22 25 30 H7 f7 22.071 21.99 0.112 0.01
2415DU 24 27 15 H7 f7 24.071 23.99 0.112 0.01
2420DU 24 27 20 H7 f7 24.071 23.99 0.112 0.01
2425DU 24 27 25 H7 f7 24.071 23.99 0.112 0.01
2430DU 24 27 30 H7 f7 24.071 23.99 0.112 0.01
2515DU 25 28 15 H7 f7 25.071 24.99 0.112 0.01
2520DU 25 28 20 H7 f7 25.071 24.99 0.112 0.01
2525DU 25 28 25 H7 f7 25.071 24.99 0.112 0.01
2530DU 25 28 30 H7 f7 25.071 24.99 0.112 0.01
2550DU 25 28 50 H7 f7 25.071 24.99 0.112 0.01
2815DU 28 32 15 H7 f7 28.085 27.99 0.126 0.01
2820DU 28 32 20 H7 f7 28.085 27.99 0.126 0.01
2825DU 28 32 25 H7 f7 28.085 27.99 0.126 0.01
2830DU 28 32 30 H7 f7 28.085 27.99 0.126 0.01
3010DU 30 34 10 H7 f7 30.085 29.99 0.126 0.01
3015DU 30 34 15 H7 f7 30.085 29.99 0.126 0.01
3020DU 30 34 20 H7 f7 30.085 29.99 0.126 0.01
3025DU 30 34 25 H7 f7 30.085 29.99 0.126 0.01
3030DU 30 34 30 H7 f7 30.085 29.99 0.126 0.01
3040DU 30 34 40 H7 f7 30.085 29.99 0.126 0.01
3220DU 32 36 20 H7 f7 32.085 31.99 0.135 0.015
3230DU 32 36 30 H7 f7 32.085 31.99 0.135 0.015
3240DU 32 36 40 H7 f7 32.085 31.99 0.135 0.015
3520DU 35 39 20 H7 f7 35.085 34.99 0.135 0.015
3530DU 35 39 30 H7 f7 35.085 34.99 0.135 0.015
3535DU 35 39 35 H7 f7 35.085 34.99 0.135 0.015
3540DU 35 39 40 H7 f7 35.085 34.99 0.135 0.015
3550DU 35 39 50 H7 f7 35.085 34.99 0.135 0.015
3720DU 37 41 20 H7 f7 37.085 36.99 0.135 0.015
4020DU 40 44 20 H7 f7 40.085 39.99 0.135 0.015
4030DU 40 44 30 H7 f7 40.085 39.99 0.135 0.015
4040DU 40 44 40 H7 f7 40.085 39.99 0.135 0.015
4050DU 40 44 50 H7 f7 40.085 39.99 0.135 0.015
4520DU 45 50 20 H7 f7 45.105 44.99 0.155 0.015
4530DU 45 50 30 H7 f7 45.105 44.99 0.155 0.015
4540DU 45 50 40 H7 f7 45.105 44.99 0.155 0.015
4545DU 45 50 45 H7 f7 45.105 44.99 0.155 0.015
4550DU 45 50 50 H7 f7 45.105 44.99 0.155 0.015
5020DU 50 55 20 H7 f7 50.11 49.99 0.16 0.015
5030DU 50 55 30 H7 f7 50.11 49.99 0.16 0.015
5040DU 50 55 40 H7 f7 50.11 49.99 0.16 0.015
5050DU 50 55 50 H7 f7 50.11 49.99 0.16 0.015
5060DU 50 55 60 H7 f7 50.11 49.99 0.16 0.015
5520DU 55 60 20 H7 f7 55.11 54.99 0.17 0.02
5525DU 55 60 25 H7 f7 55.11 54.99 0.17 0.02
5530DU 55 60 30 H7 f7 55.11 54.99 0.17 0.02
5540DU 55 60 40 H7 f7 55.11 54.99 0.17 0.02
5550DU 55 60 50 H7 f7 55.11 54.99 0.17 0.02
5555DU 55 60 55 H7 f7 55.11 54.99 0.17 0.02
5560DU 55 60 60 H7 f7 55.11 54.99 0.17 0.02
6020DU 60 65 20 H7 f7 60.11 59.99 0.17 0.02
6030DU 60 65 30 H7 f7 60.11 59.99 0.17 0.02
6040DU 60 65 40 H7 f7 60.11 59.99 0.17 0.02
6050DU 60 65 50 H7 f7 60.11 59.99 0.17 0.02
6060DU 60 65 60 H7 f7 60.11 59.99 0.17 0.02
6070DU 60 65 70 H7 f7 60.11 59.99 0.17 0.02
6530DU 65 70 30 H7 f7 65.11 64.99 0.17 0.02
6550DU 65 70 50 H7 f7 65.11 64.99 0.17 0.02
6570DU 65 70 70 H7 f7 65.11 64.99 0.17 0.02
7040DU 70 75 40 H7 f7 70.11 69.99 0.17 0.02
7050DU 70 75 50 H7 f7 70.11 69.99 0.17 0.02
7070DU 70 75 70 H7 f7 70.11 69.99 0.17 0.02
7560DU 75 80 60 H7 f7 75.11 74.99 0.17 0.02
7580DU 75 80 80 H7 f7 75.11 74.99 0.17 0.02
8040DU 80 85 40 H7 h8 80.155 80.02 0.201 0.02
8060DU 80 85 60 H7 h8 80.155 80.02 0.201 0.02
8080DU 80 85 80 H7 h8 80.155 80.02 0.201 0.02
80100DU 80 85 100 H7 h8 80.155 80.02 0.201 0.02
8530DU 85 90 30 H7 h8 85.155 85.02 0.209 0.02
8560DU 85 90 60 H7 h8 85.155 85.02 0.209 0.02
85100DU 85 90 100 H7 h8 85.155 85.02 0.209 0.02
9060DU 90 95 60 H7 h8 90.155 90.02 0.209 0.02
90100DU 90 95 100 H7 h8 90.155 90.02 0.209 0.02
9560DU 95 100 60 H7 h8 95.155 95.02 0.209 0.02
95100DU 95 100 100 H7 h8 95.155 95.02 0.209 0.02
10050DU 100 105 50 H7 h8 100.155 100.02 0.209 0.02
10060DU 100 105 60 H7 h8 100.155 100.02 0.209 0.02
100115DU 100 105 115 H7 h8 100.155 100.02 0.209 0.02
10560DU 105 110 60 H7 h8 105.155 105.02 0.209 0.02
105115DU 105 110 115 H7 h8 105.155 105.02 0.209 0.02
11060DU 110 115 60 H7 h8 110.155 110.02 0.209 0.02
110115DU 110 115 115 H7 h8 110.155 110.02 0.209 0.02
11550DU 115 120 50 H7 h8 115.155 115.02 0.209 0.02
11570DU 115 120 70 H7 h8 115.155 115.02 0.209 0.02
12050DU 120 125 50 H7 h8 120.21 120.07 0.264 0.07
12060DU 120 125 60 H7 h8 120.21 120.07 0.264 0.07
120100DU 120 125 100 H7 h8 120.21 120.07 0.264 0.07
125100DU 125 130 100 H7 h8 125.21 125.07 0.273 0.07
13060DU 130 135 60 H7 h8 130.21 130.07 0.273 0.07
130100DU 130 135 100 H7 h8 130.21 130.07 0.273 0.07
13560DU 135 140 60 H7 h8 135.21 135.07 0.273 0.07
13580DU 135 140 80 H7 h8 135.21 135.07 0.273 0.07
14060DU 140 145 60 H7 h8 140.21 140.07 0.273 0.07
140100DU 140 145 100 H7 h8 140.21 140.07 0.273 0.07
15060DU 150 155 60 H7 h8 150.21 150.07 0.273 0.07
15080DU 150 155 80 H7 h8 150.21 150.07 0.273 0.07
150100DU 150 155 100 H7 h8 150.21 150.07 0.273 0.07
16080DU 160 165 80 H7 h8 160.21 160.07 0.273 0.07
160100DU 160 165 100 H7 h8 160.21 160.07 0.273 0.07
180100DU 180 185 100 H7 h8 180.216 180.07 0.279 0.07
200100DU 200 205 100 H7 h8 200.216 200.07 0.288 0.07
210100DU 210 215 100 H7 h8 210.216 210.07 0.288 0.07
220100DU 220 225 100 H7 h8 220.216 220.07 0.288 0.07
250100DU 250 255 100 H7 h8 250.222 250.07 0.294 0.07
300100DU 300 305 100 H7 h8 300.222 300.07 0.303 0.07

Excellent Corrosion Resistance PTFE Stainless Steel Sleeve Bushing Fiberglass ​Valve Stems Bushes 0

Technische Daten

  • Wrapped composite sliding bearing

  • Carbon-steel / PTFE fibres fabric

  • Maintentance-free

  • Available on request

Properties



  • Excellent sliding and wear behaviour, especially in case of rotating and oscillating movement, good shock absorption, very high load capacity, no water absorption

Materials

Fiber glide Bearing

  • Support materialCarbon steel

  • Sliding layer PTFE fibres fabric

  • Support material: Stainless steel and bronze on request

Material Properties

  • Specific load capacity static≤ 350 [N/mm2]

  • Specific load capacity dynamic≤ 180 [N/mm2]

  • Sliding speed< 0.5 [m/s] 1 [m/s] lubricated

  • Friction value ***0.03 [µ] to 0.20 [µ]

  • Temperature strain– 50 [°C] to + 250 [°C]

  • Max. PV-value1.8 [N/mm² x m/s]

Mounting Advise

  • The application of an adequate force fitting mandrel is advisable

Bushings Tolerance Details

  • Housing ØH7

  • Bushing inner-Ø after mountingH9

  • Shaft tolerancef7 to h8


Tech.Data

Max.Load

Static

350N/mm2



Temp.

-50°C~+250°C

Dynamic

180N/mm2

Friction coefficient

0.03~0.20

Max.speed

Dry

0.5m/s

Thermal conductivity

42W(m x K) 1

Grease

1m/s~3m/s

Max.PV(Dry)

Short-term

3.6N/mm2 m/s

Coefficient of thermal
expansion

11 x 10- 6 x K-1

Continuous

1.8N/mm2 m/s



Maintenance

  • is a dry sliding bearing with glued PTFE fibres fabric overlay. Lubrication is therefore not necessary and not allowed.

Range Of Application

  • Machine and crane construction, apparatus engineering, agricultural machines, fittings, water pumps, chemical industry

Caption

This sliding bearing type and special dimensions are only available on request

Application

BUSHINGS: PRE-LUBRICATED
Now this product has been used like suspension and auxiliary of agriculture and construction machines,cranes and hydraulic and mechanical jibs,ball butterfly and sluice valves,water pumps,chemical industries etc.

Get in touch ...Send us an online enquiry
You can use our “Enquiry Form” to get in touch with us. One of our sales team will contact you immediately.
pragmatic solutions – high quality products – premium service – fair prices


 Hot Tags: stainless steel 316 bearings +PTFE fabric made in China, manufactures, suppliers, factory, buy butterfly valve bushing, steel bronze powder bushing, roughneck units bushing, stainless steel bearing usa, stainless steel boccole


CONTACT US

tiffany@viiplus.com
