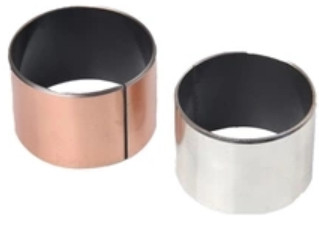

Sleeve Spilt Bushings Provide Extreme Load - Bearing Capabilities

Place of Origin Self Lubricating Bearings Manufacturers
Brand Name REPLACE BRAND Metal-Polymer Bearings BEARINGS ()
Certification DIN 1494, ISO 3547 STANDARD BUSHING
Model Number BUSHING TYPE FLANGED PLAIN SLEEVE
Minimum Order Quantity NEGOTIABLE
Price Competitively Priced vs , Provides Lubricating Bush
Packaging Details WOOD PALLET ,WOODEN CASES,CARTON,BUSHINGS EXPORT STANDARD, CUSTOMER SPECIFIED REQUIREMENTS
Delivery Time 7-20 DAYS,STOCK SIZE BUSHING IMMEDIATE DELIVERY
Payment Terms TT IN ADVANCE WESTERN UNION
Supply Ability Flanged Bronze Bushings, Bronze Thrust Washers, Self Lubricating Bronze Bushings

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , Lead Free Plating Tin Or Copper
Characteristic Low-maintenance And Maintenance-free Plain Bearings Type Bushes, Collar Bushes, Washers, Strips Or Special Designs
Size Standard Size Available Quality OEM
Port Shanghai Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ High Light Coated Self Lubricating Plain Bearing, Ptfe Self Lubricating Plain Bearing, Steel Backed Self Lubricating Plain Bearing
Characteristic Втулки скольжения (биметаллические подшипники скольжения) Dry Slide Bearing Self Lubricating Plain Bearing Work In High Temp & Submerged Applications Where Grease, Oil & Plastics Fail. Reduced Costs & Downtime. Non-galling. Increased Reliability. Run Dry & Keeps Running.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

sintered self lubricating bushes

,

self lubricating bronze bushings

Leave a Message
Product Description

Sleeve Split Bushings offer exceptional load-bearing capabilities, making them a highly effective solution for applications that require superior strength and durability. The use of (Polytetrafluoroethylene) material ensures smooth operation and low friction, while the split bush design allows for easy installation and removal. These bushings are able to withstand extreme loads and provide reliable performance even in harsh environments. Wh it's in industrial machinery, automotive components, or any other high-load application, Sleeve Split Bushings are a trusted choice for ensuring smooth and efficient operation.



Bearings Provide Extreme Load-Bearing Capabilities,Self-lubricating Bearings is a bearing material which consists of a / POM which is steel or stainless steel 316 or 304 backing with a bronze powder.



Flange bushing



self lubricating bronze bushing

Plain Bearings & Self-Lubricating Bushings & Gerollte Trockengleitlager () lead free bushing linded TU-B bushing  Linded TU - B Self Lubricating Bearing Flange Stock Bushing Size lead free

Viiplus tri-layer maintanence-free bushing have a base of lower carbon steel, onto which a porous bronze layer is sintered. mixtures are impregnated into the intersice of this bronze layer after rolling process completed. VIIPLUS 10 SERIES has good physical & mechanical properties, also has certainly chemical properties. It is suitable for rotary, oscillating movement with performance of self-lub. Anti-wear, lower firction, lower noise.



Self lubricating plain bearings with sliding layer



1. Self-lubricating Layer Mixture 0.01-0.03mm. After rolling process completed, mixtures are filled in intersice of bronze layer. Under normal operation, Part of mixture on top layer will be removed and transferred on the mating surface, forms a physically lubricating film, which will reduced the firction coefficient and protect the mating shaft.
2. Porous Bronze layer; The layer provides bonded strength of Self-Lub. Layer.
3. Steel Backing The layer provides load & thermal conductivity
4. Copper / Tin layer



Bearing Properties



Depending on operating conditions





Material Characteristics





Max. Load Capacity





Static Load

N/mm2

250

Dynamic Load

N/mm2

140

Max. Speed





Dry Running

m/s

2

Hydrodynamic Operation

m/s

>2

Max. PV Value





Short-Term Operation

N/mm2 · m/s

3.6

Continuous Operation

N/mm2 · m/s

1.8

Coefficient of Friction

μ

0.03~0.25

Operation Temperature Range

-195~280

Thermal Conductivity

W(m · k-1)

42

Coefficient of Thermal Expansion

λST

11 · 10K-1





Steel Backed Lined Bushings



steel-backed, sintered-bronze lined bearing.

used in dry, semi lubricated environment.

It has a wide applicable temperature range from -319 degrees F to 518 degrees F. The thin walls and

Light weight construction enable a compact design of the product.

It can substitute a conventional bearing where saving space is desired.

Steel Backed Bushing provides superior shock and impact load resistance. The Steel Backed Lined bushing maintains a low coefficient of

friction and is usable without lubrication at high load, low speed operations with excellent wear resistance.

VSB-10 Metal-Polymer Anti-Friction Plain Bearings

Rolled Dry Sliding Bearings ()
Steel + Bronze Powder + /Fibre

Wrapped Lined (maintenance-free), self lubricated plain or flanged bearings, thrust washer and strip, Carbon steel shell with sintered bronze layer filled with








Characteristics


VSB-10 Self-Lubricating Multilayer Composite Bushing
· Bushing material suitable for lubricated applications
· self-lubricating bushings offer very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Anti-friction bearing suitable for linear, oscillating and rotating movements
Material is designed to operate without supplemental lubrication and will perform excellent when lubrication is present. Low friction, low wear rate, good sliding characteristics and very low absorption are a few of the features of this material. VSB-10 bushings will support rotary, linear and oscillating motion.



Strusture


1. /Fibre mixture thickness 0.01~0.03mm. It is the contact surface for the rotating shaft. Minute partides of the layer and the sintered bronze material combine to create a solid lubricant film, which coats the shaft.
2. Sintered bronze powder thickness 0.20*0.35mm,A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel backing. Setting the foundation of the bushings, the steel back provides exceptional stability, load carrying and heat dissipation characteristics.



Technical Data



Carbon Steel + Copper Powder + ( + Pb + Filler)



Structure And Composition



· Metal-Polymer Composite Self-lubricating Bushing Material
· Steel Back + Porous Bronze Sinter +
· + Lead



OPERATING PERFORMANCE

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Fair

Process fluid lubricated

Fair





Availability

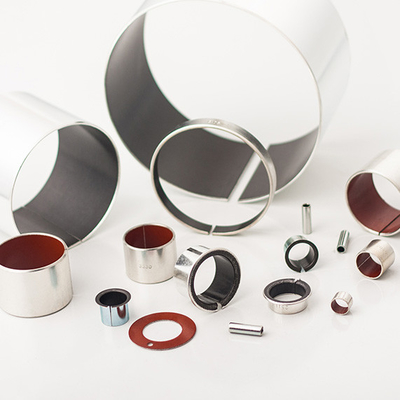

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Thrust washers
· Flanged washers
· Sliding plates

Plain bearings are available as bushes, collar bushes, washers, strips or special designs.
Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping or deep drawing, customized bushing designs Lubrication Free with Excellent Wear Resistance



Typical Applications



The Steel Backed Bronze Bushing is used in a variety of applications in a number of industries. Below are a few of the more common uses:

Hydraulic Systems: Bushing for Valves and Rotary Actuator, Bushing for Gear Pumps, Bushing for Cylinders, Bushings for Shock absorber, Bushing for Lucas Hydraulic Pump,

Food Processing: Bottling Machine, Bottle Washer, Automatic Bag Maker, Dairy Processors, Meat Choppers, Mixers

Automobiles: Suspension Bushings, Steering, Brake Bushings, Clutch, Transmission Bushings

Railroad Cars: Side Thrust absorber, Automatic Doors Bushings

Ships: Steering Linkages, Hatch Covers, Pulley Blocks Bushings

Aircraft: Control Linkage, Shock absorber bushings, Actuator Valves bushings, winches

Printing: Offset Printer, Gravure Printer, Mail Printer, Automatic Ticket Bender, Automatic Book Binder

Textile Industry: Spinning frame, Yarn Twister, Sheet Roller, Winders
