| Brand Name: | VIIPLUS BUSHINGS SUPPLIER |
| Model Number: | BUSHINGS |
| MOQ: | 1000 Piece/Pieces |
| Price: | $0.05 - $1.00 / Pieces |
| Payment Terms: | TT in advance,Western Union |
| Supply Ability: | Special Customized Lubricating Bushings Manufacturing |

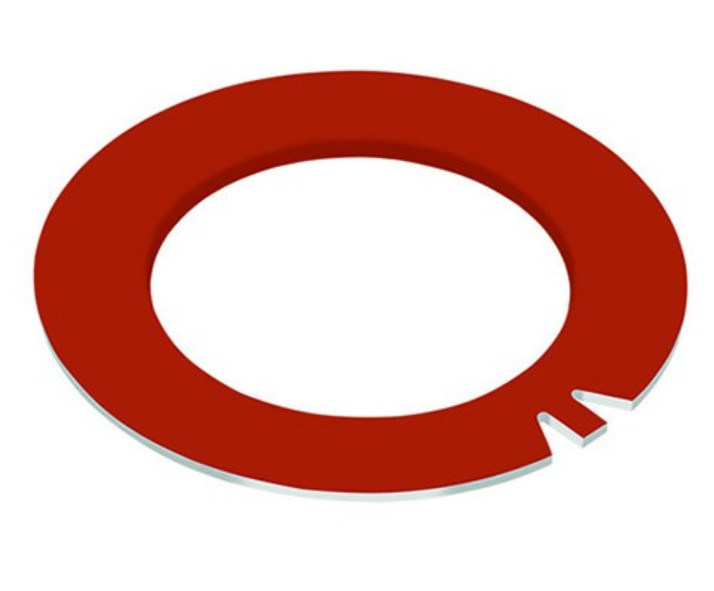

Introducing our Red Inch Dimension Thrust Washer Bushings, equipped with metric sliding bearings for superior performance and durability.
These bushings are made from high-quality polytetrafluoroethylene (), a material renowned for its excellent wear resistance, low friction coefficient, and chemical stability. The red colour not only adds a visual distinction but also helps in easy identification during installation and maintenance.
The inch dimension thrust washer bushings are designed to provide a stable and reliable thrust support in various applications. The metric sliding bearings ensure smooth and efficient sliding motion, reducing friction and wear.
Wh you're upgrading existing machinery or building new equipment, our Red Inch Dimension Thrust Washer Bushings with metric sliding bearings are the perfect choice. They are suitable for a wide range of industrial applications, including but not limited to automotive, heavy machinery, and precision equipment.
We pride ourselves on providing top-quality products and exceptional customer service. Our bushings are rigorously tested to ensure they meet the highest standards of performance and reliability.
So, if you're looking for a thrust washer bushing solution that offers both durability and performance, look no further than our Red Inch Dimension Thrust Washer Bushings with metric sliding bearings. Contact us today to learn more or place your order.
VIIPLUS Provide non-standardized products:Cylindrical bushes, flanged bushes, thrust washers, flat strip material, half bearing, wear plate.
Plain bearings. Appearance and characterization of damage to metallic hydrodynamic bearings.
Hydraulic Washers & Flanged washers
Metal-Polymer Low Friction Plain Bearings Washer
metal-polymer-self-lubricating-lead-free-bearings-brochure
|
Dry |
Good |
|
Oil lubricated |
Very Good |
|
Grease lubricated |
Good |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Good |
• Good frictional properties with negligible stick-slip
• High static and dynamic load capacity
• Suitable for rotating, oscillating, reciprocating and sliding movements
• Compact size and low weight
• Prefinished that requires no machining after assembly
• Possibility to burnish for reduced operating clearance
VSB-40 similar low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
Very good performance in lubricated applications
Good performance in greased applications
Suitable for linear, oscillating and rotating movements
Lead-free material
Bearing forms available in standard dimensions
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
-bronze powder-steel is a widely used three-layer self-lubricating bearing material with good anti-friction and anti-wear.
General profile steel-base oil-free self-lubricated bearing 1 oil-free or less lubricated, can be used without maintenance or less maintenance.Good wear resistance, small friction coefficient and long service life.3 with appropriate elastoplastic, the stress can be distributed on a wide contact surface to improve the bearing capacity.The coefficient of static and dynamic friction is similar, so as to ensure the working accuracy of the machine.Can make machinery reduce vibration, reduce noise, prevent pollution, improve working conditions.6. Transfer film can be formed during operation to protect the grinding shaft.7. The hardness requirement of grinding shaft is low, which reduces the processing difficulty of related parts.Thin wall structure, light weight, can reduce the mechanical volume.9 steel back can be plated with a variety of metals, can be used in corrosive media;At present, it has been widely used in sliding parts of various machines.
1. Good load bearing and wear resistance.
2. Suitable for high load and low speed rotating motion, swing motion and often open and close frequently under load and not easy to form hydrodynamic lubrication occasions.
3. Under the condition of boundary lubrication, the bearing can be maintained without oil for a long time, while the bearing's service life can be prolonged by oil adding in the passing layer.
4. The plastic layer on the surface can leave a certain amount of margin during processing and forming, and the assembly can be processed by itself after being pressed into the seat hole to achieve better assembly size.
5. The products are mainly used in automobile chassis, metallurgical machinery, mining machinery, water conservancy machinery, construction machinery, agricultural machinery, steel rolling equipment, etc.
Standard Bushing Parts For Hydraulic Cylinder Repair:
• Inspect / Repair / Replace Bushings As Necessary
• Carbon Steel Is Normally Used As A Backing Material
Other Bushings Application
Typical Applications Include Automotive Vehicles, Farm Equipment, Construction And Material Handling Equipment.
Steel + copper powder +/ fiber
It is suitable for working parts that cannot be lubricated or are difficult to operate. It has good wear resistance, small friction coefficient and long service life.Good walking performance, low noise, no pollution, good corrosion resistance;The transfer film formed in the operation plays a role in protecting the grinding shaft, and there is no shaft biting phenomenon;Low processing requirements for grinding shaft, reduce the processing cost of users;At the same time, VSB-40 RED special wear layer design has better wear resistance and extremely low friction coefficient than other dry bearings in lubrication conditions.
|
Max.Load |
Static |
250N/mm·m |
Temp: |
-195℃-280℃ |
|
Dynamic |
140N/mm·m |
Friction coefficient |
0.03-0.20 |
|
|
Max.Speed |
Dry |
2m/s |
||
|
Lubrication |
>2m/s |
Thermal conductivity |
42W(m·k) |
|
|
Max.PV(Dry) |
Short-term |
3.6N/mm·m·m/s |
||
|
Continuos |
1.8N/mm·m·m/s |
coefficient of thermal expansion |
11*10k |
