Brass & Copper Alloy Bronze Bearing Material, C93200 Self Lubricating Bearing SAE660 Oilless Standard

Place of Origin Bushing Manufacturer
Certification ISO9001:2008 CuSn8, CuSn6.5, Brass
Model Number LD Bronze Bearings made of CuSn8 with Grease Reservoirs
Price Sliding Bronze Bearing Dimensions Tolerance,Stock Price
Packaging Details Export Cartons,Customizable
Delivery Time 10~20 work days
Payment Terms TT IN ADVANCE,L/C,Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material SAE660 C93200 Bearing Bronze Tube Type CAST BRONZE
Sliding Bearings Maintenance-free Code Self-lubricating Bushings
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
High Light Self-Lubricating Sintered Bronze Bushing Characteristic Bronze Bushings With Grease Reservoirs ( BRO-MET, FB090, BRM10, WB800)
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

wrapped bronze bushings


graphite sleeve bearings

Leave a Message
Product Description

Brass and copper alloy bronze bearings, specifically those made from C93200 material, offer exceptional performance as self-lubricating bearings that meet the SAE660 oilless standard. This alloy composition is designed to provide superior wear resistance and friction-reducing properties, making it ideal for applications where lubrication may be limited or inconsistent.

The C93200 alloy contains specific elements that enhance its self-lubricating characteristics. These elements allow the bearing to operate smoothly with minimal maintenance, even in high-load and high-speed conditions. The SAE660 oilless standard ensures that the bearing meets rigorous performance requirements for durability and reliability.

Brass and copper alloy bronze bearings made from C93200 material are commonly used in a wide range of industries, including automotive, machinery, and heavy equipment. Their ability to operate efficiently without the need for external lubricants reduces maintenance costs and the potential for lubricant contamination or leakage. The combination of exceptional performance and low-maintenance requirements makes C93200 self-lubricating bearings an excellent choice for demanding applications.


Bronze Sleeve Bushings


VIIPLUS solutions is a china supplier of Self-lubricating bearings, hydraulic seals bushings, shaft sleeve, o-rings, gaskets and sliding plate.

SAE660 Brass & Copper Alloys Bronze Sleeve Bushings , C93200 Self Lubricating Bearing Slide Bearings
Introduction Our slide components include bronze wear plate ,bronze bushe,washer etc. We make according to DIN standard ,NAAMS standard ,Sanky oilless standard ,etc.and we also accept customs items , and obtains the good word of mouth in the market.

Chinese in high performance Sliding bearing material solutions,High quality bronze graphite from VIIPLUS, premium brand.

Copper Alloy No.C83600 C93200 SAE660 Bearing Bronze , High Leaded Tin Bronze bar Tin Bronze tube.

SAE660 Bronze Bushing: tin 6-8%, lead 6-8%, zinc 2-4%.It's aluminum bronze in the bronze category.


Your complete source for Bronze Bushings C93200, Brass, and Copper Alloys sleeve bushings in industry standard sizes


VIIPLUS offers a complete line of stocked and custom-made cast bushing products. Standard alloys include manganese bronze C86300, lead-free C89835, tin bronze C90300, leaded tin bronze C93200 (SAE 660 bearing bronze), aluminum bronze C95400, nickel aluminum bronze C95500, nickel aluminum bronze AMS 4880-C95510, and aluminum bronze C95900. These cast bronze bushing are available in ASTM B standards and specifications. When our customers have needs for special bushing and sizes, we design the right products to meet their specific needs.


Cast Bronze Bushings C93200


The lead content in high leaded tin bronze alloys is between 7.00% and 15.00%. These alloys are free cutting and retain favorable thermal conductivity and good lubricity due to the lead content. Alloy C93200, also termed bearing bronze, SAE 660, SAE 660 bronze, and SAE 660 bearing bronze, is considered this family’s workhorse alloy and is widely used in many bearing applications.

The C93200/SAE660/RG7 is considered "standard" bearing material of lead-tin bronze.The alloy has excellent machining performance, good hardness, strength and wear resistance, excellent wear resistance.Typical applications include bearings, gaskets, bushing, auto parts, main shaft bearing, machine tool bearings, crane bearing, trunnion bearing, roller bearing neck, rolling mill bearings, sleeve is fuel pump and pump shaft sleeve, diesel engine piston pin bushing, forging toggle lever bearing, stuffing box hydraulic press, hydraulic press main lining, pump impeller, gm liner, fitting, pump assembly, outer spherical bearings, and so on.
Main chemical constituents of SAE660: Sn7, Zn4, Pb7

it is a self-lubricating bearing material that consists of a high quality bearing bronze with solid lubricant pockets. A thin film of solid lubricant aids the running-in process if required.


Solid lubricants plugs

viiplus graphite allows replacement for lubricated bronze bearings with a maintenance-free alternative.

- is suitable for large dimensions
- has a low friction coefficient
- has a high wear resistance
- allows a high durability

Bearing Bronze Alloys are general purpose bearing alloy possessing good anti-friction properties, ample strength and hardness, adequate ductility and excellent machinability. Bearing Bronze Alloys are for general utility bearings and bushings and which are highly resistant to impact, wear and corrosion. Alloys include C93200.


Brass & Copper Alloy Bronze Bearing Material,


C93200 Bearing Bronze


Chemical Composition mass/%























Mechanical properties

Tensile strength Mpa(Min)

Yield strength MPa(Min)

Elongation %

Brinell hardness(HB)









1,In Chemical Composition, Single values represent maximums.

2,Mechanical performance of hardness value is only for reference


Execution Standard: National Standard, American Standard, European Standard and Japanese Standard

Copper Bar Material: Our factory can be customized according to customer requirements.

1. Easy car brass: environmental brass lead-free brass
2. Special brass: such as manganese brass, tin brass customized.

3. Tin bronze
4. Aluminum bronze

Specification: 2-200 mm

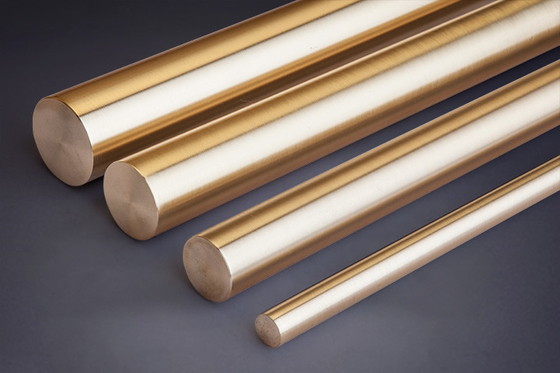

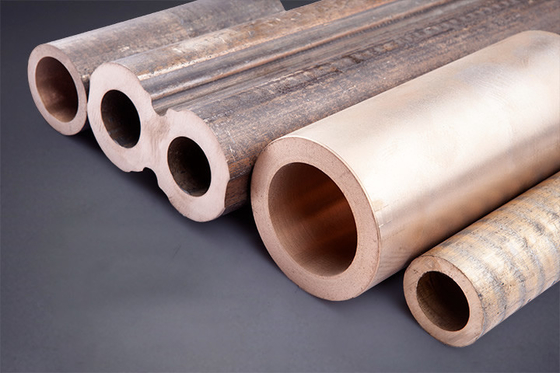

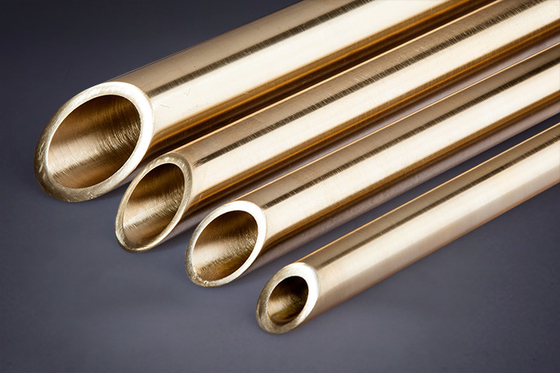

Production Shape:Copper Bar and Copper Tube can be produced


C93200 (SAE660RG7) is considered as a "standard" lead-tin bronze bearing material. The alloy has excellent processing properties, good hardness, strength and wear resistance, and excellent wear resistance. Typical applications include bearings, washers, bushings, automotive accessories, spindle bearings, machine tool bearings, crane bearings, trunnion bearings, roll neck bearings, rolling mill bearings, fuel pump bushings, pump bushings, diesel engine piston pin bushings, forged elbow rod bearings, packing box hydraulic presses, hydraulic machine main linings, pump impellers, general bushings, pipe fittings, pump devices, external spherical bearings, etc. And so on.

VIIPLUS INTERNATIONAL Supply Tin and Phosphorus Bronze Bushings: C93200/SAE660, C93700/SAE64, C54400, C51000, C52100, C48500, C46200, CC493K, etc.
  • Bronze Bushings
  • Light Duty Gears
  • Sprockets
  • Liners
  • Wear Strips
  • Washers
  • Impellers
  • General Bearings
  • Automotive Fittings
  • Suspension Bushings
  • Shaft Bushings

Material selection and main properties of copper sleeve


Material recommendation

1. ZCuSn6Zn6Pb3 and ZCuSn5Zn5Pb5 can be used to manufacture wear-resistant parts such as bushes, gears and worm wheels working under medium load and speed.
2. ZCuSn10P1 is a typical tin-phosphorus bronze with high hardness and wear resistance. It can be used to manufacture parts under heavy load, high speed and high temperature, which are strongly rubbed, such as connecting rod bushing, gear, worm wheel, etc.
3. ZCuAl9Mn2, ZCuAl9Fe4 and aluminium bronze have high strength, high compactness and stable chemical properties. Usually used in valve body, worm wheel, nut, pipe fittings, etc.

4. ZCuZn25Al6Fe3Mn3 high strength aluminium brass has the highest strength among special brass. It has high strength, high hardness, high wear resistance, moderate plasticity and good corrosion resistance. Therefore, it can be used to cast heavy machinery with high load wear resistance weight.
5. ZCuSn10P1 has high hardness, excellent wear resistance, not easy to bite, good casting and cutting performance, and good corrosion resistance in air and fresh water. It can be used for wear-resistant parts under high load (below 20Mpa) and high sliding speed (8m/s), such as connecting rod, bushing, bearing bush, gear, worm wheel, etc. 6. ZCuSn10Pb5 is corrosion resistant, especially to dilute sulfuric acid, hydrochloric acid and fatty acid.
Structural materials, corrosion-resistant, acid-resistant accessories and crusher bushing, bearing bush.
7. ZCuPb10Sn10
Lubrication, wear resistance and corrosion resistance are good, suitable for bimetallic casting materials.
Vehicle bearings with peak load up to 100 Mpa
Bimetallic bearing bush of internal combustion engine, piston pin sleeve, friction plate, etc.

8. ZCuPb15Sn8 has good sliding and self-lubricating properties, easy cutting, poor casting properties and corrosion resistance to dilute sulfuric acid in the absence of lubricants and water lubricants.
Bearings with high surface pressure and side pressure can be used to manufacture copper cooling tubes for cold rolling mills, parts with impact load up to 50Mpa, bimetallic bearing bushes for internal combustion engines.
It is mainly used for piston pin sleeve with maximum load up to 70 Mpa and acid-resistant fittings.

9. ZCuZn38Mn2Pb2

It has good mechanical properties, corrosion resistance, wear resistance and cutting performance.
Structural components for general use, use of ships, instruments, etc.
Simple castings, such as sleeves, bushes, bushes, sliders, etc.
