C86300 and C86200 Bronze Oilless Bushings are designed to operate without the need for traditional lubricants, such as oil or grease. To ensure smooth and efficient operation, lubricant plugs can be embedded into these bushings. These plugs provide a source of lubrication that is gradually released over time, effectively lubricating the bushing's interface and reducing friction and wear.

The lubricant plugs used in C86300 and C86200 Bronze Oilless Bushings are specifically formulated to be compatible with the bronze alloy material and the operating conditions of the bushings. They are typically made from a solid lubricant material, such as graphite or molybdenum disulfide, that can withstand high temperatures and pressures.

The embedding process of the lubricant plugs into the bushings involves precisely positioning the plugs within the bushing's structure. This ensures that the lubricant is released evenly and continuously over the entire interface, providing uniform lubrication and extending the bushings' service life.

The use of lubricant plugs in C86300 and C86200 Bronze Oilless Bushings eliminates the need for periodic relubrication, reducing maintenance costs and downtime. Additionally, the lack of lubricant leakage associated with these bushings contributes to a cleaner and more environmentally friendly operation.

In summary, C86300 and C86200 Bronze Oilless Bushings with embedded lubricant plugs provide a reliable and efficient solution for applications requiring low-friction, wear-resistant bushings with minimal maintenance requirements.

Oil Free Bronze Graphite Bushings - Select, configure, order from china delivers punctually and offers fair prices.

C86300 C86200 Bronze Oilless Bushes is manufactured using high tensile manganese bronze plugged with solid lubricants. Basic bronze alloy material is CuZn25Al6Fe3Mn3 with graphite  plugged, we also provide widely optional choice from CuSn5Pb5Zn5, CuAl10Fe5Ni5, CuSn12, and other standards materials.

Flange Bearing,Straight Bearing,wear plate,thrust washer products are available in our online website.Bronze Sleeve & Flanged Bearings. Cast bronze bushing & Custom size. leading Manufacturer. In Stock. Large Inventory. Cut to Size. Custom graphite Parts Available.

Oilless Bush Manufacturer

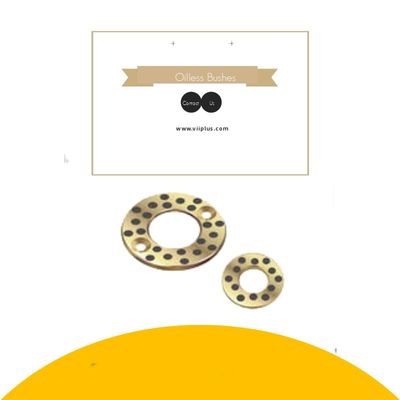

CuZn25Al5 Plain Bearings & Oilless Flanged Bushings Oilless Solid Lubricant Thrust Washers Other commonly used bronze bushing alloys: CuAl10Ni, CuSn12Pb, CuSn7ZnPb

Handling equipments Sliding Bearings are used with its advanced self-lubricating performance in fork-lift trucks, conveyors, port machinery…

Oilless Bearings Your Source for quality mould guide plate

CuZn25Al6Mn4 Bronze with solid graphite lubricant inserts

The continuous casting process assures a manganese bronze structure throughout the bearing, free from porosity and hard particle inclusions commonly found in other cast processes.VIIPLUS graphite cast bronze bearings are machined from continuous cast C86300 bronze for superior quality and performance.

Tolerance Details

Housing ØH7
Bushing inner-Ø after mountingPls consult our sales engineers, standard delivered tolerance: r6 or E7
Shaft tolerancef7 or h6

Our standard bearing line features over many sizes, carried in stock at Bearings and Authorized Distributors.These standards provide off-the-shelf economy for most applications

Oilless bearings have been developed for high load, low speed applications and are made of rotational cast high-strength bronze using a specially formed graphite plug as lubricant.

VIIPLUS range of oilless bearings are the perfect solution for projects where lubrication cannot easily be provided or where conventional lubricants may carbonise. The design of oil feeding systems is time consuming and expensive - The use of our oilless bearings can greatly reduce costs of maintenance and oil as it removes any need for such a system.

Our VIIPLUS plain bearings are available in metric and imperial sizes from stock. Our in-house machining service is able to produce non-standard sizes to suit specific customer requirements.

Typical applications include, but are by no means limited to:

• Kilns
• Dryers
• Injection moulding machines
• Dust collectors
• Louvres
• Hot conveyors

Material:CuZn25AI5Mn4Fe3

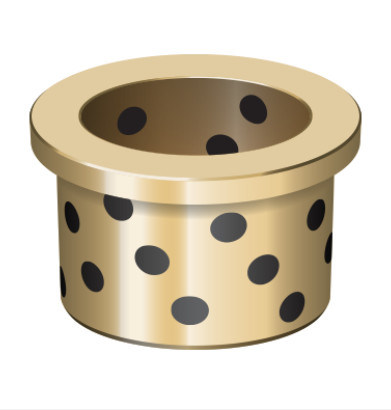

 C86300 C86200 solid bushing, bronze bushing size table with lubricant plugs embedded, DIN 1850/ISO 4379, Maintenance-free

VSB-50  Solid lubricating bearings

1. May work without any ol for long period
2. Extremely high load capacity, good anti-wear and lower friction
3. Particularly appropriate for low speed and high load
4. Suitable for reciprocating, oscillation or intermittent motion where oil film is hard to be formed
5. Good chemical resistant and anti-corrosion characteristics
6. Can b€ used in wide range of temperature from -40℃-+300℃

VSB-50 SOLID LUBRICANT SLIDING BEARINGS material is made of strong cast bronze based metal with special solid lubricants embedded. The base metal withstands high load and the solid lubricants provide self-lubrication. The bearing shows excellent performance without pre-lubrication under conditions of extreme high/low temperature with low speed. This material provides a maintenance-free bearing solution, particularly for high load, intermittent of oscillating motion.

 Chemical Compositions

Our friendly customer services team is always on hand to answer any questions you may have and are able to assist you in selecting the right solution for your application.Get a Qoute:tiffany@viiplus.com
