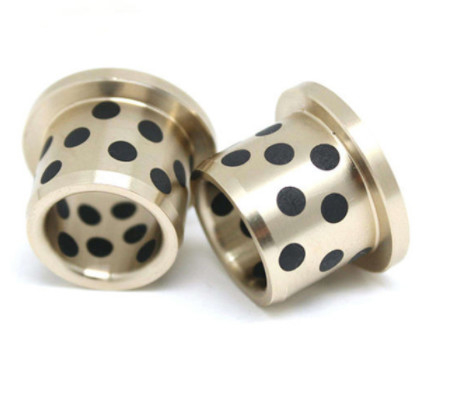

Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating

Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating
Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating

Large Image :  Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating

Product Details:
Place of Origin: Graphite Bearings Manufacturers
Brand Name: SANKYO,MISUMI,DAIDO,SELF LUBE,GGB,FIBRO STANDARD REPLACEMENT BEARING
Certification: DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number: solid bushing, bronze with lubricant plugs embedded Maintenance-free
Payment & Shipping Terms:
Minimum Order Quantity: NEGOTIABLE
Price: Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details: BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time: FAST DELIVERY
Payment Terms: TT IN ADVANCE
Supply Ability: Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Trusted Metric Flanges Graphite Plugged Bushings Self Lubricating

Description
Marerial: Bronze Graphite Bushing Size: Inch Size Bushings
Standard Size: C86300,C86200 Type: PLUGGED CAST BRONZE
High Light:

graphite impregnated bronze bushings

,

graphite impregnated bushings

Graphite Plugged Bushings



Solid Bronze Cylindrical Bushes Bearing forms made to order: cylindrical bushes with bronze alloy according to C86300/C86200, special parts according to ISO, DIN or customer design, special alloys.Click here to go to our online catalog BRONZE SLIDING PLATE PLUGGED GRAPHITE.pdf and product specifier PLUGGED BRONZE BERINGS Series Bushings including sleeve bushing and flanged diminsions downloads.

plug graphite bearings are primarily used in applications that need continual lubrication in hard to reach areas. graphite is mechanically forced into the holes/grooves under extreme pressure. a film of lubricant is transferred to the shaft as it begins to turn. these bearings offer continuous lubrication over long periods without maintenance.



From Small Diameter To Large Diameter,Sleeve Bushing And Bearings Products And Solutions Are The Choice Of Discerning Engineers.

Trusted China Sliding Bearing Company, Bronze Bushings Supplier-Graphite C86300 Bronze Bushing

Self-Lubricating Oil-Less Type Bushings | C86300 Manganese Bronze With Graphite Plugs Metric Flanges Sizes

Extremely High Load Capacity;

.





Part #'s

dimensions are metric mm

IDxODxOALx Flange Od x Flange thickness

Flange Bronze Graphite Bushing 812

8 x 12 x 12 x 20 x 2

Flange Bronze Graphite Bushing 1015

10 x 14 x 15 x 22 x 2

Flange Bronze Graphite Bushing 1220

12 x 18 x 20 x 25 x 3

Flange Bronze Graphite Bushing 1320

13 x 19 x 20 x 26 x 3

Flange Bronze Graphite Bushing 1420

14 x 20 x 20 x 27 x 3

Flange Bronze Graphite Bushing 1515

15 x 21 x 15 x 28 x 3

Flange Bronze Graphite Bushing 1520

15 x 21 x 20 x 28 x 3

Flange Bronze Graphite Bushing 1612

16 x 22 x 12 x 29 x 3

Flange Bronze Graphite Bushing 1620

16 x 22 x 20 x 29 x 3

Flange Bronze Graphite Bushing 2015

20 x 30 x 15 x 40 x 4

Flange Bronze Graphite Bushing 2020

20 x 30 x 20 x 40 x 5

Flange Bronze Graphite Bushing 2030

20 x 30 x 30 x 40 x 5

Flange Bronze Graphite Bushing 2040

20 x 30 x 40 x 45 x 5

Flange Bronze Graphite Bushing 2525

25 x 35 x 25 x 45 x 5

Flange Bronze Graphite Bushing 2530

25 x 35 x 30 x 45 x 5

Flange Bronze Graphite Bushing 2540

25 x 35 x 40 x 45 x 5

Flange Bronze Graphite Bushing 3030

30 x 40 x 30 x 50 x 5

Flange Bronze Graphite Bushing 3040

30 x 40 x 40 x 50 x 5

Flange Bronze Graphite Bushing 3130

31.5 x 40 x 30 x 50 x 5

Flange Bronze Graphite Bushing 3135

31.5 x 40 x 35 x 50 x 5

Flange Bronze Graphite Bushing 3530

35 x 45 x 30 x 60 x 5

Flange Bronze Graphite Bushing 3540

35 x 45 x 40 x 55 x 5

Flange Bronze Graphite Bushing 4050

40 x 50 x 50 x 65 x 5

Flange Bronze Graphite Bushing 5050

50 x 60 x 50 x 75 x 5

Flange Bronze Graphite Bushing 5060

50 x 60 x 60 x 75 x 5





Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.





Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.

  • Inch Sleeves

  • Metric Sleeves

  • Metric Flanges

  • Metric Washers



Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings



Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.



  • Wear Plates

  • Wear Strips

  • Bushings

  • Slide Assemblies

  • Guide Components

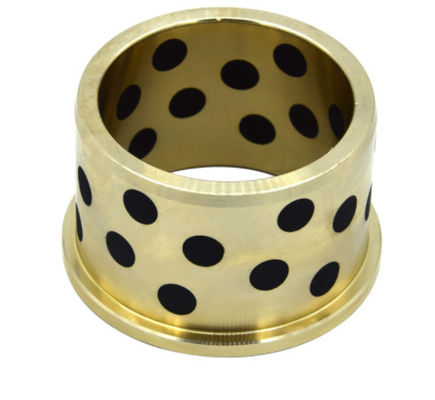

graphite plugged bronze bushing



Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing

  • Inch Sized Bushings

  • Metric Sized Bushings



Material


C86300 Manganese Bronze




C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.





graphite plugged bronze bushing



Bronze sleeve bearings flanged bronze bushings for sale



C86300 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance



Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds



The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2



Technical Data





Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm

 graphite plugged bronze bushing



Applications



Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
