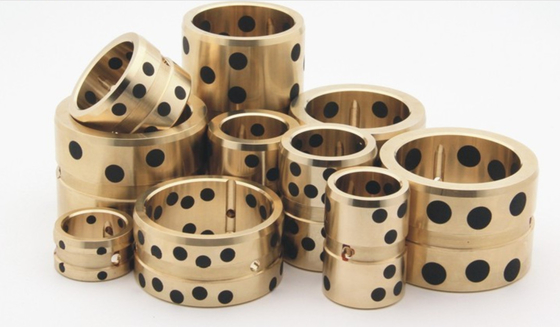

Small Size Self Lubricating Graphite Plugged Bushings Material Manganese Bronze

Place of Origin Graphite Bearings Manufacturers
Brand Name ,MISUMI,DAIDO,SELF LUBE,,FIBRO STANDARD REPLACEMENT BEARING
Certification DIN 1850/ISO 4379, UNITED STATES UNS STANDARD,C86300
Model Number solid bushing, bronze with lubricant plugs embedded Maintenance-free
Minimum Order Quantity NEGOTIABLE
Price Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze
Packaging Details BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS
Delivery Time FAST DELIVERY
Payment Terms TT IN ADVANCE
Supply Ability Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Marerial Bronze Graphite Bushing Size Inch Size Bushings
Standard Size C86300,C86200 Type PLUGGED CAST BRONZE
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Item Bronze Grafitado Graphite Plugged Bushings Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables.
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

graphite impregnated bronze bushings

,

graphite filled bronze bushes

Leave a Message
Product Description

Small-size self-lubricating graphite plugged bushings made of manganese bronze are precision-engineered components designed for applications requiring high wear resistance and low friction. These bushings feature graphite plugs that provide lubrication without the need for external oil or grease, making them suitable for use in a wide range of industrial environments.

Manganese bronze, as the base material for these bushings, offers excellent strength, corrosion resistance, and machinability. It is widely used in the manufacturing of bearings and other components due to its superior mechanical properties. The addition of graphite plugs further enhances the bushings' self-lubricating capabilities, reducing friction and wear while improving the overall performance and longevity of the components.

These small-size bushings are commonly used in automotive, machinery, and other industrial applications where precise movement and low maintenance are critical. They are also suitable for use in environments where lubrication is difficult or undesirable, such as in food processing or cleanroom facilities.

By utilizing manganese bronze as the base material and incorporating graphite plugs, these bushings offer a cost-effective and reliable solution for applications requiring high-performance self-lubricating bushings in a compact size.



Graphite Plugged Bushings



Custom Search Copy the number from this website:Engineering 360 into  the search contact us the bushing stock levels and cheap pricing.Engineering360 is a search engine and information resource for the engineering, industrial and technical communities. It will help you quickly find industrial parts, specifications and services.
and find the right sliding bearing parts products in our china online factory website:http://www.bronzegleitlager.com

Small Size Manganese Bronze with Graphite Plugs C86300 Cast Copper Bushes

C86300 (SAE 430B) Manganese Bronze Bushings
C86300 Manganese Bronze (SAE 430B) is a high strength alloy used as bushings, bearings, gears, gibs, screw down nuts, bridge pins, valve stems and hydraulic cylinder parts.

Graphited bearings should be soaked in lubricant prior to application. The graphite absorbs the lubricant, which is then transferred to the shaft when heated by the shaft motion. This action provides oil needed to lubricate but not in sufficient quantity to cause leakage at the bearing ends. The oil is re-absorbed by the graphite when motion ceases.



GRAPHITE PLUGGED BUSHINGS



Typical Aplications:


Advantages of Slide Elements:
※ Maintenance free
※ Wear resistant
※ Low frictional resistance
※ Resistant against temperatures up to
approx. 300℃ (approx.572oF)
※ No impurity through discharge of lubrication
※ Environmentally friendly
※ Corrosion resistant
※ Insensitive to impact stress
※ Specially suited for oscillating slide motions
※ Stick, slip free sliding
※ Long life
※ Automotive industry-tool support, die
※ Injection molding-machines and tool
※ Mechanical machine construction
※ Steel and/or rolling mills
※ Machine building-and stone industry
※ Weir plants / ship building
※ Heavy duty machine industry
※ Welding engineering
※ Packaging industry
※ Lift and/or conveying engineering





Plug graphiting is accomplished by drilling a rowed, staggered hole configuration through the bearing wall and pressing graphite into these holes and hard baking. The size and number of drilled holes and the number of rows is determined by the bearing length and diameter.



  • Inch Sleeves
  • Metric Sleeves
  • Metric Flanges
  • Metric Washers

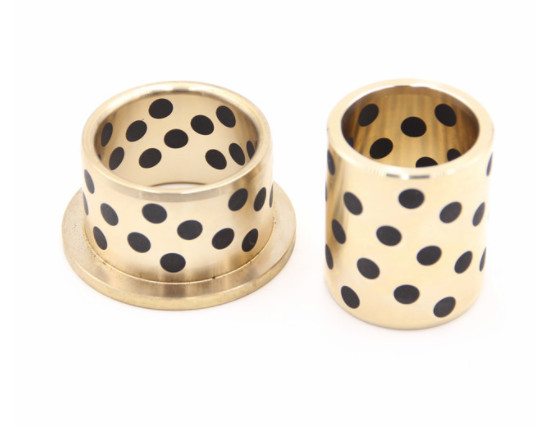

Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings



Graphite Plugged Bronze Bushings are all self-lubricating and maintenance free. These bushings are machined out of continuous cast bronze and plugged with solid lubricant plugs. A bushing and it's mating surface should always be seperated by a film of lubricant.Many of VIIPLUS’s components use graphite. Here is what you need to know about it. Graphite is ordinary carbon in a highly unusual form, a two-dimensional crystal. Think of it as a one-atom thick sheet. A piece of graphite is a stack-up of these sheets. A graphite pencil lead feels oily because these one-atom thick sheets are very slippery.



  • Plain bronze bushings
  • Flanged bronze bushings
  • Saw split bronze bushings
  • Full split bronze bushings
  • Self lubricated bronze bushings
  • Bronze sleeve bushings
  • Wear Plates
  • Wear Strips
  • Bushings
  • Slide Assemblies
  • Guide Components

graphite plugged bronze bushings

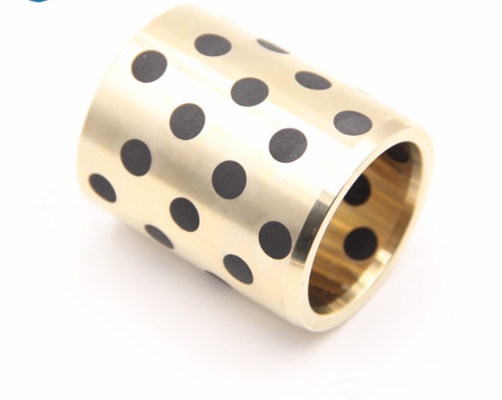

Self Lubricating Graphite Plugged Bronze Sleeve Bushing

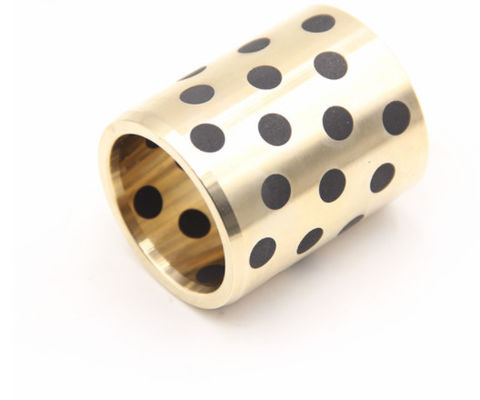

Plug Graphite Sleeve Bushing

  • Inch Sized Bushings
  • Metric Sized Bushings



How To Place An Order

  • Step1 Choose the Bushing & Self-lubricating Bearings you need. Do you need different type bearings.
  • Step2 Choose the standard self-lubricating bearings & bushings size you need.
  • Step3 Confirm the material and bushings size you need.
  • Step4 Select the shipment terms.
  • Step5 Contact our salesperson to get the latest quote.
  • Step6 Ask for a FREE sample to check the quality of the products.
  • Step7 Confirm the sample quality and the quantity & price of the bulk order. Place the order with the salesperson.
  • Step8 Arrange a 30% deposit prior to production.
  • Step9 Electronic photos or shipping samples will be sent before shipment in accordance with your request.
  • Step10 Settle the 70% balance before the bulk order is finished.
  • Step11 Shipment will be arranged upon receipt of the balance and completion of the order.
  • Step12 CI, PL, BL and CO (if necessary) are sent for custom clearance on your end.
  • Step13 End of the order.



Material:C86300 Manganese Bronze



graphite plugged bronze bushings



C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.

graphite plugged bronze bushings

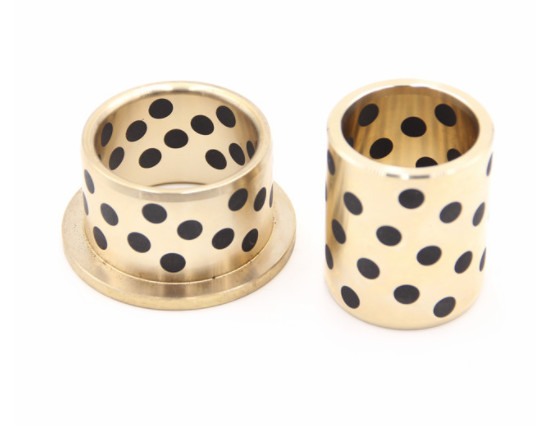

Bronze sleeve bearings flanged bronze bushings for sale



C86300 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

5.0-7.50

Manganese, Mn

2.5-5.0





C86200 Maganese Bronze Graphite Bushings

ELEMENT

CONTENT (%)

Copper, Cu

60.0-68.0

Lead, Pb

≤0.2

Tin, Sn

≤0.2

Zinc, Zn

22~28

Iron, Fe

2.0-4.0

Aluminium, Al

3.0-4.90

Manganese, Mn

2.5-5.0



Performance



Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds



The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F

The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.

Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2



Technical Data



Grade

50#

50S1

50S2

50S3

650S5

Material

CuZn25AI5Mn4Fe3

CuSn5Pb5Zn5

CuAI10Ni5Fe5

CuSn12

CuZn25AI5Mn4Fe3

Density

8

8.9

7.8

8.9

8

Hardness

≥210

≥70

≥150

≥75

≥235

Tensile strength

≥750

≥250

≥500

≥270

≥800

Yield strength

≥450

≥90

≥260

≥150

≥450

Elongation

≥12

≥13

≥10

≥5

≥8

Coefficient o linear expansion

1.9×10-5/℃

1.8×10-5/℃

1.6×10-5/℃

1.8×10-5/℃

1.9×10-5/℃

Max.Temp.

-40~+300℃

-40~+400℃

-40~+400℃

-40~+400℃

-40~+300℃

Max.dynamic load

100

60

50

70

120

Max.speed(Dry)

15

10

20

10

15

N/mm²*m/s(Lubrication)

200

60

60

80

200

Compression deformation

< 0.01 mm

< 0.05mm

< 0.04mm

< 0.05mm

< 0.005mm





 graphite plugged bronze bushings



APPLICATIONS



Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
