Heavy Equipment / Mining MFG Bushes Tight Tolerance Precision Manganese Bronze Flanged Bronze Graphite Plugged Bushings
| Place of Origin | Graphite Bearings Manufacturers |
|---|---|
| Brand Name | ,MISUMI，DAIDO，SELF LUBE，,FIBRO STANDARD REPLACEMENT BEARING |
| Certification | DIN 1850/ISO 4379， UNITED STATES UNS STANDARD,C86300 |
| Model Number | Rugged Bronze Bushings |
| Minimum Order Quantity | NEGOTIABLE |
| Price | Price Graphite Bushing Parts, (SAE 660) Leaded Tin Bronze Bearings,863 (SAE 430B) 862 (SAE 430A)Manganese Bronze |
| Packaging Details | BUSHING EXPORT CARTONS,WOODEN CASE, SPECIFY REQUIREMENTS |
| Delivery Time | FAST DELIVERY |
| Payment Terms | TT IN ADVANCE |
| Supply Ability | Bronze Bushings Online • Sliding Bearings Manufacturers • Self-lubricating Bushing Suppliers |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Bronze Marerial | Rugged Bronze Components Graphite Bushing | Bushing Size | Metric & Inch Size Bushings |
|---|---|---|---|
| Standard Size | C86300,C86200,Bronze,Brass | Bushing Type | PLUGGED CAST BRONZE，wear Plates |
| Bushing Applcaition | Power Generation, Transportation And Manufacturing Equipment Including Heavy Equipment | Bushing Assemblies | Costomized |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| Item | Bronze Grafitado | Graphite Plugged Bushings | Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| Highlight | graphite impregnated bronze bushings,graphite impregnated bushings |
||
Product Description
In the heavy equipment and mining manufacturing industries, precision bushings play a crucial role in ensuring smooth and reliable operation. Among these, manganese bronze flanged bronze graphite plugged bushings with tight tolerance are highly sought-after for their durability, wear resistance, and self-lubricating properties.
These bushings are crafted from manganese bronze alloy, a material renowned for its excellent strength, hardness, and corrosion resistance. The addition of graphite plugs further enhances their performance by providing natural lubrication, reducing friction and wear between the bushing and mating surfaces.

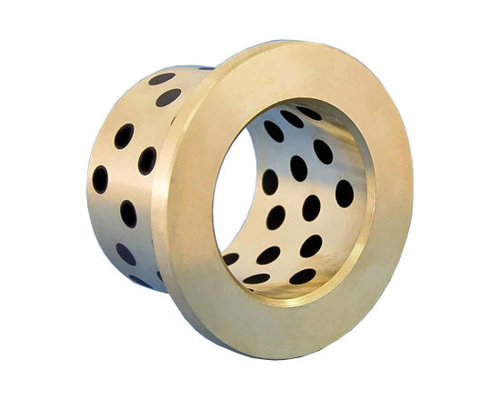

The flanged design of these bushings allows for easy installation and secure positioning within the equipment. The tight tolerance specifications ensure precise fitment, minimizing movement and vibration, which is crucial for heavy-duty applications.
In heavy equipment and mining operations, where equipment is subjected to extreme loads and harsh environments, these precision manganese bronze flanged bronze graphite plugged bushings offer a robust and reliable solution. They help maintain the alignment and stability of critical components, enhancing overall equipment performance and extending service life.
Overall, these bushings represent the pinnacle of precision engineering and materials science, delivering superior performance and durability for heavy equipment and mining manufacturing applications.
Graphite Plugged Bushings
The CHINESE Supplier & Manufacturer of Precision Bushing Components.Heavy Equipment / Mining Bushings We Stock and Manufacture Solutions for the Heavy Equipment and Mining Industries Bushes Aluminum Bronze & manganese bronze Flanged Bronze Graphite Tight tolerance precision bushing sliding bearing Plugged Bushings Size Bronze Metric Graphite Plugged Sleeve ID x OD x Length mm

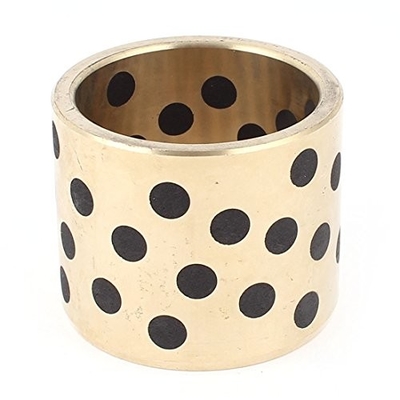

Self Lubricating Graphite Plugged Bronze Sleeve Bushing Plug Graphite Sleeve Bushing
Engineered bronze sleeve bearings for Every Industry! Bronze Bushing Products
- Sleeve Bushings
- Slide Bearings
- Thrust Bearings
- Injection Block Bearings
- Thrust Washers
we are a major supplier of precision customized sliding bearings to a range of commercial industries, providing turnkey solutions to customers at competitive rates. Leveraging our state of the art machining capabilities and on-site materials warehouse, we are able to create bushing parts for critical applications from any combination of materials.
High Tensile Manganese Bronze Solid
Our company produces various grades of copper alloy bushing material products:
Brass: H62, HAl66-6-3-2, an ordinary high-strength brass, special hard high-strength brass (HB> 250), etc. Aluminum Bronze: QAl10-5-5, ZCuAl10Fe3, ZCuAl9Fe4Ni4Mn2, CuAl10Ni etc. Bronze: ZCu5Pb5Zn5, CuSn7Zn4Pb7, CuSn8, CuSn12, ZCuSn10P1 etc. High lead and copper: ZCuPb10Sn10, CuPb15Sn7 etc. Meanwhile according to different customer requirements, in accordance with DIN, BS, EN, UNS, SAE and Chinese GB standards of production of various products (eg: CuZn39Pb3, CuZn40Al2, C86200, C95800, C48200). Welcome to inquire!
Self Lubricated for Higher Temperatures and Heavier Loads
Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings
- Inch Sized Bushings
- Metric Sized Bushings
Quality Bronze Gleitlager & Polymer Plain Bearings Manufacturer
MATERIAL:C86300 Manganese Bronze
C86300 (SAE 430B) Manganese Bronze Bushing Plugged Graphite (spec sheet)
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams and hydraulic cylinder parts.continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.
Bronze sleeve bearings flanged bronze bushings for sale
|
C86300 Maganese Bronze Graphite Bushings |
|
|
ELEMENT |
CONTENT (%) |
|
Copper, Cu |
60.0-68.0 |
|
Lead, Pb |
≤0.2 |
|
Tin, Sn |
≤0.2 |
|
Zinc, Zn |
22~28 |
|
Iron, Fe |
2.0-4.0 |
|
Aluminium, Al |
5.0-7.50 |
|
Manganese, Mn |
2.5-5.0 |
|
|
|
|
C86200 Maganese Bronze Graphite Bushings |
|
|
ELEMENT |
CONTENT (%) |
|
Copper, Cu |
60.0-68.0 |
|
Lead, Pb |
≤0.2 |
|
Tin, Sn |
≤0.2 |
|
Zinc, Zn |
22~28 |
|
Iron, Fe |
2.0-4.0 |
|
Aluminium, Al |
3.0-4.90 |
|
Manganese, Mn |
2.5-5.0 |
Performance
Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds
The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2
Technical Data
|
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
|
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
|
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
|
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
|
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
|
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
|
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
|
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
|
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
|
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
|
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
|
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
|
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Applications
Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
Bushing Assembies
We also handle bushing parts packaging and assemblies.
