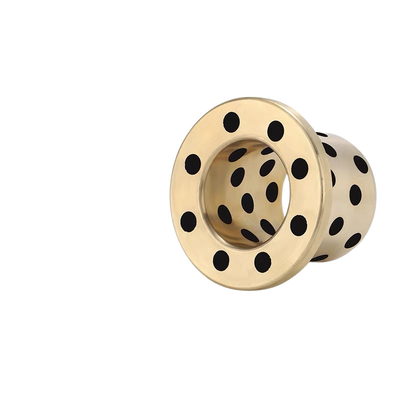

Size 506050 Metric Graphite Plugged Sleeve 50 ID X 60 OD X 50 Length
Place of Origin | Self Lube Bearings |
---|---|
Brand Name | bronzelube.com |
Certification | Plain Sleeve Bearings Standards met: RoHS |
Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
Packaging Details | Cartons with good information lable |
Delivery Time | Shipped in 3-20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMarerial | Bronze Graphite Bushing | Size | Inch Size Bushings |
---|---|---|---|
Standard Size | C86300,C86200 | Type | PLUGGED CAST BRONZE |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
Item | Bronze Grafitado | Graphite Plugged Bushings | Purchase Oilless Bush #500 Spherical Bearing (SPS) From China, Factory Automation & Metal Molding Parts, Industrial Tools And Consumables. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
Highlight | graphite impregnated bronze bushings,graphite filled bronze bushes |
The metric graphite plugged sleeve with dimensions of 50mm inner diameter (ID), 60mm outer diameter (OD), and 50mm length is a specialized component designed for applications requiring precise fitment, wear resistance, and self-lubrication.
Constructed from high-quality materials, this sleeve incorporates graphite plugs that provide natural lubrication, reducing friction and wear between the sleeve and mating surfaces. This self-lubricating feature eliminates the need for external lubricants, simplifying maintenance and reducing operational costs.
The metric size of 50x60x50 ensures precise fitment in equipment components with matching dimensions. The sleeve's length of 50mm provides ample contact area for secure positioning and stable performance.
Applications for this type of graphite plugged sleeve range from heavy machinery to precision equipment where reliable and long-lasting wear protection is essential. Whether used in mining, manufacturing, or other industries, this sleeve offers a robust and dependable solution for ensuring smooth and efficient operation.
Graphite Plugged Bushings
Our company produces various brands of copper alloy bushing and bearings:
Brass: Ordinary bronze, extra hardness bronze (HB>250), etc.Aluminum bronze: ZCuAl10Fe3, ZCuAl9Fe4Ni4Mn2, CuAl10Ni, and other tin bronze: ZCu5Pb5Zn5, CuSn7Zn4Pb7, CuSn8, CuSn12, ZCuSn10P1, etc.High lead copper: ZCuPb10Sn10, CuPb15Sn7, and other bushings can be produced according to DIN, BS, EN, UNS, SAE, and Chinese GB standards according to different customer requirements (for example CuZn39Pb3, CuZn40Al2, C86200, C95800, C48200).
Welcome to inquire!
Size 506050 | Metric Graphite Plugged Sleeve | 50 ID x 60 OD x 50 Length
Self Lubricating Graphite Plugged Bronze Sleeve Bushing
Plug Graphite Sleeve Bushing Die Components
Self-Lubricating Guide Systems Standard Components
“We have been a customer of Reliable Bronze for many years and have always found that from a price, quality, and delivery perspective… they cannot be beaten.”
Bronze Bushing Products for Every Industry!
Economical bearing: insert type solid lubrication bearing
Inlaid bearings not only save oil and energy but also have a longer working life than ordinary sliding bearings. Metal base inlaid solid self-lubricating bearing (JDB for short) is a kind of novel self-lubricating bearing that has the characteristics of both metal bearing and self-lubricating bearing. The metal substrates bear most of the load during the friction process. Through friction, the solid lubricant in the oilless bearing bushing in the hole or groove transfers or reversely transfers to the friction surface, forming a solid transfer film with good lubrication, firm adhesion, and uniform coverage on the friction surface, which greatly reduces friction and wears.As the friction of self-lubricating steel sleeve is carried out, the embedded solid lubricant is constantly provided on the friction surface to ensure good lubrication of the friction pair during long-term operation. It breaks through the boundaries of ordinary bearings depending on oil film lubrication. It has the advantages of high bearing capacity, impact resistance, high-temperature resistance, small friction coefficient, low abrasion, no noise, strong self-lubrication performance, etc. It is especially suitable for heavy load, low speed, reciprocating or oscillating, etc.
High Tensile Manganese Bronze Solid
High Tensile Brass
Our company produces various grades of copper alloy products:
Block Guide In Bronze-Graphite
Modular Block In Bronze-Graphite
Bronze-Graphite Block Guide Plate Side
Bronze-Graphite Guide Plate
Bronze-Graphite Guide
Bronze-Graphite Guide
Self Lubricated for Higher Temperatures and Heavier Loads
Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings
- Inch Sized Bushings
- Metric Sized Bushings
Material:
C86300 Manganese Bronze
C86300 Typical applications include slow speed heavy duty load bearings, gears, cams, and hydraulic cylinder parts.
continuous cast manganese bronze is a high strength, non-heat treatable copper alloy intended for use in applications requiring a good combination of outstanding wear characteristics and high bearing strength for heavy loads and slow speeds.
Bronze sleeve bearings flanged bronze bushings for sale
C86300 Manganese Bronze Graphite Bushings | |
ELEMENT | CONTENT (%) |
Copper, Cu | 60.0-68.0 |
Lead, Pb | ≤0.2 |
Tin, Sn | ≤0.2 |
Zinc, Zn | 22~28 |
Iron, Fe | 2.0-4.0 |
Aluminum, Al | 5.0-7.50 |
Manganese, Mn | 2.5-5.0 |
|
|
C86200 Manganese Bronze Graphite Bushings | |
ELEMENT | CONTENT (%) |
Copper, Cu | 60.0-68.0 |
Lead, Pb | ≤0.2 |
Tin, Sn | ≤0.2 |
Zinc, Zn | 22~28 |
Iron, Fe | 2.0-4.0 |
Aluminum, Al | 3.0-4.90 |
Manganese, Mn | 2.5-5.0 |
Performance
Graphite Plugged Cast Bronze Bushings can be utilized where heavy loads must be supported at low to medium speeds
The Plug Graphite Cast Bronze Bushing is able to withstand high temperatures up to 570 F
The self-lubricating feature allows bearings to be used where oiling is difficult, expensive to implement, and where grease/oil cannot be used. Excellent lubrication is achieved even under high loads at low speeds.
Self-lubrication with specially embedded solid lubricants reduces friction. Coefficient of Friction: 0.04 to 0.2
Technical Data
Grade | 50# | 50S1 | 50S2 | 50S3 | 650S5 |
Material | CuZn25AI5Mn4Fe3 | CuSn5Pb5Zn5 | CuAI10Ni5Fe5 | CuSn12 | CuZn25AI5Mn4Fe3 |
Density | 8 | 8.9 | 7.8 | 8.9 | 8 |
Hardness | ≥210 | ≥70 | ≥150 | ≥75 | ≥235 |
Tensile strength | ≥750 | ≥250 | ≥500 | ≥270 | ≥800 |
Yield strength | ≥450 | ≥90 | ≥260 | ≥150 | ≥450 |
Elongation | ≥12 | ≥13 | ≥10 | ≥5 | ≥8 |
Coefficient o linear expansion | 1.9×10-5/℃ | 1.8×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.9×10-5/℃ |
Max.Temp. | -40~+300℃ | -40~+400℃ | -40~+400℃ | -40~+400℃ | -40~+300℃ |
Max.dynamic load | 100 | 60 | 50 | 70 | 120 |
Max.speed(Dry) | 15 | 10 | 20 | 10 | 15 |
N/mm²*m/s(Lubrication) | 200 | 60 | 60 | 80 | 200 |
Compression deformation | < 0.01 mm | < 0.05mm | < 0.04mm | < 0.05mm | < 0.005mm |
Applications
Bushings for Construction Equipment, Boom Link Bushings for Power Shovels, Toggle Link & Guide Bushings for Injection Mold Machines, Steel Mill Equipment, Furnace Dragouts, Drying Equipment, Roasters, Press Dies, Assembly Lines, Hydro-Electric Structures, Winches, Hoisting Equipment, Tire and Paper Mill Machinery and Many Other Industrial Applications.
