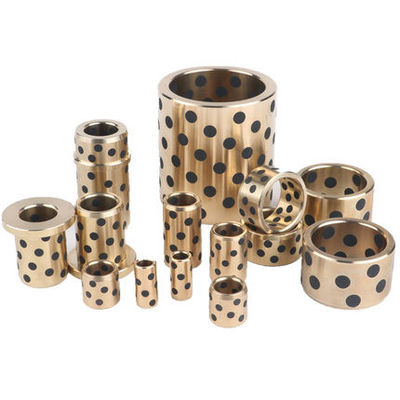

Plug Graphite Sleeve Guide Inch Sized Bushings , Bronze Graphite Bushings daido metal Standard
Place of Origin | Self Lube Bearings |
---|---|
Brand Name | bronzelube.com |
Certification | Plain Sleeve Bearings Standards met: RoHS |
Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
Packaging Details | Cartons with good information lable |
Delivery Time | Shipped in 3-20 work days |
Payment Terms | TT IN ADVANCE,L/C,Western Union |
Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Marerial | Bronze Graphite Bushing | Size | Inch Size Bushings,Standard Stock Size |
---|---|---|---|
Standard | C86300,C86200,sankyo Oilless ,daido Metal Bushings | Type | PLUGGED CAST BRONZE BUSHING,PLATE |
Lubricant | Graphite | Advantage | Wear Resistant And Long Service Life |
Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
High Light | Manufactures Wear Plates Industry Standards (VDI, JIS, NAAMS, SMC). Our Wear Plates Come In A Broad Range Of Standard Inch And Metric Wear Plate | High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy |
High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy | Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. |
Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
High Light | bronze wear plate,brass wear plate |
Graphite Plugged Bushings are a line of self-lubricating bushings that A bushing is a type of bearing in the form of a straight or flanged bearings for sliding applications.

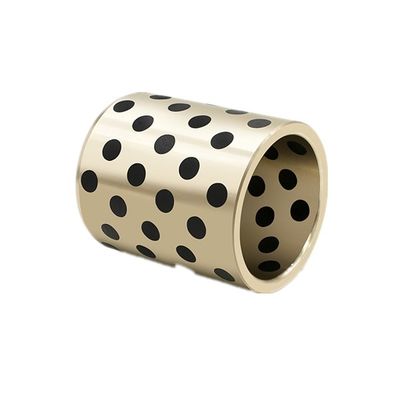

Self Lubricating Graphite Plugged Bronze Sleeve Bushing Metric 25 mm ID x 33 mm OD x 60 mm
Graphite Plugged Bronze Sleeve - Manufacturers & Suppliers
The wear-resistant material is metal substrate, adding various lubricating materials to reduce the coefficient of friction and self-lubrication.
This material combines high load metal structure, advantages, good impact resistance and low non-metallic coefficient of friction, it can meet a variety of different use conditions.
The standard graphite plugged bronze sleeve bushing is to open cavities of appropriate size and orderly arrangement on the metal friction surface of the bearing matrix, and then embed a molded solid lubricant with unique self-lubricating properties in the cavities (the solid lubricant area is generally 25% of the friction area -35%) and made of self-lubricating bearings.
The base body of the standard graphite plugged bronze sleeve bushing should be determined according to the working conditions of the bearing itself. The more commonly used materials are high-strength brass, tin bronze, castings and so on. There are two main types of embedded solid lubricating materials, one is natural black lead, artificial graphite, and MoS2 synthesis, and the other is synthesized with PTFE as the matrix. According to the bearing's own operating conditions, the combination of different metal substrates and embedded solid lubricants can ensure that the product can meet the special needs of various temperature, load, motion and media operating conditions, while ensuring stable and reliable operation.
■Lubrication-free
■Corrosion resistance
■Resistant to dust and dirt
■Small friction coefficient
Self-lubricating Cyclinder Bronze Bushing Standard Metric Size
Solid Lubricant | ||
Lubricant | Features | Typical application |
SL1 Graphite+add | Excellent resistance against chemical attacks and low friction.Temp limit 400 ℃ | Suite for general machines and under atmosphere |
SL4 PTFE+Additives | Lowest in friction and good of water lubrication ,Temp.limit 300℃ | Ship,hydraulic turbine,gas turbine etc |
Material alloy chemical composition
Chemical Elements | JDB-1 | JDB-2 | JDB-3 | JDB-4 | JDB-5 | ||
Cu ( % ) | Rest | Rest | Rest | - | - | ||
Sn ( % ) | - | 6 | - | 10 | 6 | - | - |
Zn ( % ) | 25 | 6 | - | - | 6 | - | - |
Ni ( % ) | - | - | - | - | - | - | - |
AI ( % ) | 6 | - | 10 | - | - | - | - |
Fe ( % ) | 3 | - | 3 | - | - | Rest | Rest |
Mn ( % ) | 3 | - | - | - | - | 0.905 - 1.3 | 0.20 - 0.40 |
Cr ( % ) | - | - | - | - | - | - | 1.30 - 1.65 |
C ( % ) | - | - | - | - | - | 2.5 - 4 | 0.95 - 1.05 |
Si ( % ) | - | - | - | - | - | 1.0 - 1.3 | 0.15 -0.35 |
Pb ( % ) | - | 3 | - | - | 3 | - | - |
The Premier Source for Bronze Bushings Online |
Sleeve Guide Bushings Inch size bushings
GRAPHITE PLUGGED CAST BRONZE BUSHINGS
Self Lubricated for Higher Temperatures and Heavier Loads
Solid self-lubricating bearing with graphite plug insert | Graphite copper sleeve bushings
-
Inch Sized Bushings
-
Metric Sized Bushings
The U.S. 's GGB, sankyo oilless and DAIDO are the world's top three makers of self-lubricated bearings, with strong positions in aerospace, automotive and transportation.VIIPLUS also established itself as an industry leader in self-lubricating bearings exported from China.
VIIPLUS products include including Self-lubricated bearing, Boundarylubricating bearing, Solid-lubricant-inlaid bearing etc.
The characteristics of inlaid type solid self lubricating bearing have been introduced and itsdesign principle has been illustrated.
A thin-wall embedded self-lubricating bearing comprises a plate; blind holes filled with solidlubricant are evenly distributed on the working plane of the plate.
Product this with uniqueness to have lubricated function of oil, replace traditional copper suit,have earned greater economic benefits for user.
The metal of bronze graphite bushings bearing and the lubricating film formed by the solid lubricant can bear higher load under the condition of high temperature.
The main product is the high technology auto machine's spare bushings part, solid inlaid steel bushings , and machine copper bush.
ELEMENT CONTENT
C86300 Maganese Bronze Graphite Bushings |
|
ELEMENT |
CONTENT (%) |
Copper, Cu |
60.0-68.0 |
Lead, Pb |
≤0.2 |
Tin, Sn |
≤0.2 |
Zinc, Zn |
22~28 |
Iron, Fe |
2.0-4.0 |
Aluminium, Al |
5.0-7.50 |
Manganese, Mn |
2.5-5.0 |
|
|
C86200 Maganese Bronze Graphite Bushings |
|
ELEMENT |
CONTENT (%) |
Copper, Cu |
60.0-68.0 |
Lead, Pb |
≤0.2 |
Tin, Sn |
≤0.2 |
Zinc, Zn |
22~28 |
Iron, Fe |
2.0-4.0 |
Aluminium, Al |
3.0-4.90 |
Manganese, Mn |
2.5-5.0 |
FEATRUE
Metal Mosaic solid self-lubricating bearing (for short JDB) is a kind of both metal bearing characteristics and lubricating bearings, self-lubricating bearing characteristics of fresh by load matrix, and the special formula of solid lubricating materials lubrication with high bearing capacity, impact resistance, high temperature resistant, self-lubricating ability etc., so out of line is suitable for the overload, low speed, and or swing to lubrication and oil film formation, not afraid of the water and other acid etching and scour the masses of users throughout reflect not only fuel-efficient inlaid bearing, energy saving,And its working life is longer than the ordinary sliding bearing products have been widely used in smelting metal continuous casting machine, rolling equipment, mining machinery, ships, steam turbines, turbines, injection molding machine and equipment production lines.

TECHNICAL DATA
Grade |
50# |
50S1 |
50S2 |
50S3 |
650S5 |
Material |
CuZn25AI5Mn4Fe3 |
CuSn5Pb5Zn5 |
CuAI10Ni5Fe5 |
CuSn12 |
CuZn25AI5Mn4Fe3 |
Density |
8 |
8.9 |
7.8 |
8.9 |
8 |
Hardness |
≥210 |
≥70 |
≥150 |
≥75 |
≥235 |
Tensile strength |
≥750 |
≥250 |
≥500 |
≥270 |
≥800 |
Yield strength |
≥450 |
≥90 |
≥260 |
≥150 |
≥450 |
Elongation |
≥12 |
≥13 |
≥10 |
≥5 |
≥8 |
Coefficient o linear expansion |
1.9×10-5/℃ |
1.8×10-5/℃ |
1.6×10-5/℃ |
1.8×10-5/℃ |
1.9×10-5/℃ |
Max.Temp. |
-40~+300℃ |
-40~+400℃ |
-40~+400℃ |
-40~+400℃ |
-40~+300℃ |
Max.dynamic load |
100 |
60 |
50 |
70 |
120 |
Max.speed(Dry) |
15 |
10 |
20 |
10 |
15 |
N/mm²*m/s(Lubrication) |
200 |
60 |
60 |
80 |
200 |
Compression deformation |
< 0.01 mm |
< 0.05mm |
< 0.04mm |
< 0.05mm |
< 0.005mm |
Application of graphite copper sleeve
1. Plastic machine industry: plastic injection machine hinge, crosshead, moving template, second plate sliding foot (JSP), mold adjusting gasket, supporting template sleeve
2. Smelting metal machinery: roll continuous casting machine, rolling mill. Balance. Actuator. Send. Pushing mechanism, shears bushing. Skateboards, in and out of the flat wagon furnace shell, furnace. Tilting mechanism, electrode elevator, stepping straight pull device, mechanical loading rocker. Axis. Dial the claw, tile, steel machine crankshaft six-freedom shear machine skateboards, steel mill bearing, bush set four continuous casting shear machine, continuous casting machine for cutting the car axle sleeve,Cutting machine tool rest slide plate of more than 100 tons. Axle sleeve. Crankshaft bushing. Large gear bushing. Connecting rod sleeve, cold drawing machine octagonal wheel bushing, double-sided milling propulsion device, ball mill, steel slag grab wheel shaft bushing, sheet slitting machine bushing
3. Supporting hinged ball bearing of curved gate of hydraulic machinery
4. Shaft sleeve, thrust gasket and gear type oil pump of pumping unit (knock out machine) in petroleum mechanical oilfield
5. Slide plate for cold stamping die of mould automobile cover parts, l-shaped insert strip, v-shaped slide plate, oblique wedge and various guide sleeves
6. Fulcrum and other joint parts of crane arm of port crane
7. Non-excavation tunneling machine main optical shaft bushing
Construction machinery;
8.Mining machine support heavy arm joint bushing
