SF-1D Bronze Base Sleeve Bearing For Metallurgical And Steel Industry

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Bronze Backed, Bronze , Plating Tin Or Copper
Quality OEM Quality Size Std.&Non-std. Customized Sizes
Application Metallurgy Machine And Casting Machines, Consecutive Casting Machines, Cemetery Machines, Spiral Transporting Machines, Etc. Type Wrapped Bushes, Flanged Bearing, Thrust Washer
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

plain sleeve bearing strips

,

self lubricating bearing strip

Leave a Message
Product Description

The SF-1D Bronze Base Sleeve Bearing is a high-performance bearing specifically designed for the demanding applications in the metallurgical and steel industry. This bearing combines the durability and strength of a bronze base with the exceptional lubrication and wear-resistant properties of (Polytetrafluoroethylene).

The bronze base provides excellent heat dissipation and resistance to corrosion, ensuring that the bearing can withstand the high temperatures and harsh environments commonly found in metallurgical and steel plants. The sleeve, on the other hand, offers exceptional lubrication characteristics, reducing friction and wear between moving parts.

The SF-1D Bronze Base Sleeve Bearing is also designed for easy installation and removal, making it a convenient choice for applications where frequent maintenance or replacement is necessary. The precision manufacturing ensures a tight and secure fit, minimizing movement and vibration during operation.

The bearing's durability and reliability make it a cost-effective solution for the metallurgical and steel industry. It can handle the heavy loads and high speeds required in various applications, such as rolling mills, conveyors, and other industrial machinery.

In summary, the SF-1D Bronze Base Sleeve Bearing is a high-performance bearing that offers exceptional durability, corrosion resistance, and lubrication properties for the demanding applications in the metallurgical and steel industry.



Self-lubricating Bearings



Self-lubricating Bearings is wall wrapped bearing made of triple layer composites material which consists of a steel backing,a sintered porous bronze particles interlayer and calendared with and Pb mixture as surface layer,It is of low friction cofeeicient,anti-wear,anti-corrosion and can be used without oil,or only a trace of oil os needed.moreover,it is of low cost,low vibration and low noise,compact and light,like POM BUSHINGS widely applied in various sliding articles of different kind of machines,Such as textile machines,tobacoo machines,hydraulic vechicles,antomobiles,agriculture and forests machinese and soon.



SF-1D bronze base bearing metallurgical and steel industry cement grouting pump and spiral conveyor bush | VSB-11



Bronze + Bronze Powder + /Fibre

Dry Maintenance Free Bronze Base  Self Lubricating Bush SF-1B



Characteristics



· VSB-11





Sf-1b bronze base bearing is based on tin bronze, intermediate sintered bronze ball powder, surface rolling PTEE and high temperature filling material.

It has a high safety factor, especially in places where continuous work cannot be stopped and high temperatures cannot be refuelled. At present, it is widely used in metallurgical and steel industry, continuous casting billet rolling road, high temperature furnace front equipment, cement grouting pump and spiral conveyor. It can be a combination of the outer wave combination, and can also be made to turn the edge, to reach the end face, the inner hole and the effect of friction.

The rolling part of the bridge supports the replacement of the pure board with the products of sf-1b wear-resistant layer. Meet the requirements of 130N/mm squared.



· Very good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions

· Suitable for lubricated applications

· Suitable for linear, oscillating and rotating movements

· Bronze back offers improved corrosion resistance in humid/saline environments

· Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary and oscillating movement. Very high chemical resistance, low absorption of water and swelling, also performs very good lubrication feature, the bronze backing provides the improved corrosion resistance comparing with VSB-10.



Strusture




1. /fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the /Fibre mixture.
3. Bronze backing, provides exceptionally high load carrying capacity, excellent heat dissipation and very good corrosion resistance.



Technical Data​


Structure And Composition



· Metal-Polymer Composite Material
· Bronze Back + Porous Bronze Sinter +
· + Lead



Microsection



SF-1D Bronze Base  Sleeve Bearing For Metallurgical And Steel Industry 0

Sliding layer
+ Lead


Porous Bronze Sinter

Bronze Backing





Tech. Data



Max. load

Static

250N/mm2

Friction coefficient

0.03~0.20

Very low speed

140N/mm2

Rotatingoscillating

60N/mm2

Max.speed

Dry running

2m/s



Hydrodynamicoperation

>2m/s



Max. PVdryrunning

Short-termoperation

3.6N/mm2*m/3

Thermal conductivity

70W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



Temp. limit

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1





Operating Performance

Dry

Very Good

Oil lubricated

Good

Grease lubricated

Fair

Water lubricated

Good

Process fluid lubricated

Fair





Bearing Properties



GENERAL



Unit

Value

Maximum load, p

Static
Dynamic

N/mm2
N/mm2

140
140

Operating temperature

Min
Max

°C
°C

- 195
280



DRY
Maximum sliding speed, U   m/s 2.0

Coefficient of friction     0.03 - 0.20 *



OIL LUBRICATED
Maximum sliding speed, U   m/s >2.0



* Depending on operating conditions



Technical data



Max. load

Static

250N/mm2

Dynamic

140N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+2800℃

Friction coefficient

0.03~0.20

Thermal conductivity

70W (m·k)-1

Coefficient of thermal expansion

17*10-6k-1



SF-1D Standard Tolerance Dimension Table



相配轴径公差
相配座孔公差
(H7)
轴承外径公差
压入座孔后轴承内径公差
壁厚
f1
f2
L0-0.40
20
25
30
40
50
60
70
80
100
115
45 -0.025
-0.050
50 +0.025
50 +0.085
+0.045
44.990
45.105
2.460
2.505
1.8
0.6

4520

4525

4530

4540

4550





















50 -0.025
-0.050
55 +0.030
55 +0.100
+0.055
49.990
50.110

5020






5030

5040

5050

5060

















55 -0.030
-0.060
60 +0.030
60 +0.100
+0.055
54.990
55.110










5530

5540

5550

5560

















60 -0.030
-0.060
65 +0.030
65 +0.100
+0.055
59.990
60.110










6030

6040

6050

6060

6070













65 -0.030
-0.060
70 +0.030
70 +0.100
+0.055
64.990
65.110










6530

6540

6550

6560

6570













70 -0.030
-0.060
75 +0.030
75 +0.100
+0.055
69.990
70.110














7040

7050

7060

7070

7080









75 -0.030
-0.060
80 +0.030
80 +0.100
+0.055
74.990
75.110










7530

7540

7550

7560

7570

7580









80 -0.030
85 +0.035
85 +0.120
+0.070
80.020
80.155
2.440
2.490
1.8
0.6














8040

8050

8060

8070

8080

80100





85 -0.035
90 +0.035
90 +0.120
+0.070
85.020
85.155














8540






8560






8580

85100





90 -0.035
95 +0.035
95 +0.120
+0.070
90.020
90.155














9040

9050

9060






9080

90100





95 -0.035
100 +0.035
100 +0.120
+0.070
95.020
95.155


















9550

9560






9580

95100





100 -0.035
105 +0.035
105 +0.120
+0.070

100.020

100.155


















10050

10060






10080






100115
105 -0.035
110 +0.035
110 +0.120
+0.070
105.020
105.155






















10560






10580






105115
110 -0.035
115 +0.035
115 +0.120
+0.070
110.020
110.155






















11060






11080






110115
120 -0.035
125 +0.040
125 +0.170
+0.100
120.070
120.210
2.415
2.465
1.8
0.6






















12060






12080

112100





125 -0.040
130 +0.040
130 +0.170
+0.100
125.070
125.210






















12560










125100

125115
130 -0.040
135 +0.040
135 +0.170
+0.100
130.070
130.210






















13060






13080

130100





140 -0.040
145 +0.040
145 +0.170
+0.100
140.070
140.210






















14060






14080

140100





150 -0.040
155 +0.040
155 +0.170
+0.100
150.070
150.210






















15060






15080

150100





160 -0.040
165 +0.040
165 +0.170
+0.100
160.070
160.210






















16060






16080

160100

160115
180 -0.040
185 +0.046
185 +0.210
+0.130
180.070
180.216
2.415
2.465
2.415
2.465
1.8
1.8
0.6
0.6






























18080

180100





190 -0.046
195 +0.046
195 +0.210
+0.130
190.070
190.216






























19080

190100





200 -0.046
205 +0.046
205 +0.210
+0.130
200.070
200.216






















20060






20080

200100





220 -0.046
225 +0.046
225 +0.210
+0.130

220.070

220.216






























22080

220100





250 -0.046
255 +0.052
255 +0.260
+0.170

250.070

250.222






























25080

250100





260 -0.052
265 +0.052
265 +0.260
+0.170
260.070
260.222






























26080

260100





280 -0.052
285 +0.052
285 +0.260
+0.170

280.070

280.222






























28080

280100





300 -0.052
305 +0.052
305 +0.260
+0.170

300.070

300.222






























30080

300100









Availability

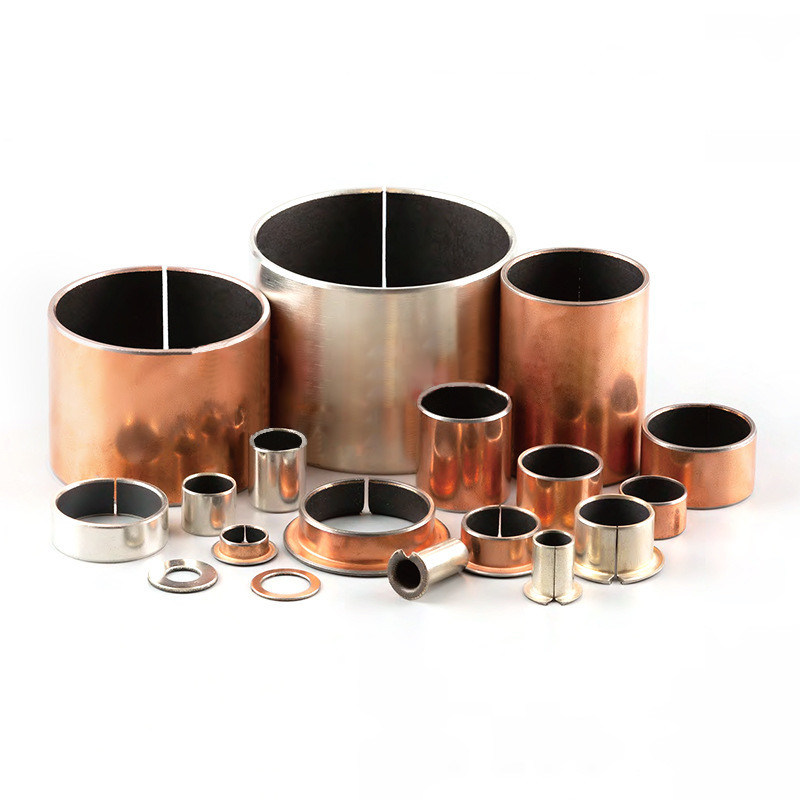

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates

Bearing forms made to order: standard forms in special dimensions, thrust washers, flanged thrust washers, half-bearings, special shapes obtained by stamping or deep drawing, customized bearing designs


Typical Applications



The typical applications covered Steel metallurgy industry such as bushes for roller grooves of successive casting machines, cement grouting pumps and screw conveyers for cement and so on.conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.
