Outside Steel Porous Bronze Sinter Pom Sleeve Bushings Strips Housing Shaft Tolerance Inch Dimension Added Chamfers

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Wear,Dry,Low Resistance Meterial Low-Carbon Steel + Porous Bronze + Yellow POM Strips
Plating Tin Or Copper Type Wrapped Bushes, Thrust Washer
Special Use High-strength Steel Plate Application Automotive Chassis, Forging Machines, Mine Quarrying Machines, Metal Melting And Casing Machines And In Water Irrigating And Steel Rolling Industries, Etc.
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

du strip

,

self lubricating bearing strip

Leave a Message
Product Description

Outside Steel Porous Bronze Sinter Pom Sleeve Bushings, also known as sintered metal-polymer composite bushings, are mechanical components that offer a unique combination of properties for various applications. These bushings consist of a steel outer shell with a porous bronze sinter layer impregnated with a polymeric material, often Polyoxymethylene (POM), which provides excellent wear and friction characteristics.

The porous bronze sinter layer allows the impregnated polymeric material to be retained within the structure, creating a self-lubricating surface. This design enables the bushings to operate efficiently with minimal lubrication, reducing maintenance requirements and downtime.

The strips or housing sections of these bushings are typically manufactured to precise inch dimensions to ensure proper fit and alignment within the system. The shaft tolerance must also be carefully considered to allow for smooth rotation and prevent premature wear.

Added chamfers, or chamfered edges, are often included on the bushings to facilitate installation and provide a smooth transition between the bushing and the surrounding components. Chamfers can also help reduce stress concentrations and improve the overall performance of the system.

Overall, the use of Outside Steel Porous Bronze Sinter Pom Sleeve Bushings offers numerous advantages, including excellent wear resistance, self-lubrication, precise dimensional control, and the ability to withstand high loads and speeds. These bushings are widely used in various industries, including automotive, aerospace, heavy machinery, and other applications where precision and durability are critical.



Lead Free Outside Steel Backing To Porous Bronze Sinter Material To Pom Bearing Source Of Supply
Strips Material Source Control Drawing Housing Shaft Tolerance Inch Quality Dimension Added Chamfers



Materials polymer liners for self-lubrication strips plate and improved wear properties.Lead free bushings Plain bearing strips Boundary lubrication lead-free material


Application


Textiles Mills Spinning Unit's Machinery self-lubricating bearing application
This Spinning machine twists many plant fibers tog to spin a thread or yarn. These threads or yarns can be used to weave cloth.The first spinning frames were very simple and were used in the 14th century.After the 18th century, people invented better spinning machines, which made the textile industry the first industry.All spinning machines do two things: first, they gather tog a large number of short fibers into a loose thread.
Self -lubricating Bearing is an important part of contemporary mechanical equipment.Its main function is to support the mechanical rotating body, reduce the friction coefficient in the motion process and ensure its accuracy.Guide roller construction including a sliding bearing absorbing axial and radial stresses with aero or hydro dynamic friction reduction provided by a plurality of flat grooves located in at least one surface of adjoining bearing surfaces.


Parameters



The SF-2Y boundary lubricates lead-free materials with the same performance as SF-2, but the surface is lead-free and can be extended to areas with environmental requirements. At present, the material has been applied to imported textile equipment, swing parts of
piston pumps, and parts of automobile joysticks, such as medium-load, medium-speed, and grease lubrication.


Low-Carbon Steel + Porous Bronze + Yellow POM strips


Maximum load pressure: 70N/mm2
Friction coefficient μ: 0.05~0.25
Applicable temperature range: -40 ° C ~ 130 ° C
Maximum sliding speed: 2.5m/s
Allow the highest PV value: 22N/mm2.m/s

Steel + Bronze Powder + POM Strips



Characteristics

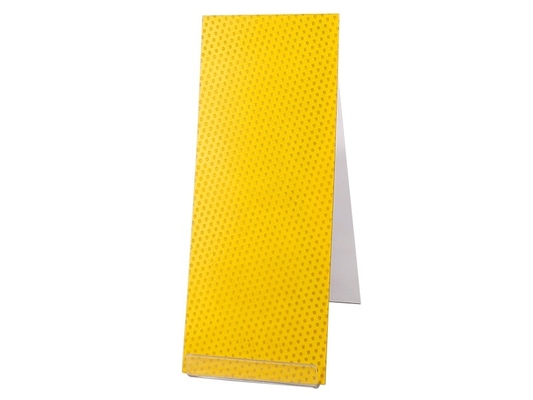

Strips PAS are available as an even material section. This material section can be used to make sliding elements in a variety
of shapes.

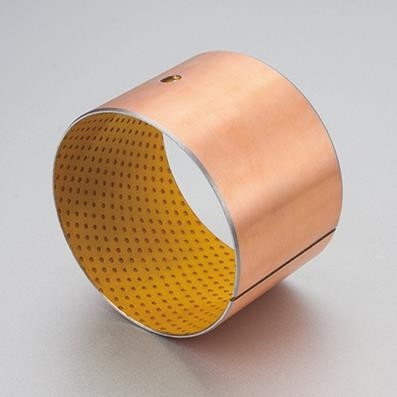

Metal - Polymer Composite Bearing With POM Material sleeve bush

WRAPPED BRONZR BUSHING



  • Low-maintenance standard solutions

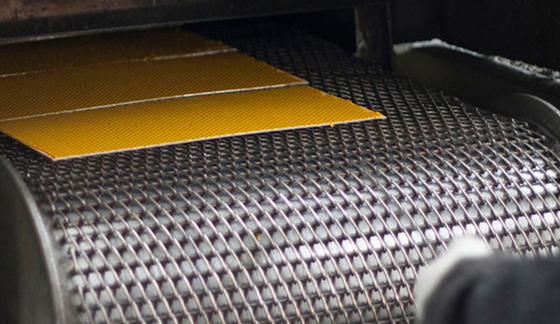

Plain bearing production


Sliding elements in a great variety of designs are produced from the composite material in cutting, stamping and shaping processes.

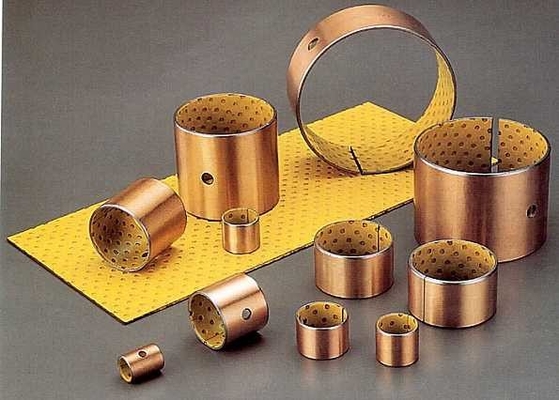

Standard designs are:



  • Cylindrical bushes
  • Thrust washers
  • Strips



Characteristics


Material composition
Strips
Bushes
Thrust washers

Standard version: Tin
layer thickness: approx. 0.002 mm


If these material sections are used to create slide paths, they have the following main functions:



  • Absorbing and transferring forces acting vertically to the running surface
  • Fixing moving components to each other
  • Ensuring guidance accuracy for axial movements over the entire service life



Strips are available in two material groups:



  • Material group P1 for maintenance-free, dry-running applications
  • Material group P2 for low-maintenance, lubricated applications


For the advantages of each group and help deciding which material group is best for the relevant use, please refer to the information provided in the section cylindrical bushes, flange liners and thrust washers.



VSB-20 Flange liners PAF


· marginally lubricated bushings for grease or oil lubricated applications
· Standard parts contain grease indents in the sliding layer; plain sliding layer available by request
· Optimum performance under relatively high loads and low speeds
· Suitable for linear, oscillating and rotating movements.
· Wide range of parts available from stock

Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviours, good resistance to shock loads.



Strusture



1. POM thickness 0.30~0.50 mm. It provides high wear resistance and low friction even with only minute volume oflubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Sintered bronze powder thickness 0.20-0.35mm. A special composition of powdered copper is thermally fused to the steel backing. This contact layer acts as an anchor for the layer and conducts the thermal build up away from the bearing surfaces.
3. Low-carbon steel.Setting the foundation of the bushings, the steel back provides exceptional stability,load carrying and heat dissipation characteristics.



Technical Data



Structure And Composition



  • Metal-Polymer Composite Bushing Material
  • Steel Back + Porous Bronze Sinter +
  • POM with Lubrication Indents



Outside Steel Porous Bronze Sinter Pom Sleeve Bushings Strips Housing Shaft Tolerance Inch Dimension Added Chamfers 2

Sliding layer POM
with or without
lubricant indents
for machining
Porous Bronze
Sinter
Steel Back





OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor



Structure And Composition



Max. load

Static

250N/mm2

Dynamic

140N/mm2



Rotaing oscillating

60N/mm2

Max. speed

Dry

2m/s

Lubrication

>2m/s

Max. PV (Dry)

Short-time

3.6N/mm2*·m/s

Continuous

1.8N/mm2*·m/s

Temp.

-195℃~+280℃

Friction coefficient                         Dry

0.03~0.20

                                                      Lubrication

>2m/s

Thermal conductivity

42W (m·k)-1

Coefficient of thermal expansion

11*10-6k-1




Availability



Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
· Sliding plates



Metric bearings and imperial bushings made to order: standard bushing forms in special dimensions, half-bushings, special shapes obtained by stamping, bearings with locating notches, lubricant holes and machined grooves, customized bushing designs



Typical Applications


Recommended for applications involving intermittent operation or boundary lubrication... Automotive: suspension joints, kingpin assemblies and stub axles of trucks, automobile driving joint hinges, steering and other linkages, articulation joints, rear chassis hinges, fair leader rollers... Machine tool building industry: spindles in drill, grinding, and milling machines, ram guide plates in multi-ram presses... Agricultural equipment: gearbox, clutch, bale trips and wheel caster swivels for bale accumulators, front axle pivot bearings, steering idler box bearings and kingpin bearings for harvesters... It is especially well-suited for applications where lubricant can not be supplied continuously or repeatedly.
