Contact Person : Tiffany

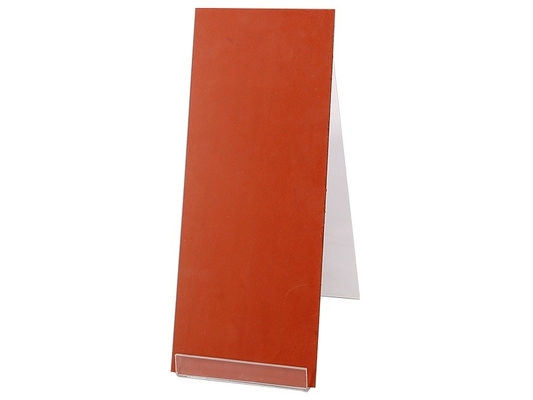

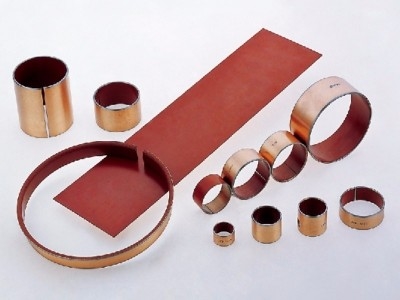

Composite Bearing Material Flat Strip, Red Polymer Fibres, Steel With Sinter Bronze Interlayer

Place of Origin Plain Bearing Material
Brand Name China Plain-Bearing
Certification DIN 1494/ISO 3547
Model Number Wrapped composite sliding bearing
Minimum Order Quantity 500 Piece/Pieces
Price flat strip material inch sizes Manufacturers,Factory Price
Packaging Details Shipment Bushing Packing: Cartons per Wooden Case or Pallet.
Delivery Time 15~20 Days
Payment Terms TT IN ADVANCE
Supply Ability 1000000 Piece/Pieces per Month Plain-Bearing Bushing

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Carton Steel , Bronze , STRIPS Plating Tin Or Copper
Type Sheet,Strip,Plate Customized Available As Per Drawing
Special Use High-strength Steel Plate Features Wear,Dry,Low Resistance
Application Typicai Applicaton Application: He Printing, Woven, Tobacco And Gymnastic Machinery, Shock Absorber Etc.. Bearing Bushing Factory Price Tiffany@viiplus.com
Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/ Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
Highlight

du strip

,

self lubricating bearing strip

Leave a Message
Product Description

Composite Bearing Material Flat Strip, featuring Red Polymer Fibres and Steel with a Sintered Bronze Interlayer, offers enhanced durability and performance. The combination of these materials results in a strip that is not only sturdy but also able to withstand high loads and pressures. The red polymer fibres provide excellent resistance to wear and tear, while the steel core ensures structural integrity. The sintered bronze interlayer acts as a lubricating buffer, reducing friction and heat generation during operation. This composite material is suitable for a wide range of industrial applications, including bearings, slides, and other components that require high levels of durability and reliability.

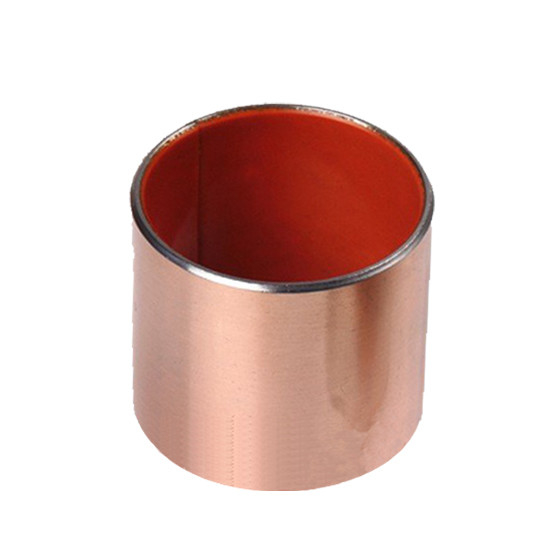

Self-Lubricating Bronze Bushing



Metal-Polymer Low Friction Plain Bearings Lead-Free Material Compliant To Rohs Specifications.Washers With Machined Oil Grooves For Transmissionscomposite Bearing Material Strip, Red Polymer Fibres.

Materiai:Metal-Polymer Composite Bushing Material Steel back + Porous Bronze Sinter + + Fillers

Metal-polymer bearings offer wear resistance & low friction for agriculture & construction equipment. Lead-free plain bushing.In addition to metric products or non-standard bearings.Hydraulic Bush & Sliding Bearings.To provide hydraulic system users with a complete set of sliding bearing solutions.The products are: gear pump aluminum base assembly, shaft sleeve, side plate;Oil distribution pan, return pan and shaft sleeve for vane pump and plunger pump;Cylinder with shaft sleeve and so on.





Self-Lubricating Bronze Bushing



Detailed information



Sf-1d hydraulic special bearing. Is on the basis of SF, 1 p combined with the oil cylinder and the working principle of the shock absorber and design a new type of material, under the condition of no oil is wear-resisting, in addition to the product has the advantages of SF, 1 d, especially suitable for reciprocating frequent occasions large lateral force.


· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements



Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.



Strusture



1. /Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.

5. Steel + Bronze Powder + /Fibre



Technical Data



· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· + Fillers



Microsection



Composite Bearing Material Flat Strip, Red Polymer Fibres, Steel With Sinter Bronze Interlayer 1

Sliding layer
+ Fillers
Porous Bronze Sinter
Steel Backing






Tech. Data:



* Depending on operating conditions





Max. load

Static

250N/mm2

Max.speed

Dry running

0.08~0.20

Very low speed

140N/mm2

Hydrodynamicoperation

0.02~0.08

Rotatingoscillating

60N/mm2

Frictioncoefficient

Dry

2m/s



Hydrodynamic

>2m/s



Max. PVdryrunning)

Short-termoperation

3.6N/mm2*m/3

Thermal conductivity

42W(m*K)-1



Continuousoperation

1.8N/mm2*m/3



PV max. hydrodynamic

-195℃~+280℃

Coefficient of thermalexpansion

11*10-6*K-1







OPERATING PERFORMANCE

Dry

Good

Oil lubricated

Very Good

Grease lubricated

Good

Water lubricated

Fair

Process fluid lubricated

Good





Self-Lubricating Bronze Bushing



Availability

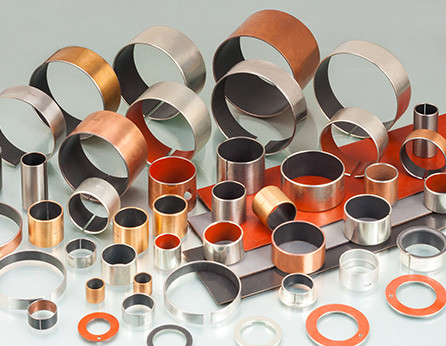

Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers



self lubricating bronze bushingself lubricating bronze bushingself lubricating bronze bushingself lubricating bronze bushingself lubricating bronze bushing

Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs



Typical Application


VSB-40 is developed for high duty, oil lubricated, hydraulic applications...Automotivesuspensionstruts,absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.VSB-40 is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic shockfriction coefficient.
