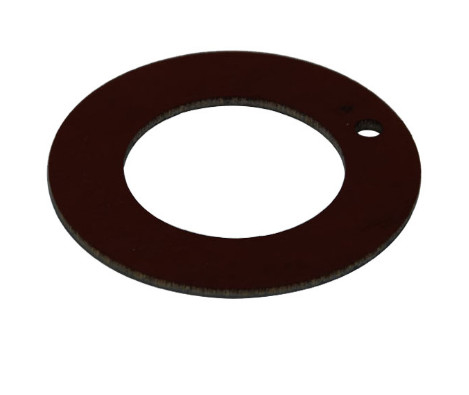

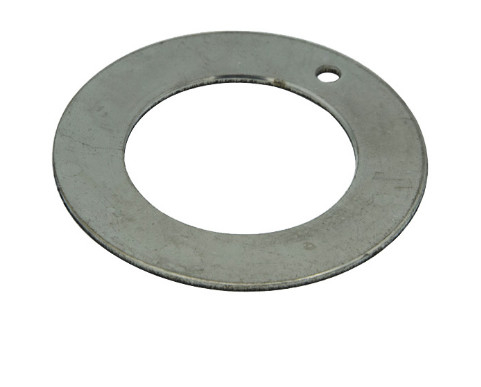

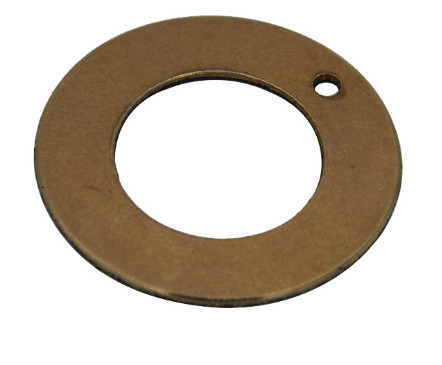

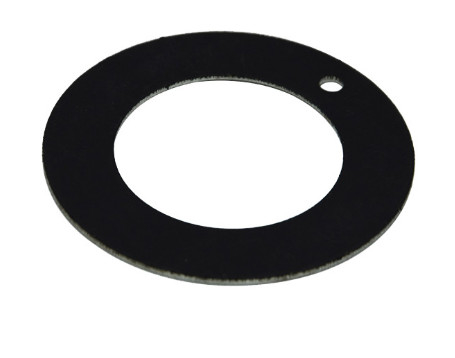

Customized Oilless Resin Sliding Materials Washer & Flat PTFE Gasket
| Place of Origin | Self Lube Bearings |
|---|---|
| Brand Name | bronzelube.com |
| Certification | Plain Sleeve Bearings Standards met: RoHS |
| Model Number | Straight Bushing:Bronze with Embedded Solid Lubricant Material,Lead Free |
| Minimum Order Quantity | Bronze Precision Wear Plates & Lubricating Parts made to order |
| Price | US$0.11 - US$21.11 / Pieces,NEGOTIABLE |
| Packaging Details | Cartons with good information lable |
| Delivery Time | Shipped in 3-20 work days |
| Payment Terms | TT IN ADVANCE,L/C,Western Union |
| Supply Ability | Self Lube Bearing Manufacturing Dimensions Tolerance Assembly |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Meterial | Low-Carbon Steel + Porous Bronze + PTFE | Plating | Tin Or Copper |
|---|---|---|---|
| Types | FLANGE/SLEEVE/WASHER | Application | Printing, Weaving And Tobacco Producing Machines, Gymnastic Equipment, Shock Absorbers, Etc. |
| Production Feature | Washer | Application | Heavy Industry, General Industry, Automotive Industry |
| Bearing Bushing Factory Price | Tiffany@viiplus.com | Self-lubricating Bearing Bushing Manufacturer | Https://www.viiplus.com/ |
| High Light | Manufactures Wear Plates Industry Standards (VDI, JIS, NAAMS, SMC). Our Wear Plates Come In A Broad Range Of Standard Inch And Metric Wear Plate | High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy |
| High Light | Bronze Wear Plates , Self Lubricating - Special Brass Alloy | Self Lubricating Graphite Plugged Bronze Plate | Bronze Wear Plate And Pad For Industrial Machinery, Manufacturer Of Bronze Sleeve Bushings, We Often Receive Requests For A Variety Of Product Types. |
| Bush Bearings Manufacturers Suppliers Exporters | Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/ | ||
| High Light | bronze wear plate,brass wear plate |
||
Product Description
Self Lube Wear Plates
Customized Oilless Resin Sliding Materials Washer (Drystar) similar sankyo oilless washer.Factory customized high hardness steel coated,Steel composite material Sliding Washer PTFE valve washer spacer flat gasket,
Heavy Industry, General Industry, Automotive Industry
Metal PTFE washer,Composite PTFE Thrust Washer.All size customized Steel composite material Sliding Washer
VIIPLUS main products:Cylindrical bushes, thrust washers, strip and non-standard parts as the clients supplied drawing etc.
viiplus provides a complete set of sliding bearing solutions for hydraulic system users. The supplied products include: gear pump aluminum seat assembly, axle sleeve, side plate; Blade pump and plunger pump with oil plate, return disk, axle sleeve; Cylinder liner and so on.
|
Product Name |
Washer |
|
Max Load Capacity |
Static load 250N/mm2 ; Dynamic load 140N/mm2 |
|
Max Load Speed |
Dry friction 2.5m/s ; Oil lubrication 5.0m/s |
|
Max PV Value Limit |
Dry friction 3.6N/mm2 m/s ; Oil lubrication 50N/mm2 m/s |
|
Friction Coefficient |
Dry friction 0.08~0.20 ; Oil lubrication 0.02~0.07 |
|
Work Temperature |
-195℃~+280℃ |
|
Thermal Conductivity |
42w/m k |
|
Production Process |
Material cutting~Bronze sintering~PTFE sintering~Sizing~Coiling~Surface finish~Packing |
|
Application Feature |
Self lubrication, Low wear, Low friction, Low noise, Good sliding characteristic, Pb free |
Characteristics
Metal-Polymer Low Friction Plain Bearings
Steel + Bronze Powder + PTFE/Fibre
Self Lubricating Bearings Low-Carbon Steel + Porous Bronze + PTFE
low friction bushings offer good wear and low friction performance over a wide range of loads, speeds and temperatures in dry running conditions
· Very good performance in lubricated applications
· Good performance in greased applications
· Suitable for linear, oscillating and rotating movements
Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surfaces, suitable for rotating and oscillating movement, high chemical resistance, low absorption of water and swelling. The VSV-40 improved the friction and much good wear resistance over the common CSB-10 range under lubricated operation.
Strusture
1. PTFE/Polymer fibres mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE mixture.
3. Steel backing, provides high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance.
WASHER SIZE CHART
| Di (mm) | Do (mm) | ST (mm) | dD (mm) | dP (mm) | Ha max. (mm) | Ha min. (mm) | |
| WC08DX | 10 | 20 | 1.58 | 1.2 | 0.95 | ||
| WC10DX | 12 | 24 | 1.58 | 1.75 | 18 | 1.2 | 0.95 |
| WC12DX | 14 | 26 | 1.58 | 2.25 | 20 | 1.2 | 0.95 |
| WC14DX | 16 | 30 | 1.58 | 2.25 | 22 | 1.2 | 0.95 |
| WC16DX | 18 | 32 | 1.58 | 2.25 | 25 | 1.2 | 0.95 |
| WC18DX | 20 | 36 | 1.58 | 3.25 | 28 | 1.2 | 0.95 |
| WC20DX | 22 | 38 | 1.58 | 3.25 | 30 | 1.2 | 0.95 |
| WC22DX | 24 | 42 | 1.58 | 3.25 | 33 | 1.2 | 0.95 |
| WC24DX | 26 | 44 | 1.58 | 3.25 | 35 | 1.2 | 0.95 |
| WC25DX | 28 | 48 | 1.58 | 4.25 | 38 | 1.2 | 0.95 |
| WC30DX | 32 | 54 | 1.58 | 4.25 | 43 | 1.2 | 0.95 |
| WC35DX | 38 | 62 | 1.58 | 4.25 | 50 | 1.2 | 0.95 |
| WC40DX | 42 | 66 | 1.58 | 4.25 | 54 | 1.2 | 0.95 |
| WC45DX | 48 | 74 | 2.6 | 4.25 | 61 | 1.7 | 1.45 |
| WC50DX | 52 | 78 | 2.6 | 4.25 | 65 | 1.7 | 1.45 |
Technical Data
· Metal-Polymer Composite Bushing Material
· Steel back + Porous Bronze Sinter +
· PTFE + Fillers
Microsection
|
|
Sliding layer |
Tech. Data
|
Max. load |
Static |
250N/mm2 |
Max.speed |
Dry running |
0.08~0.20 |
|
|
Very low speed |
140N/mm2 |
Hydrodynamicoperation |
0.02~0.08 |
|||
|
Rotatingoscillating |
60N/mm2 |
Frictioncoefficient |
Dry |
2m/s |
|
|
|
Hydrodynamic |
>2m/s |
|
||||
|
Max. PVdryrunning) |
Short-termoperation |
3.6N/mm2*m/3 |
Thermal conductivity |
42W(m*K)-1 |
|
|
|
Continuousoperation |
1.8N/mm2*m/3 |
|
||||
|
PV max. hydrodynamic |
-195℃~+280℃ |
Coefficient of thermalexpansion |
11*10-6*K-1 |
|
||
|
OPERATING PERFORMANCE |
|
|
Dry |
Good |
|
Oil lubricated |
Very Good |
|
Grease lubricated |
Good |
|
Water lubricated |
Fair |
|
Process fluid lubricated |
Good |
Availability
Bearing forms available in standard dimensions
· Cylindrical bushes
· Flanged bushes
· Sliding plates
· Thrust washers
· Flanged washers
Metric bearings and imperial bushings made to order: Standard bushing forms in special sizes, half-bushings, stamped/deep drawn shapes, bearings with locating notches, lubricant holes and grooves, customized designs
