Bronze Bimetal Pump Bushing Self Lubricating Good Fatigue Properties

Place of Origin MADE IN CHINA
Brand Name VIIPLUS
Certification DIN 1494/ISO 3547
Model Number Wrapped sliding bearing
Minimum Order Quantity 100 Piece/Pieces (Min. Order)
Price self-lubricating bronze bushing china factory price
Packaging Details Export standard packing
Delivery Time 1~2 WEEKS
Payment Terms TT IN ADVANCE
Supply Ability Bushings Metric Sizes,Pump Bushings Suppliers

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Meterial Low Carbon Steel Wth Tin-Lead-Bronze Alloy (CuSn10Pb10) Plating Tin Plating, Cooper Plating
Type Bushes,Wrapped Bushes With Flange,Strips Application Gear Pump Bronze Gleitlager
Bearing Bushing Factory Price Tiffany@viiplus.com Self-lubricating Bearing Bushing Manufacturer Https://www.viiplus.com/
Self-lubricating Bearing Supplier Https://www.bronzeoilless.com/ Bush Bearings Manufacturers Suppliers Exporters Plain Bearings. Long, Maintenance-free Service, Manufactures Bushings In Various Designs And From Different Materials. Tiffany@viiplus.com, Bushings - Configure And Purchase - Https://www.viiplus.com/
High Light

oil filled bronze bearing

,

metric bronze flanged sleeve bearings

Leave a Message
Product Description

Bronze Bimetal Pump Bushing with Self-Lubricating and Good Fatigue Properties refers to a type of bushing used in pumps that combines the advantages of bronze material and bimetal construction, along with self-lubricating properties and excellent fatigue resistance.
Bronze, also known as sintered bronze, is a composite material made of metal particles bonded together by a sintering process. It offers good wear resistance, mechanical strength, and corrosion resistance. Bimetal construction means the bushing is made of two different metals, typically a soft inner layer for improved conformability and a harder outer layer for increased durability.
The self-lubricating feature allows the bushing to operate smoothly without the need for external lubricants, reducing friction and wear. This extends the life of the bushing and decreases maintenance requirements.
Good fatigue properties refer to the ability of the bushing to withstand repeated stress and strain cycles without failure. This is crucial in pump applications, where the bushings are subject to constant motion and loading.
Overall, Bronze Bimetal Pump Bushings with Self-Lubricating and Good Fatigue Properties are designed to provide reliable and long-lasting performance in demanding pump applications.


Pump Bearings Supplier


We are committed to helping SME Globle enterprises around the world develop entrepreneurship, promote business development, export more bearings and bushings, and provide one-stop online order Self-lubricating bearing solutions for procurement engineers and purchasing manager.


Your Pump Bushing Partner


Today's business climate demands cost effectiveness, reliability,flexibility & technical support. When specifying and purchasing pump bushings,VIIPLUS is the proven choice for value and performance for both OEM and maintenance water lubricated pump bushing and bearings applications.

VIIPLUS BUSHING MADE IN CHINA material use as a high performance pump bearing. VIIPLUS is an elastomeric polymer alloy that provides exceptional wear life. The Sliding Bearing raw material in china are manufactured to ISO 9001 Quality System requirements ensuring high quality and consistency.

Plain Bearings gearbox bronze gleitlager bushing Gear Pump Bushings Bimetal Bearings Self lubricating beairng gear pump bronze gleitlager | VSB-80
VIIPLUS Bimetallic Bearing's steel-bronze-compound material with indents as reservoir for the grease. JF800 Bimetallic Bearings has high load capacity, very good resistance to fatigue strength at higher temperatures. JF800 Bimetallic Bearings is applicable in rough operation conditions.
Bimetal Bearings Strips, Slide paths Sliding Plate Bimetallic strip Materials

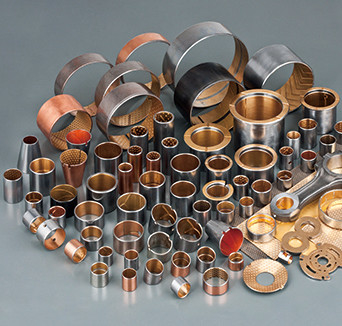

We have a large selection of plain and flanged bearings for various applications. With more than 2,500 dimensions in our warehouse and with the co-operation of skilled subcontractors, we are one of the most reliable suppliers available. With us you can order your products according to your own drawings and specifications or you can choose from our large and wide standard selection. In addition, our short lead times and good logistics makes us an efficient and reliable partner.


Bimetal Bearings



Low Carbon Steel Bi Metal Bearings Tin - Lead - Bronze Alloy For Transmission Gear Box


Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties, it is widely used in automotive applications such as compressors
hydraulic system application
For Gear Pump Bushings

Bronze Bimetal Pump Bushing Self Lubricating Good Fatigue Properties 0


Characteristics



VSB-80 Bimetallic composite bearings
Steel shell backed with a lead bronze lining bearing material for oil lubricated applications. This material has high load capacity and good fatigue properties. It is widely used in automotive applications such as compressors, steering gear, power steering, pedal bearings, king-pin bushes, tailgate pivots, mechanical handling and lifting equipment, hydraulic motors, agricultural machinery etc.
· Bimetal bearing with steel backing and bronze overlay
· Particularly suitable for high specific loads with oscillating motion and low frequency
· Applicable in rough operation conditions
· High load capacity, very good resistance to fatigue strength at higher temperatures





Strusture




1.Sintered bronze lazer: Good wear resistance and excellent load carrying capacity.


2.Steel backing:Setting the foundation of the bushings,the steel back provides exceptional stability, load carrying and heat dissipation characteristics.




Technical Data


Structure And Composition



Steel Backing and Leaded Bronze Overlay
Steel + CuPb10Sn10 with indents





Microsection



Bronze Bimetal Pump Bushing Self Lubricating Good Fatigue Properties 1

Sliding layer with
lubrication indents
CuPb10Sn10 with
composition approx.:
Cu 80 %
Pb 10 %
Sn 10 %
Steel backing




OPERATING PERFORMANCE

Dry

Poor

Oil lubricated

Good

Grease lubricated

Very Good

Water lubricated

Poor

Process fluid lubricated

Poor



Tech. Data


Alloy Chemical Compositions



Content

Cu

Pb

Sn

Zn

P

Fe

Ni

Sb

Others

Remainder

9-11

9-11

0.5

0.1

0.7

0.5

0.2

0.5



Availability


Bearing forms available in standard dimensions
· Cylindrical bushes
· Thrust washers
Bearing forms made to order: cylindrical bushes and thrust washers with non-standard dimensions, sliding plates, customized bearing designs




Typical Applications




This material is recommended to be used under the medium speed and medium load condition with oil or grease lubricating. It is widely used for motor rod ends, Kingpin bushing, undercarriage rollers, hydraulic cylinder rod eyes of construction machines and spherical joint bearings of agricultural machines. Because this material is with lead, the specific parts are not allowed to be used according to certain laws or regulations.
